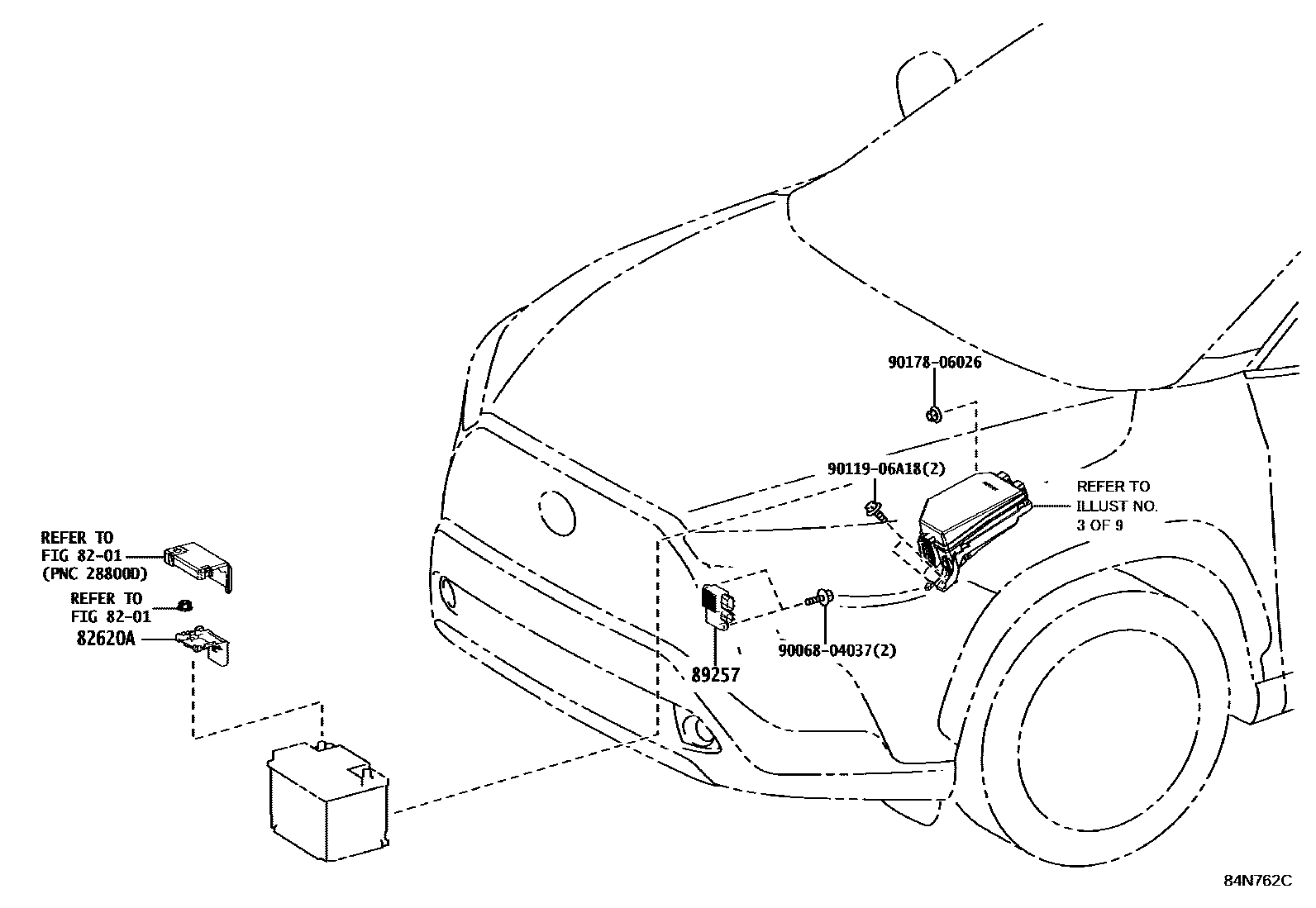

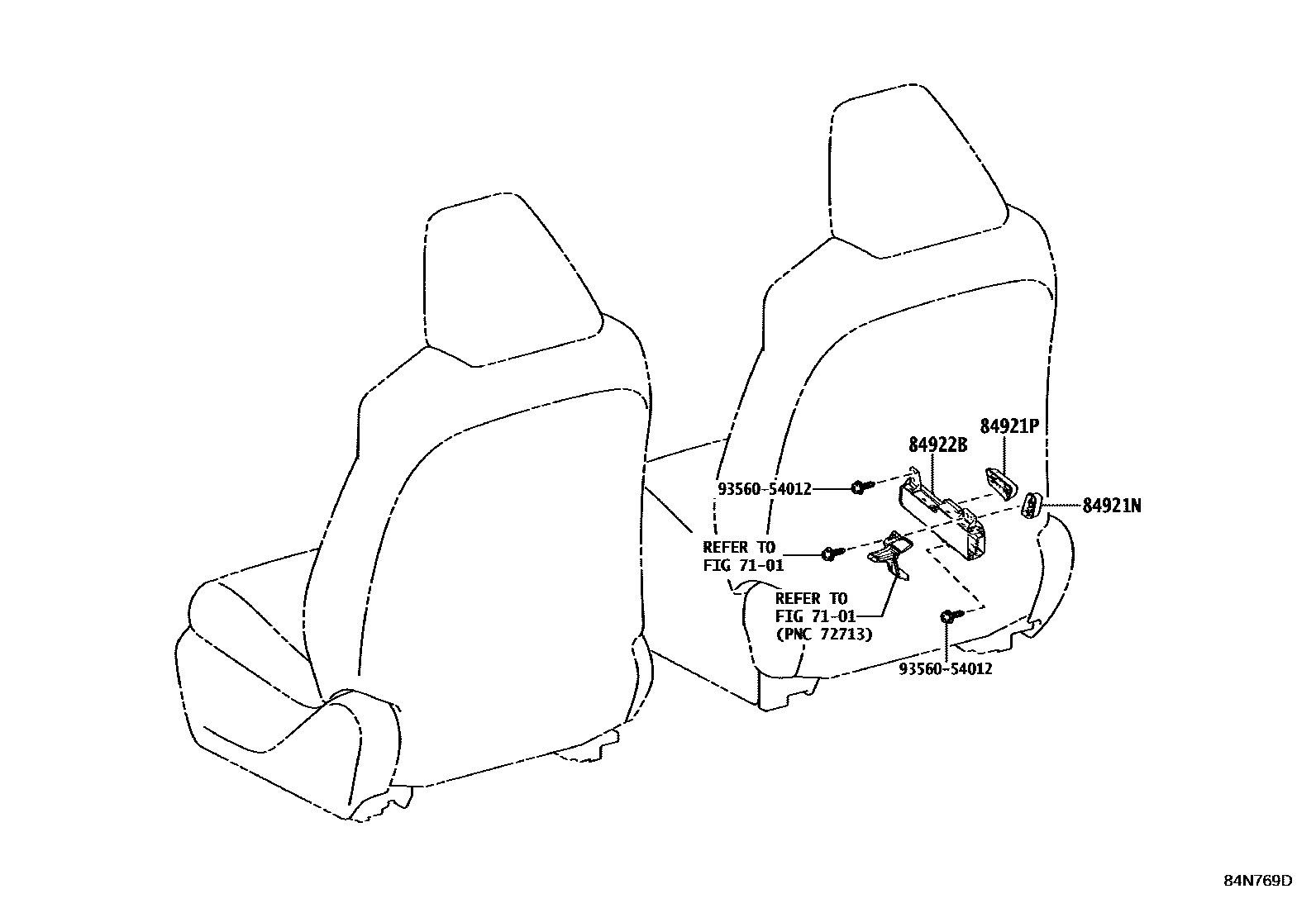

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 18 images and 136 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100P | water pump relay | 90987-02027 |
| 28300 | Starter relay assembly | 28300-21020 |
| 28371 | No. 1 ignition relay | 90987-02027 |

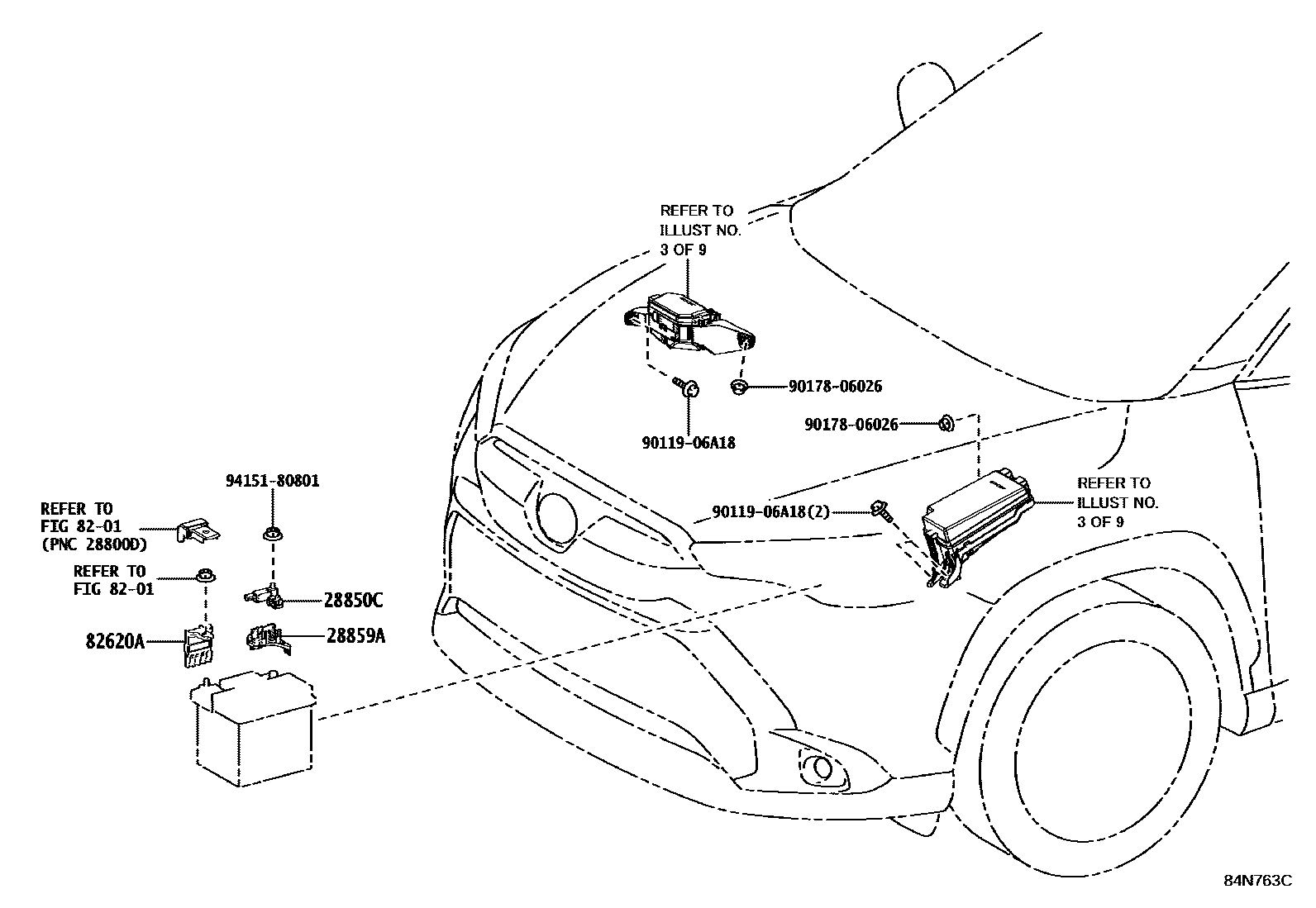

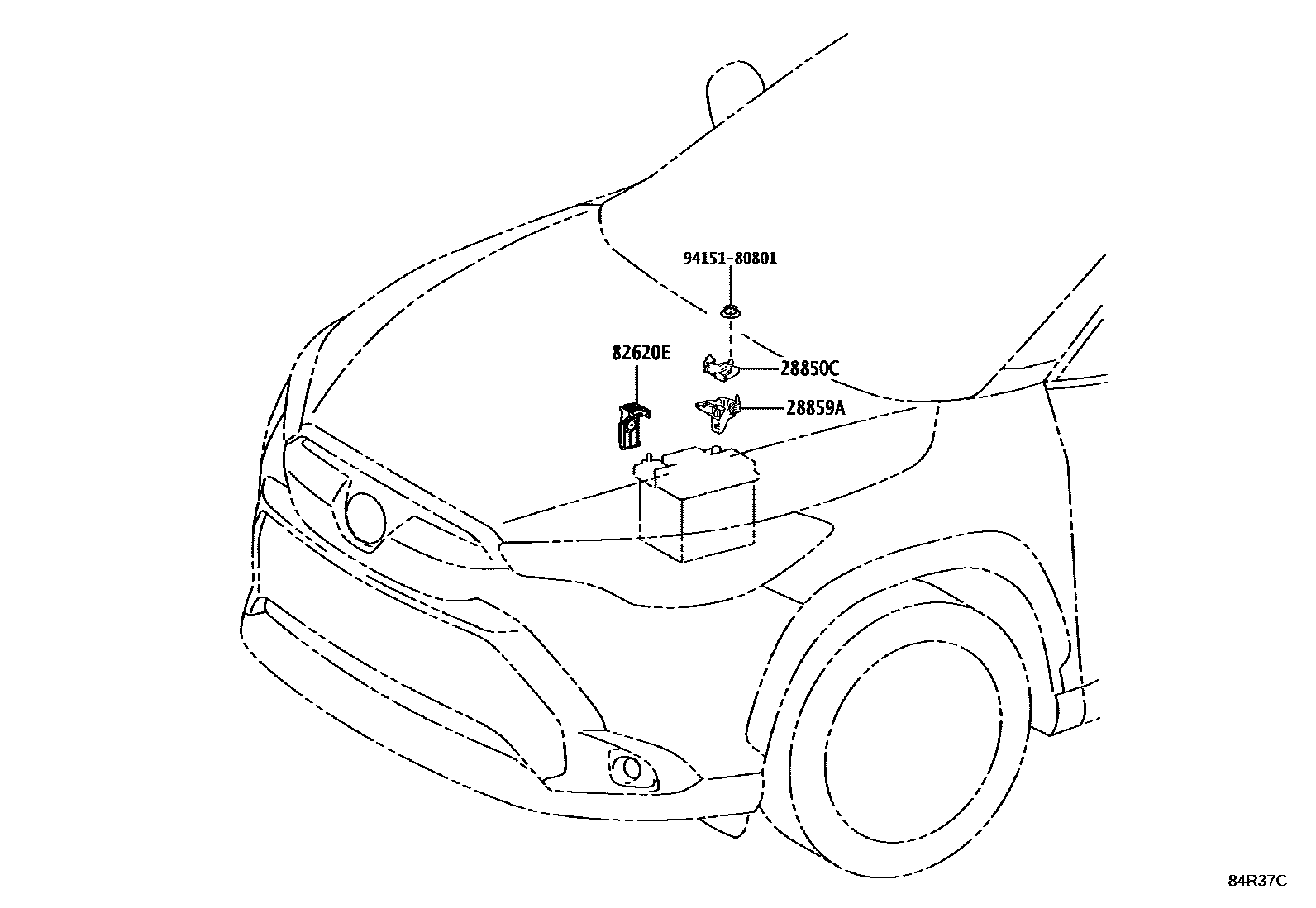

| 28850C | Toyota part | 28850-25010 · 28850-K0010 |
| 28859A | Toyota part | 28859-37040 · 28859-37080 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08294 · 90982-08295 · 90982-08296 · 90982-08299 · 90982-08300 · 90982-08301 · 90982-08302 · 90982-08303 · 90982-08304 · 90982-08305 · 90982-08307 · 90982-08308 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09025 · 90982-09026 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |

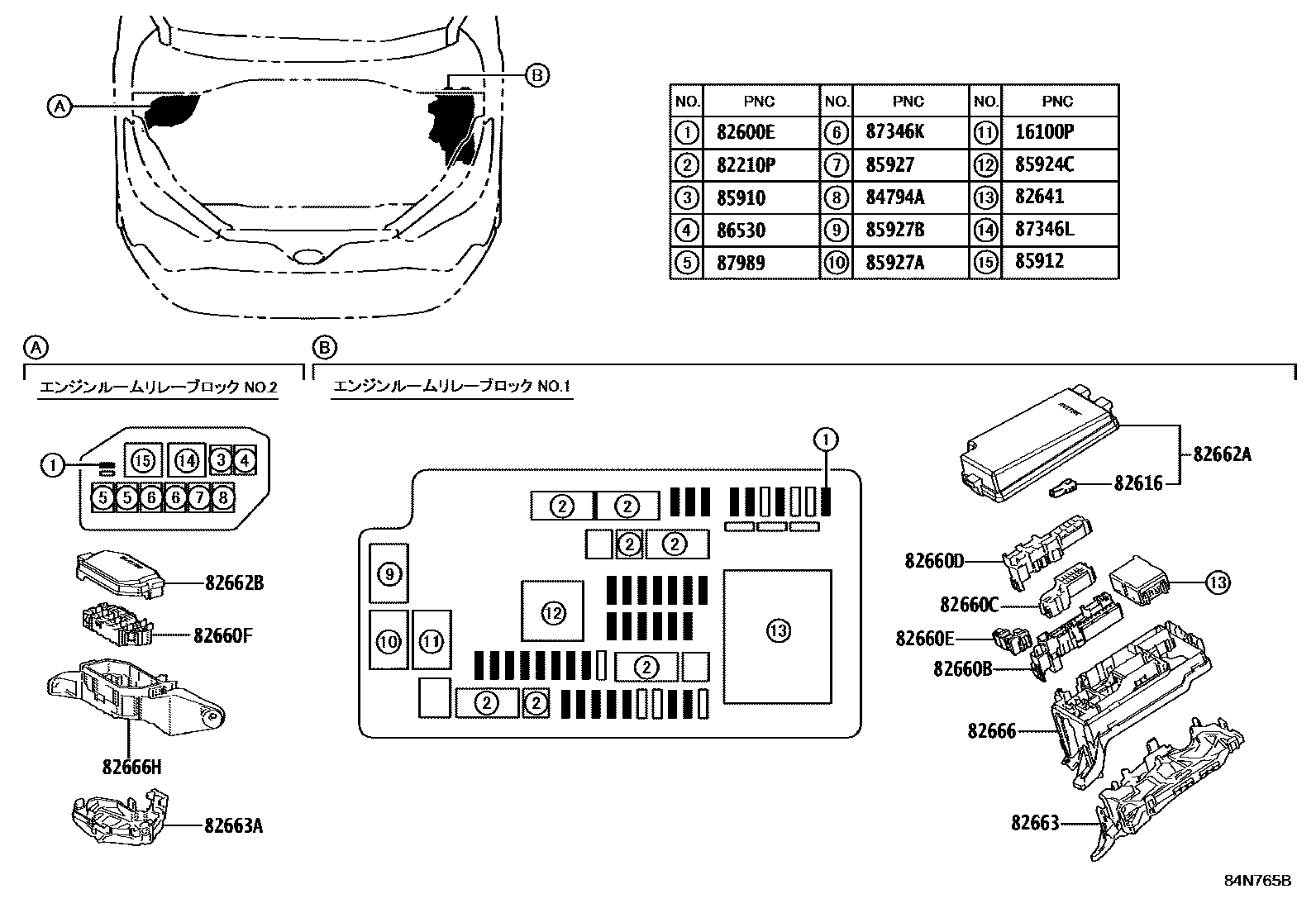

| 82613A | fuse box base | 82613-28010 · 82613-47020 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-12310 · 82620-16100 · 82620-47090 |
| 82620B | Fuse box assembly | 82620-12330 |
| 82620D | Fuse box assembly | 82620-16140 |
| 82620E | Fuse box assembly | 82620-16150 |
| 82620G | Toyota part | 82620-16120 |
| 82641 | Integrated relay No. 1 | 82641-47050 |
| 82642B | No. 1 daytime running light relay | 90987-02027 |
| 82643B | Toyota part | 90987-02027 |
| 82660B | Relay assembly | 82660-0D050 · 82660-12390 · 82660-12420 |
| 82660C | Relay assembly | 82660-0A050 · 82660-12400 · 82660-16480 · 82660-47090 |
| 82660D | Relay assembly | 82660-0A060 · 82660-12360 · 82660-16490 · 82660-47070 |
| 82660E | Relay assembly | 82660-12430 · 82660-12470 · 82660-16470 |
| 82660F | Relay assembly | 82660-12410 · 82660-16500 · 82660-16530 |
| 82660G | Relay assembly | 82660-16510 |
| 82660J | Toyota part | 82660-47100 |
| 82662A | No. 1 relay box upper cover | 82662-16250 · 82662-16260 · 82662-16370 · 82662-16380 |
| 82662B | No. 2 relay box upper cover | 82662-16280 · 82662-47350 |
| 82663 | Relay box lower cover | 82663-12160 · 82663-16020 · 82663-47070 |
| 82663A | No. 2 relay box lower cover | 82663-47090 |
| 82663B | No. 3 relay box lower cover | 82663-12150 |
| 82666 | Connector holder | 82666-12650 · 82666-12660 · 82666-16050 |
| 82666H | Connector holder No. 2 | 82666-47620 |
| 82672A | Junction box cover | 82672-16080 |
| 82673A | Junction box bracket | 82673-16050 · 82673-47190 |
| 82673B | Junction box bracket | 82673-16060 · 82673-47210 |
| 82715W | Toyota part | 82729-20040 |
| 82715X | Toyota part | 82715-47690 |
| 82715Y | Toyota part | 82715-10330 |
| 82715Z | Toyota part | 82715-10310 · 82715-10410 · 82715-12V90 · 8946A-12030 |

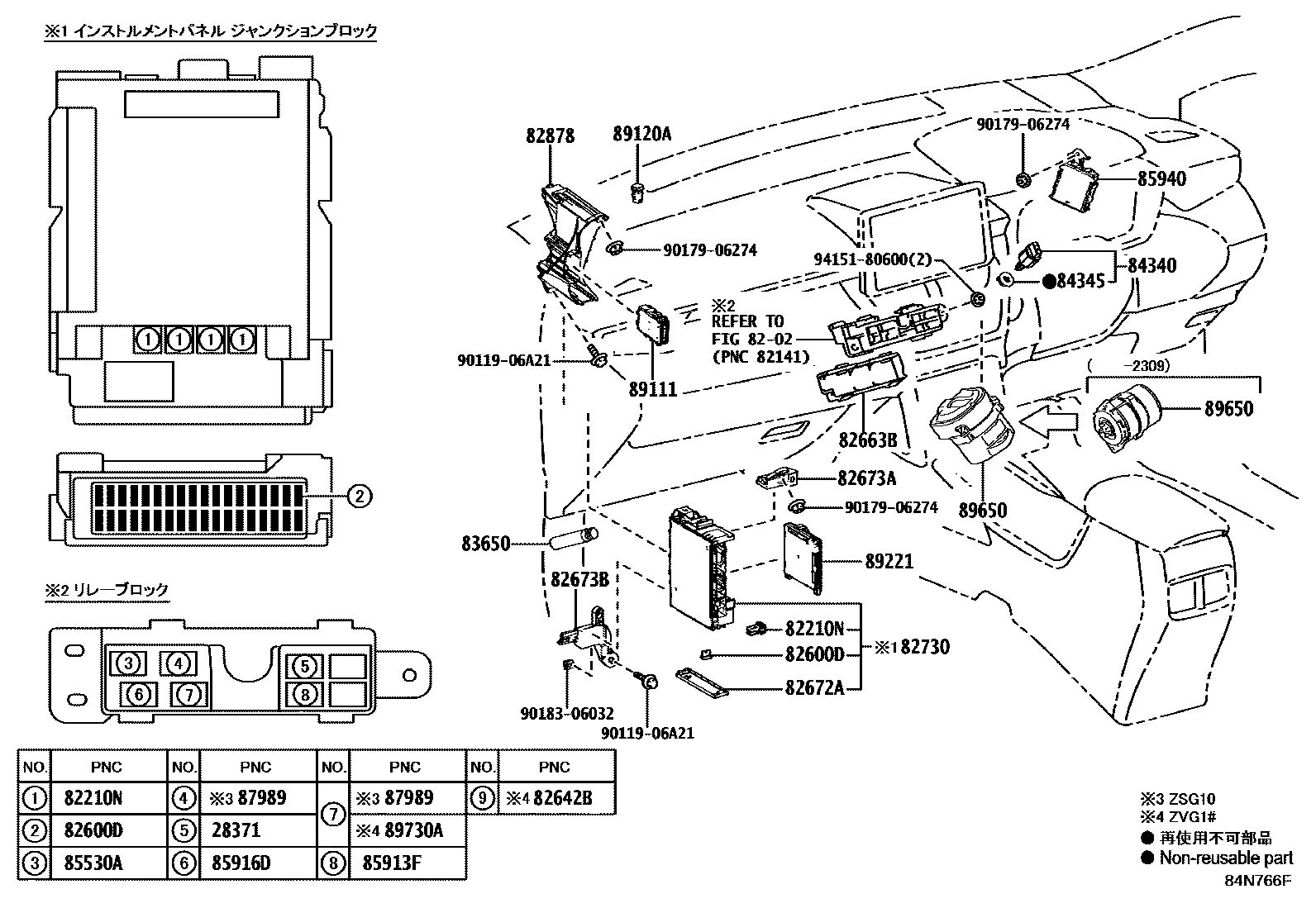

| 82730 | Instrument panel junction box assembly | 82730-16170 · 82730-16220 |

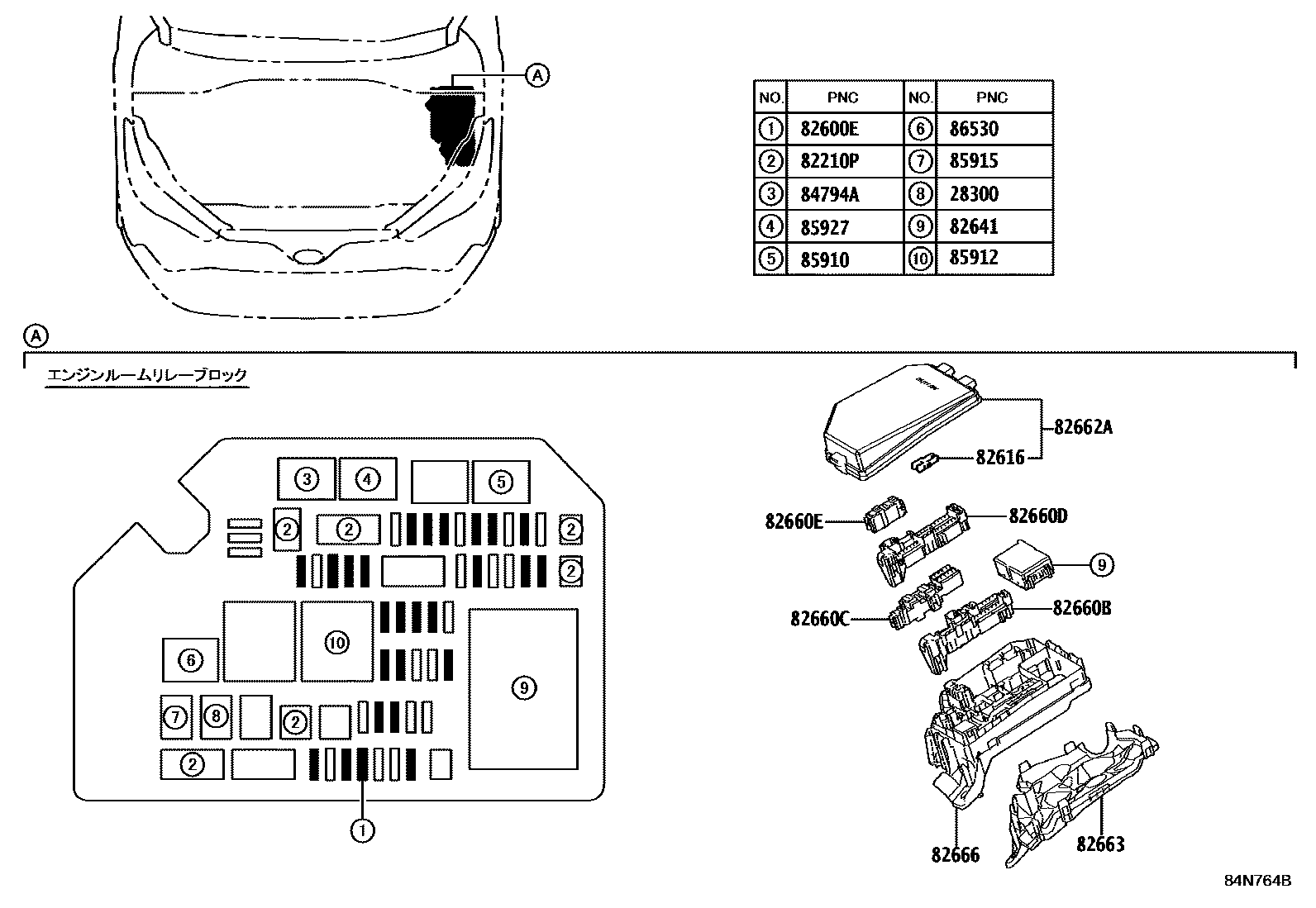

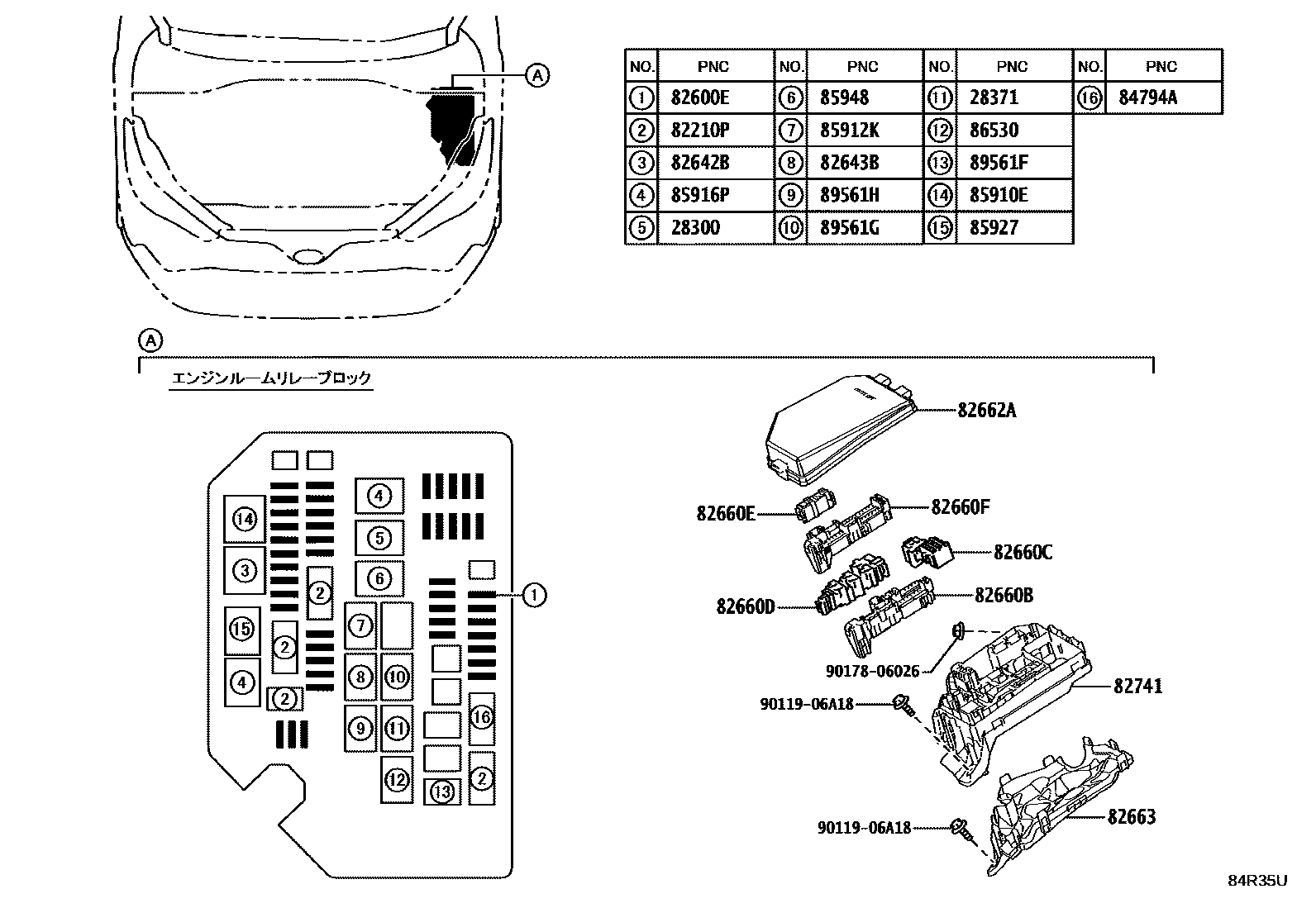

| 82741 | Engine room relay box | 82741-0A020 |
| 82878 | Left ECU integrated box | 82878-16010 · 82878-47020 |

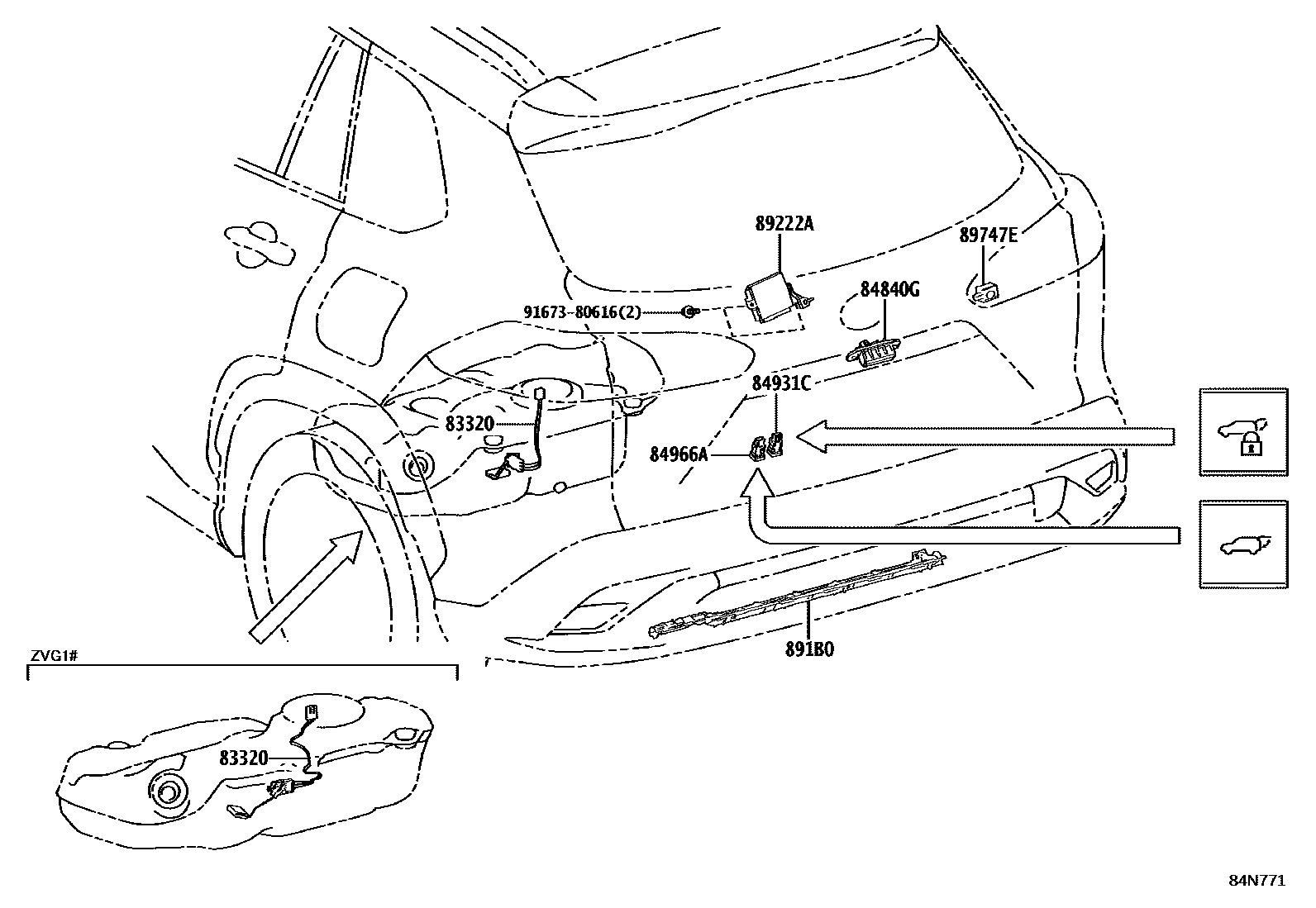

| 83320 | Fuel gauge sensor assembly | 83320-16310 · 83320-16320 · 83320-76010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-12060 |
| 83650 | fuse | 90986-01005 |
| 84040 | Multi-channel network main switch assembly | 84040-16030 · 84040-52060 |
| 84152 | Headlight beam height adjustment switch | 84152-12100 · 84152-16040 |
| 84153 | Automatic high beam switch | 84153-16010 · 84153-33040 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |

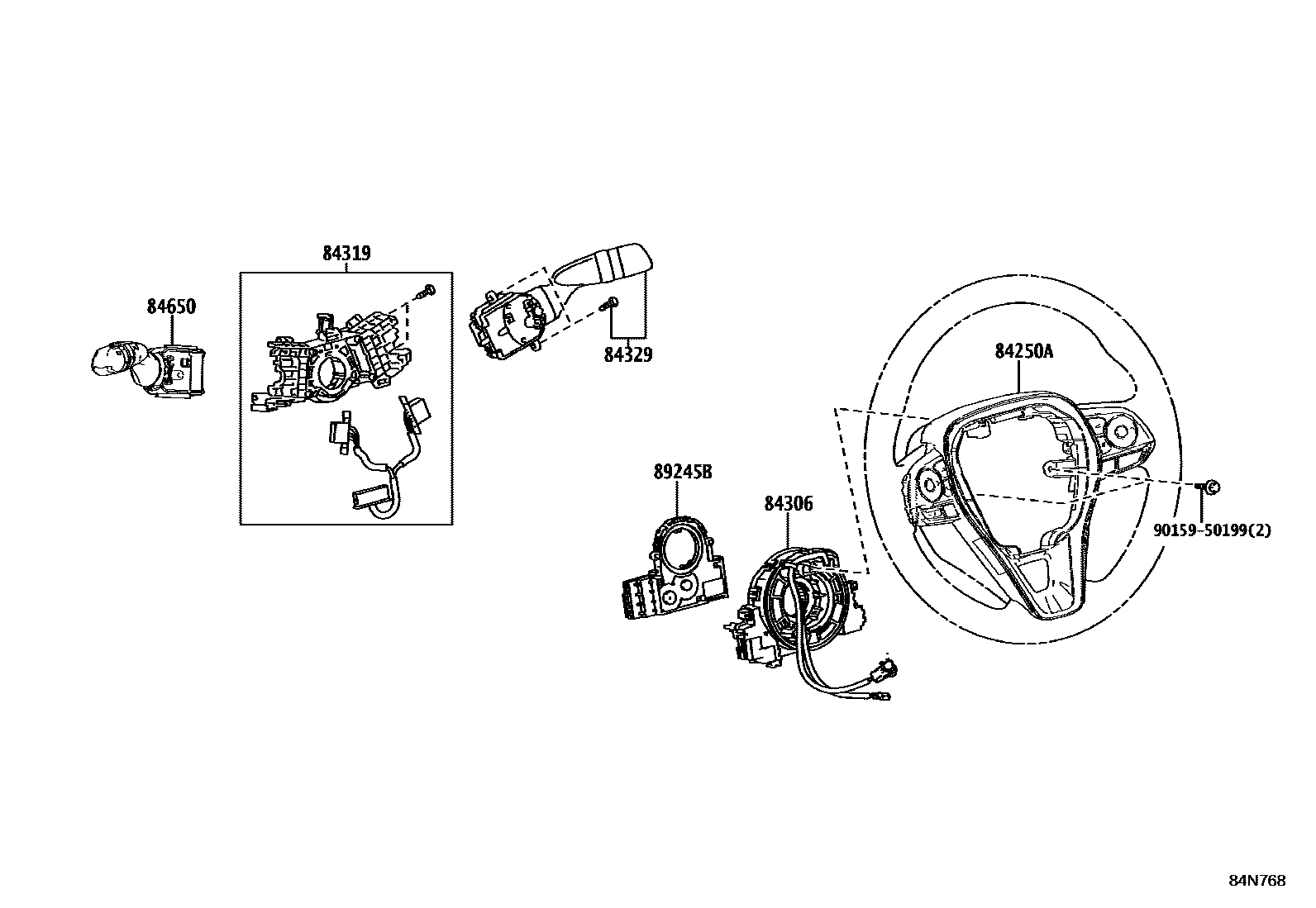

| 84250A | Steering wheel decorative cover switch assembly | 84250-12580 · 84250-12690 · 84250-12700 · 84250-12730 |
| 84255 | Steering heater switch | 84255-16010 · 84255-33010 |
| 84306 | Spiral cable sub-assembly | 84308-52010 · 84308-78040 |
| 84319 | Steering wheel switch housing | 84319-33030 |
| 84329 | turn signal switch | 84329-52010 · 84329-K0010 · 84329-K0020 · 84329-K0030 |

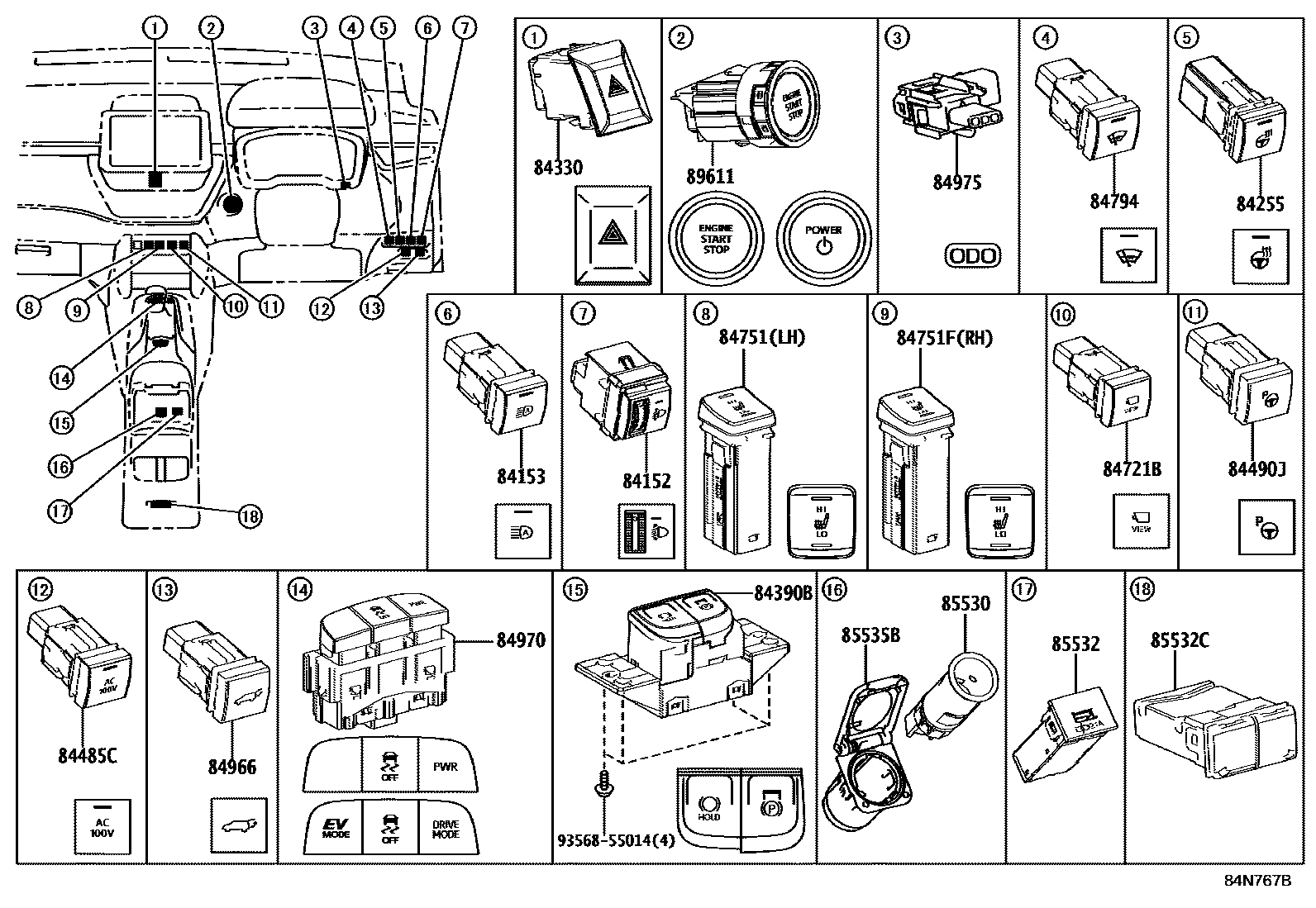

| 84330 | Hazard warning signal switch assembly | 84332-12600 |
| 84340 | brake light switch assembly | 84340-19095 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84390B | Electric parking brake switch assembly | 84390-12070 · 84390-12071 · 84390-16031 |
| 84485C | Toyota part | 84485-12010 · 84485-12020 |
| 84490J | Toyota part | 84490-16010 |
| 84540 | Neutral start switch assembly | 84540-52070 |
| 84650 | Windshield wiper switch assembly | 84652-12B40 · 84652-12B50 · 84652-42210 |
| 84721B | Toyota part | 84721-16010 · 84721-33010 |
| 84751 | Seat heater switch | 84751-16020 · 84751-42050 |
| 84751F | Seat heater switch | 84751-16030 · 84751-42060 |
| 84794 | Front wiper de-icer switch | 84794-53020 · 84871-60060 |
| 84794A | Front wiper de-icer relay | 90987-02027 |

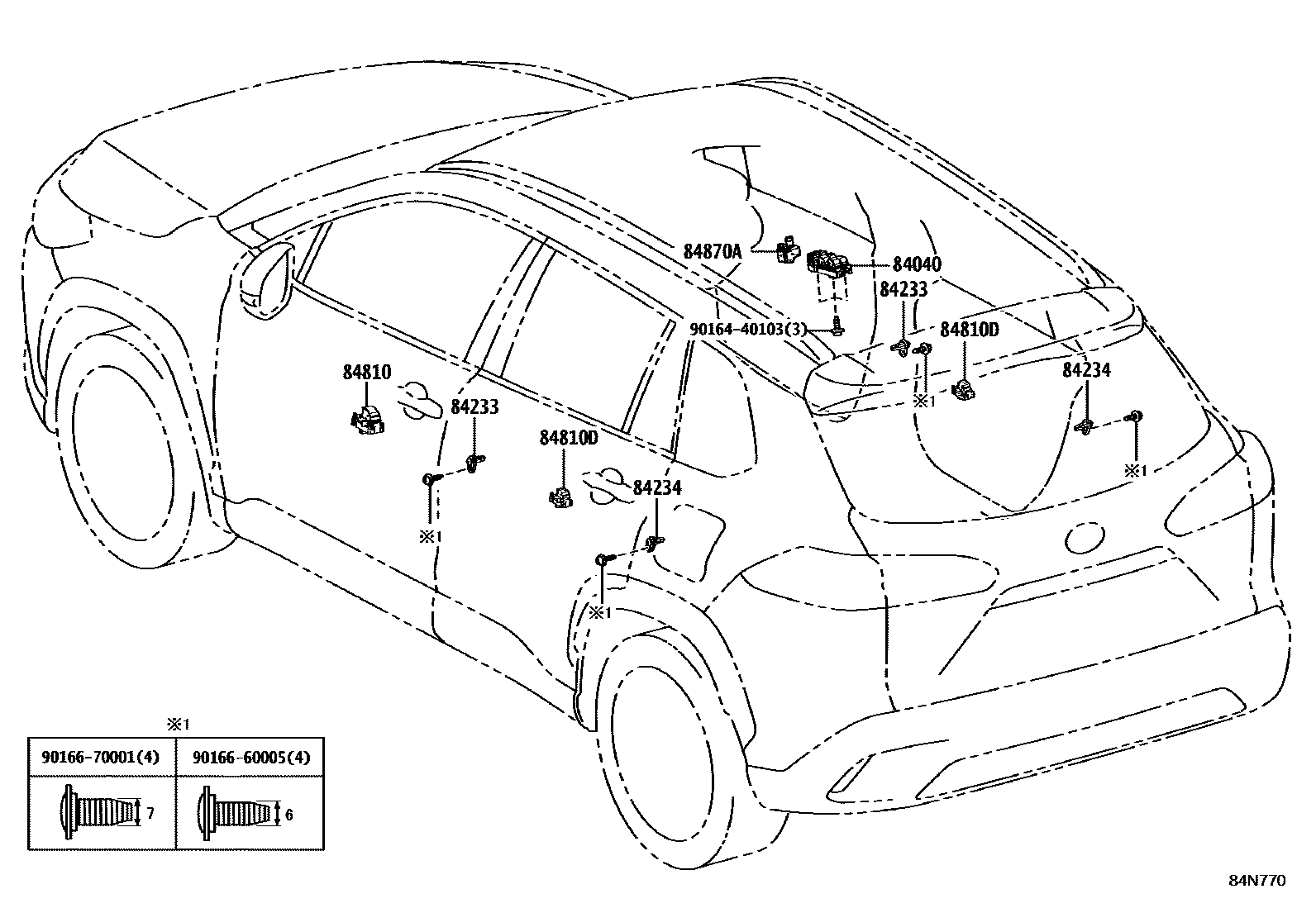

| 84810 | Electric window lift switch assembly | 84810-12100 |
| 84810D | Rear electric window lift switch assembly | 84810-12100 |
| 84840G | Back door opener switch assembly | 84840-47030 · 84840-47040 · 84840-52040 · 84840-58010 |
| 84870A | Exterior rearview mirror switch assembly | 84872-12190 · 84872-16020 |
| 84931C | Back door control switch | 84930-16040 · 84930-52090 |
| 84966 | Toyota part | 84966-16020 · 84966-42010 |
| 84966A | Toyota part | 84966-16020 · 84966-42010 |
| 84970 | Combination switch assembly | 84970-12200 · 84970-12390 · 84970-16010 · 84970-16050 |
| 84975 | trip odometer switch | 84975-16010 |

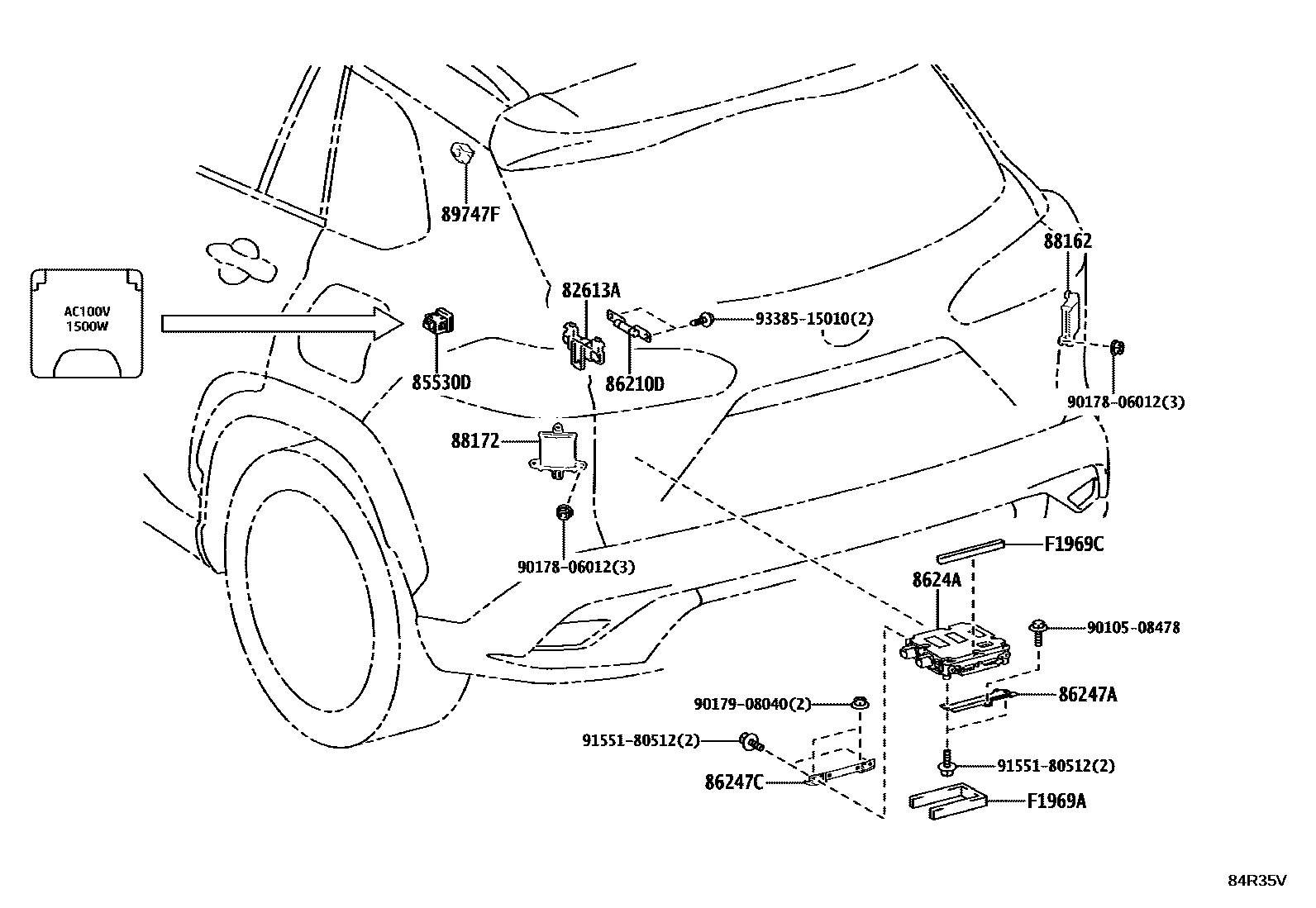

| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85530A | power outlet relay | 90987-02027 |
| 85530D | No. 2 power socket assembly | 85530-16010 |
| 85532 | Toyota part | 85532-12020 · 85532-60060 |
| 85532C | Toyota part | 85532-33020 · 85532-60040 |
| 85535B | No. 1 power outlet cover | 85535-12080 |
| 85910 | Circuit breaking relay assembly | 90987-02027 |
| 85910E | Injector relay | 90987-02027 |
| 85912 | defogger relay | 90987-04010 |
| 85912K | Toyota part | 90987-02027 |
| 85913F | Steering heater relay | 90987-02027 |
| 85915 | main relay | 90987-02027 |
| 85916D | fog light relay | 90987-02027 |
| 85916P | headlight relay | 90987-02027 |
| 85924C | Toyota part | 90987-02025 · 90987-02027 |
| 85927 | cooling fan relay | 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02027 |
| 85940 | Windshield wiper relay assembly | 85940-12230 |
| 85948 | windshield wiper relay | 90987-02027 |
| 86210D | High voltage fuse | 90982-11053 |

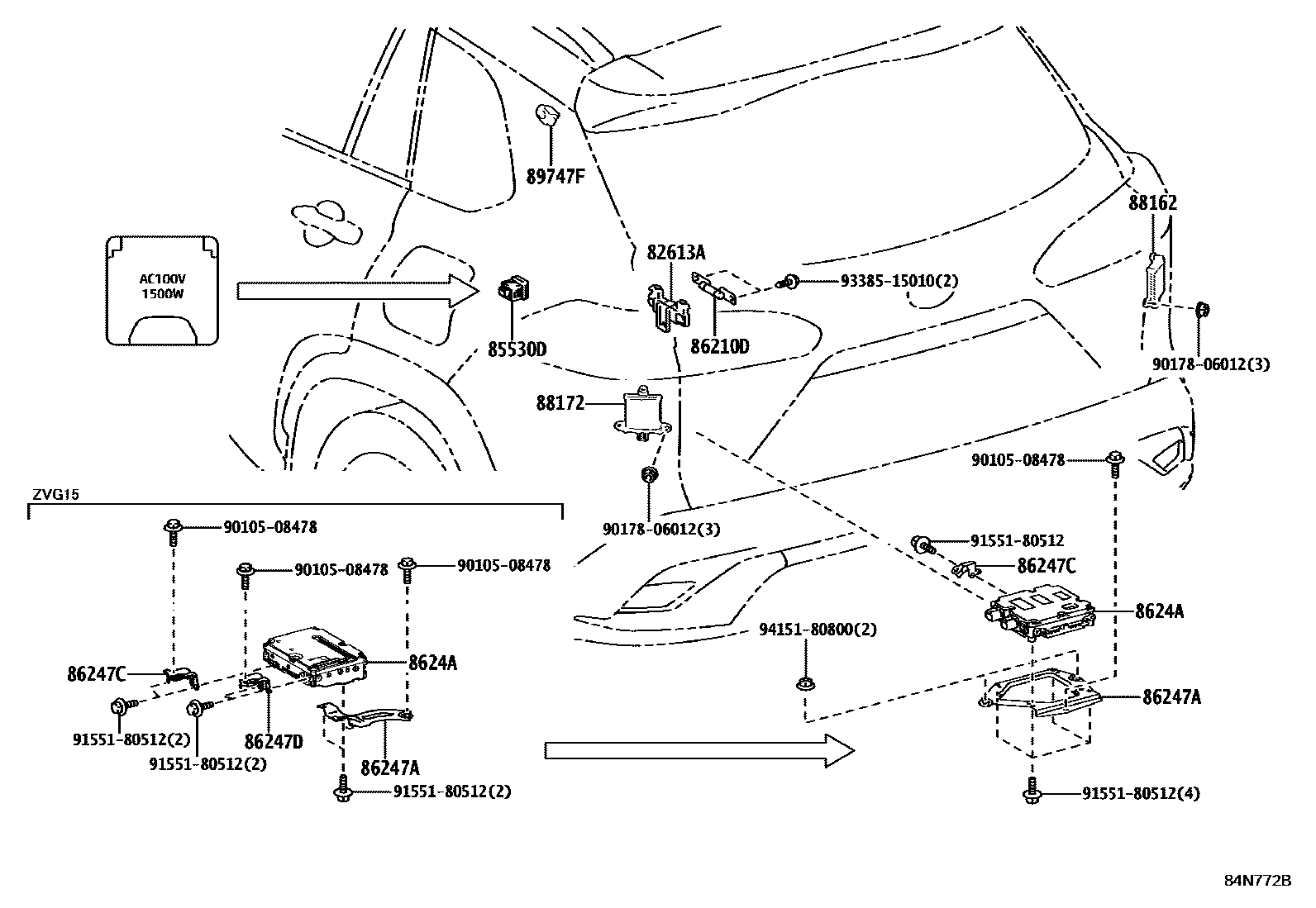

| 86247A | Voltage inverter bracket | 86247-12060 · 86247-16010 · 86247-47170 |
| 86247C | Toyota part | 86247-16020 · 86247-47080 · 86247-47180 |
| 86247D | Toyota part | 86247-47190 |
| 8624A | Toyota part | 8624A-16010 · 8624A-78010 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 87346K | PTC heater relay | 90987-02027 |
| 87346L | PTC heater relay | 90987-02025 |
| 87989 | Rearview mirror control relay | 90987-04004 |
| 88162 | Blind spot monitor right sensor | 88162-16020 · 88162-16050 |
| 88172 | Blind spot monitor left sensor | 88162-16020 · 88162-16050 |
| 89111 | Network gateway ECU | 89111-12170 · 89111-12190 · 89111-30170 · 89111-47090 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 891B0 | Toyota part | 891B0-16010 |
| 89221 | Multi-channel network body ECU | 89220-16010 · 89220-16020 · 89220-16030 · 89220-16040 · 89220-16050 · 89220-16060 · 89220-16070 · 89220-16080 · 89220-16230 · 89220-16240 · 89220-16250 · 89220-16260 |
| 89222A | Multi-channel network door ECU | 89222-16030 · 89222-16031 · 89222-16032 · 89222-16080 |
| 89245B | steering sensor | 8924B-50050 · 8924B-V1010 |
| 89257 | Cooling fan ECU | 89257-K0010 · 89257-K0020 |
| 89419B | Toyota part | 89419-K2010 |
| 89422A | water temperature sensor | 89422-33040 |
| 89429F | temperature sensor | 89429-12010 |
| 89451A | shift lever position sensor | 89451-10010 · 89451-28020 · 89451-42010 |

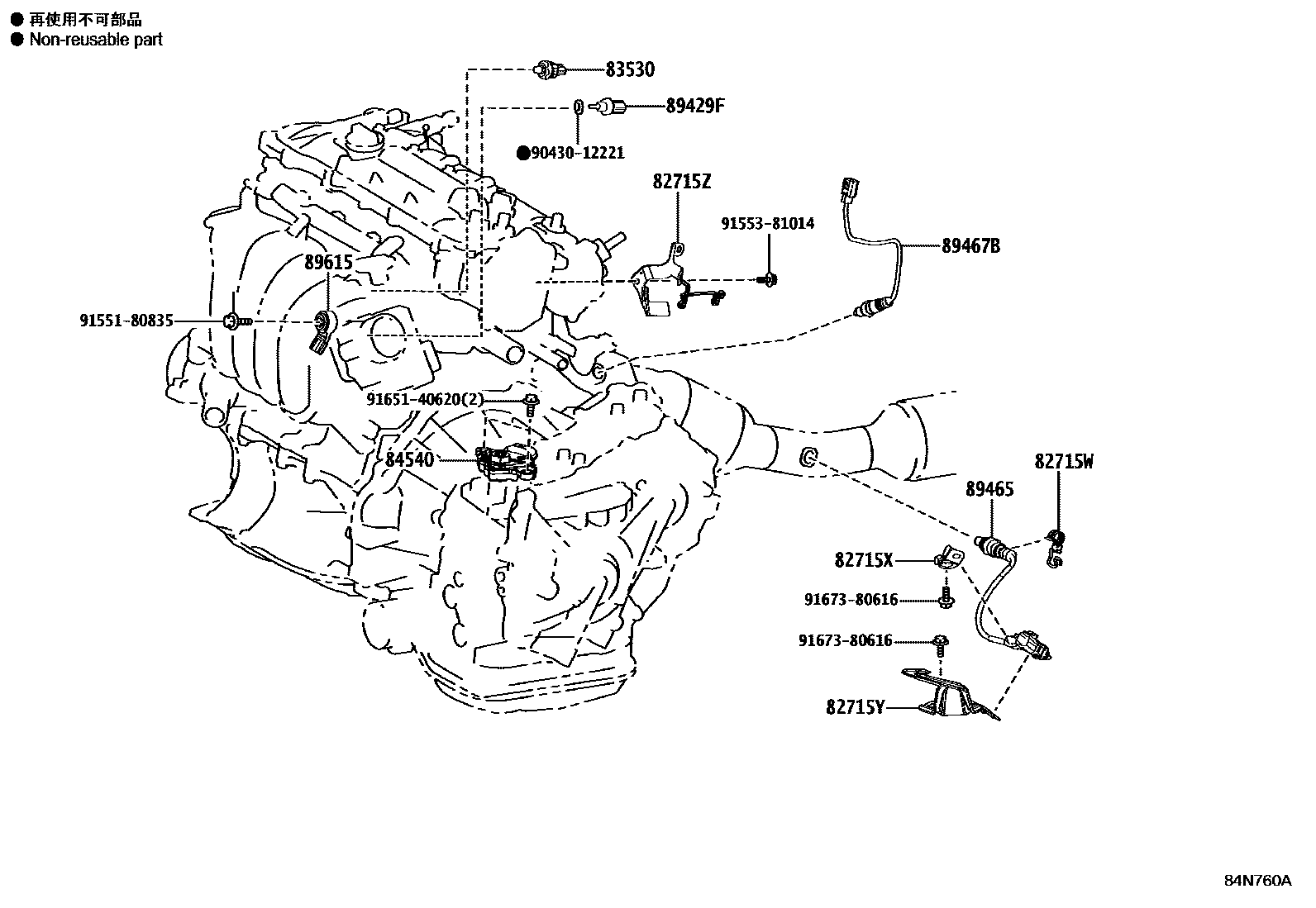

| 89465 | oxygen sensor | 89465-10080 · 89465-10140 |

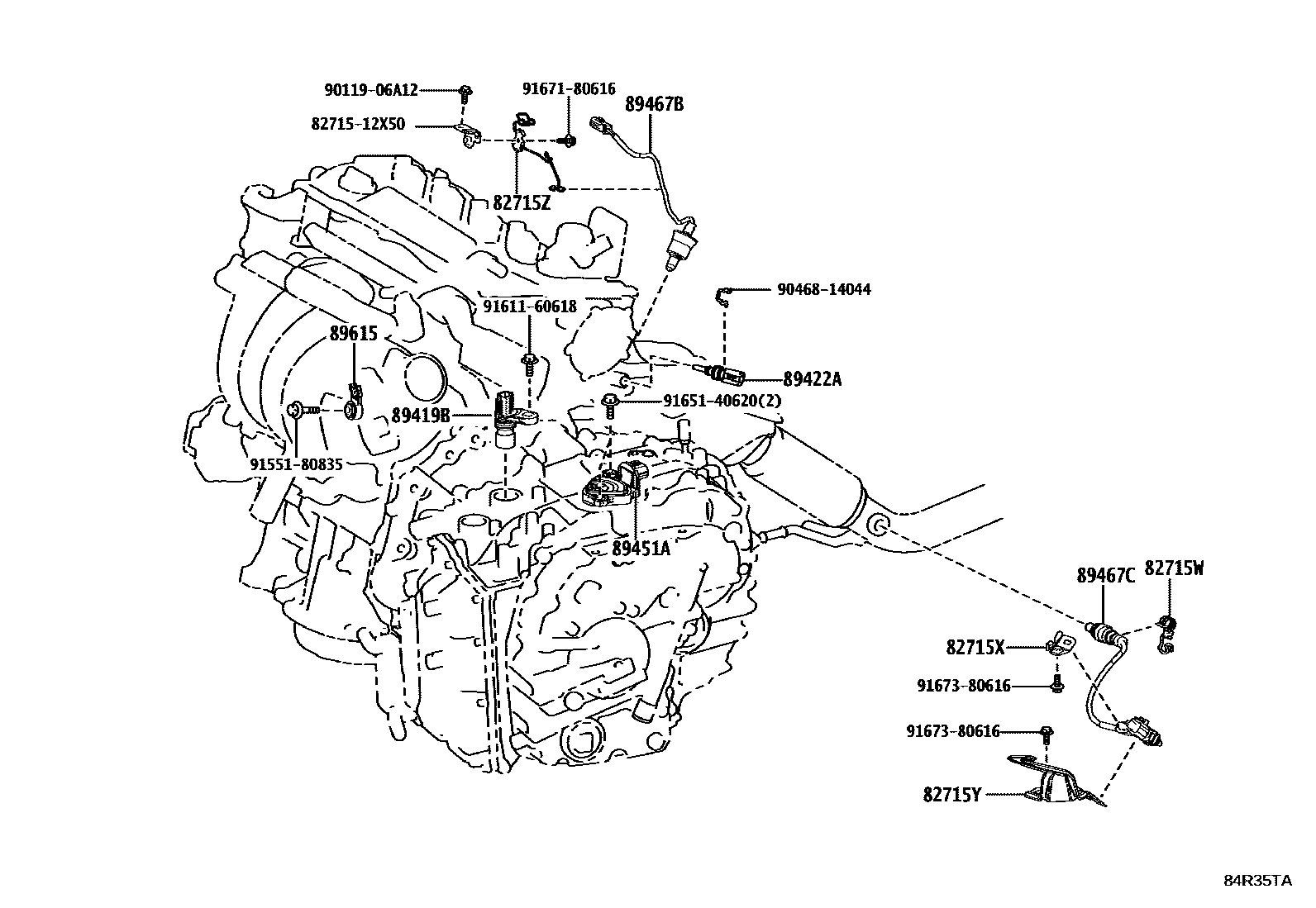

| 89467B | air fuel ratio sensor | 89467-12260 · 89467-12340 · 89467-47030 · 89467-47040 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-16030 |

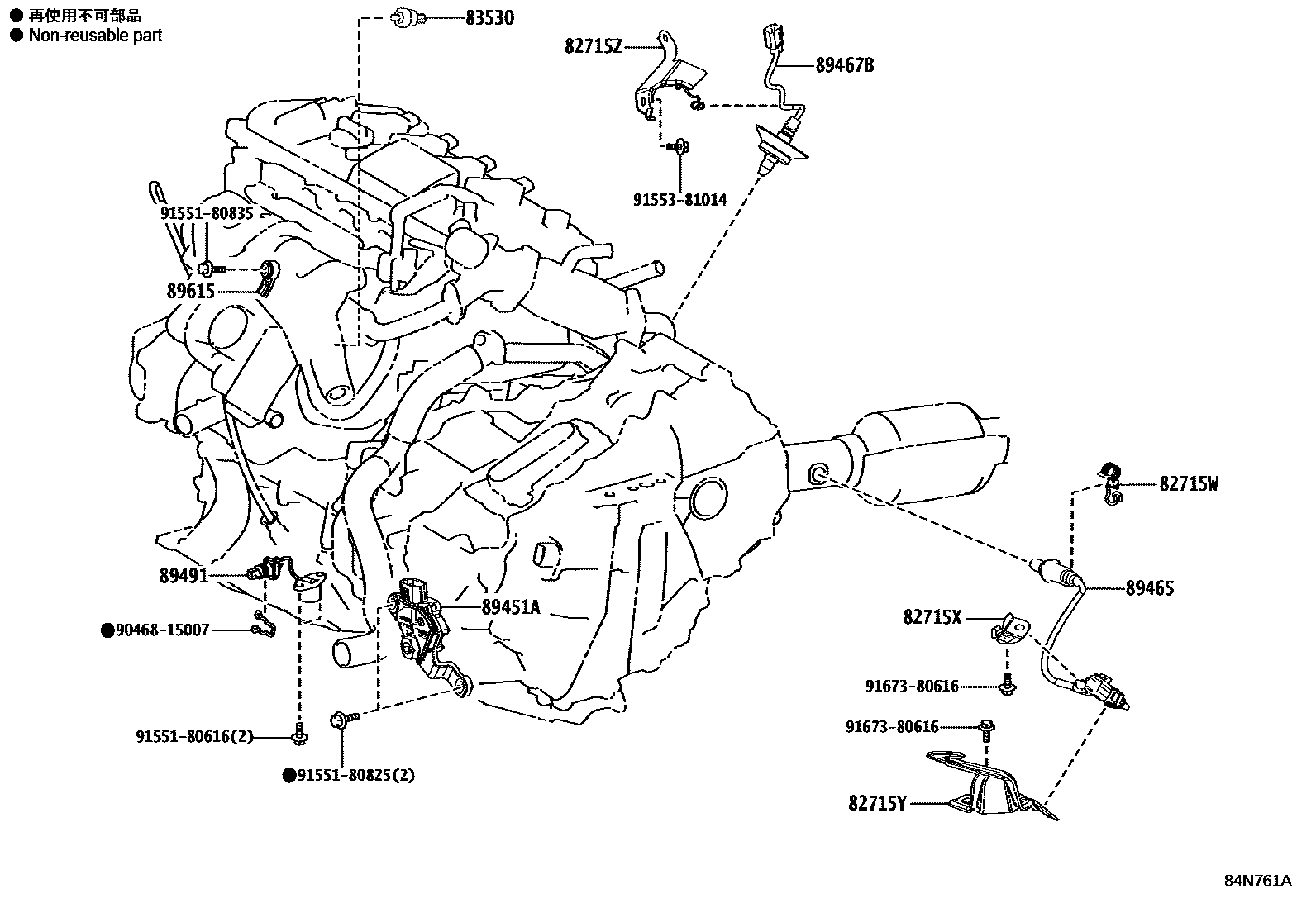

| 89491 | Engine oil level sensor | 89491-28090 · 89491-28091 |
| 89561F | Toyota part | 90987-02027 |
| 89561G | Toyota part | 90987-02027 |
| 89561H | Toyota part | 90987-02033 |
| 89611 | push button start switch | 89611-12010 · 89611-12020 · 89611-30160 · 89611-V2010 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-16180 · 89650-16570 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
| 89747E | Electric back door warning buzzer | 89747-30040 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| F1969A | Toyota part | F1969-12040 |
| F1969C | Toyota part | F1969-12050 |
| G9020E | Hybrid water pump relay | 90987-02027 |
