Toyota COROLLA 线束和卡夹 — Figure 8202

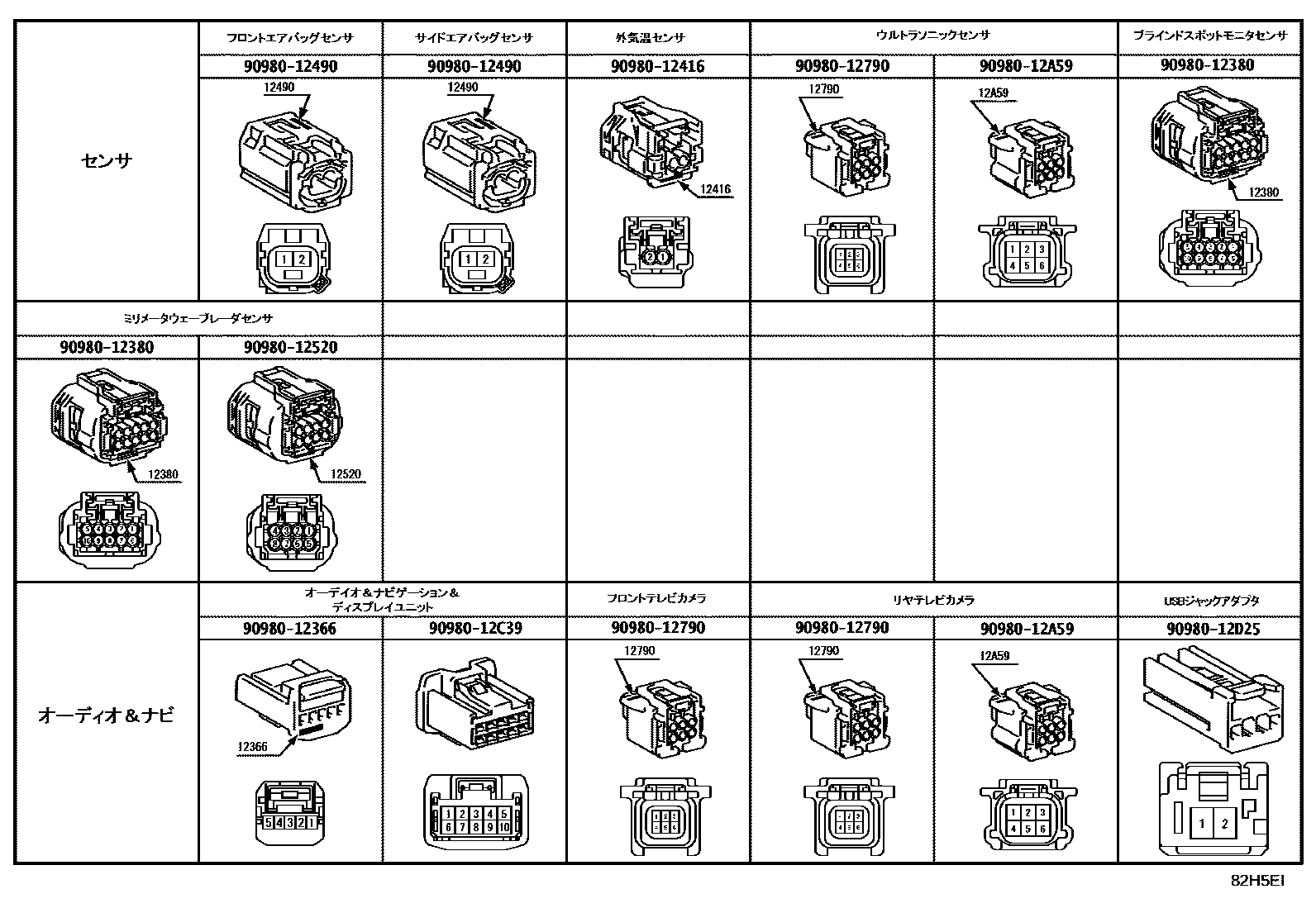

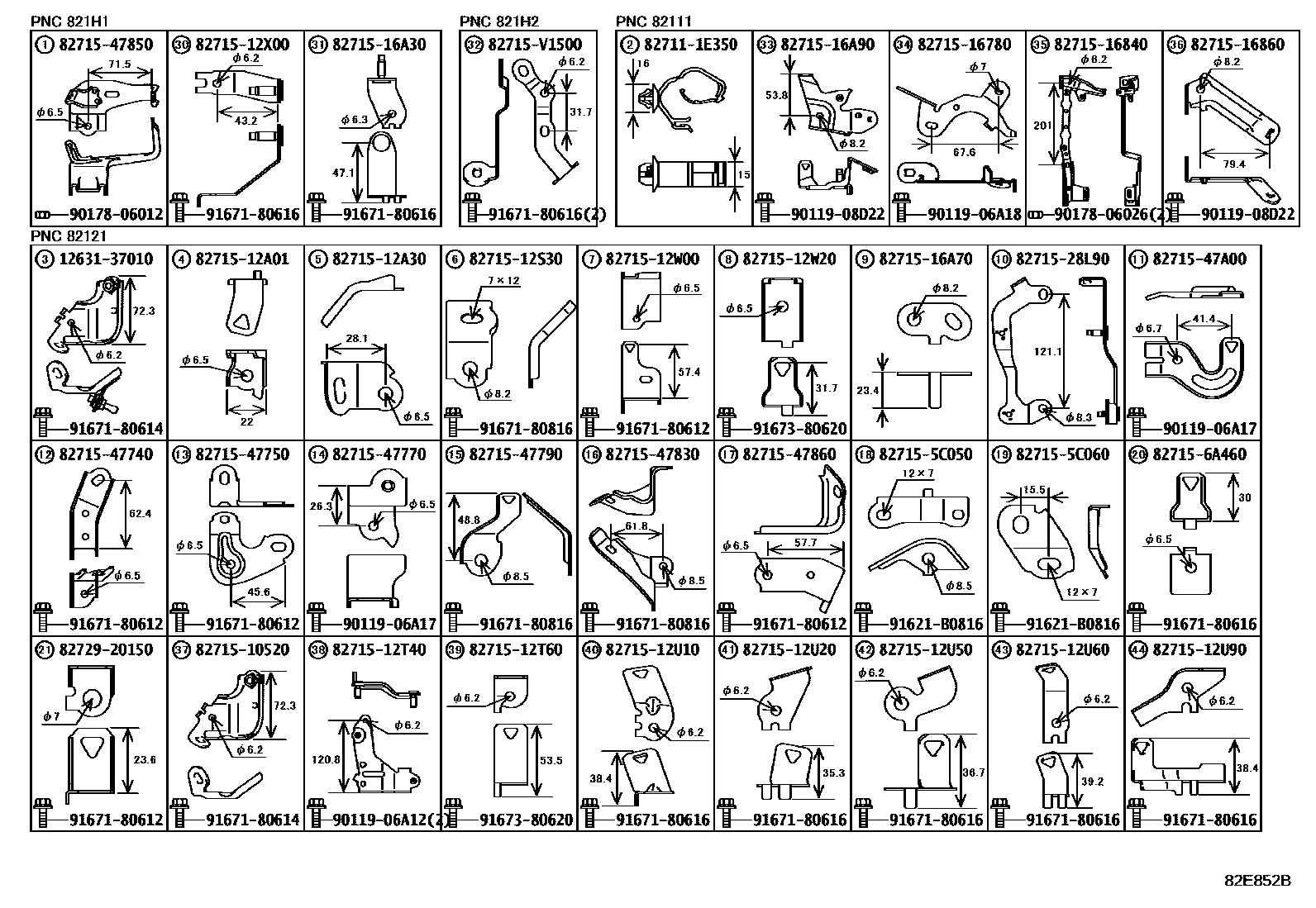

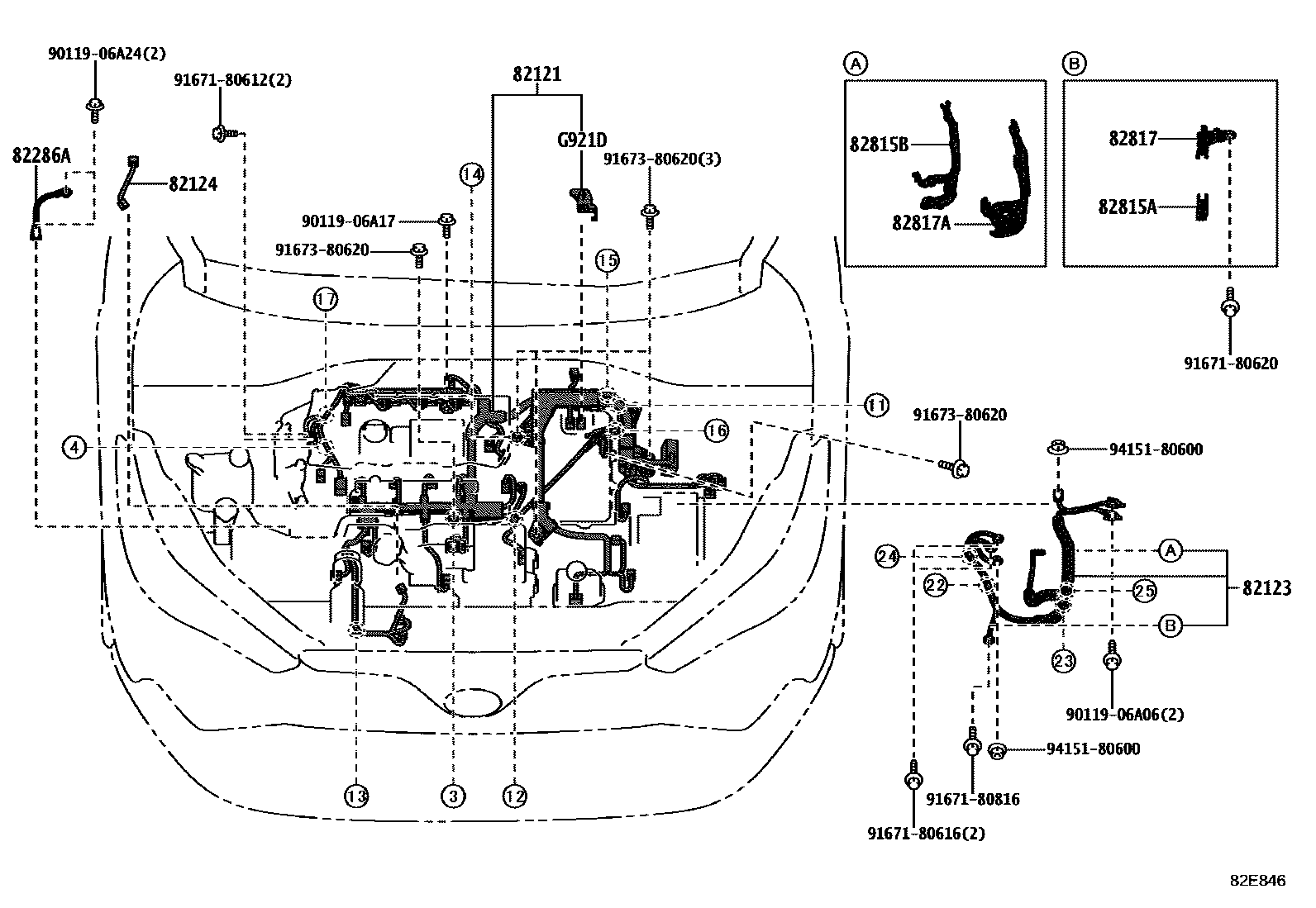

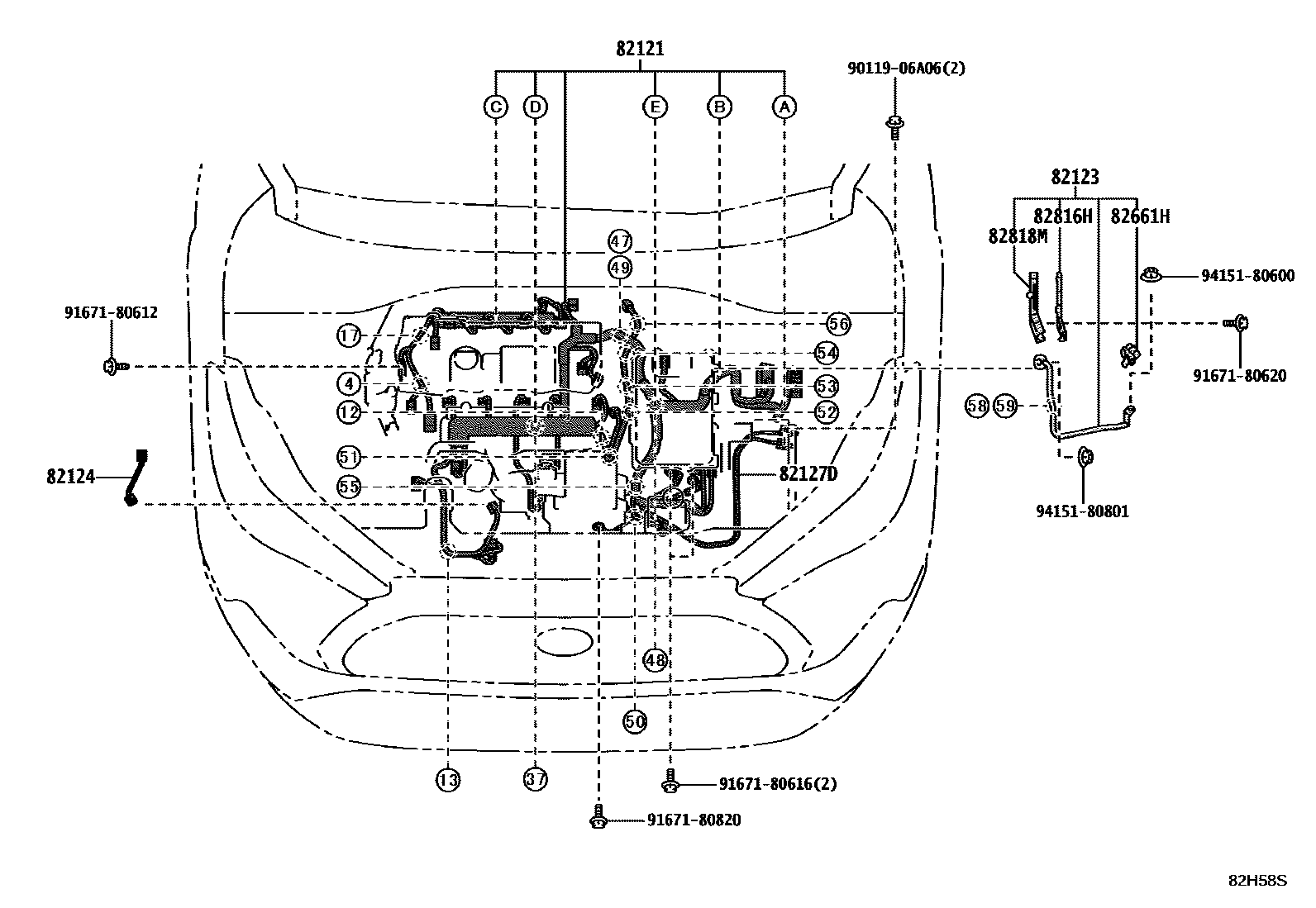

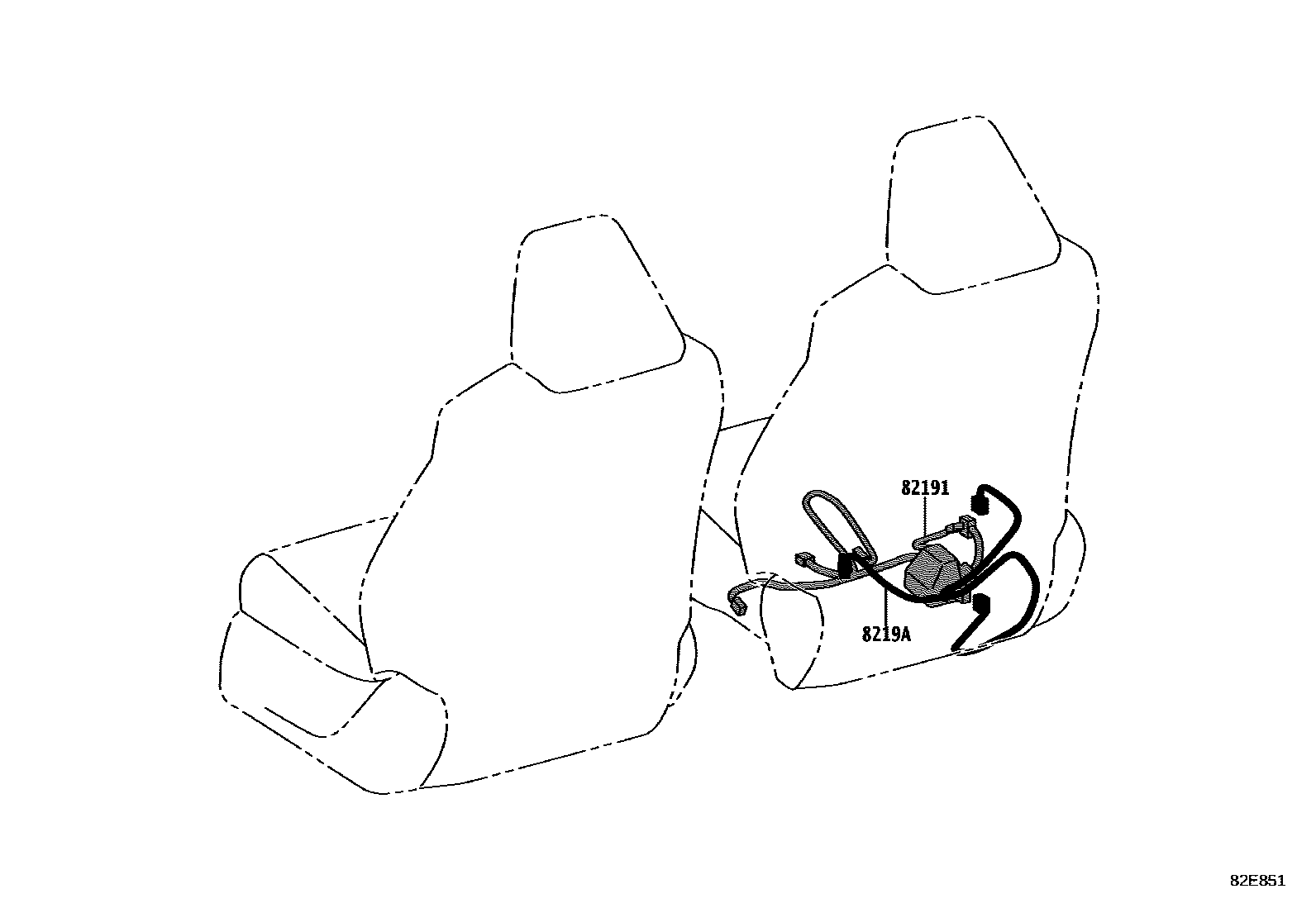

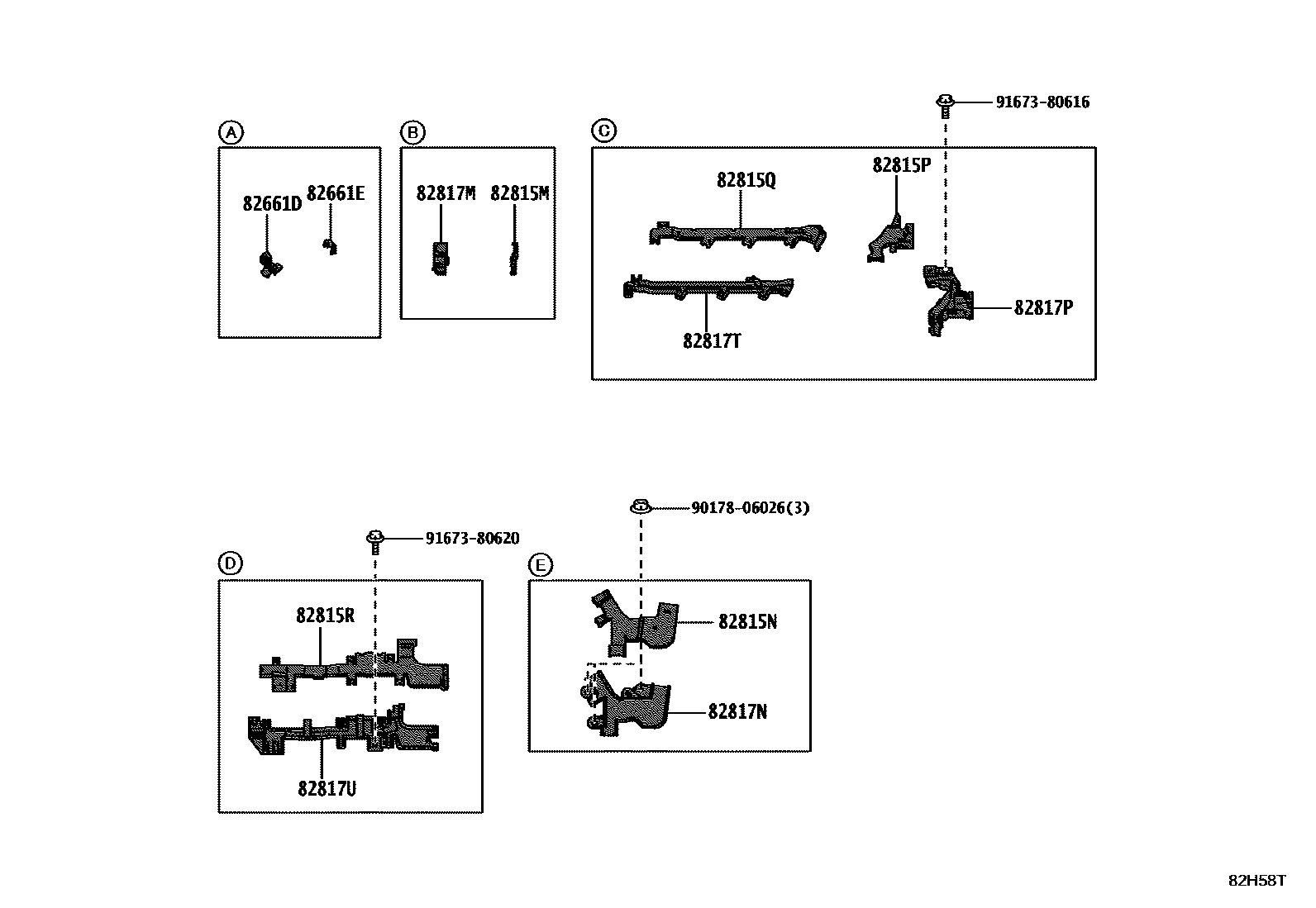

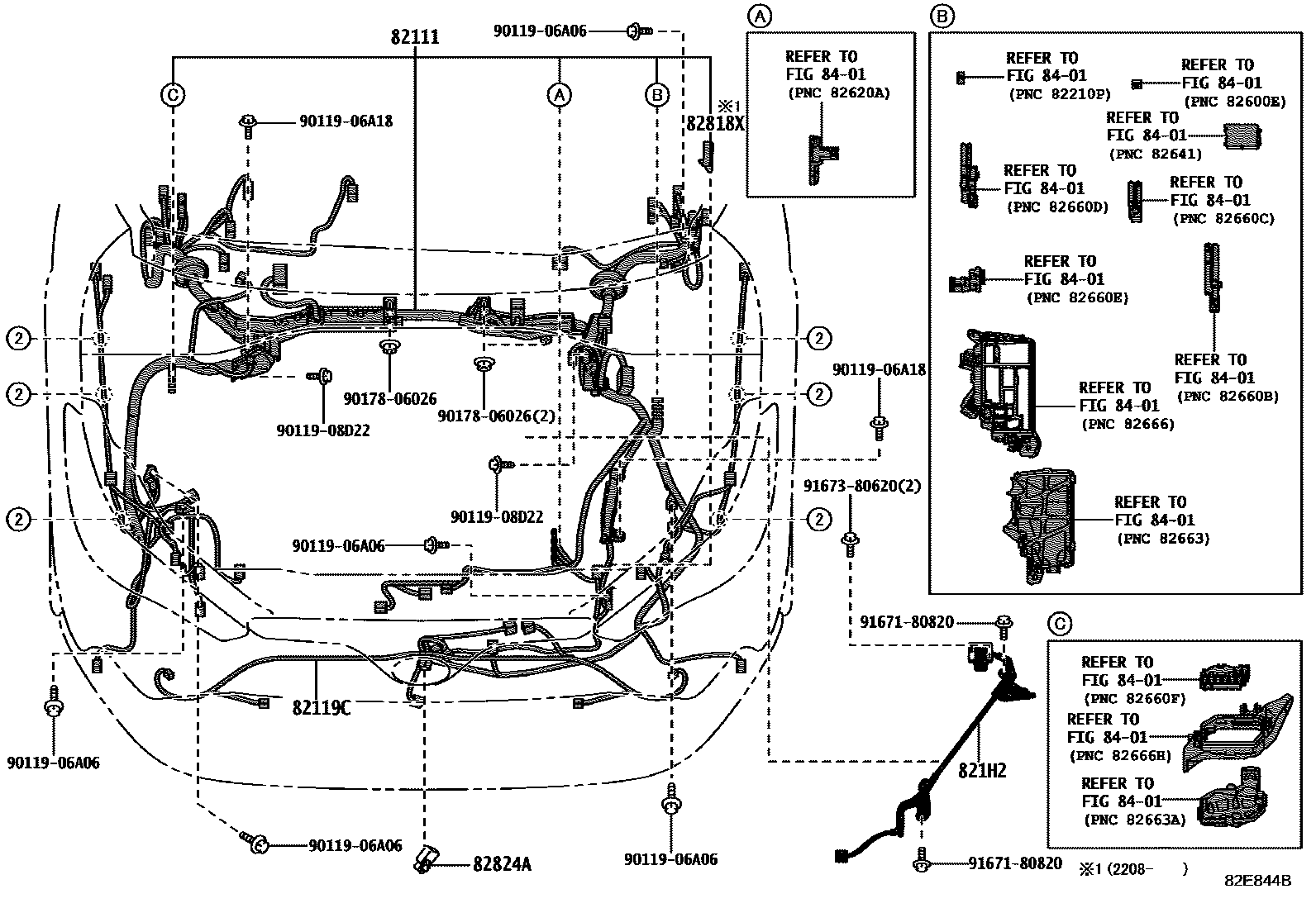

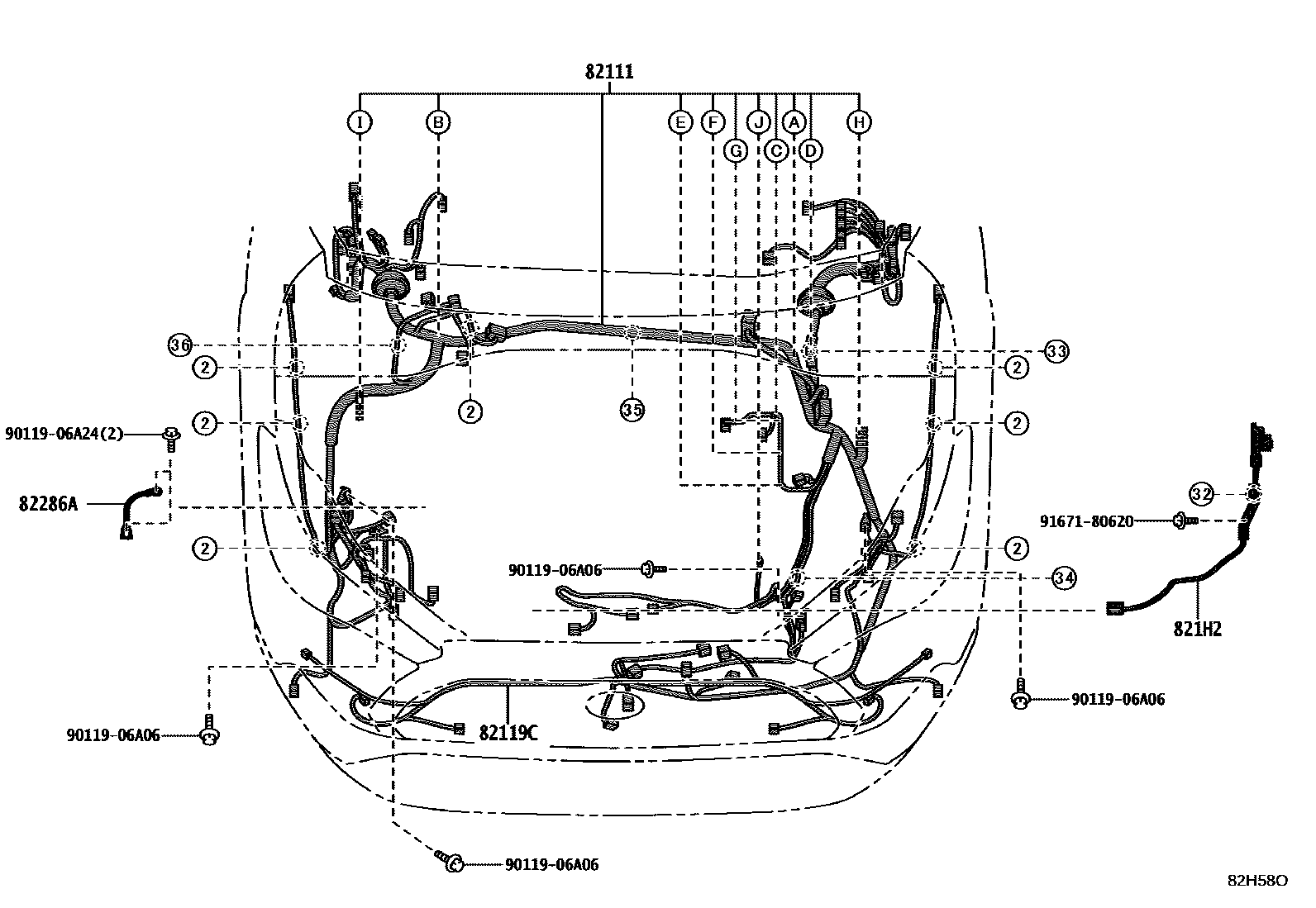

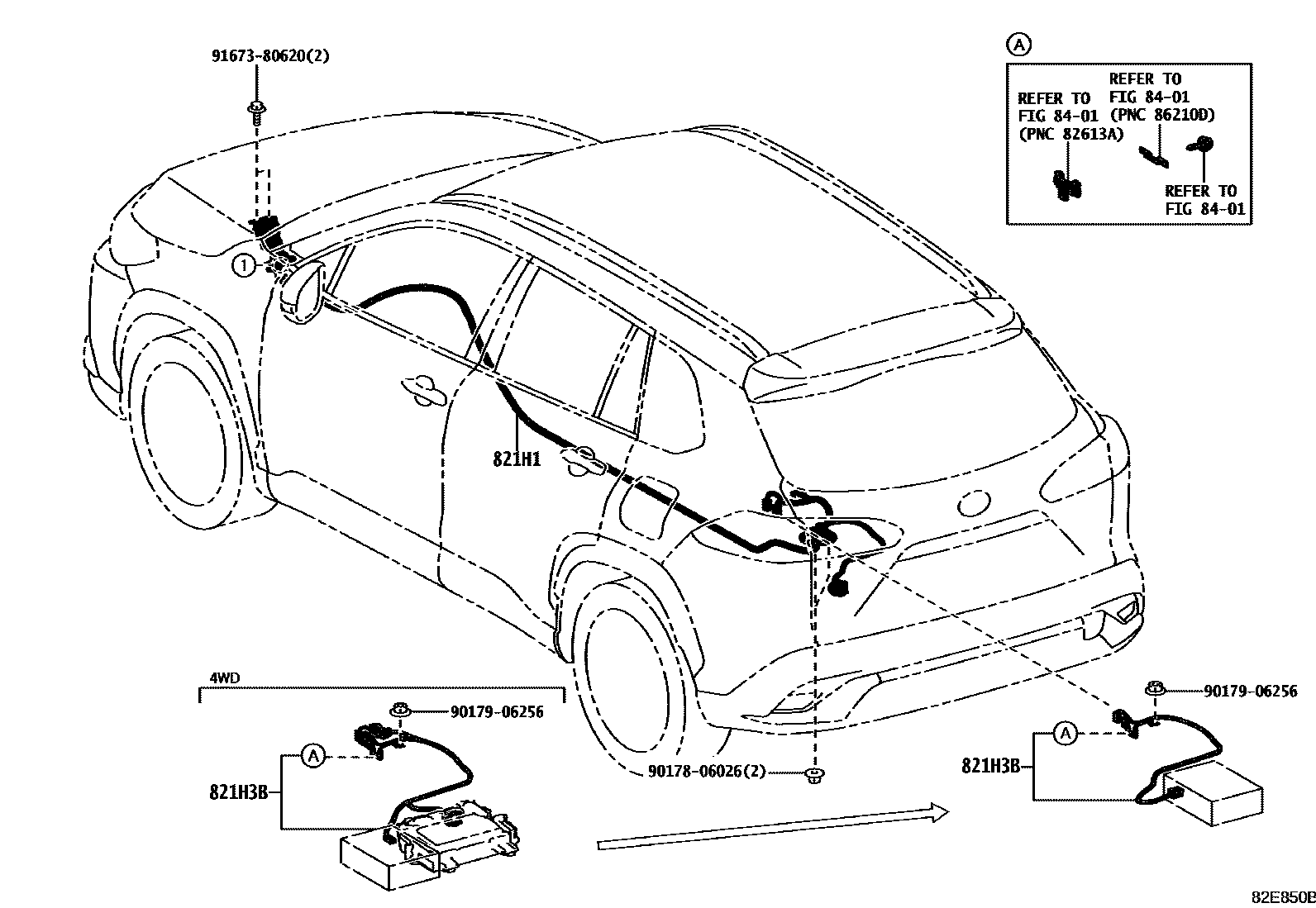

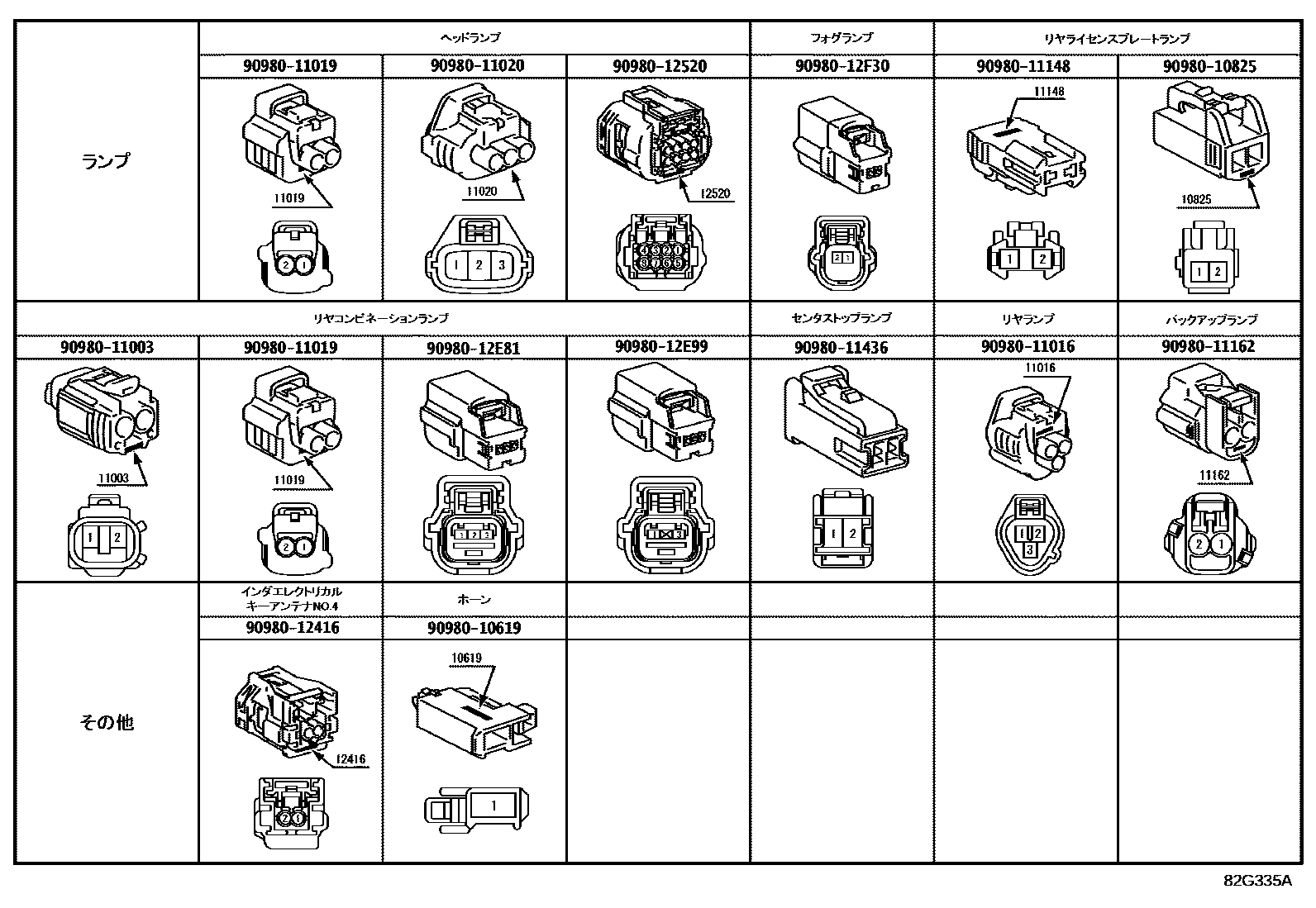

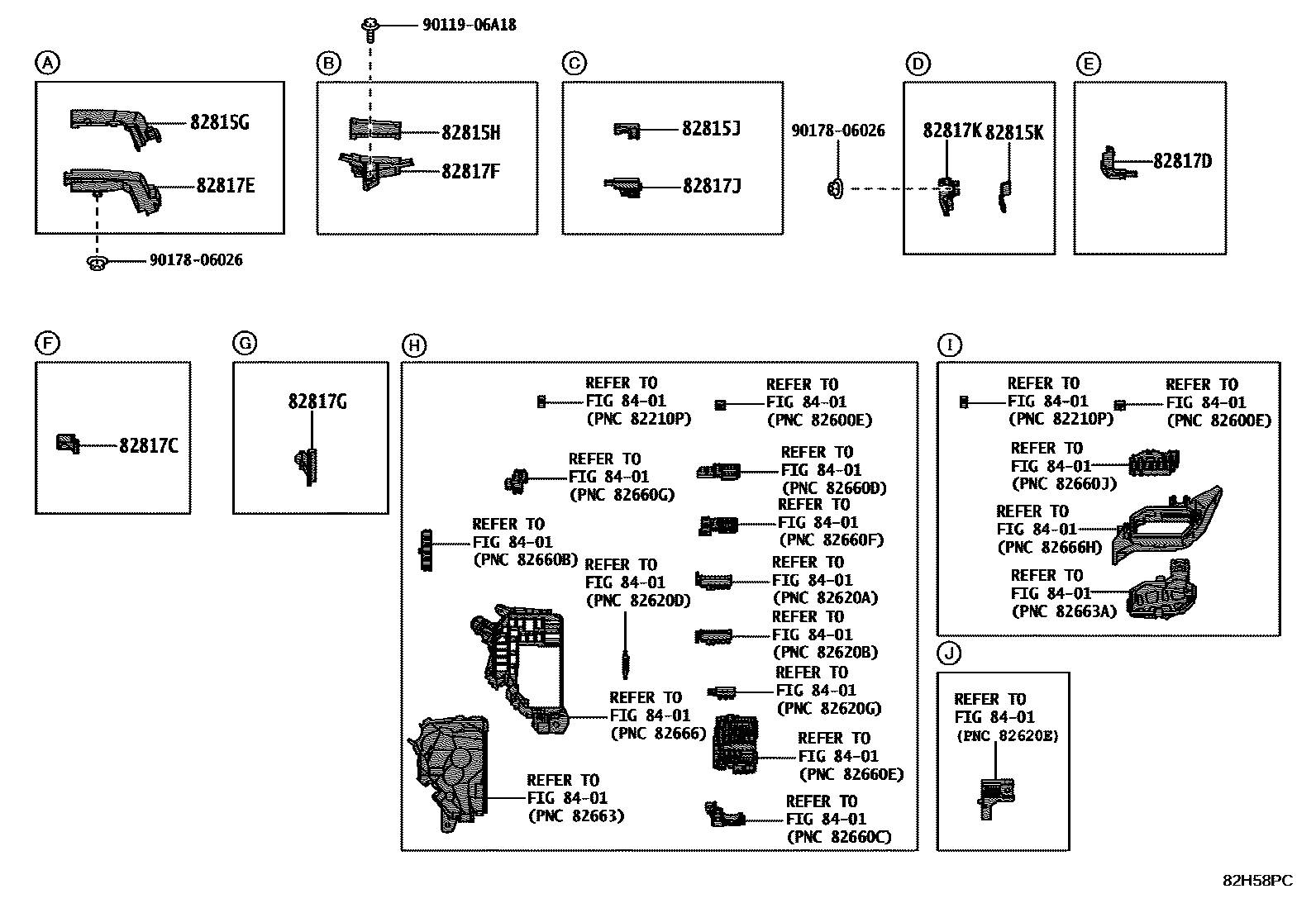

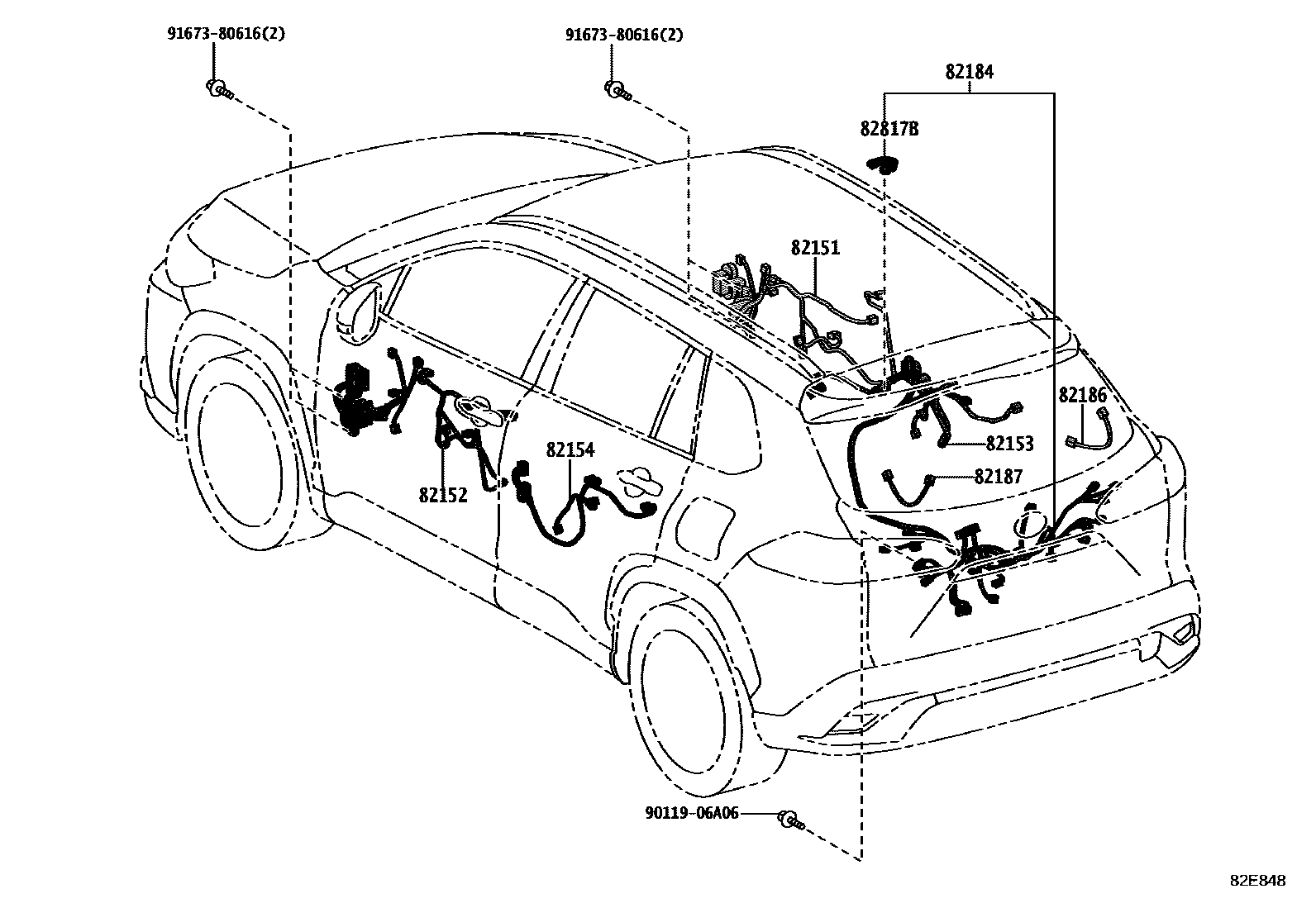

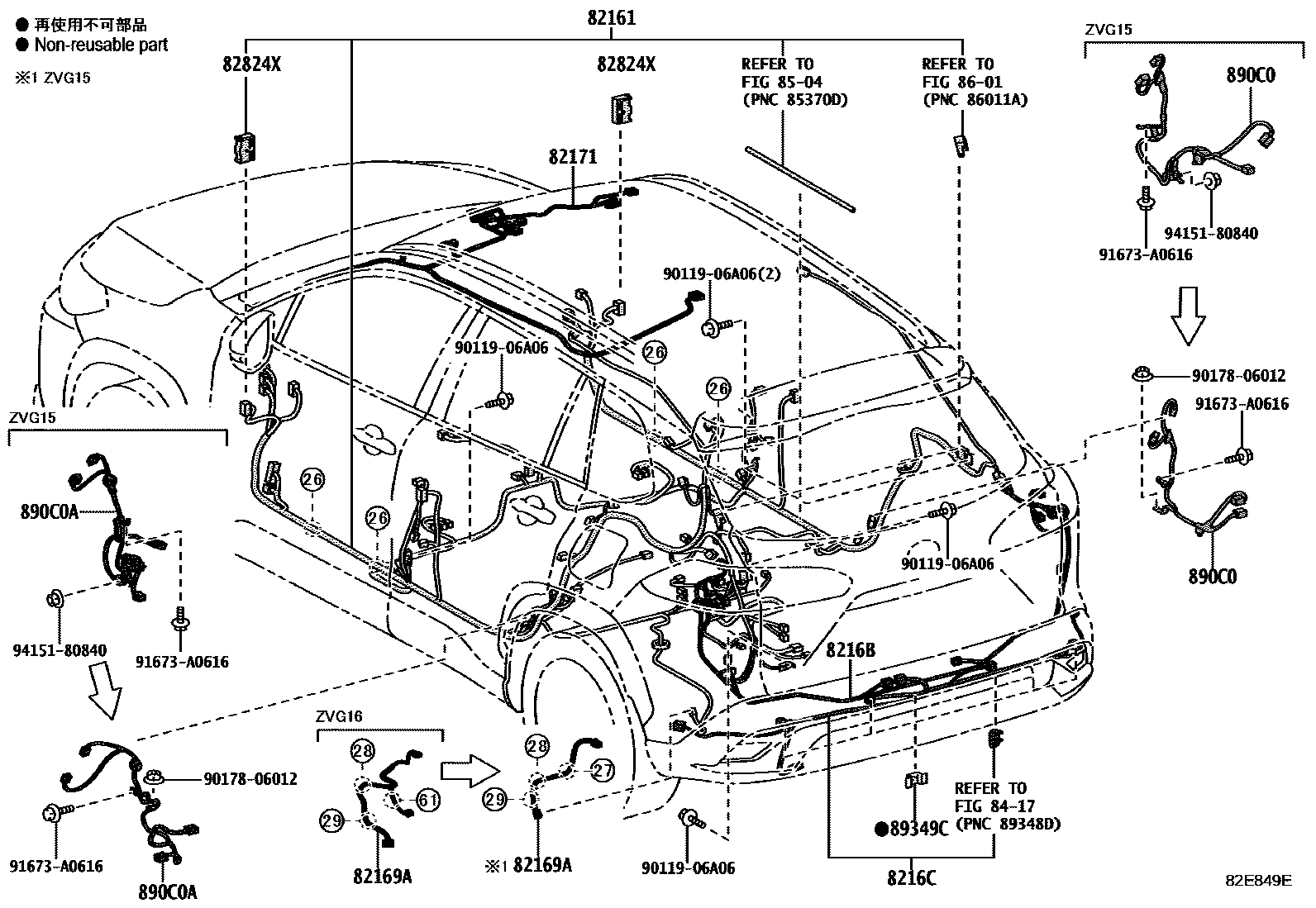

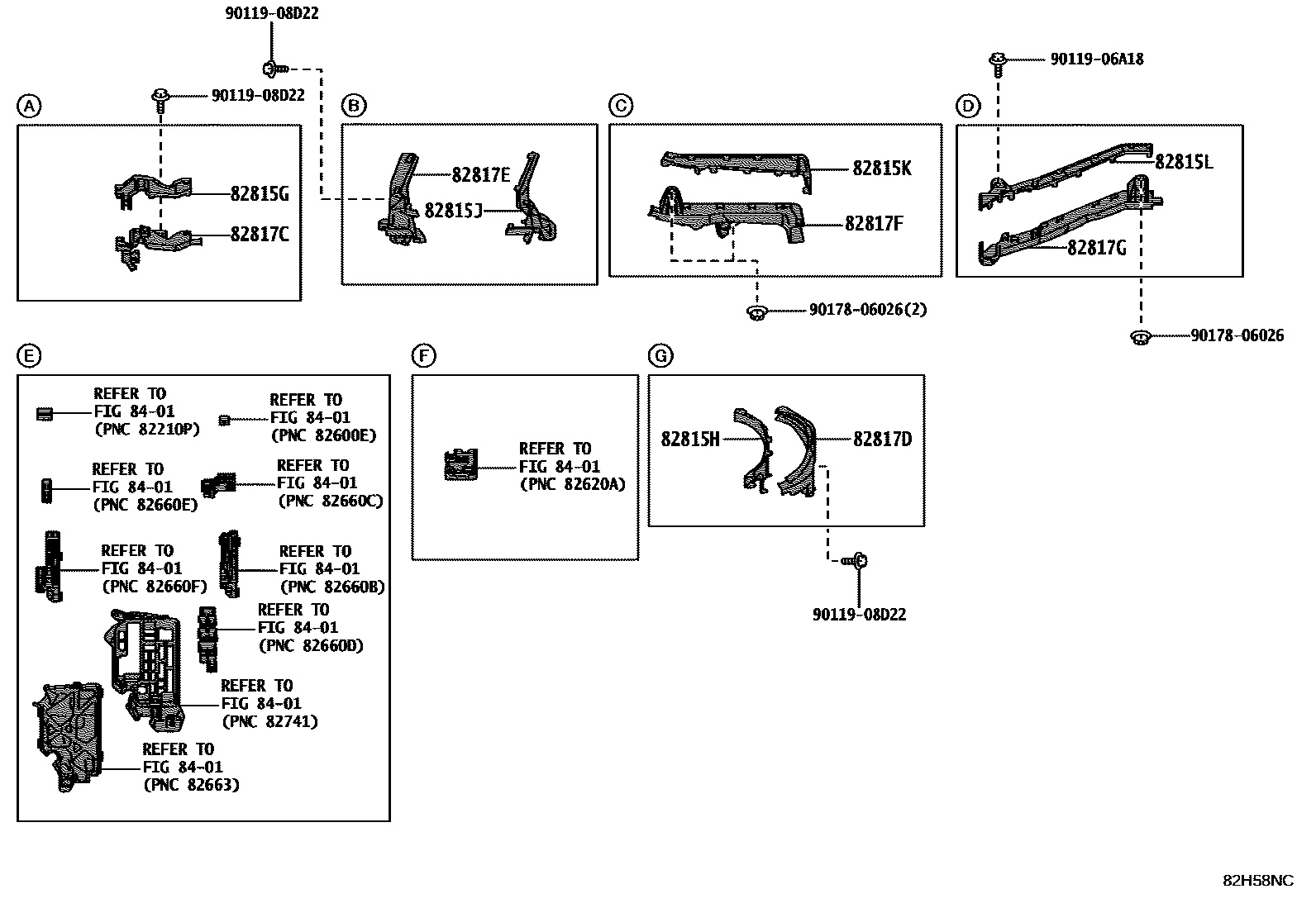

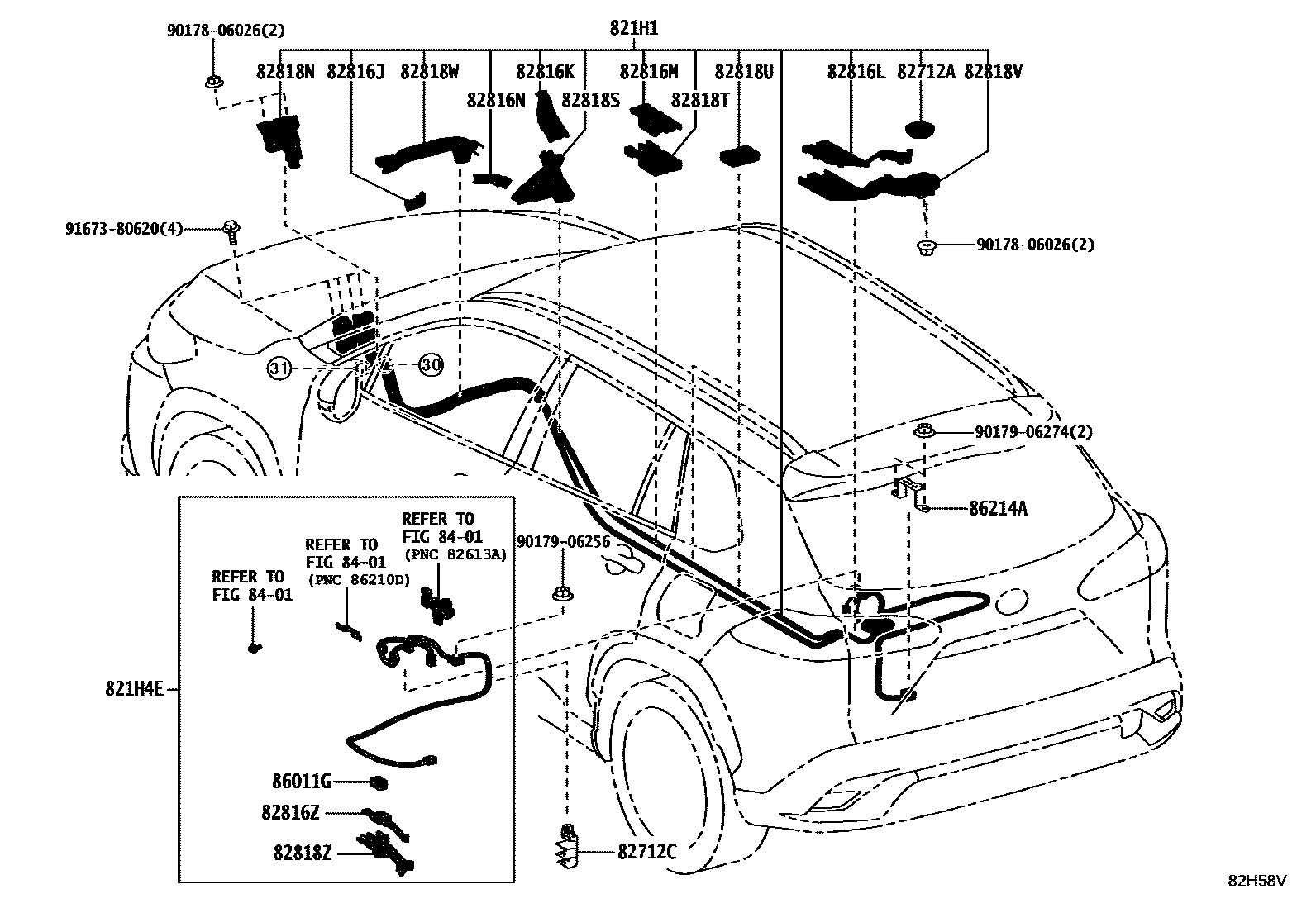

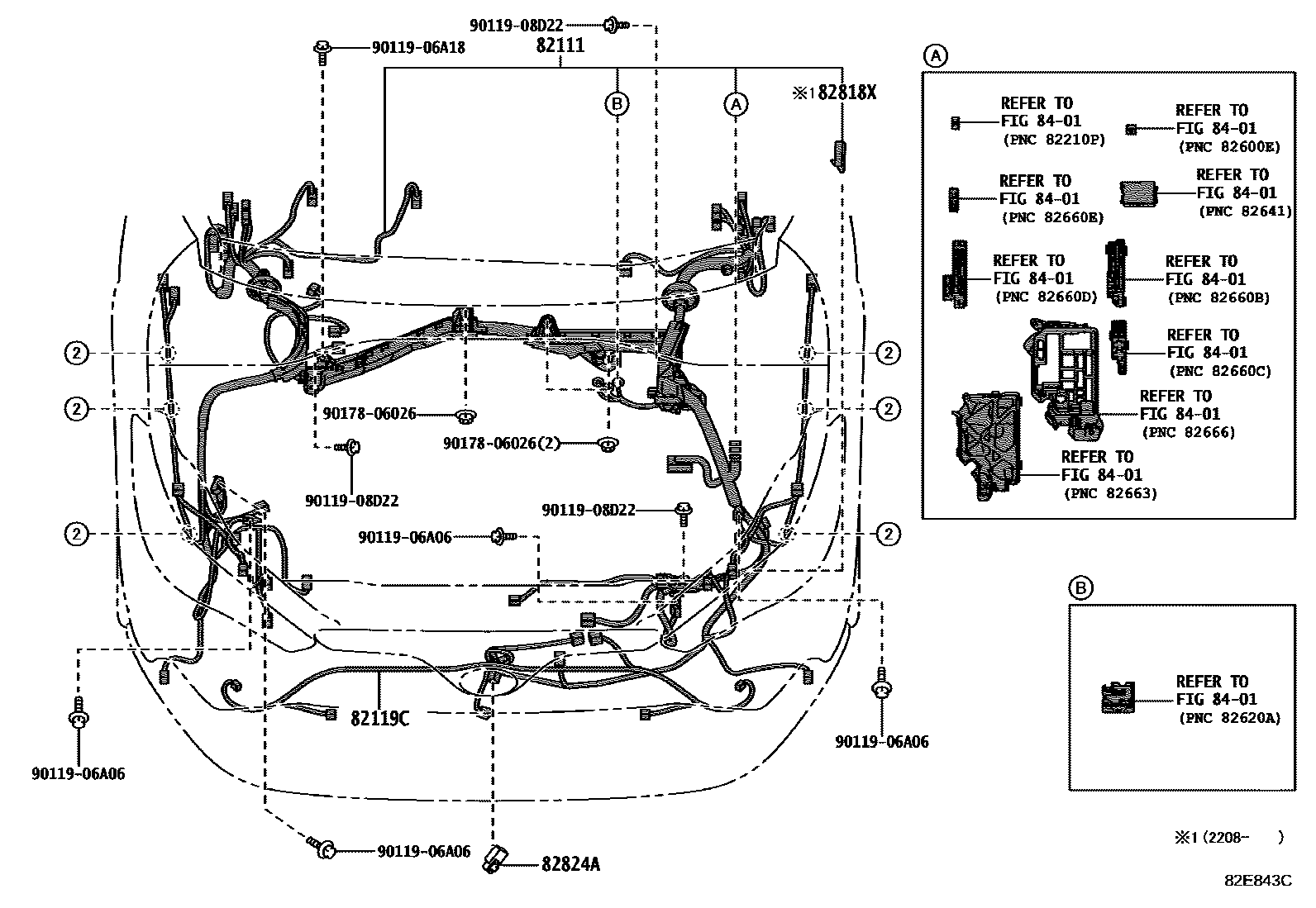

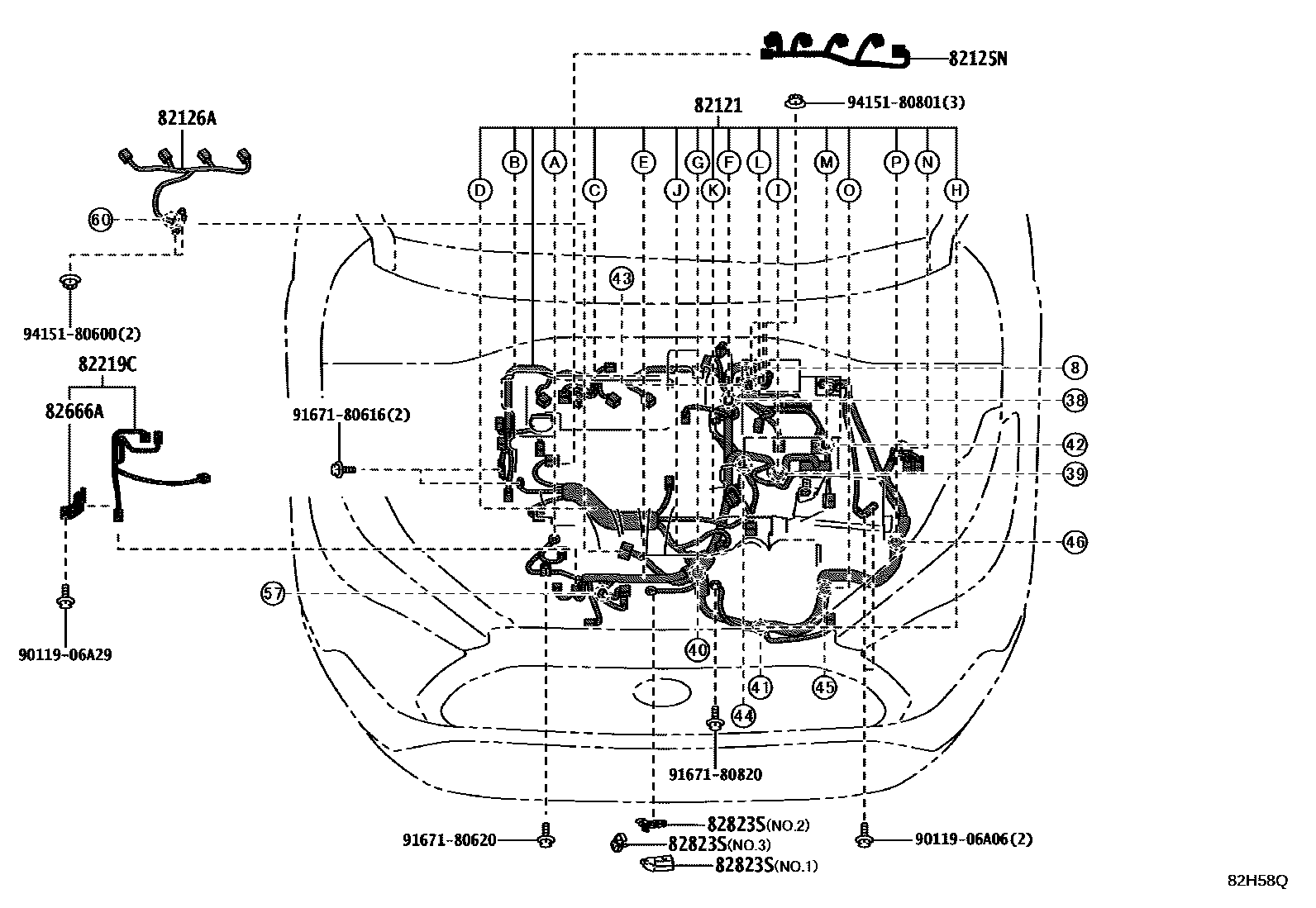

Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 23 images and 117 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

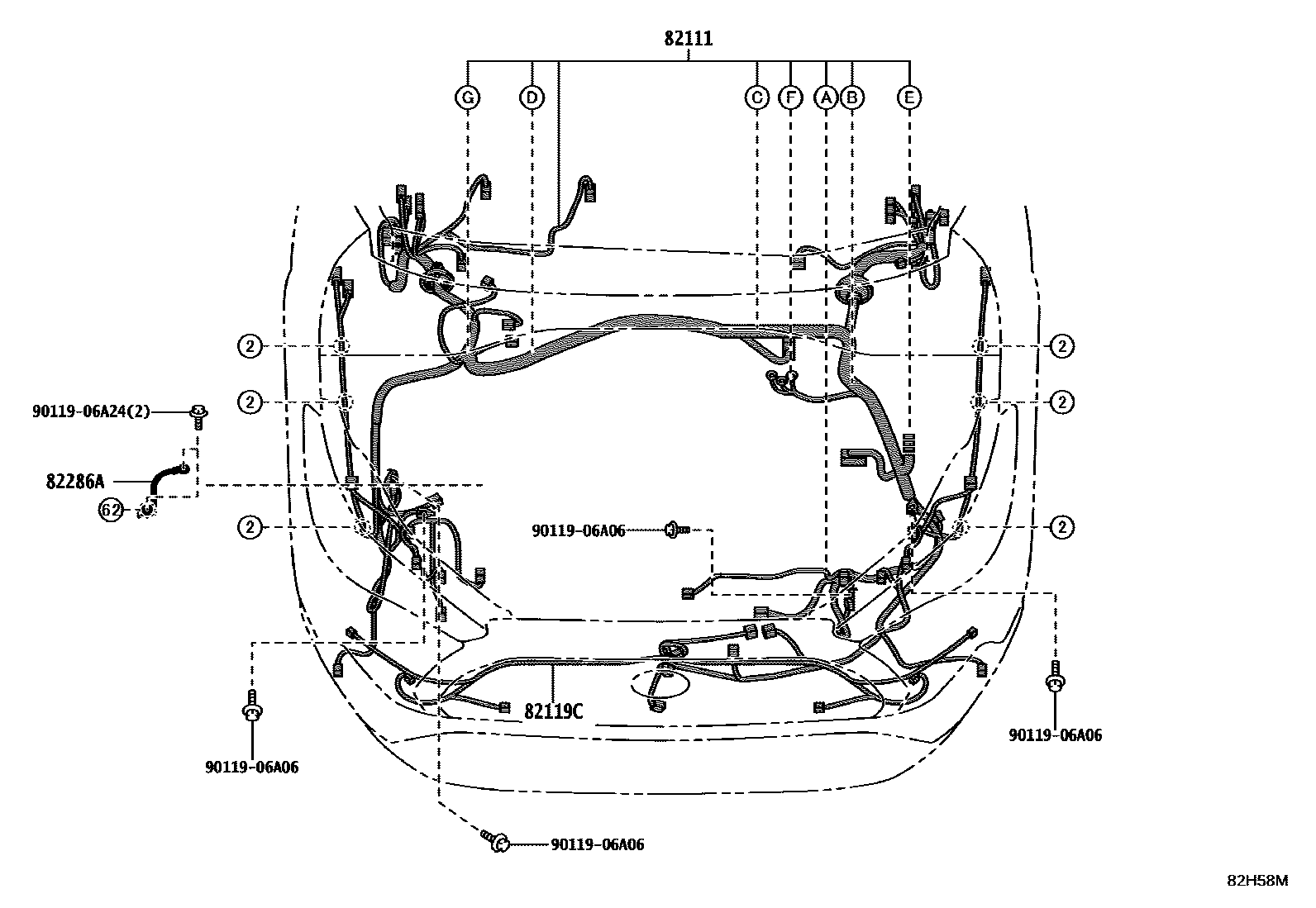

| 82111 | Engine room main wiring harness | 82111-16A00 · 82111-16J90 · 82111-16K40 · 82111-16K50 · 82111-16K60 · 82111-16K70 · 82111-16K80 · 82111-16K90 · 82111-16L00 · 82111-16L10 · 82111-16L20 · 82111-16L30 · 82111-16L40 · 82111-16L50 · 82111-16L60 · 82111-16L70 · 82111-1S130 · 82111-1S150 · 82111-1S170 · 82111-1S190 · 82111-1S230 · 82111-1S270 · 82111-1S310 |
| 82119C | Toyota part | 82119-16010 · 82119-16050 · 82119-16060 |

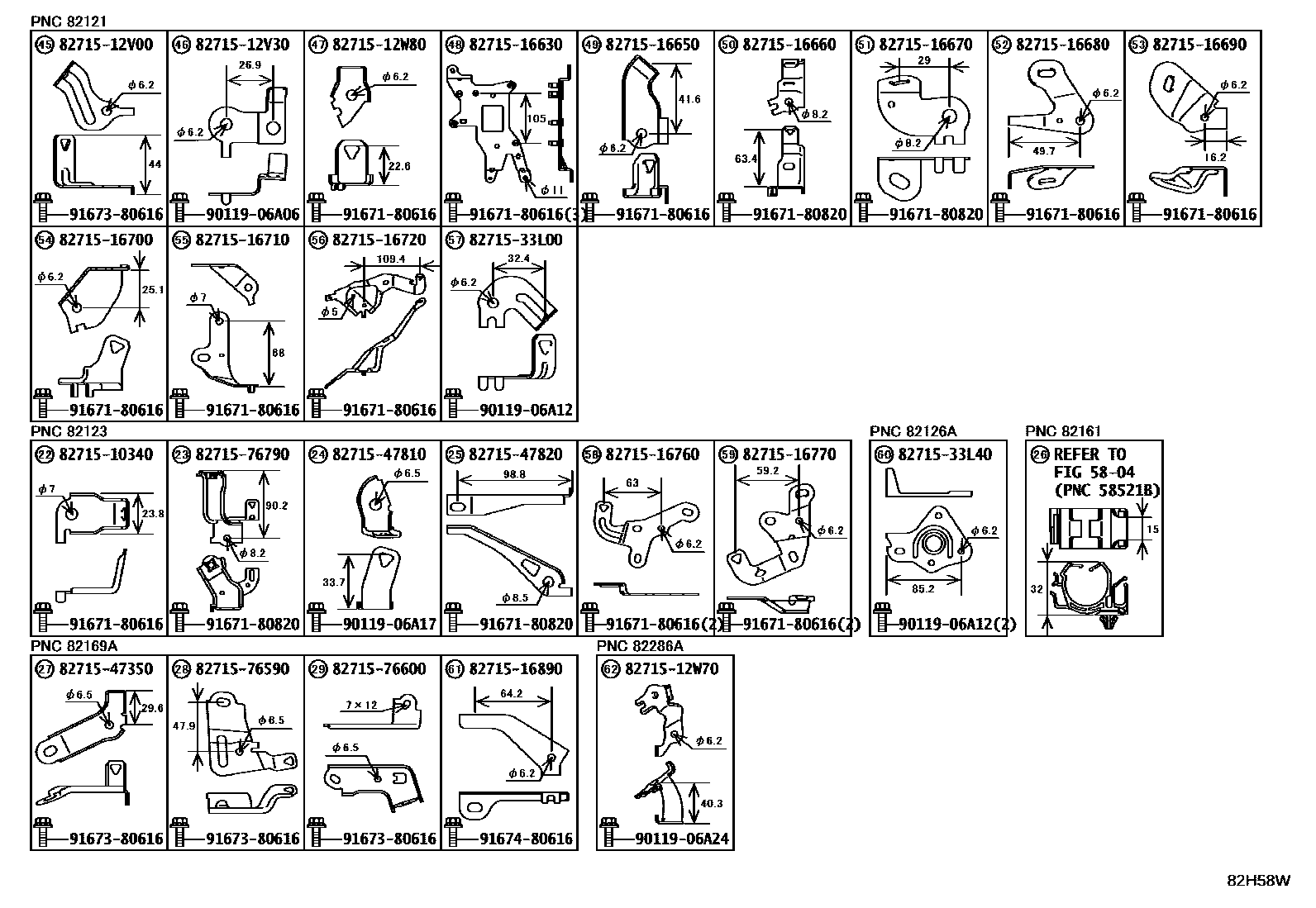

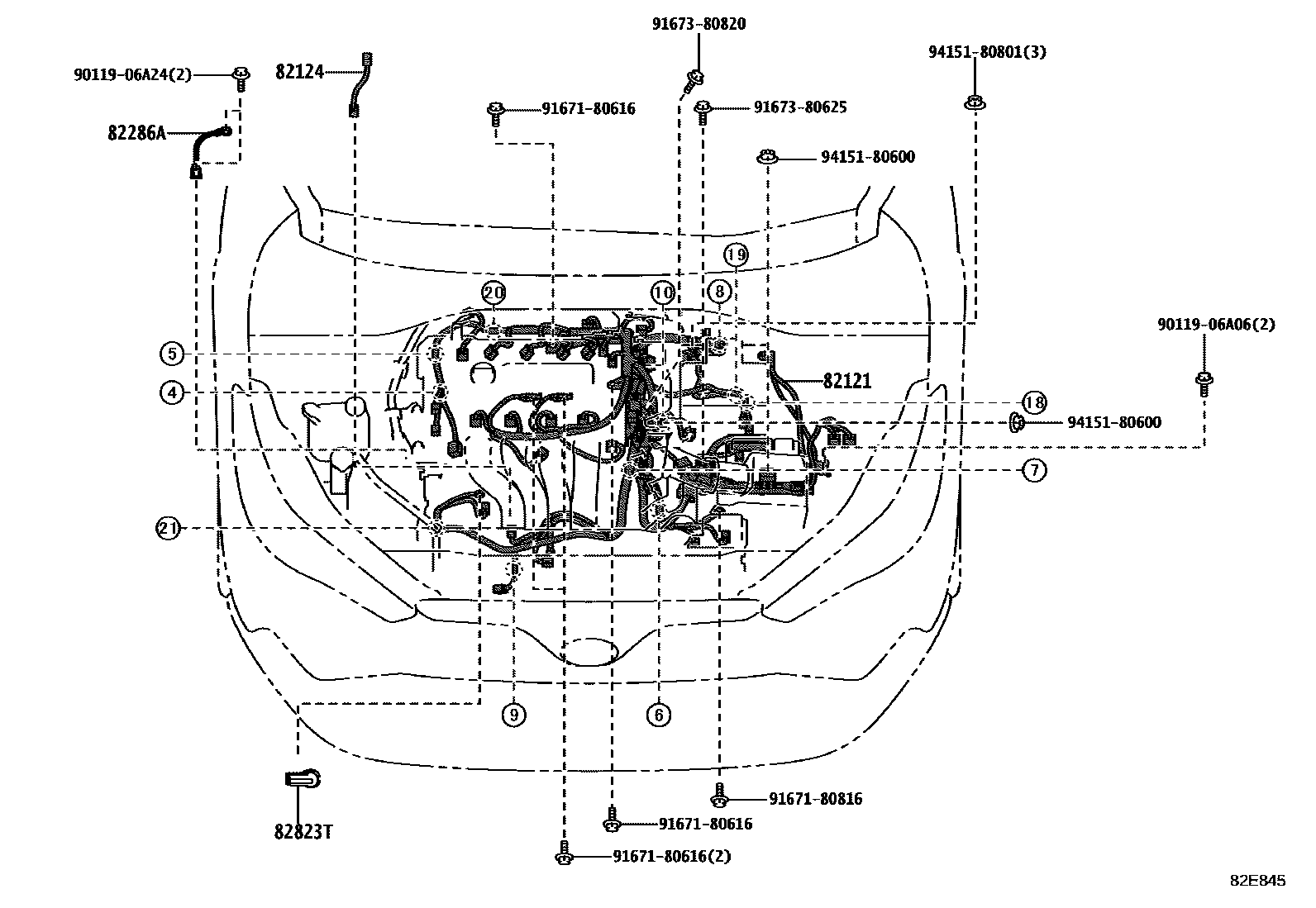

| 82121 | Engine wiring harness | 82121-1G480 · 82121-1G490 · 82121-1G570 · 82121-1G580 · 82121-1G590 |
| 82123 | Engine No. 3 wiring harness | 82123-10170 · 82123-16210 · 82123-16220 |
| 82124 | Engine No. 4 wiring harness | 82124-12160 |
| 82125N | Engine No. 5 wiring harness | 82125-12660 |
| 82126A | Toyota part | 82126-12010 |
| 82127D | Engine No. 7 wiring harness | 82127-16010 |

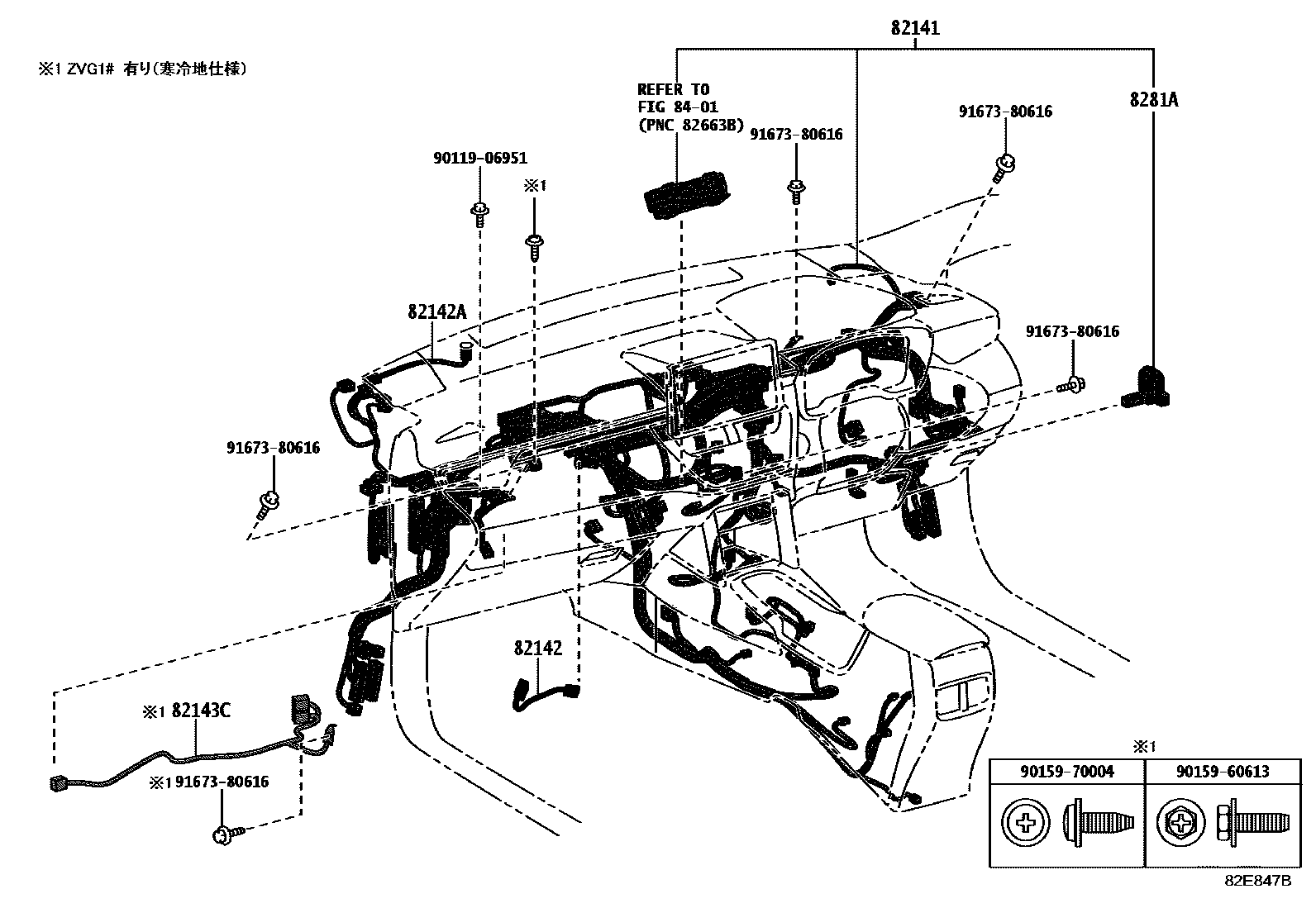

| 82141 | Dashboard wiring harness | 82141-16G10 · 82141-16J40 · 82141-16J80 · 82141-16J90 · 82141-16K60 · 82141-16L00 · 82141-16L10 · 82141-1G120 · 82141-1G130 · 82141-1G160 · 82141-1G170 · 82141-1G240 · 82141-1G260 · 82141-1G280 · 82141-1G290 · 82141-1G320 · 82141-1G330 · 82141-1G400 · 82141-1G420 |
| 82142 | Instrument panel wiring harness No. 2 | 82140-12B80 |
| 82142A | Instrument panel wiring harness No. 2 | 82142-16020 |
| 82143C | Instrument panel wiring harness No. 3 | 82143-12260 |
| 82151 | Right front door wiring harness | 82151-16710 · 82151-16720 · 82151-16770 · 82151-16780 · 82151-16D70 · 82151-16E40 · 82151-16E50 · 82151-16E60 · 82151-16E70 · 82151-16E80 · 82151-16E90 · 82151-16F00 · 82151-16F10 · 82151-16F20 |
| 82152 | Left front door wiring harness | 82152-16610 · 82152-16620 · 82152-16670 · 82152-16680 · 82152-16C70 · 82152-16D30 · 82152-16D40 · 82152-16D50 · 82152-16D60 · 82152-16D70 · 82152-16D80 · 82152-16D90 · 82152-16E00 · 82152-16E10 |
| 82153 | Rear door wiring harness No. 1 | 82153-16130 |
| 82154 | Rear door wiring harness No. 2 | 82154-16130 |
| 82161 | floor wiring harness | 82161-16A20 · 82161-16A40 · 82161-16A50 · 82161-16A60 · 82161-16A70 · 82161-16A80 · 82161-16A90 · 82161-16B00 · 82161-16B10 · 82161-16B20 · 82161-16B30 · 82161-16E10 · 82161-16E20 · 82161-16E70 · 82161-16E80 · 82161-16E90 · 82161-16F00 · 82161-16F50 · 82161-16F60 · 82161-16F70 · 82161-16F80 · 82161-16G30 · 82161-16G40 · 82161-16G50 · 82161-16G60 · 82161-16J10 · 82161-16J20 · 82161-16J30 · 82161-16J60 · 82161-16J70 · 82161-1G770 · 82161-1G810 · 82161-1G830 · 82161-1G870 · 82161-1G890 · 82161-1S040 · 82161-1S060 · 82161-1S100 · 82161-1S120 |
| 82169A | Toyota part | 82169-16010 · 82169-76010 |
| 8216B | No. 8 floor wiring harness | 8216B-16010 · 8216B-16020 · 8216B-16030 · 8216B-16040 · 8216B-16050 · 8216B-16060 · 8216B-16070 · 8216B-16080 · 8216B-16170 · 8216B-16250 · 8216B-16260 · 8216B-16270 · 8216B-16280 · 8216B-16370 · 8216B-16390 · 8216B-16400 |
| 8216C | Toyota part | 8216C-16010 · 8216C-16020 · 8216C-16080 · 8216C-16090 · 8216C-16100 · 8216C-16110 |
| 82171 | Roof No. 1 wiring harness | 82171-16360 · 82171-16370 · 82171-16380 · 82171-16381 · 82171-16390 · 82171-16391 · 82171-16400 · 82171-16401 · 82171-16410 · 82171-16411 · 82171-16790 · 82171-16810 · 82171-16820 · 82171-16830 · 82171-16840 |
| 82184 | Rear door No. 1 wiring harness | 82184-16300 · 82184-16310 · 82184-16320 · 82184-16330 · 82184-16340 · 82184-16350 · 82184-16360 · 82184-16370 · 82184-16380 · 82184-16390 · 82184-16400 · 82184-16410 · 82184-16500 · 82184-16510 · 82184-16770 · 82184-16800 · 82184-16840 · 82184-16850 · 82184-16890 · 82184-16A00 |
| 82186 | Rear window wiring harness No. 1 | 82186-16050 |
| 82187 | Rear window wiring harness No. 2 | 82187-16110 |
| 82191 | Front right seat wiring harness | 82191-12120 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-48110 |

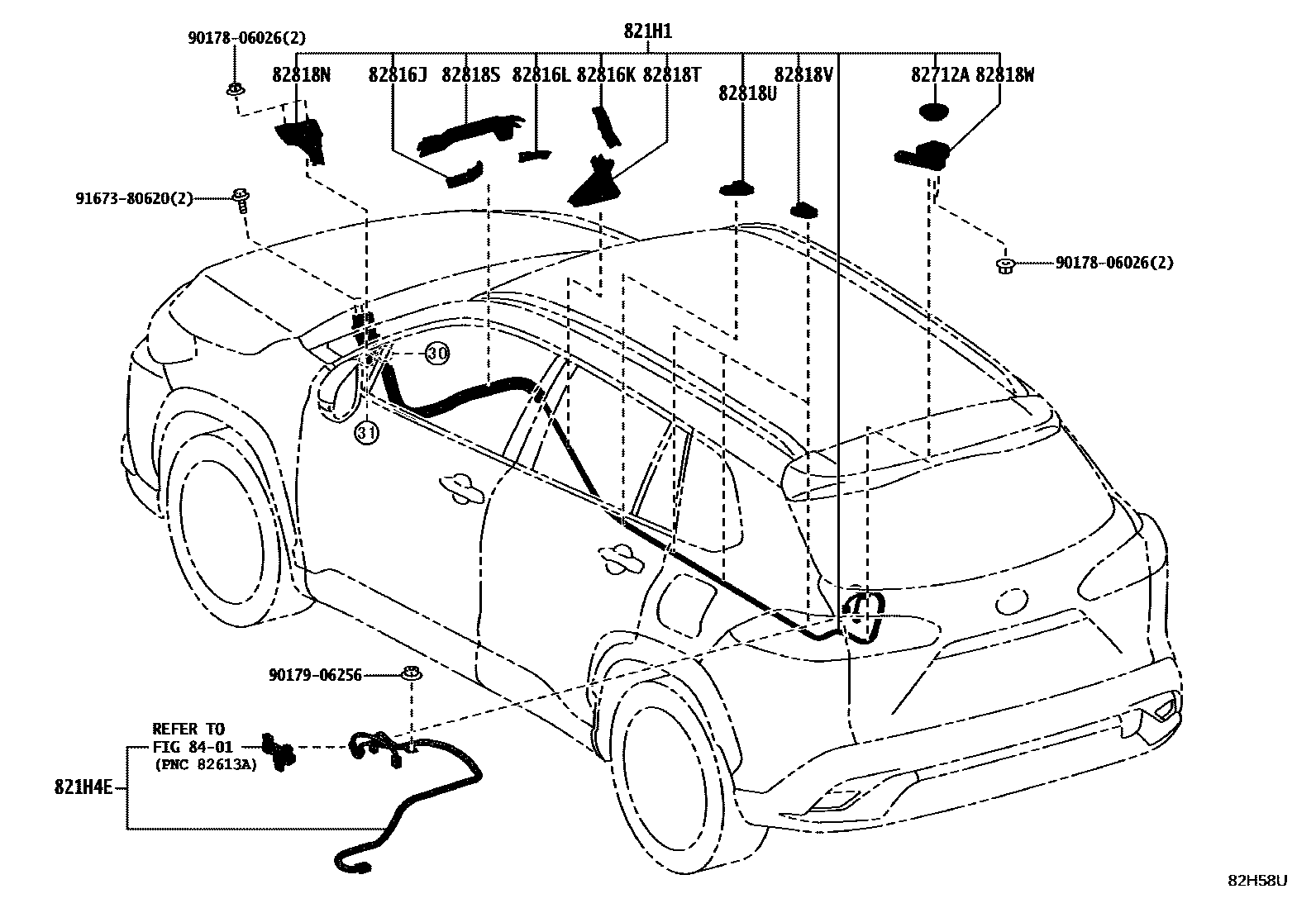

| 821H1 | Toyota part | 821H1-12180 · 821H1-12190 · 821H1-12220 · 821H1-16040 · 821H1-16050 · 821H1-16110 |
| 821H2 | Toyota part | 821H2-47010 · 821H2-V1010 · 821H2-V1020 |
| 821H3B | Toyota part | 821H3-16010 · 821H3-16020 · 821H4-16010 |
| 821H4E | Toyota part | 821H4-16020 · 821H4-16030 |
| 82219C | sensor harness | 82219-76020 |
| 82286A | Line 2 | 82286-12010 · 82286-47010 |
| 82661D | No. 1 relay box side cover | 82661-12340 · 82661-76020 |
| 82661E | No. 2 relay box side cover | 82661-12350 · 82661-76030 |
| 82661H | Toyota part | 82661-16250 |
| 82666A | Connector holder No. 2 | 82666-12490 |
| 82712A | Wire harness bracket | 82712-16040 |
| 82712C | Toyota part | 82712-16050 |

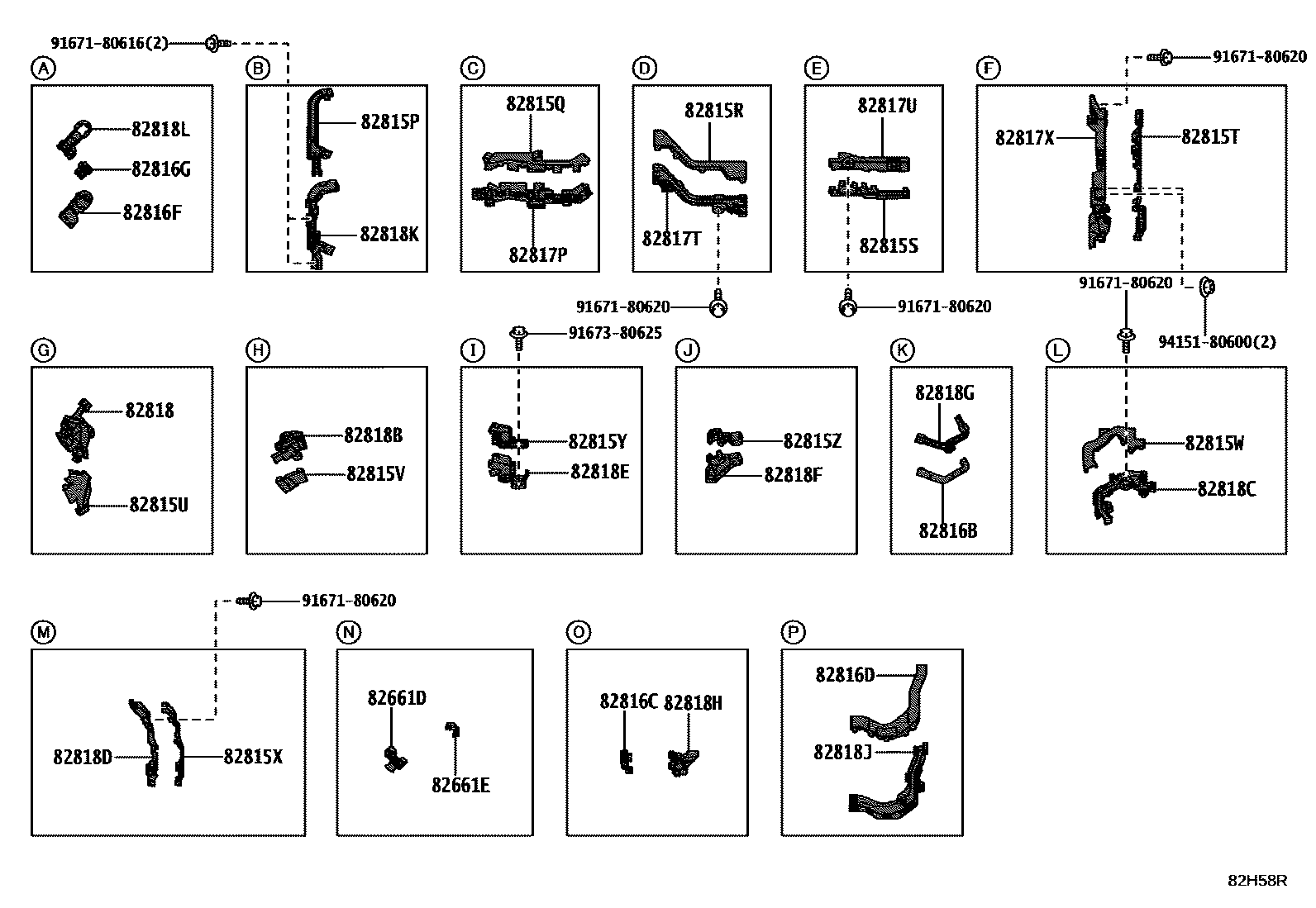

| 82815A | Wiring harness protector cover | 82815-10080 |
| 82815B | Wiring harness protector cover | 82815-47E50 |
| 82815G | Wiring harness protector cover | 82815-12D10 · 82815-16200 |
| 82815H | Wiring harness protector cover | 82815-12J00 · 82815-16230 |
| 82815J | No. 7 wire harness protector cover | 82815-12L70 · 82815-16300 |
| 82815K | No. 8 wire harness protector cover | 82815-12L80 · 82815-16320 |
| 82815L | No. 9 wire harness protector cover | 82815-12L90 |
| 82815M | No. 10 wire harness protector cover | 82815-16090 |
| 82815N | No. 11 wire harness protector cover | 82815-16100 |
| 82815P | No. 12 wire harness protector cover | 82815-12B00 · 82815-V1430 |
| 82815Q | No. 13 wire harness protector cover | 82815-12D60 · 82815-V1600 |
| 82815R | No. 14 wire harness protector cover | 82815-12D80 · 82815-V1610 |
| 82815S | No. 15 wire harness protector cover | 82815-12E00 |
| 82815T | No. 16 wire harness protector cover | 82815-12E10 |
| 82815U | No. 17 wire harness protector cover | 82815-12E20 |
| 82815V | No. 1 wire harness protector cover | 82815-12E30 |
| 82815W | No. 2 wire harness protector cover | 82815-12E40 |
| 82815X | No. 3 wire harness protector cover | 82815-12E50 |
| 82815Y | Toyota part | 82815-12E70 |
| 82815Z | Toyota part | 82815-12E80 |
| 82816B | Toyota part | 82815-12E90 |
| 82816C | Toyota part | 82815-12F60 |
| 82816D | Toyota part | 82815-12F70 |
| 82816F | Toyota part | 82815-33J10 |
| 82816G | Toyota part | 82815-33L00 |
| 82816H | Toyota part | 82815-V1340 · 82815-V1350 |
| 82816J | Toyota part | 82815-12700 · 82815-16140 |
| 82816K | Toyota part | 82815-12720 · 82815-16150 |
| 82816L | Toyota part | 82815-12660 · 82815-12690 |
| 82816M | Toyota part | 82815-12730 |
| 82816N | Toyota part | 82815-12740 |
| 82816Z | Toyota part | 82815-12780 |
| 82817 | No. 1 wire harness protection device | 82817-10360 |
| 82817A | No. 2 wire harness protection device | 82817-47Q20 |
| 82817B | No. 3 wire harness protection device | 82817-10350 |
| 82817C | No. 4 wire harness protection device | 82817-12V50 · 82817-16770 |
| 82817D | No. 5 wire harness protection device | 82817-12W50 · 82817-16780 |
| 82817E | No. 6 wire harness protection device | 82817-12Z60 · 82817-16790 |
| 82817F | No. 7 wire harness protection device | 82817-12Z70 · 82817-16820 |
| 82817G | No. 8 wire harness protection device | 82817-12Z80 · 82817-16A10 |
| 82817J | No. 9 wire harness protection device | 82817-16A20 |
| 82817K | No. 10 wire harness protection device | 82817-16A40 |
| 82817M | No. 12 wire harness protection device | 82817-16830 |
| 82817N | No. 13 wire harness protection device | 82817-16840 |
| 82817P | No. 14 wire harness protection device | 82817-12R60 · 82817-V1600 |
| 82817T | No. 15 wire harness protection device | 82817-12R80 · 82817-V1820 |
| 82817U | No. 16 wire harness protection device | 82817-12S00 · 82817-V1840 |
| 82817X | No. 17 wire harness protection device | 82817-12S10 |
| 82818 | No. 2 wire harness protection device | 82817-12S20 |
| 82818B | No. 3 wire harness protection device | 82817-12S30 |
| 82818C | No. 4 wire harness protection device | 82817-12S40 |
| 82818D | No. 5 wire harness protection device | 82817-12S50 |
| 82818E | No. 6 wire harness protection device | 82817-12S70 |
| 82818F | No. 7 wire harness protection device | 82817-12S80 |
| 82818G | No. 8 wire harness protection device | 82817-12S90 |
| 82818H | Toyota part | 82817-12T60 |
| 82818J | Toyota part | 82817-12T70 |
| 82818K | Toyota part | 82817-12V00 |
| 82818L | Toyota part | 82817-33S70 |
| 82818M | Toyota part | 82817-V1510 · 82817-V1520 |
| 82818N | Toyota part | 82817-12P00 · 82817-16700 |
| 82818S | Toyota part | 82817-12P10 · 82817-12P30 |
| 82818T | Toyota part | 82817-12P50 · 82817-16720 |
| 82818U | Toyota part | 82817-12P60 · 82817-16730 |
| 82818V | Toyota part | 82817-12P70 · 82817-16740 |
| 82818W | Toyota part | 82817-12Q20 · 82817-16750 |
| 82818X | Toyota part | 82817-12860 |
| 82818Z | Toyota part | 82817-12Q60 |
| 8281A | Toyota part | 82817-16A60 |
| 82823S | Toyota part | 28192-24010 · 28192-24020 · 28192-24030 |
| 82823T | Toyota part | 82823-22050 |
| 82824A | Harness connector | 82824-16130 |
| 82824X | Harness connector | 82824-16090 |
| 86011G | condenser | 90980-04206 |
| 86214A | Radio ground bracket | 86214-47020 |
| 890C0 | Toyota part | 890C0-16010 · 890C0-16030 · 890C0-16050 · 890C0-16070 |
| 890C0A | Toyota part | 890C0-16020 · 890C0-16040 · 890C0-16060 · 890C0-16080 |
| 89349C | Toyota part | 89348-50050 |
| G921D | Toyota part | G921D-47020 |
