Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201

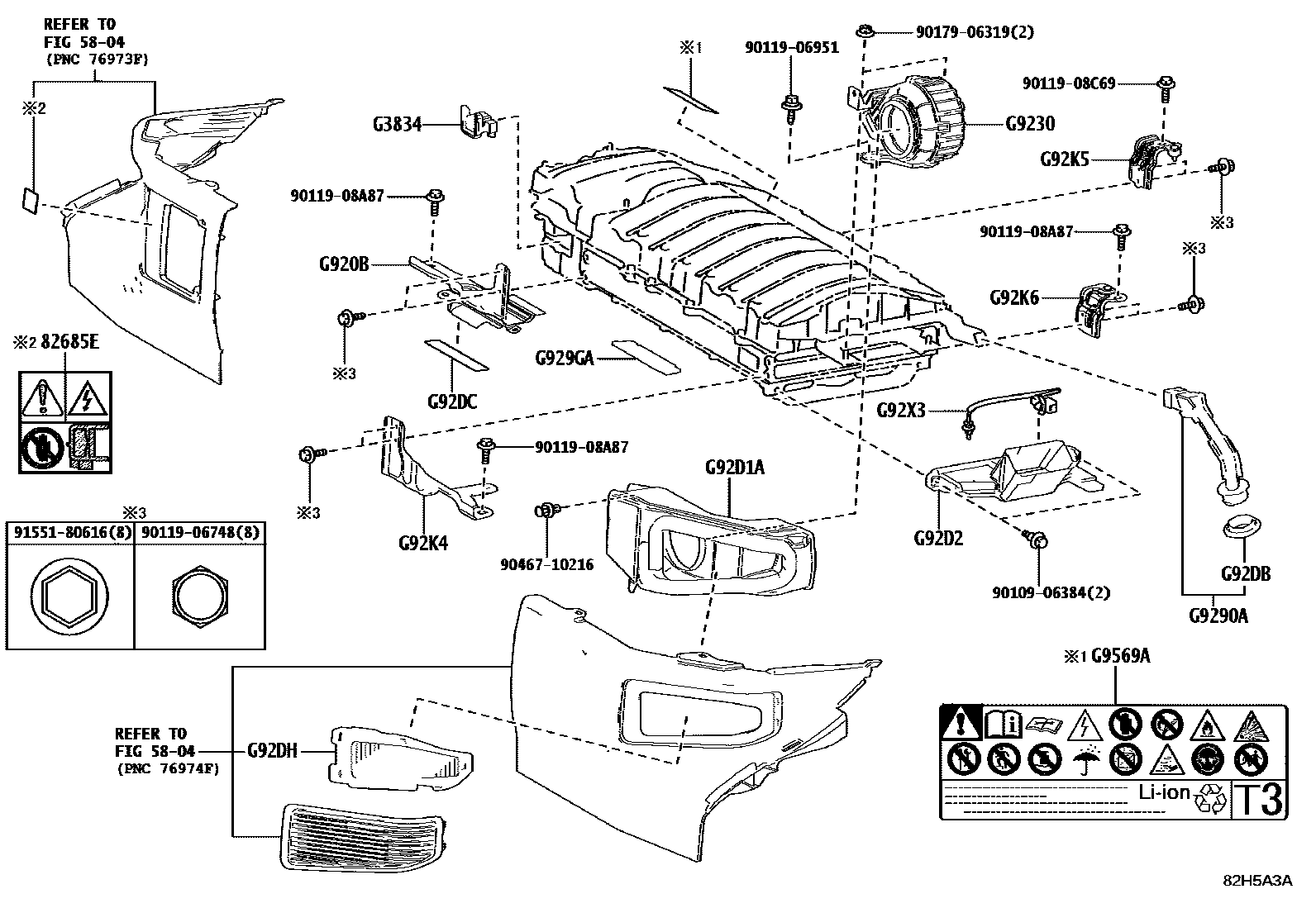

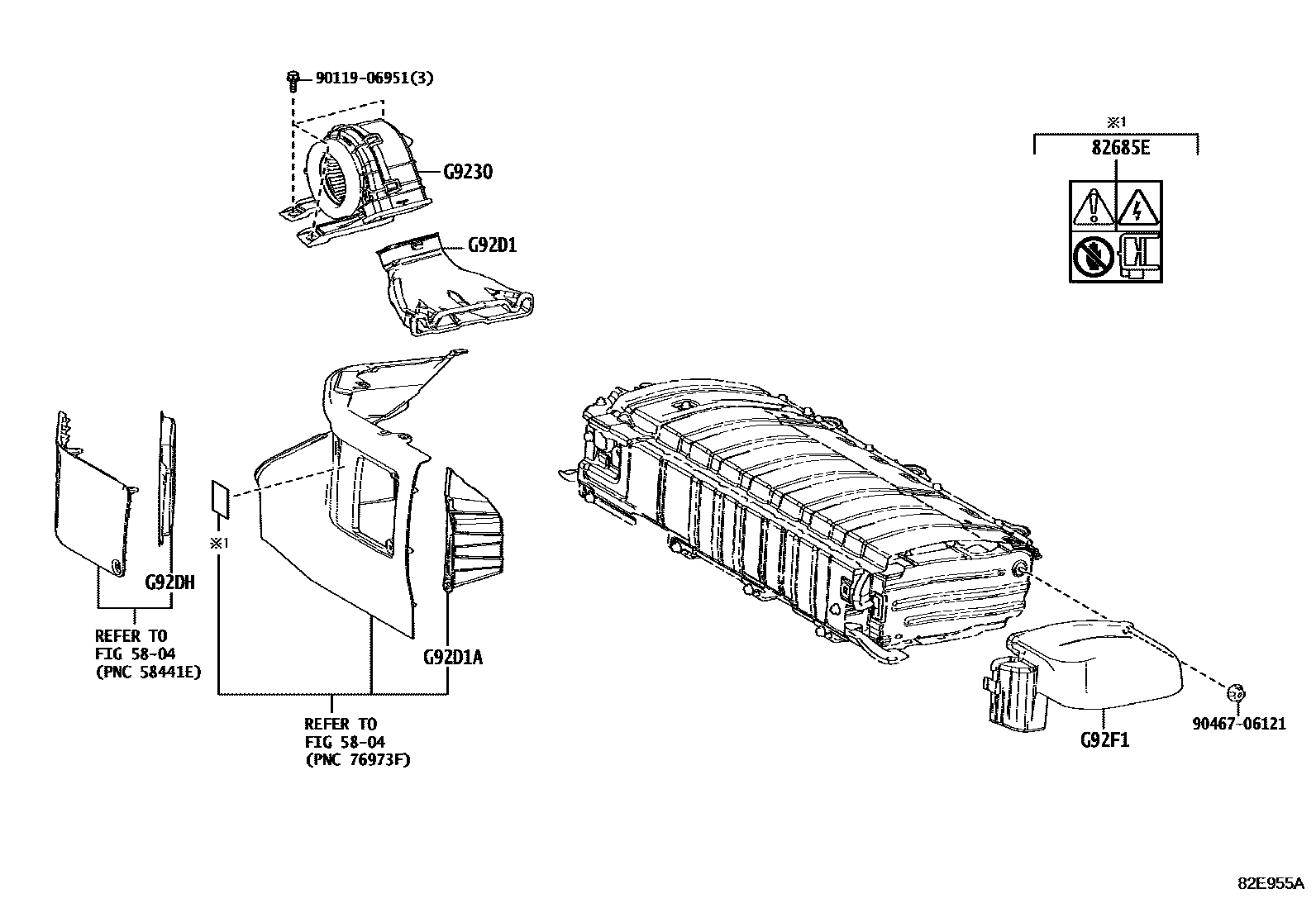

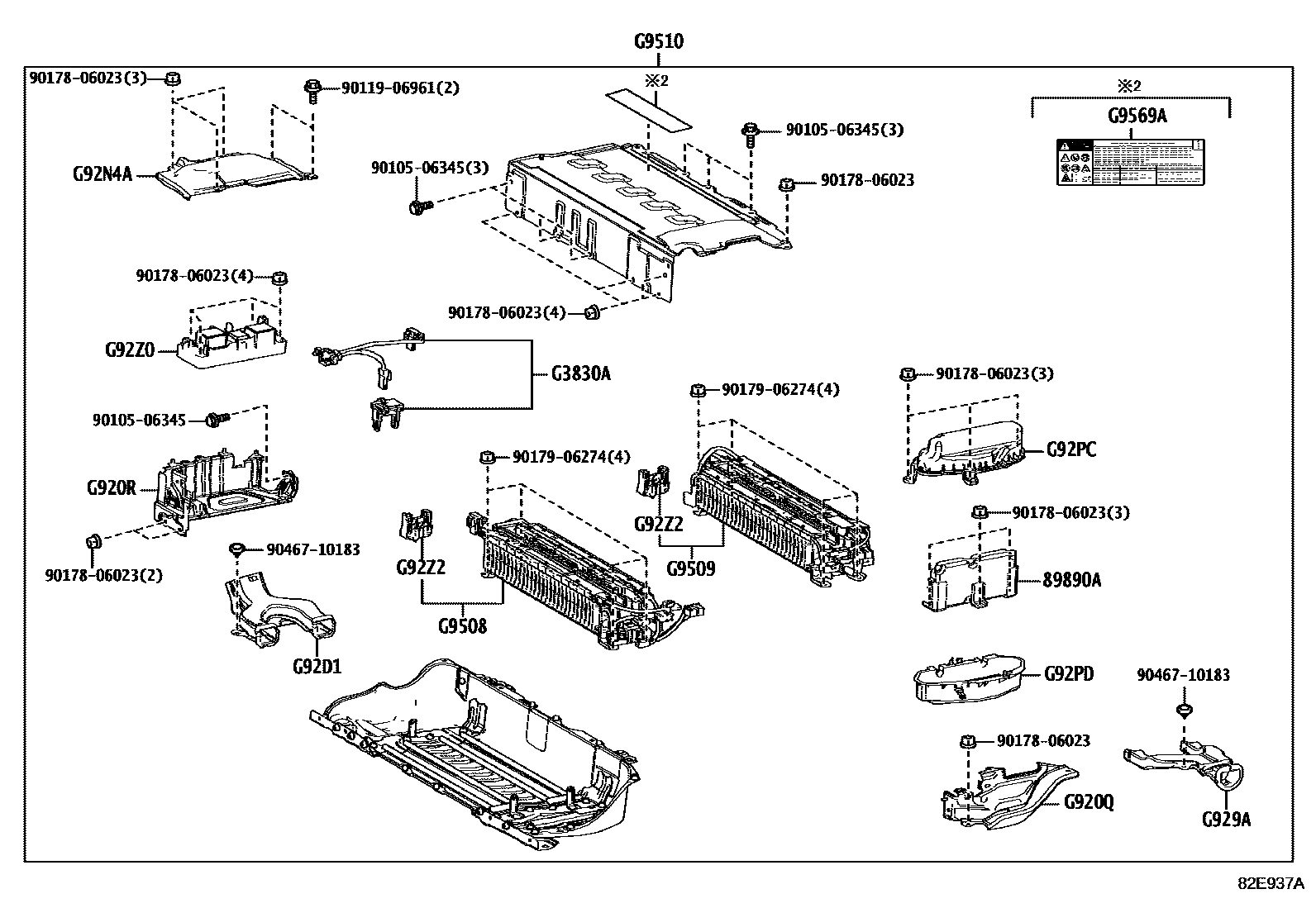

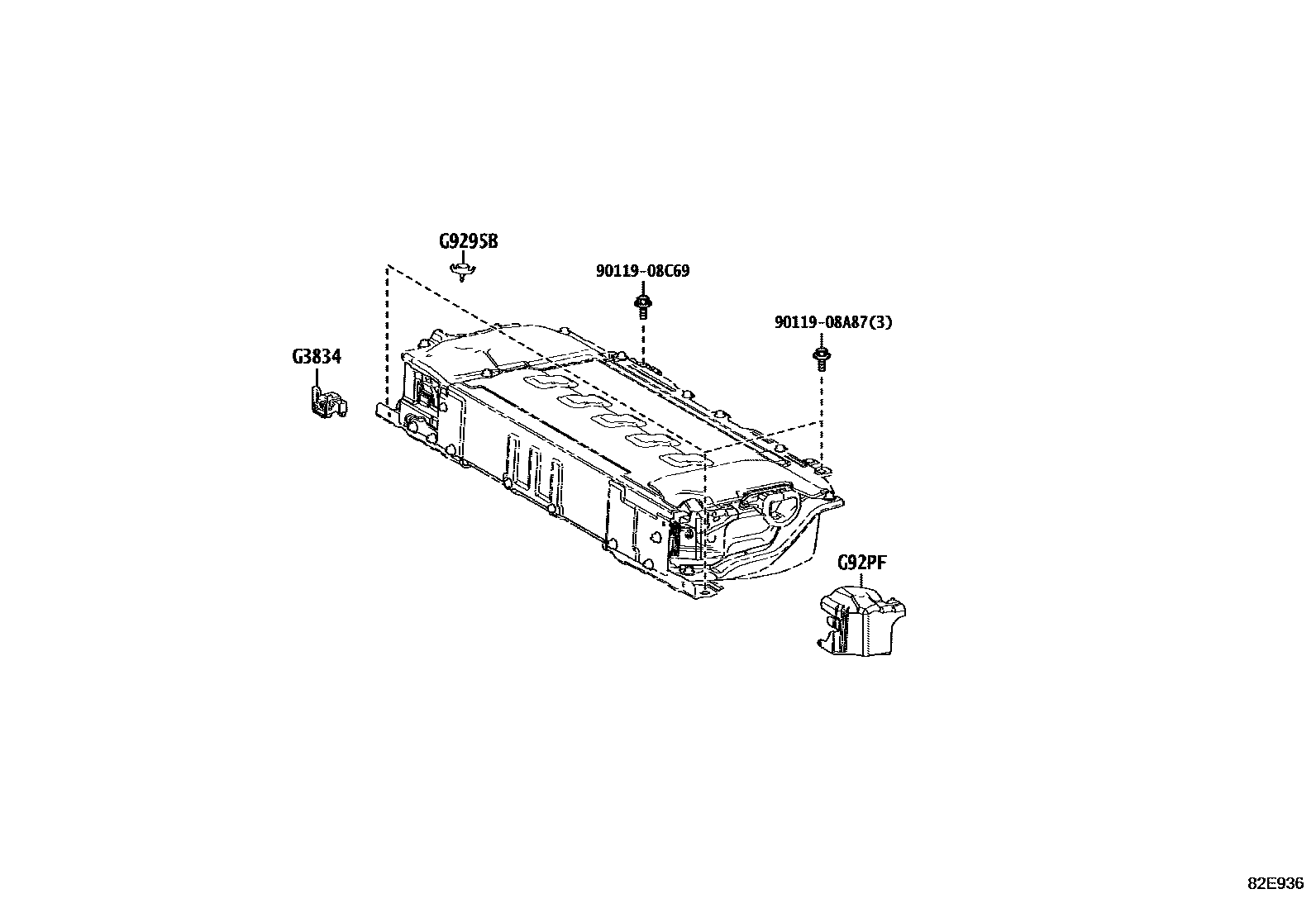

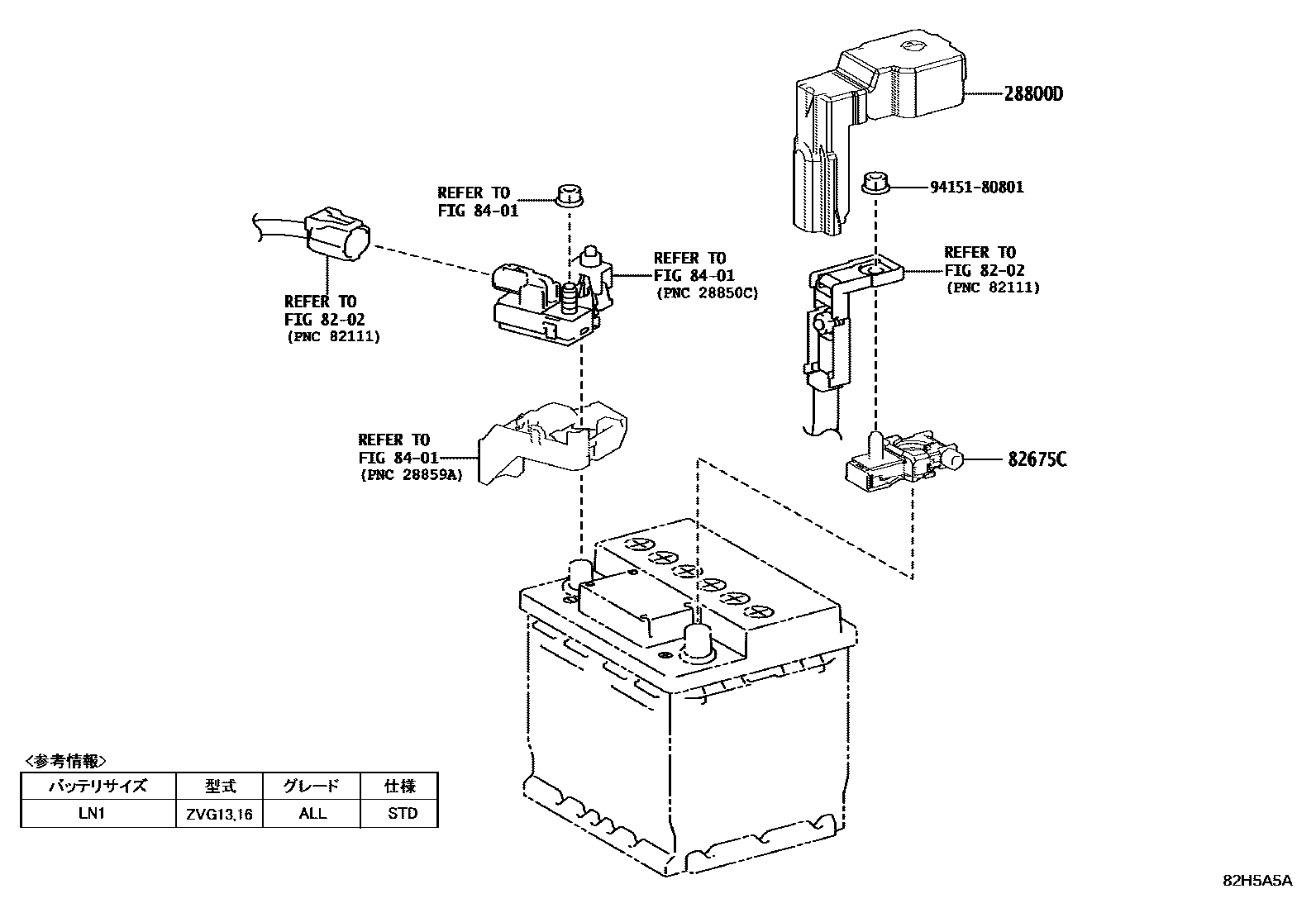

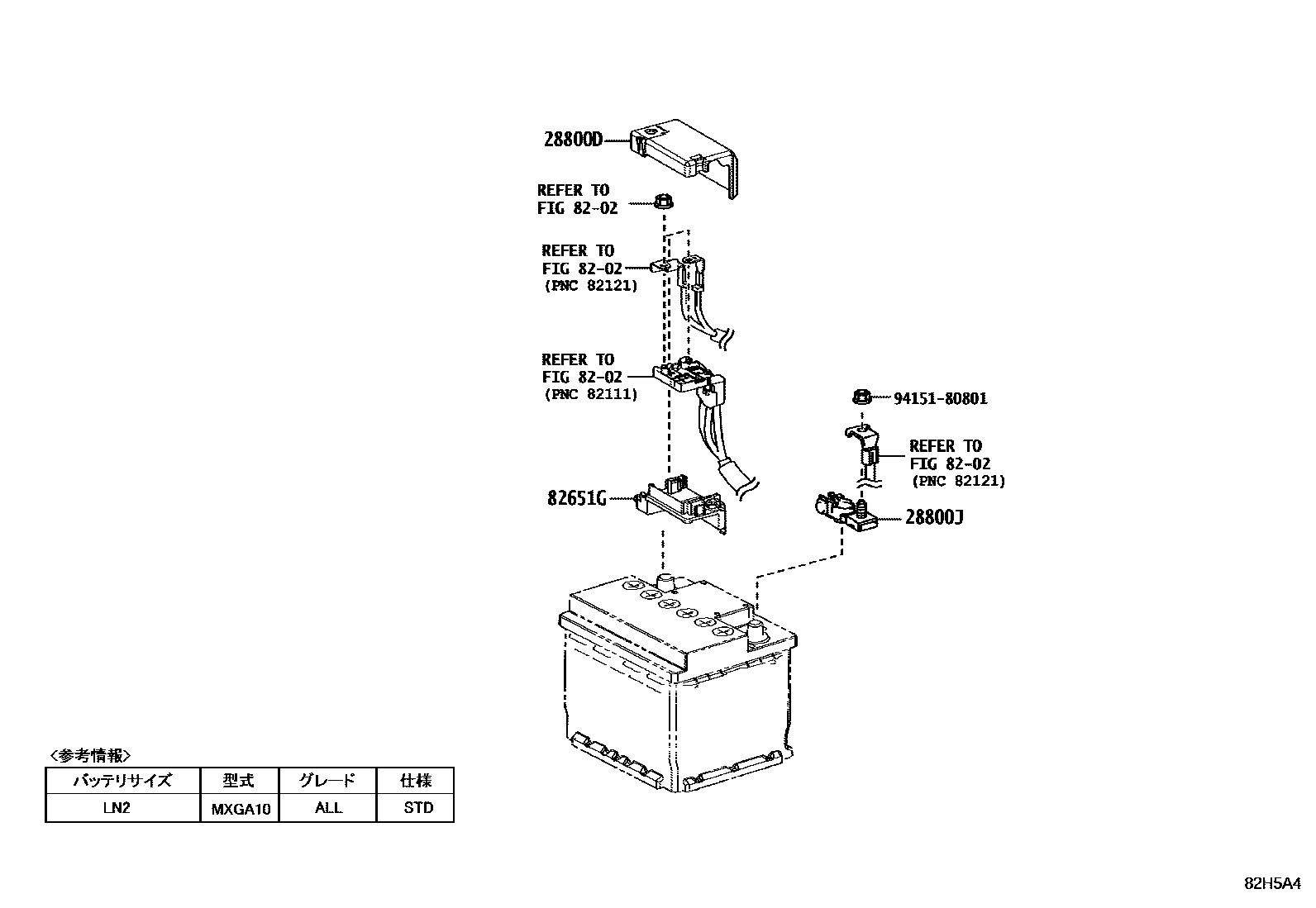

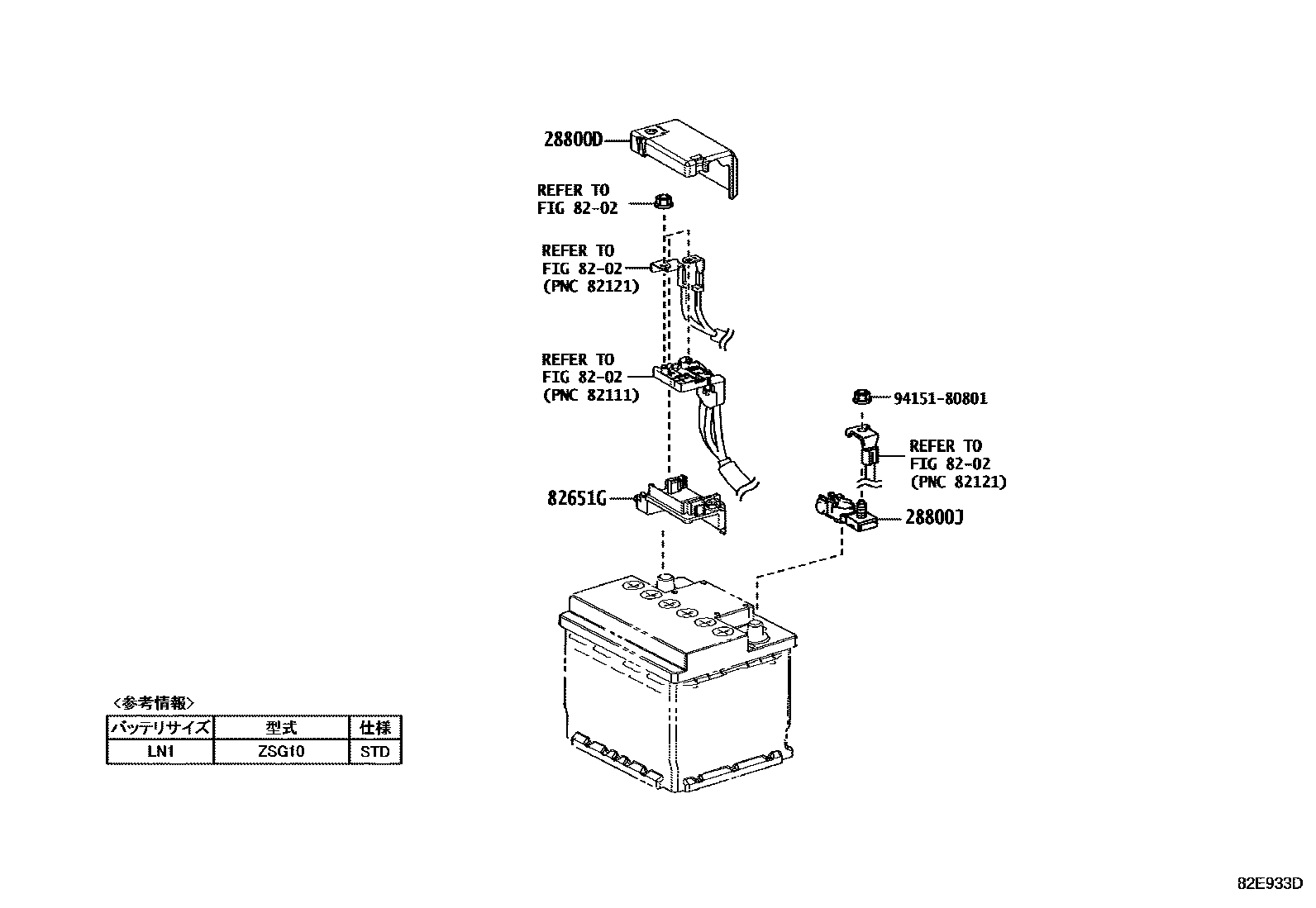

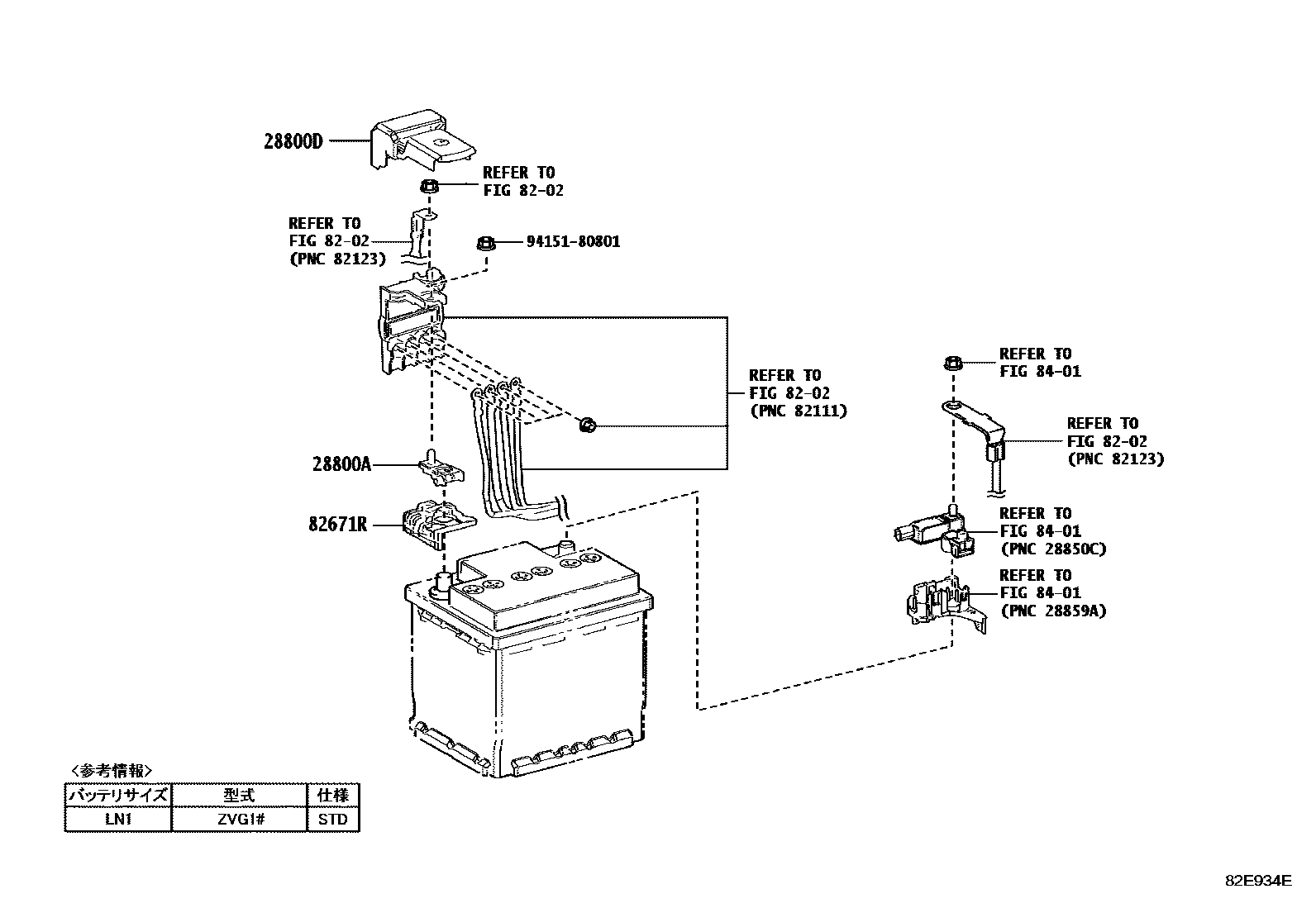

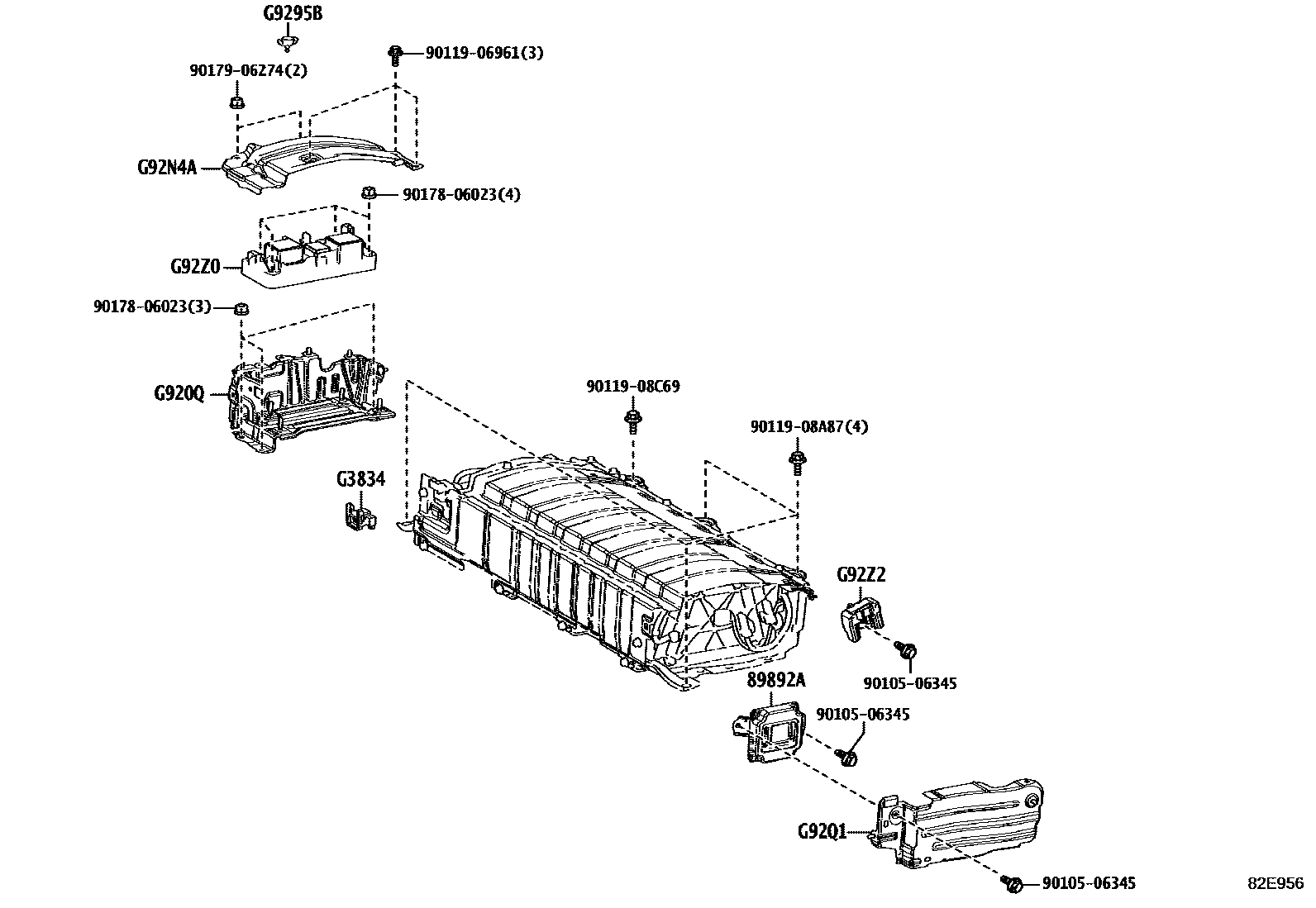

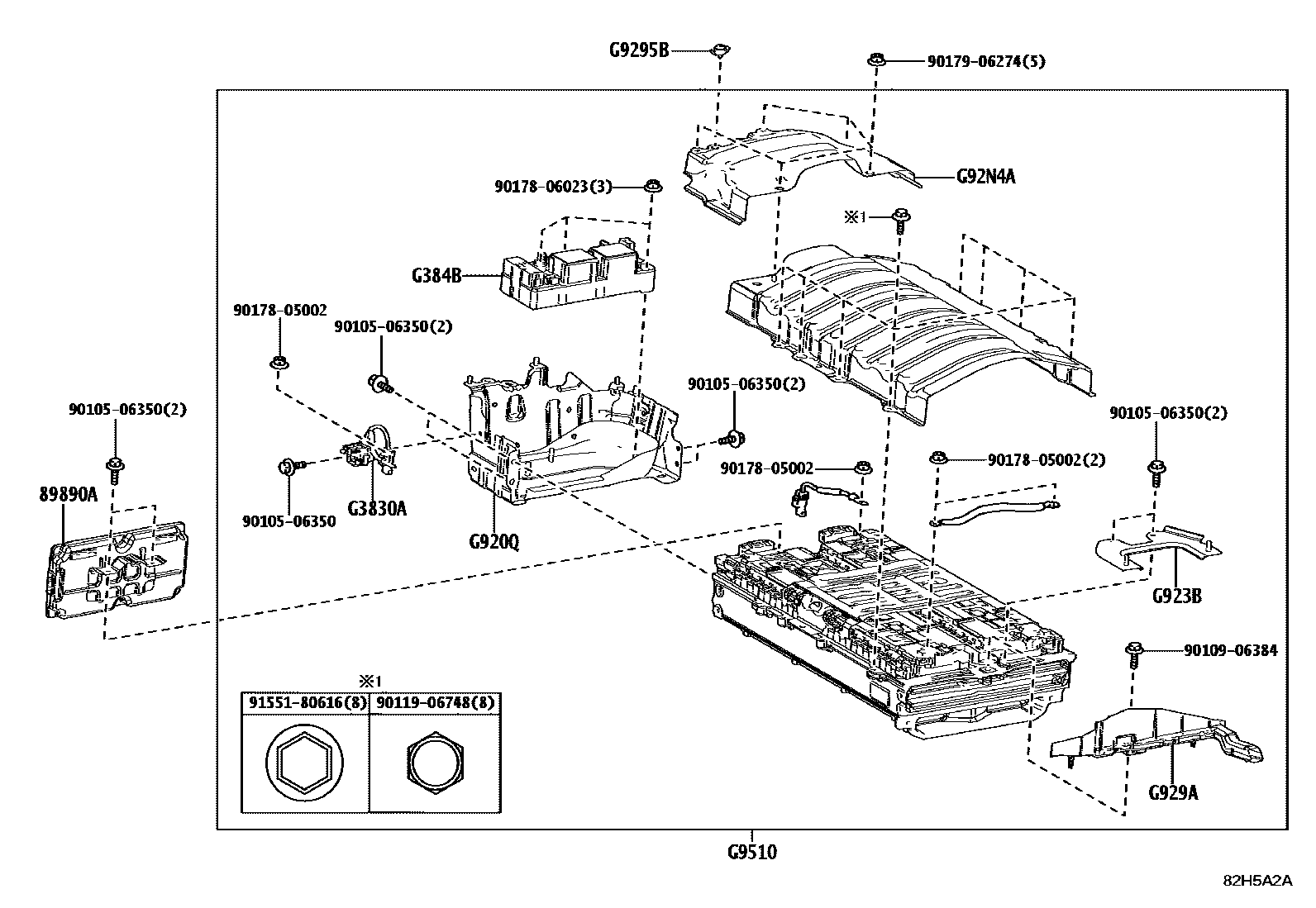

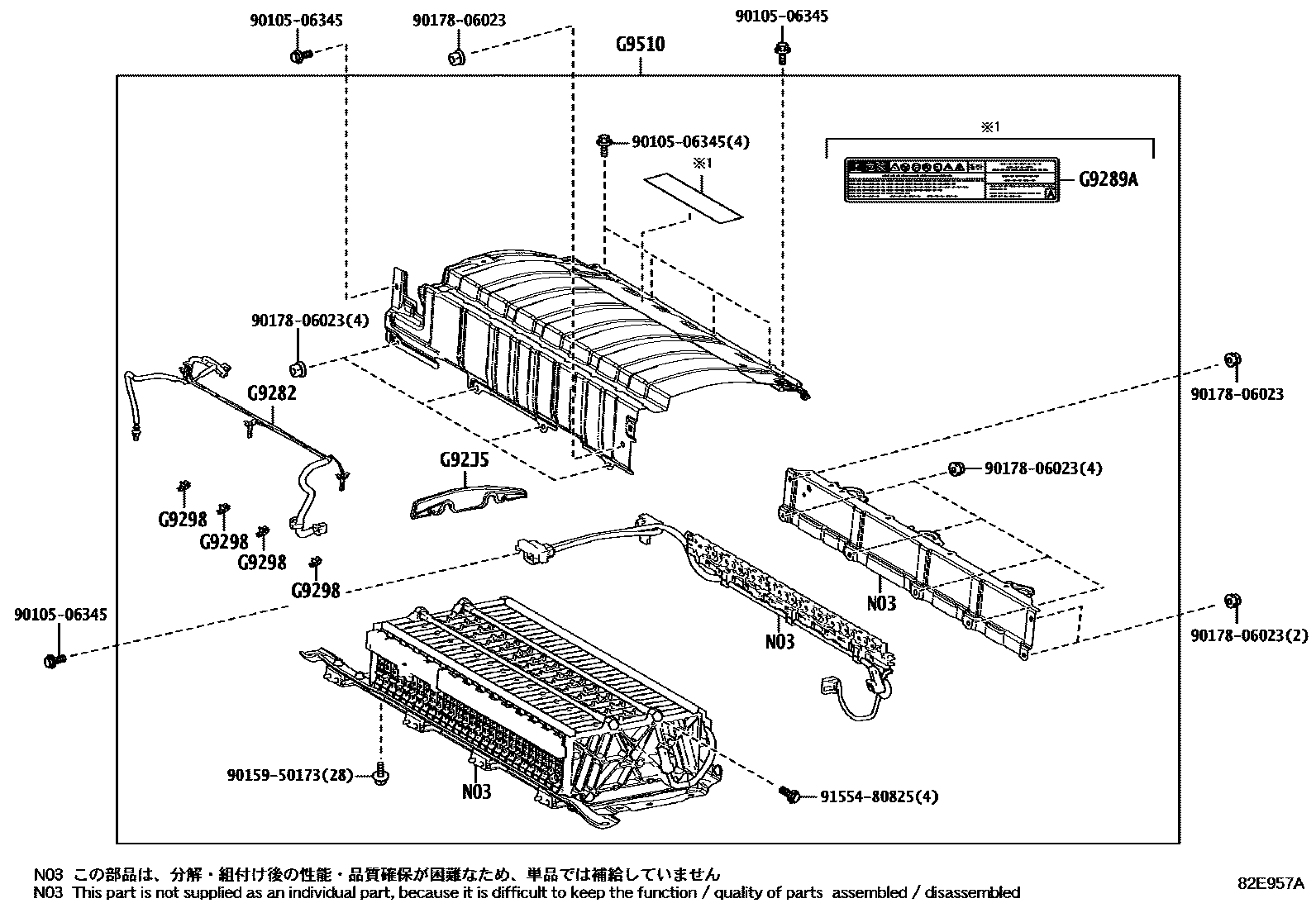

Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 12 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82621-12040 · 82621-47020 · 82821-78140 |
| 28800J | battery negative terminal | 90982-06070 |
| 82651G | Toyota part | 82651-10010 |
| 82671R | Toyota part | 82671-47040 |
| 82675C | Terminal block | 82675-78030 |
| 82685E | Maintenance plug warning nameplate | 82685-47110 · 82685-47111 |
| 89890A | Battery ECU assembly | 89890-28041 · 89890-28042 · 89890-47104 |
| 89892A | battery voltage sensor | 89892-47050 |
| G3830A | Electric vehicle battery plug assembly | G3830-12020 · G3830-47120 |
| G3834 | Service plug handle | G3834-47050 |
| G384B | Toyota part | G384B-28010 |
| G920B | No. 1 hybrid vehicle battery bracket bracket sub-assembly | G920B-16010 |
| G920Q | No. 1 HV battery shielding sub-assembly | G920Q-12010 · G920Q-47041 · G920Q-47050 |
| G920R | No. 2 HV battery shielding sub-assembly | G920R-47020 |
| G9230 | Battery cooling blower assembly | G9230-12020 · G9230-47050 · G9230-47080 |
| G923B | Battery cooling blower bracket | G923B-12010 |
| G9282 | HV battery thermistor | G9282-47050 |
| G9289A | battery warning label | G9288-50010 |
| G9290A | HV battery hose assembly | G9290-12020 · G9290-47030 |
| G9295B | Battery cover lock | G9295-30020 |
| G9298 | HV battery clip | G928E-47010 |
| G929A | No. 1 hybrid vehicle battery hose | G929A-12010 · G929A-47030 |
| G929GA | Toyota part | G929G-16010 |
| G92D1 | No. 1 HV battery air inlet | G92E1-47040 · G92E1-47051 |
| G92D1A | Toyota part | G92D1-12030 · G92D1-12040 |
| G92D2 | No. 2 HV battery air inlet | G92D2-12020 |
| G92DB | No. 1 HV battery seal | G92DB-47030 |
| G92DC | HV Battery No. 2 Seal | G92DE-16010 |
| G92DH | Toyota part | G92DH-12050 · G92DH-12060 |
| G92F1 | No. 1 HV battery exhaust duct | G92F1-47050 |
| G92J5 | No. 1 HV battery seal | G92J5-47030 |
| G92K4 | HV Battery Bracket No. 2 Bracket | G92K4-12020 |
| G92K5 | Toyota part | G92K5-12020 |
| G92K6 | No. 4 Hybrid Vehicle Battery Bracket | G92K6-12020 |
| G92N4A | No. 1 cover on the right side of the hybrid vehicle battery | G92N4-12020 · G92N4-47050 · G92N4-47060 |
| G92PC | Toyota part | G92PC-47010 |
| G92PD | Toyota part | G92PD-47010 |
| G92PF | Toyota part | G92PF-47010 |
| G92Q1 | No. 1 HV battery shielding plate | G92Q1-47050 |
| G92X3 | Toyota part | G92X3-12010 |
| G92Z0 | HV battery junction box assembly | G92Z0-47100 · G92Z0-47110 |
| G92Z2 | HV battery terminal box | G92Z2-47070 |
| G9508 | No. 1 HV power supply battery stack sub-assembly | G9509-47020 |
| G9509 | No. 2 HV power supply battery stack sub-assembly | G9508-47330 |
| G9510 | HV power supply battery assembly | G9510-16020 · G9510-16021 · G9510-47121 · G9510-47130 |
| G9569A | Lithium Ion Battery Warning Labels | G9569-47100 · G9569-48010 |
