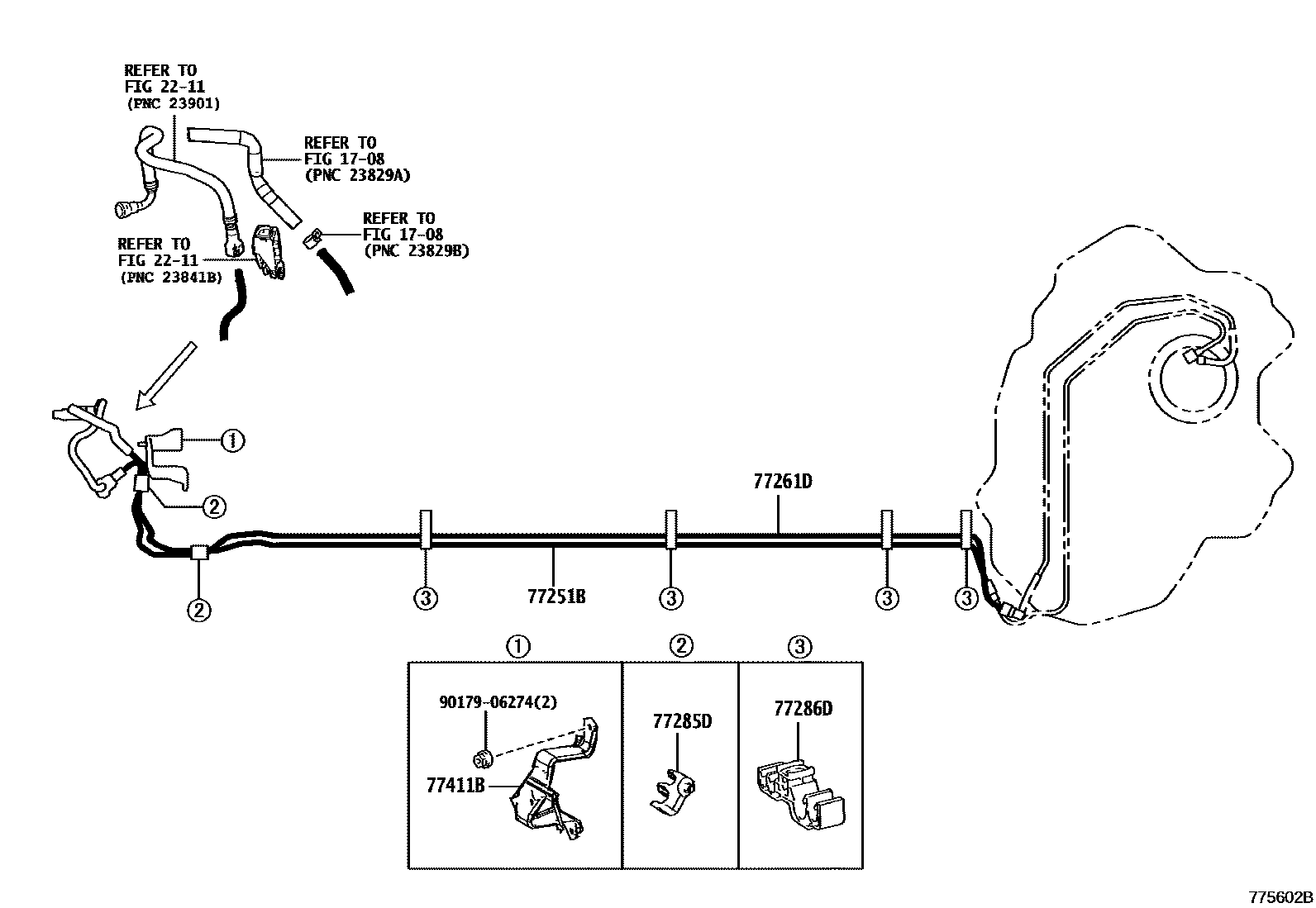

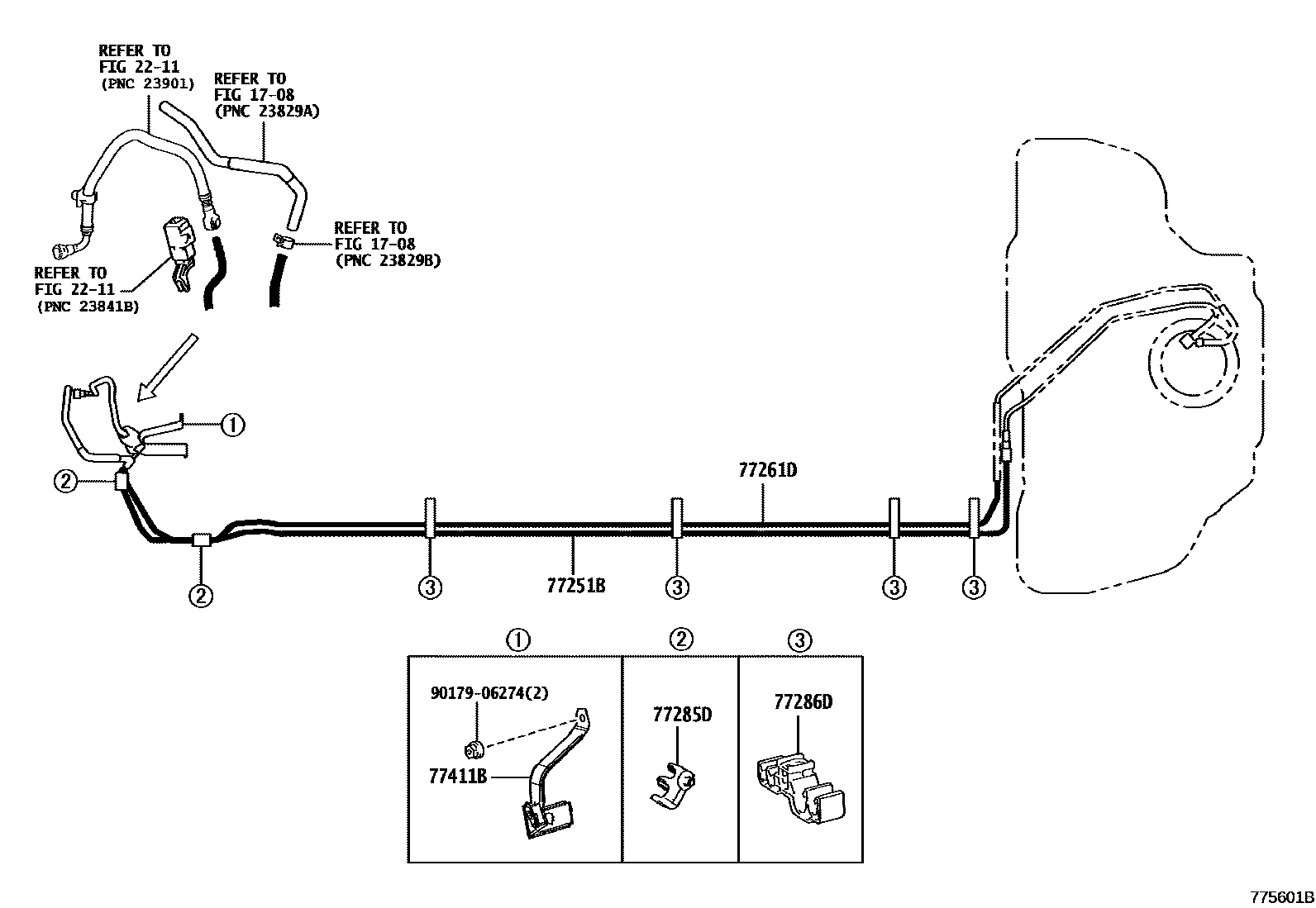

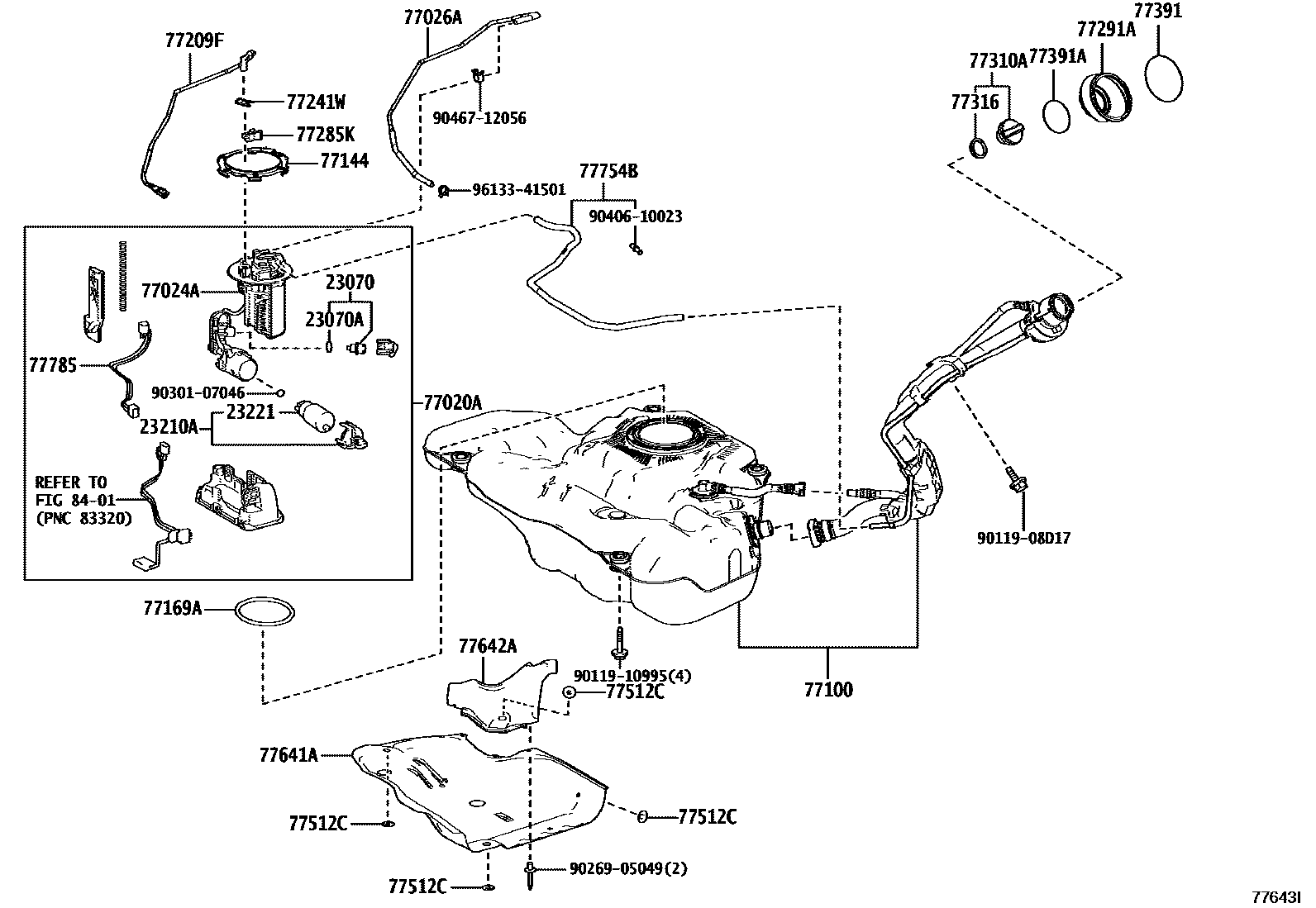

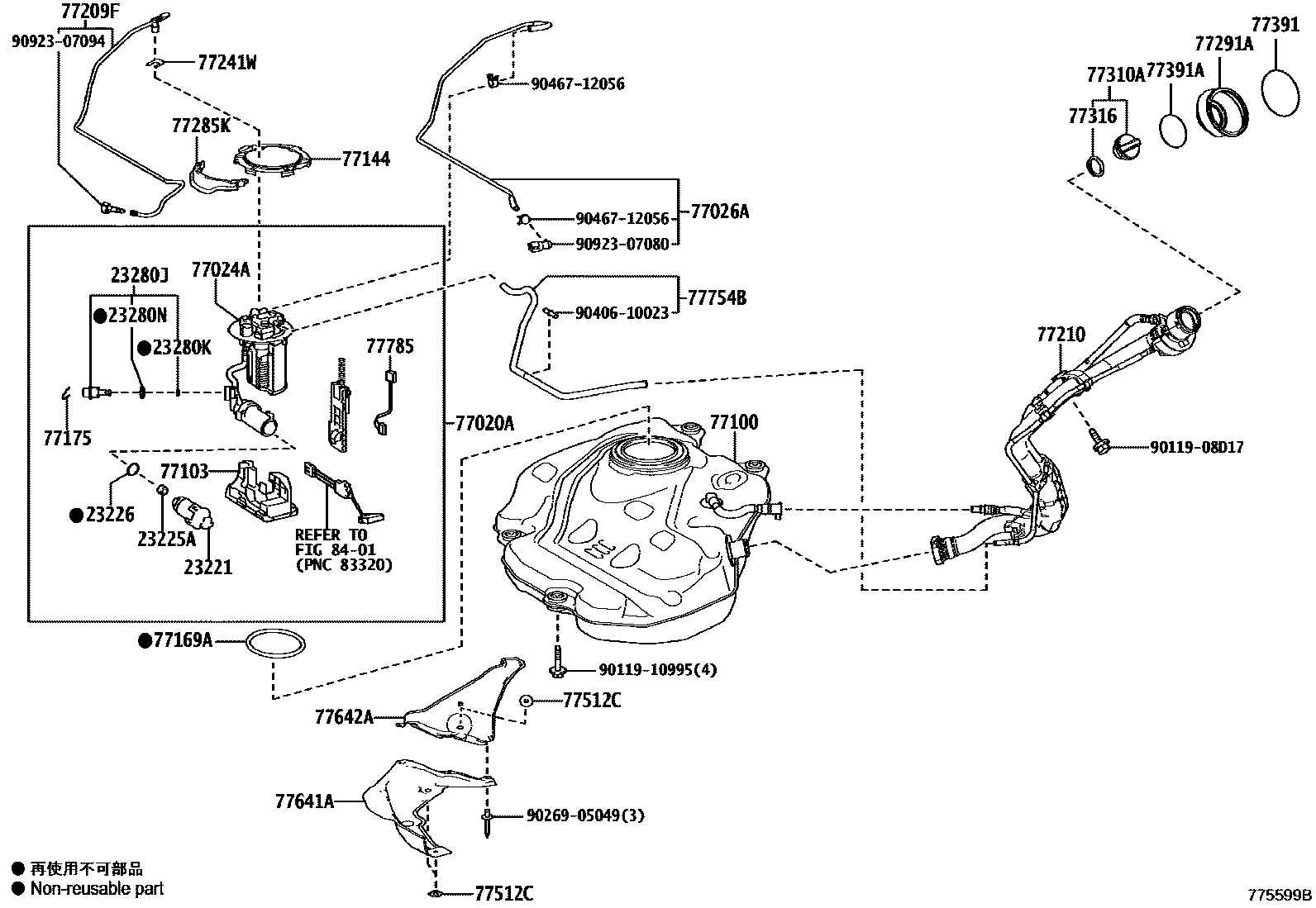

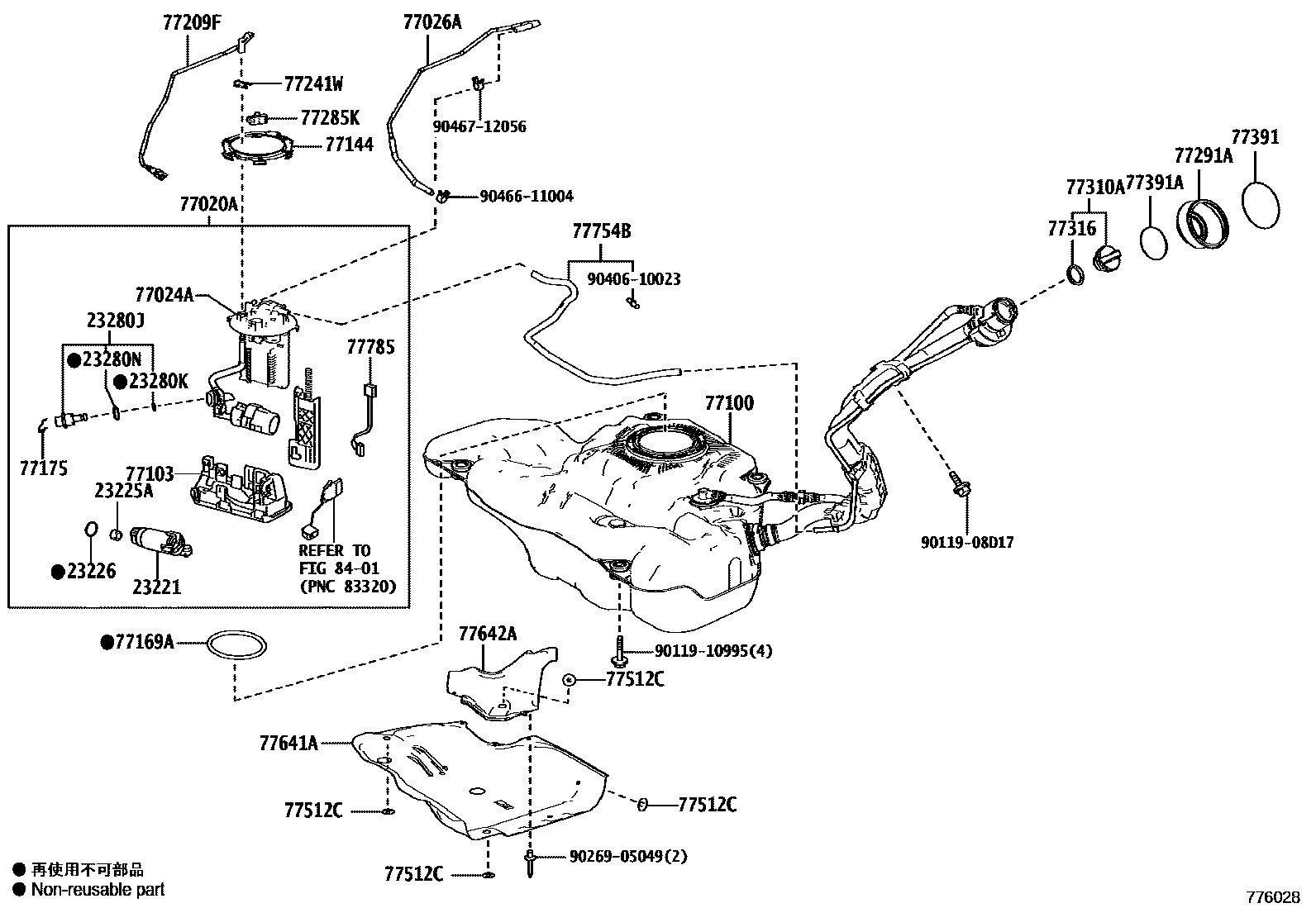

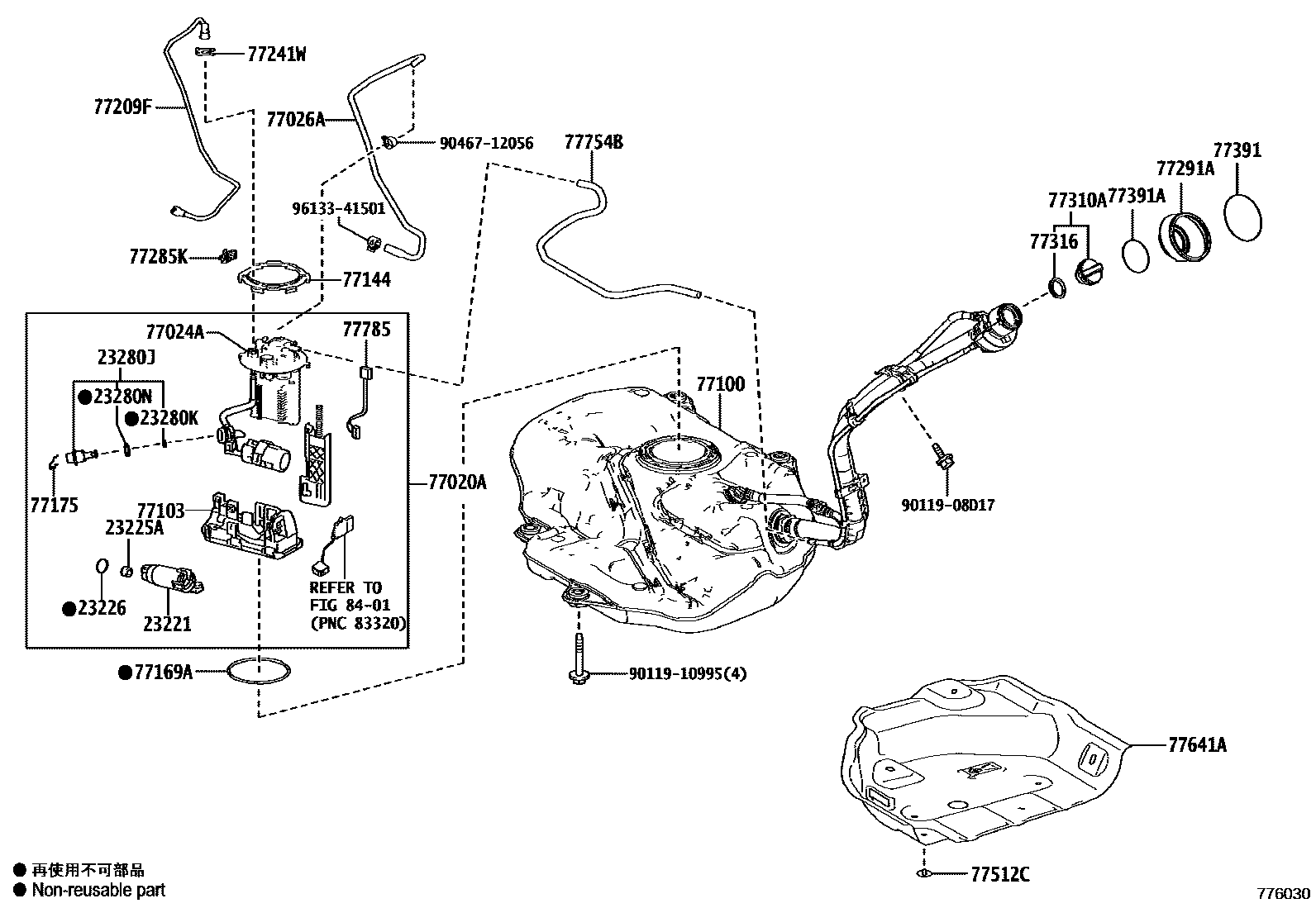

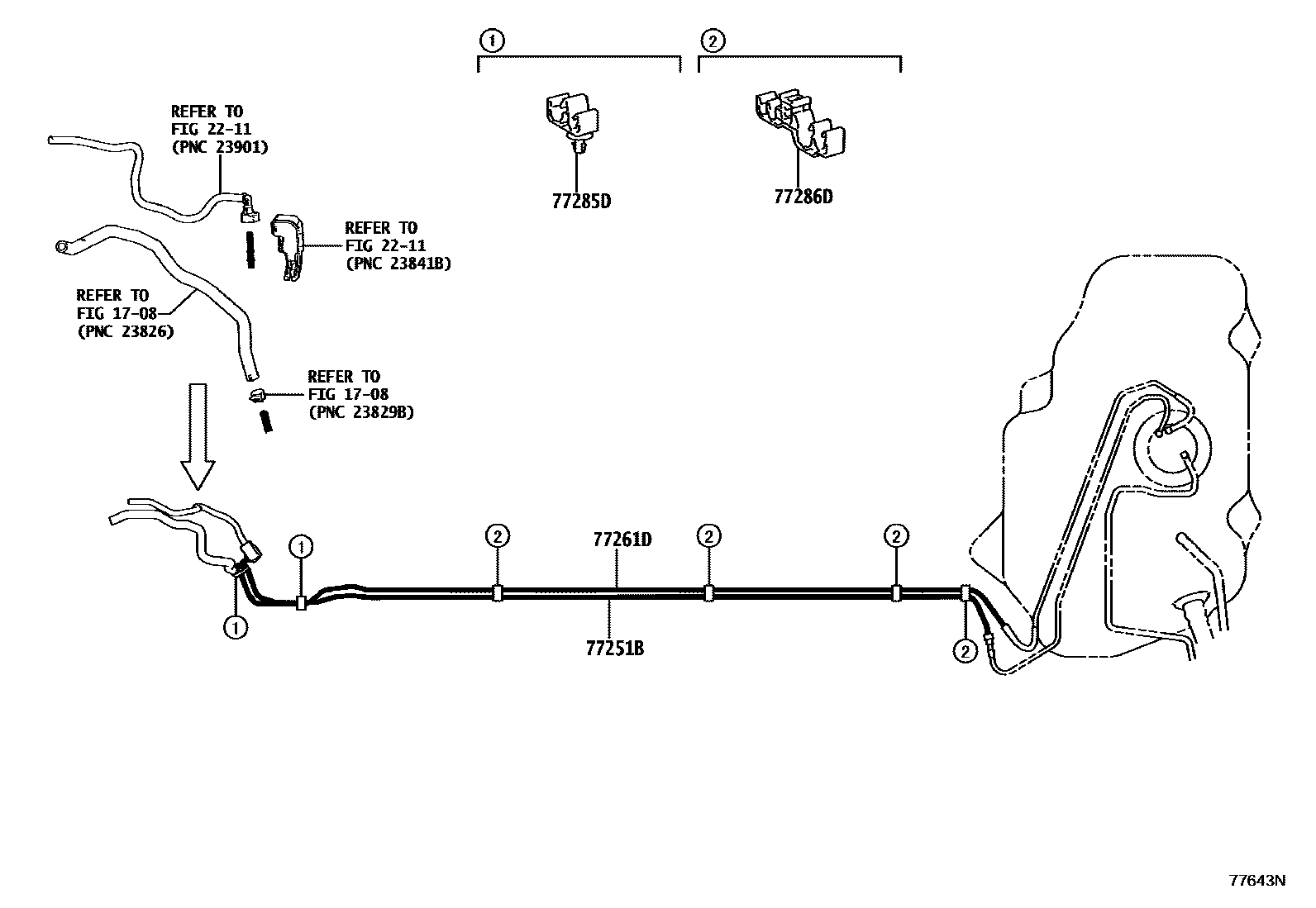

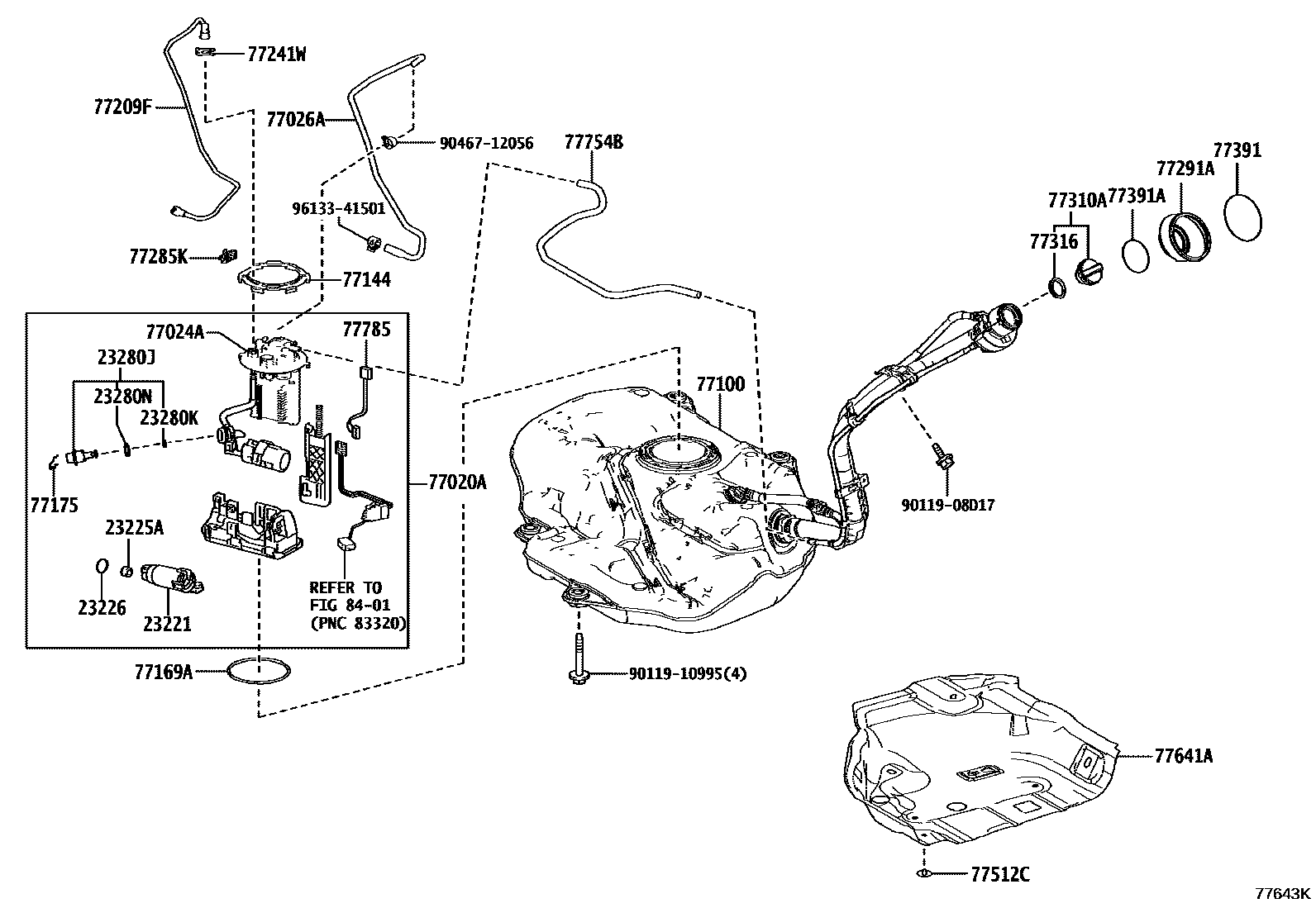

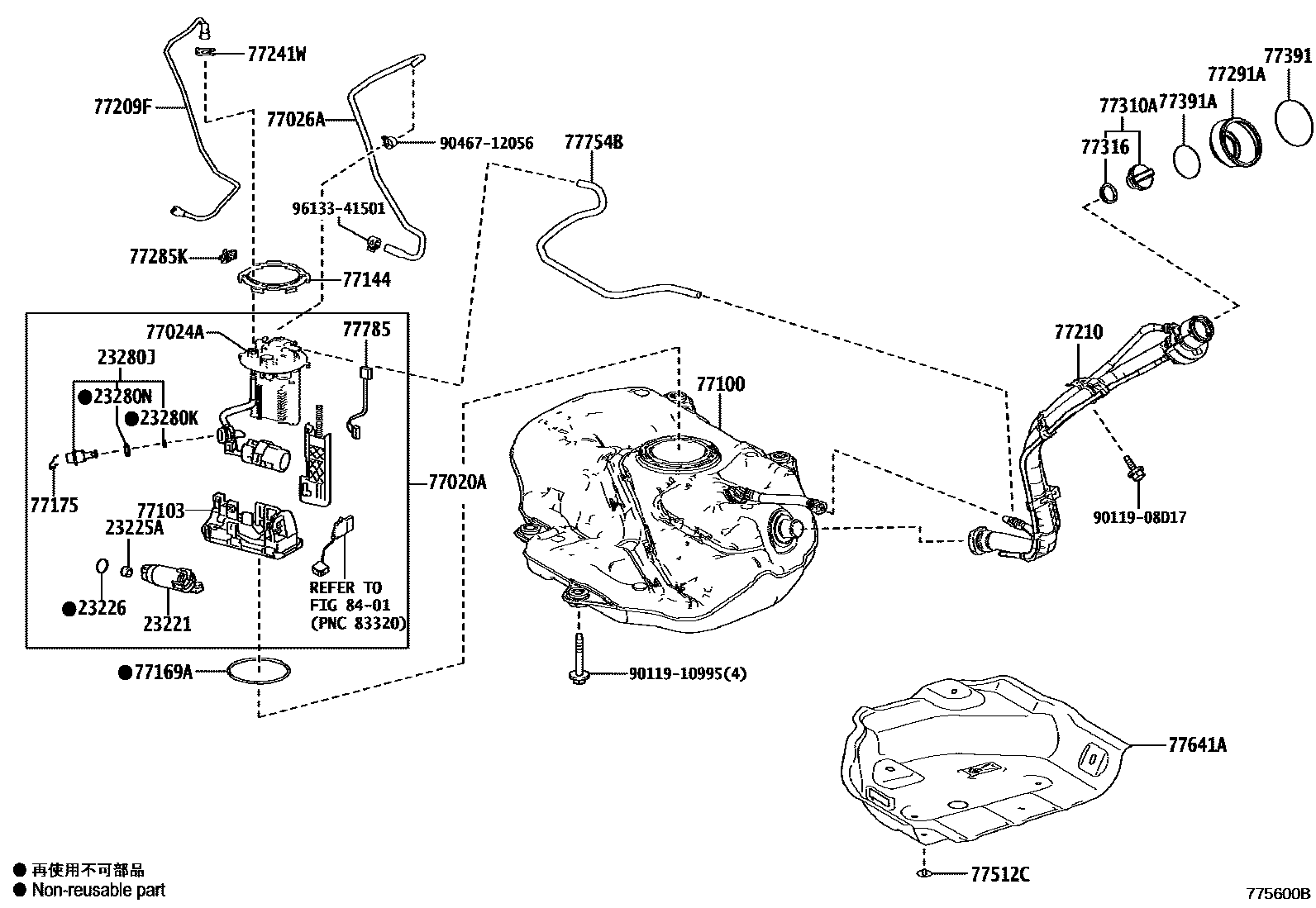

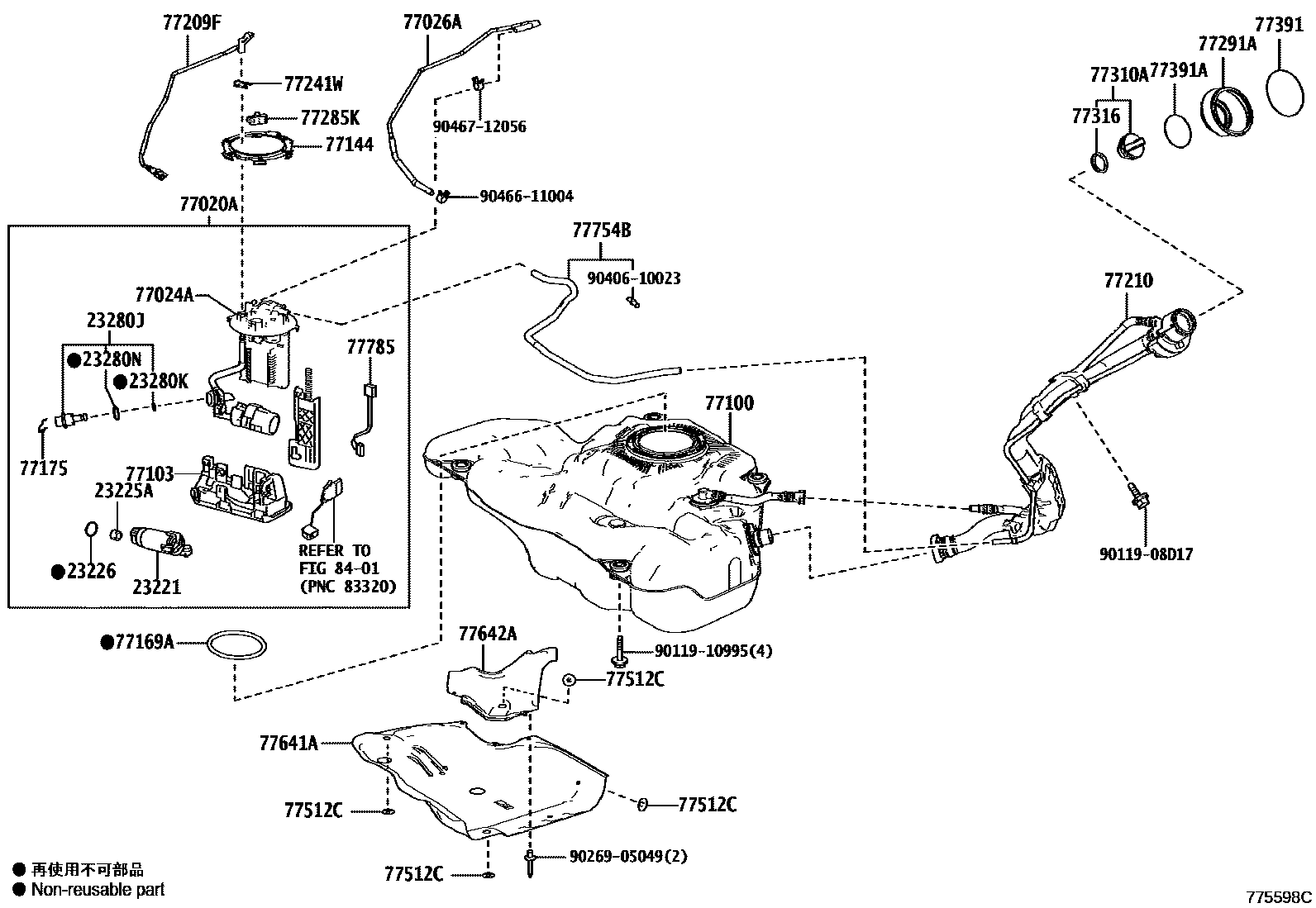

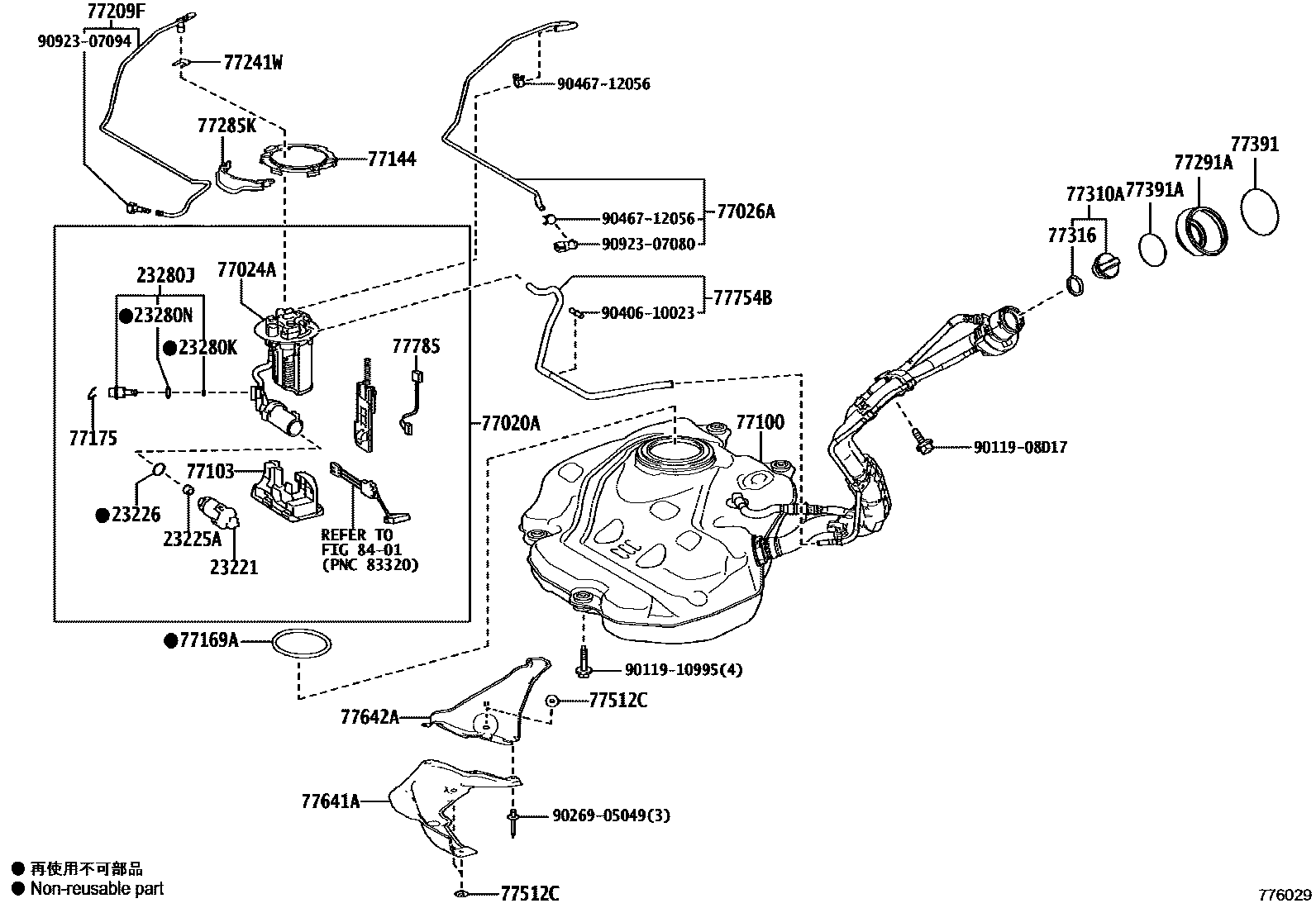

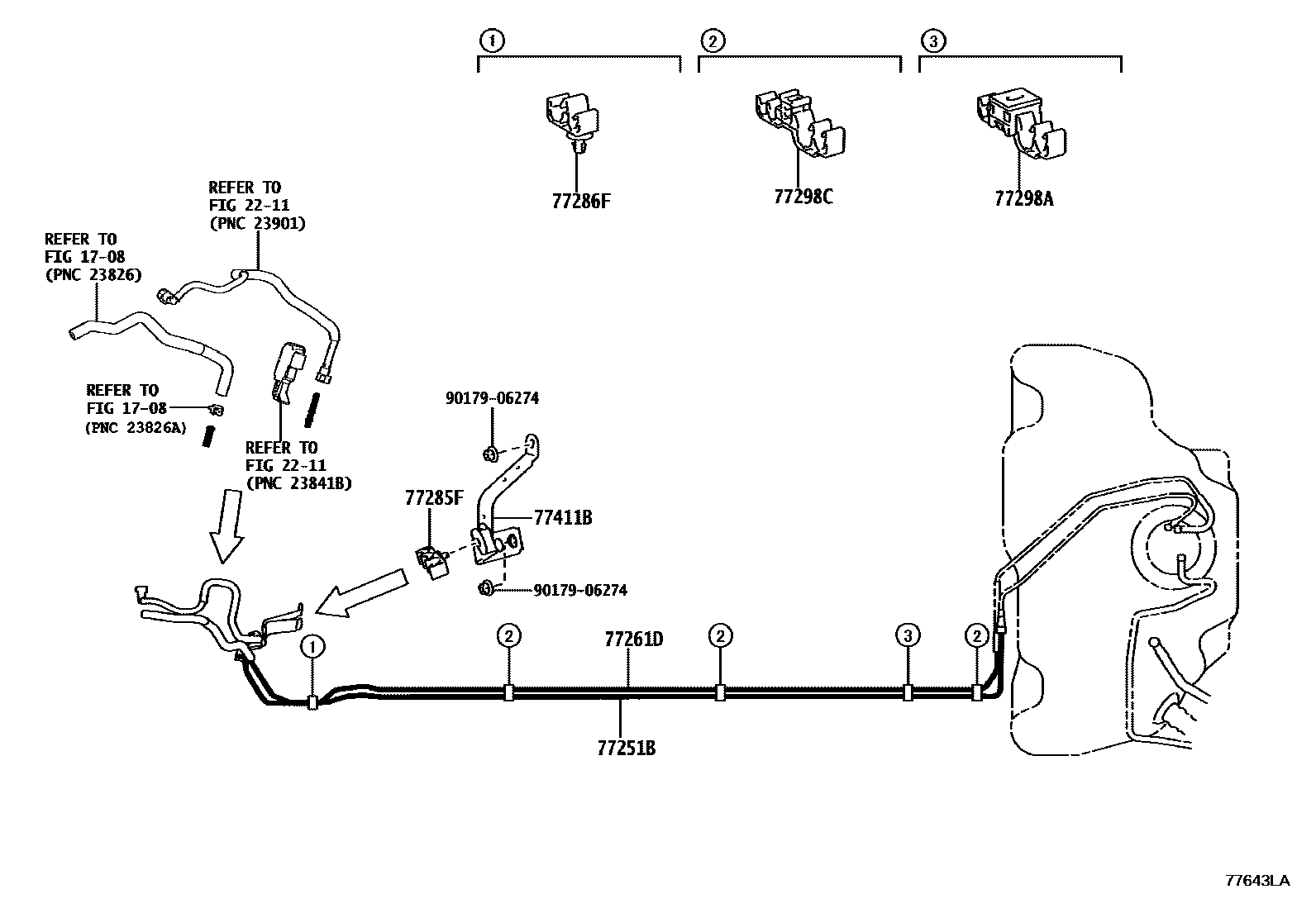

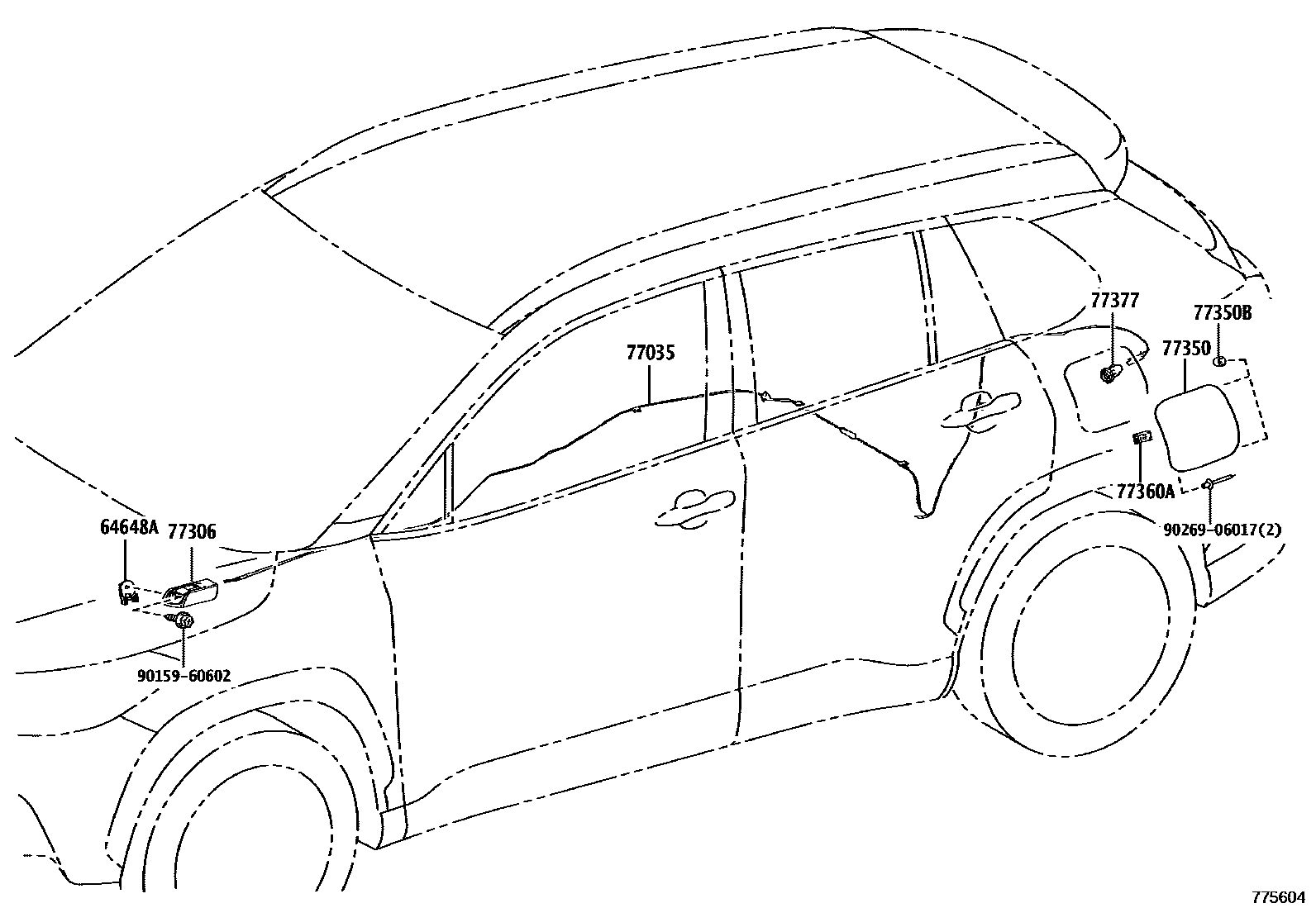

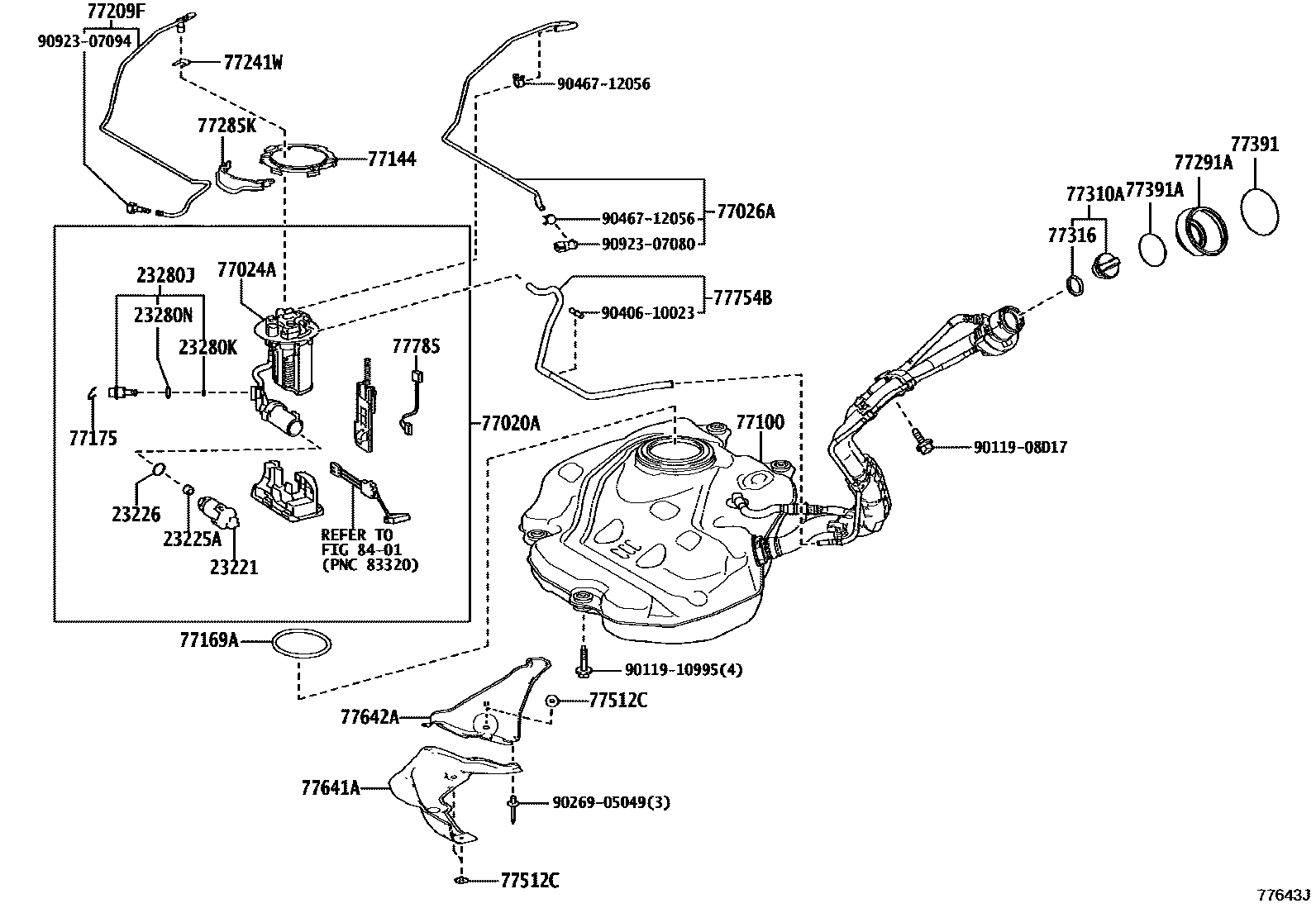

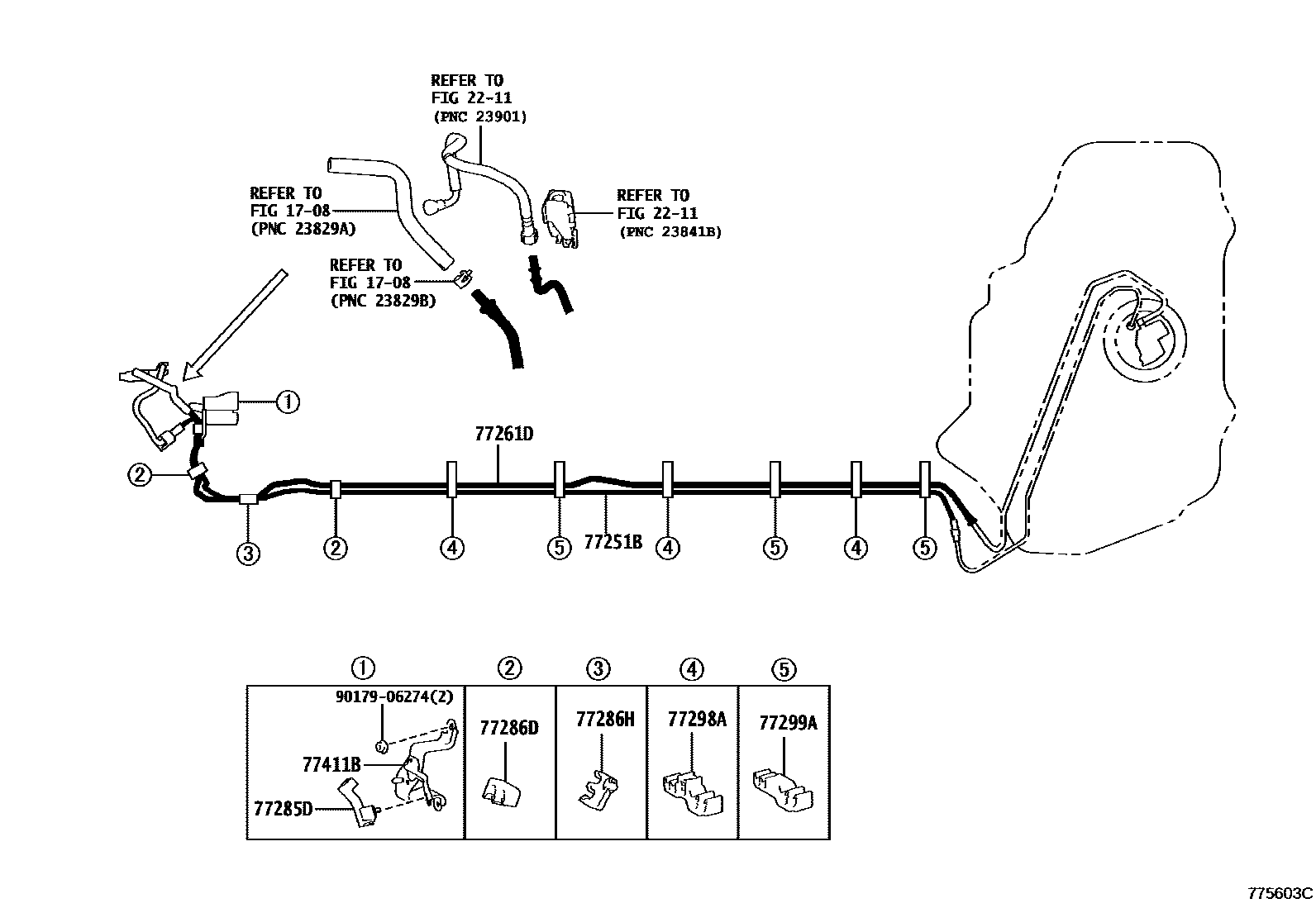

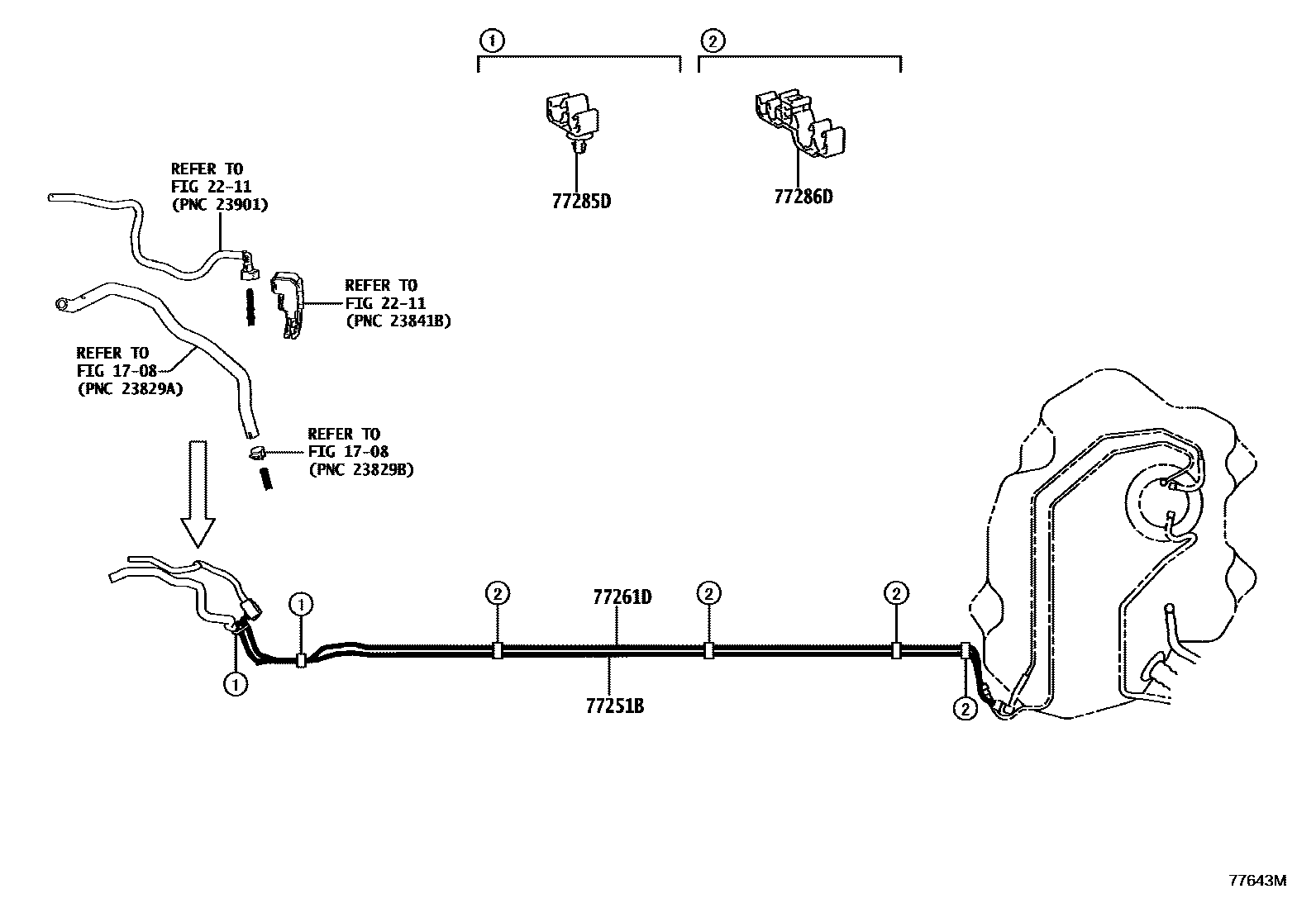

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 16 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-24010 |
| 23070A | Toyota part | 90301-15024 |
| 23210A | Water pump assembly with motor and bracket | 23210-24010 |
| 23221 | fuel pump | 23210-37010 · 23210-37020 · 23221-24010 |
| 23225A | fuel pump septum | 23225-21020 |
| 23226 | O-ring (for fuel pump) | 90301-08020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 |
| 23280N | Toyota part | 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-12020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-12A60 · 77020-12B30 · 77020-16230 · 77020-16240 |
| 77024A | Fuel absorber sub-assembly | 77024-10020 · 77024-12380 · 77024-16070 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-12070 · 77026-16010 · 77026-16020 · 77026-47040 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-16250 · 77035-16270 |
| 77100 | fuel tank assembly | 77001-16310 · 77001-16320 · 77001-16330 · 77001-16340 · 77001-16350 |
| 77103 | Toyota part | 77103-12130 · 77103-12140 |
| 77144 | Fuel pump instrument fixture | 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-47030 · 77169-47040 |
| 77175 | No. 2 oil suction pipe bracket | 77175-78010 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-12390 · 77209-16100 · 77209-16110 · 77209-76050 |
| 77210 | Toyota part | 77210-16210 · 77210-16220 |
| 77241W | Pipe joint clip | 77241-33011 · 77241-60550 |
| 77251B | main fuel pipe | 77251-12A50 · 77251-16270 · 77251-16280 · 77251-16290 · 77251-16300 · 77251-16310 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12730 · 77261-16210 · 77261-16220 · 77261-16230 · 77261-16240 · 77261-16250 |
| 77285D | No. 1 fuel pipe clamp | 77286-12260 · 77286-48100 · 77286-78040 |
| 77285F | No. 1 fuel pipe clamp | 77285-78010 |
| 77285K | No. 1 fuel pipe clamp | 77285-16160 · 77285-30350 |
| 77286D | No. 2 fuel pipe clamp | 77289-12080 · 77298-10050 · 77298-10090 |
| 77286F | No. 2 fuel pipe clamp | 77286-75010 |
| 77286H | No. 3 fuel pipe clamp | 77286-12240 |
| 77291A | Fuel tank filler pipe cover | 77291-16130 |
| 77298A | No. 4 fuel pipe clamp | 77298-10080 · 77298-12180 |
| 77298C | No. 4 fuel pipe clamp | 77298-10070 |
| 77299A | No. 5 fuel pipe clamp | 77298-12190 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-12010 |
| 77310A | Fuel tank cap assembly | 77300-12020 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-16270 |
| 77350B | Cushion (for fuel filler cap) | 90541-06069 |
| 77360A | Toyota part | 77360-30080 · 77360-35040 |
| 77377 | Fuel filler cap lock retainer | 77377-12100 |
| 77391 | fuel inlet ring | 77391-42010 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-10020 · 77411-47020 |
| 77512C | Toyota part | 77512-35140 |
| 77641A | No. 1 fuel tank protective shell | 77641-16040 · 77641-16050 · 77641-47070 |
| 77642A | No. 2 fuel tank protective shell | 77642-16020 · 77642-16030 |
| 77754B | Carbon canister outlet hose | 77754-16090 · 77754-16100 · 77754-16120 · 77754-47090 |
| 77785 | fuel pump wiring harness | 77785-12010 · 77785-52141 · 77785-76010 |
