Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

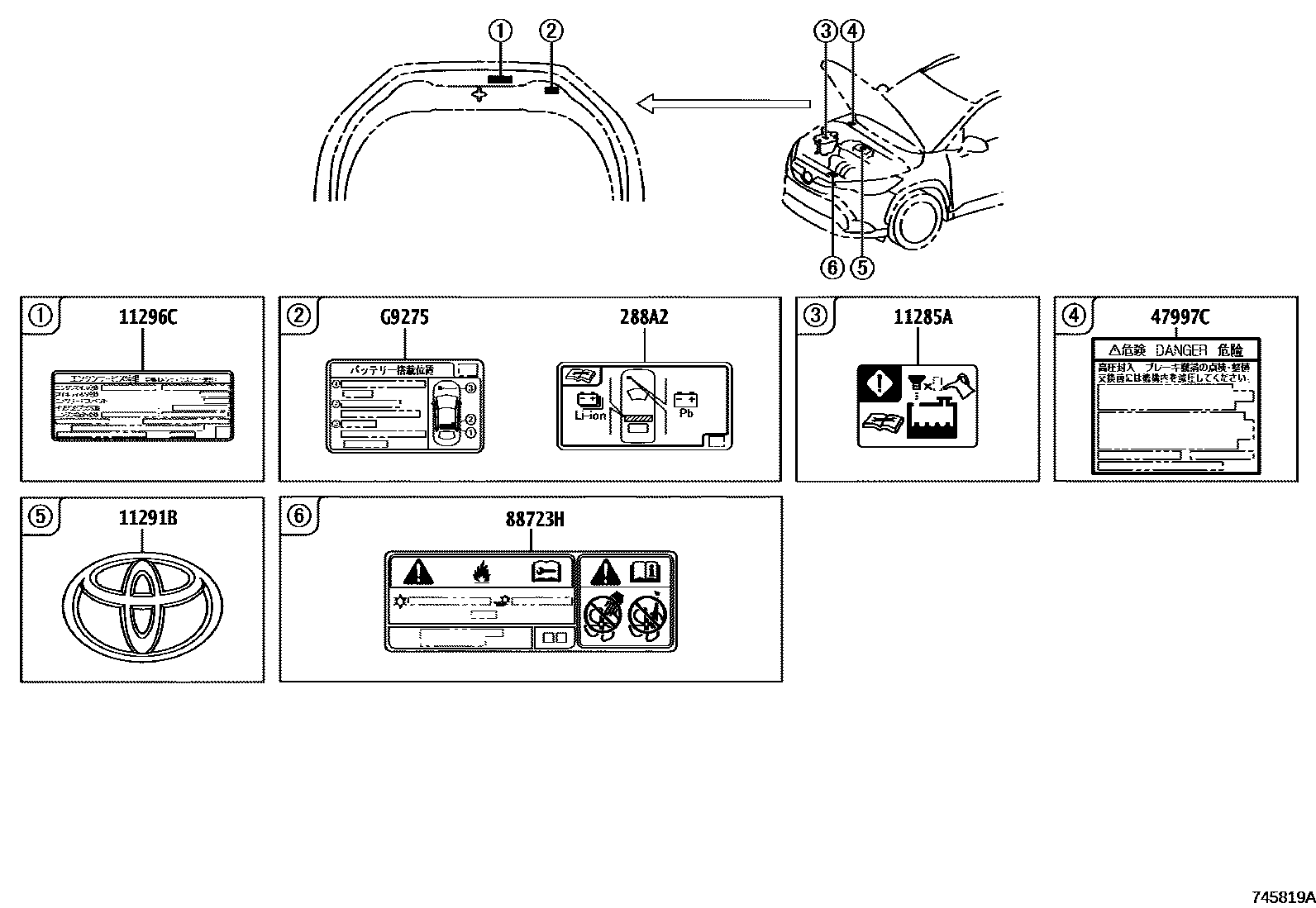

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-11030 |
| 11291B | Toyota part | 11291-37100 · 11291-37130 |
| 11296C | Engine maintenance information label | 11296-15110 · 11296-24020 · 11296-36080 |
| 288A2 | Toyota part | 288A2-37020 |
| 41992 | Differential attention label | 41992-33010 |
| 42668 | Small spare tire warning label | 42668-42010 |
| 47997C | Accumulator No. 1 Warning Label | 47997-76010 |
| 74528J | Electric back door warning label | 74528-78010 |
| 74559B | fuel information label | 74559-48060 |
| 74751 | tire pressure information label | 42661-16770 · 42661-16780 · 42661-16790 · 42661-16800 |
| 88723H | Cooler maintenance warning label | 88723-16120 · 88723-16130 |
| G9275 | No. 1 battery warning label | G9275-47100 · G9275-47130 |
