Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 3 images and 3 PNC and OE references.

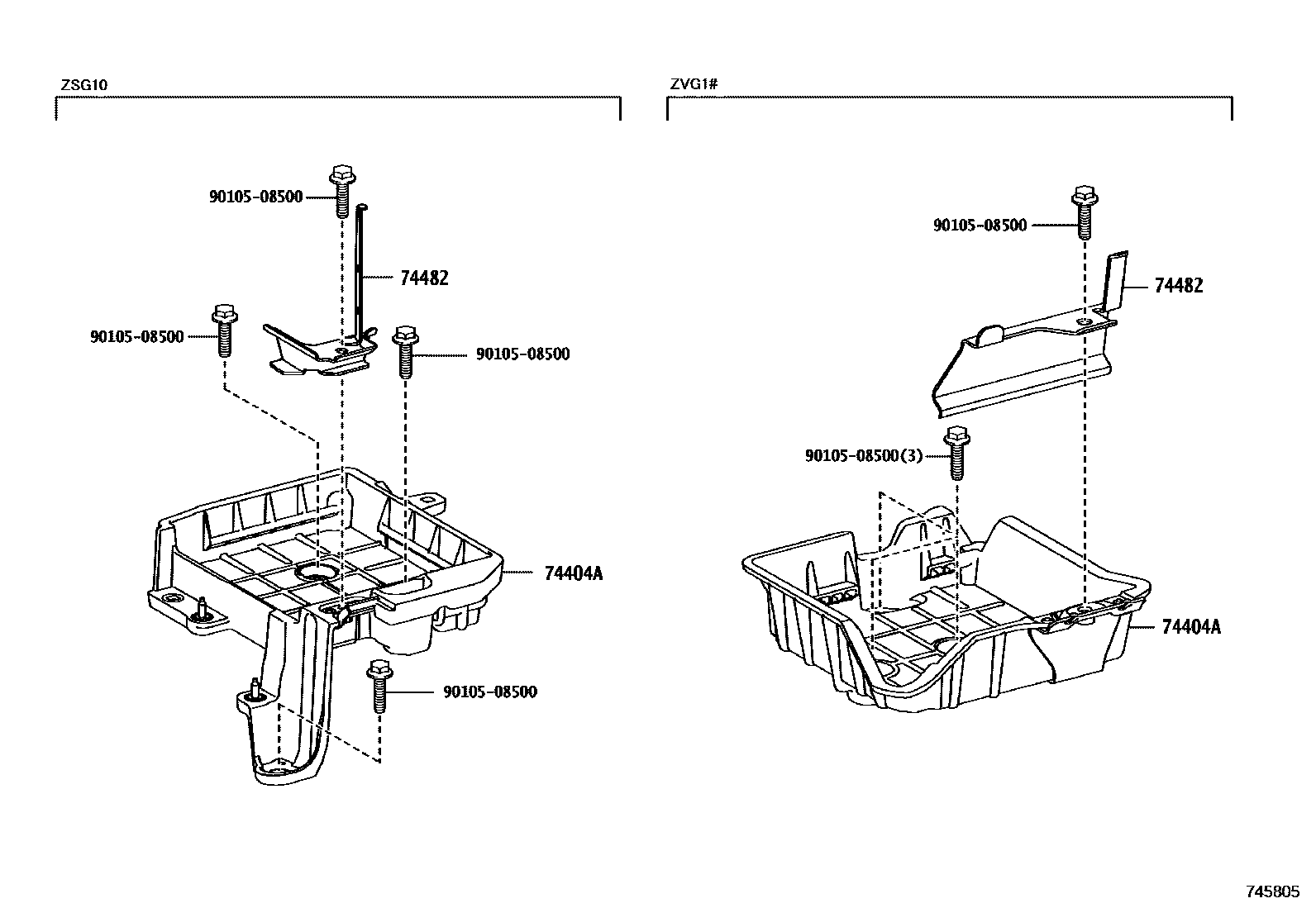

Toyota COROLLA battery holder EPC diagram — 745805
battery holder — 745805 (202108 – 999999)
Toyota COROLLA battery holder EPC diagram — 746403
battery holder — 746403 (202310 – 999999)

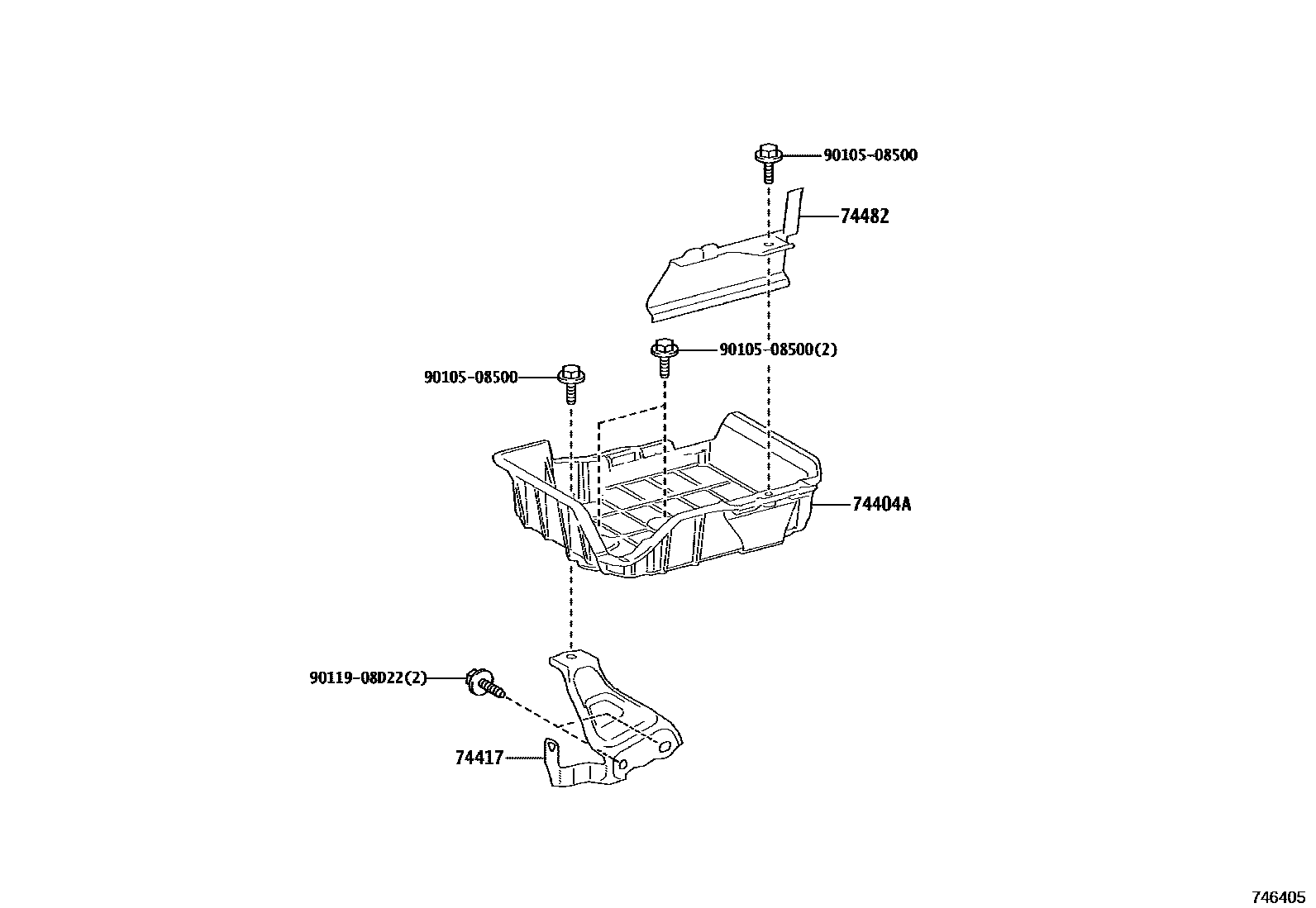

Toyota COROLLA battery holder EPC diagram — 746405
battery holder — 746405 (202310 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-12540 · 74404-12590 · 74404-12610 · 74404-47030
74417battery holder bracket74417-12060
74482No. 2 battery clip74405-76021 · 74482-47010
