Toyota COROLLA 锁芯组件 — Figure 6712

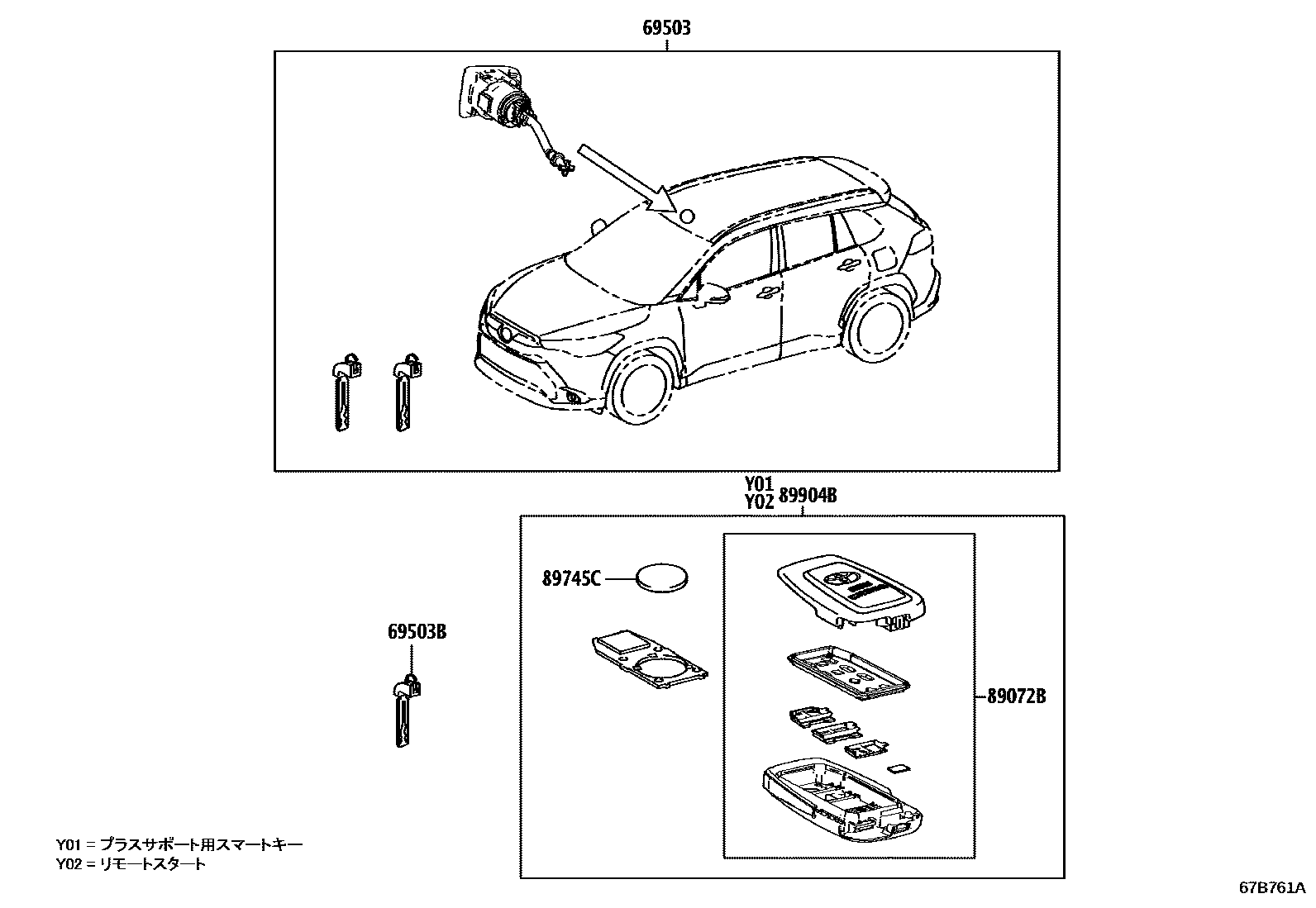

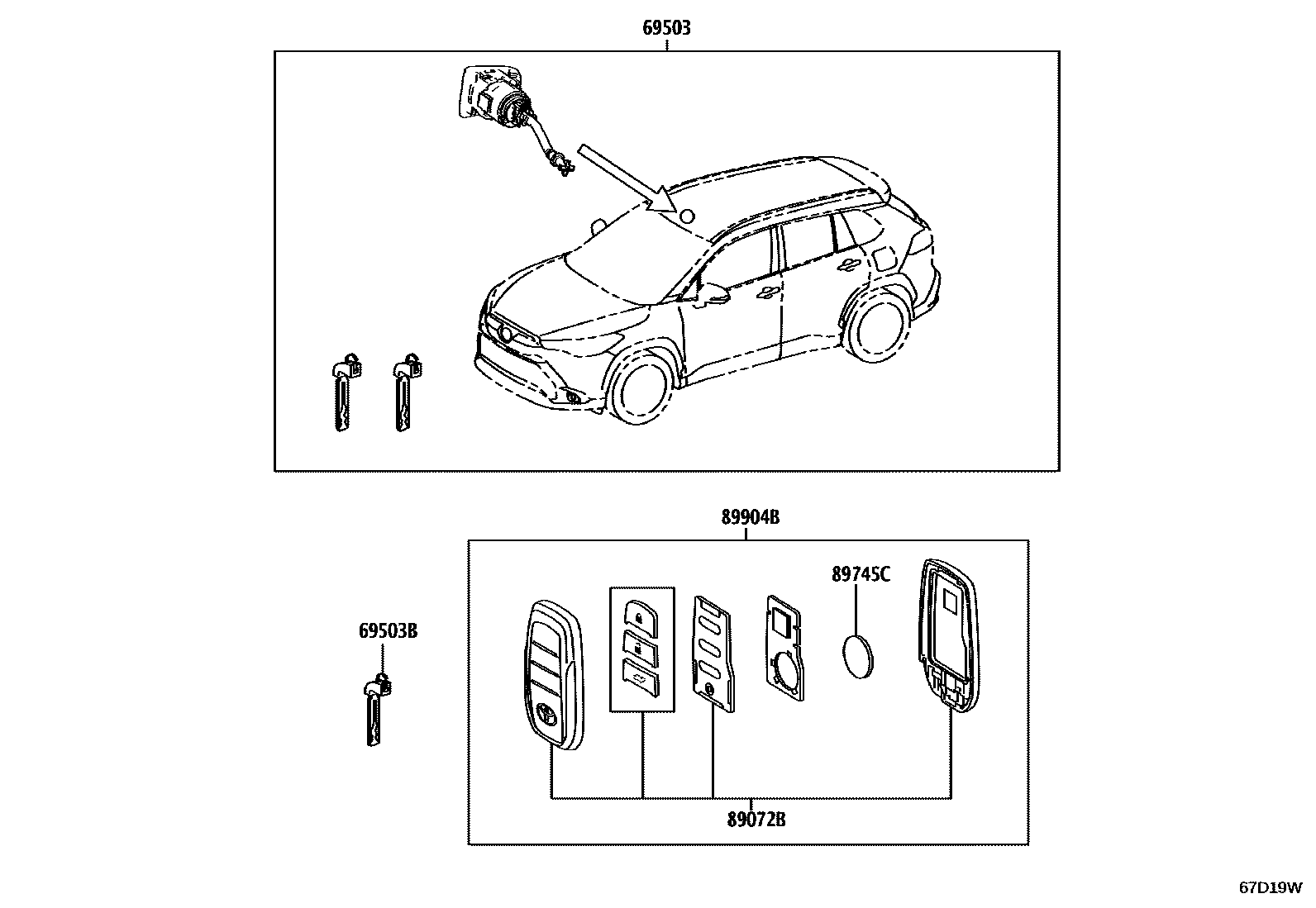

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-16A00 · 69005-16A30 |
| 69503B | internal tooth key | 69515-16100 · 69515-K0010 |
| 89072B | Remote key shell assembly (for smart key) | 89072-16090 · 89072-16100 · 89072-52840 · 89072-K0010 |
| 89745C | Transmitter battery | 89745-50020 · 89745-K0010 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-16200 · 8990H-16210 · 8990H-52160 · 8990H-52161 · 8990H-52410 · 8990H-52411 |
