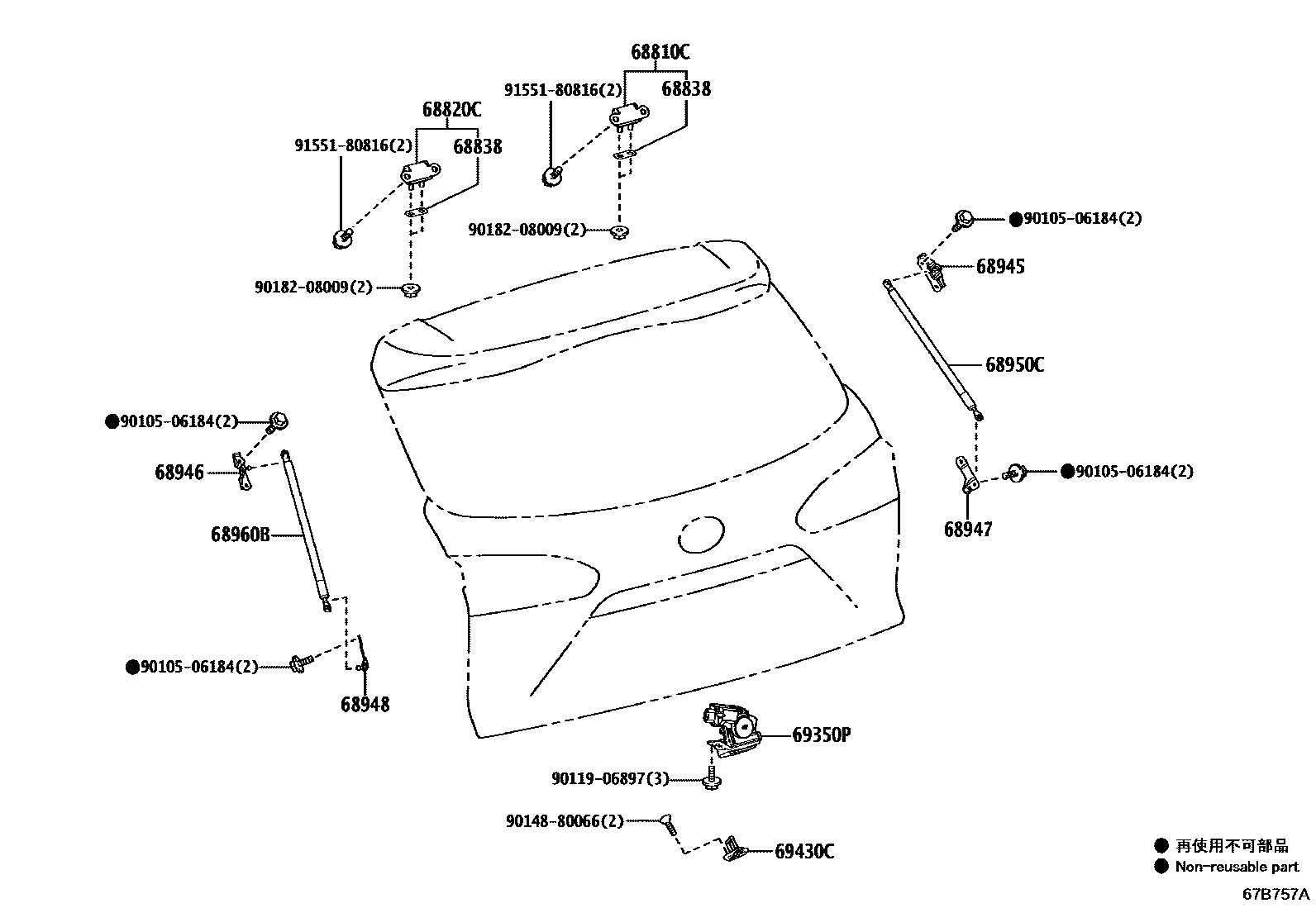

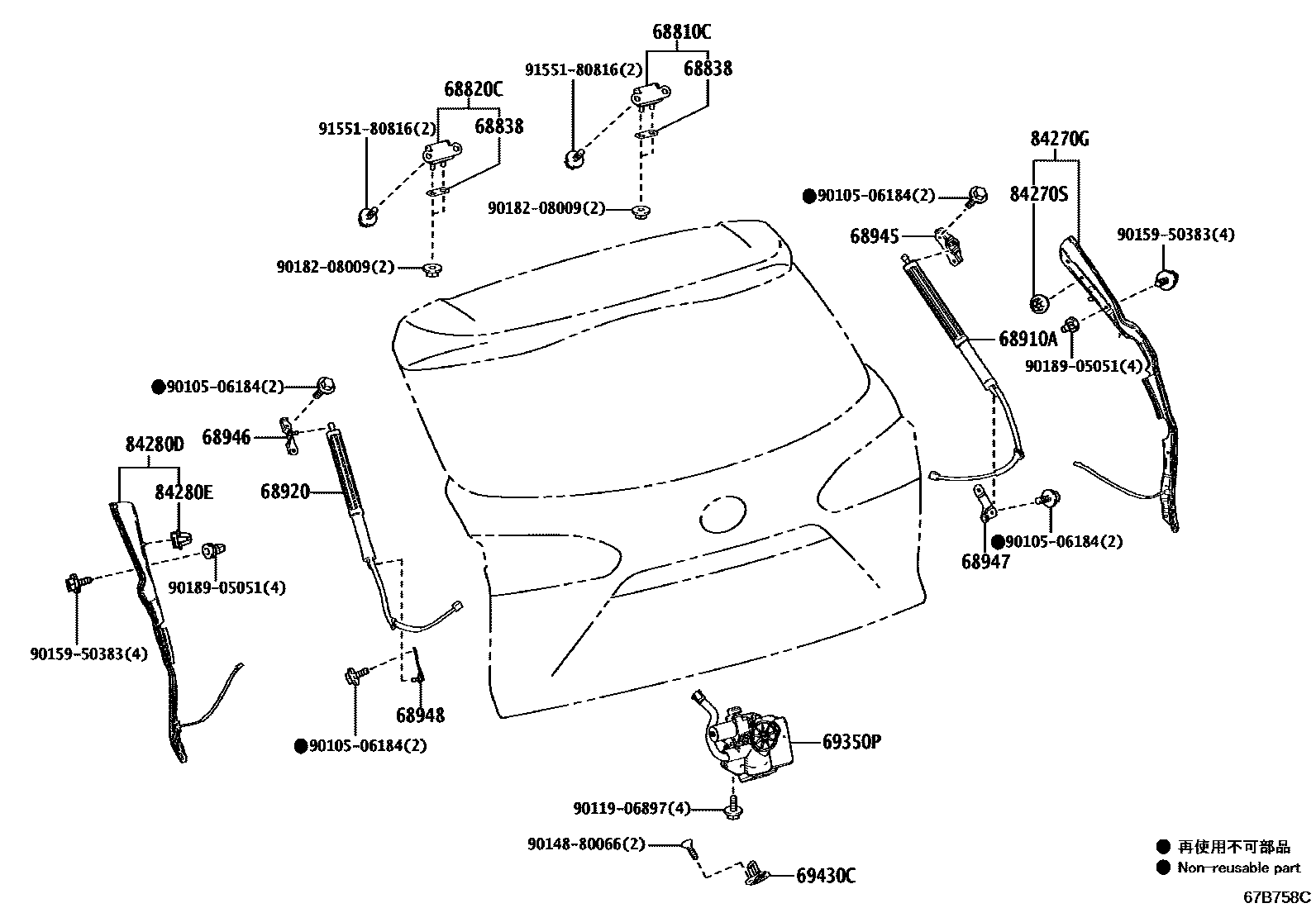

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810C | Back door right hinge assembly | 68810-16050 |
| 68820C | Back door left hinge assembly | 68810-16050 |
| 68838 | Back door hinge No. 1 gasket | 68838-42010 · 68838-42020 · 68838-42030 |
| 68910A | Toyota part | 68910-16021 · 68910-16022 |
| 68920 | Toyota part | 68920-16021 · 68920-16022 |
| 68945 | Back door right damping stay upper bracket | 68945-16010 · 68945-16020 |
| 68946 | Rear door left damping strut upper bracket | 68946-16010 · 68946-16020 |
| 68947 | Back door right damping strut lower bracket | 68947-16030 |
| 68948 | Rear door left damping strut lower bracket | 68948-16030 |
| 68950C | Back door right support rod assembly | 68950-0A040 |
| 68960B | Back door left support rod assembly | 68960-0A040 |
| 69350P | Toyota part | 69350-42070 · 69350-78090 |
| 69430C | Back door lock assembly | 69430-28050 |
| 84270G | Electric back door right side sensor assembly | 84270-16020 |
| 84270S | Catch (sensor on the right side of the electric back door) | 61617-42040 |
| 84280D | Electric back door left sensor assembly | 84280-16020 |
| 84280E | Catch (electric back door left sensor) | 61617-42040 |
