Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 4 PNC and OE references.

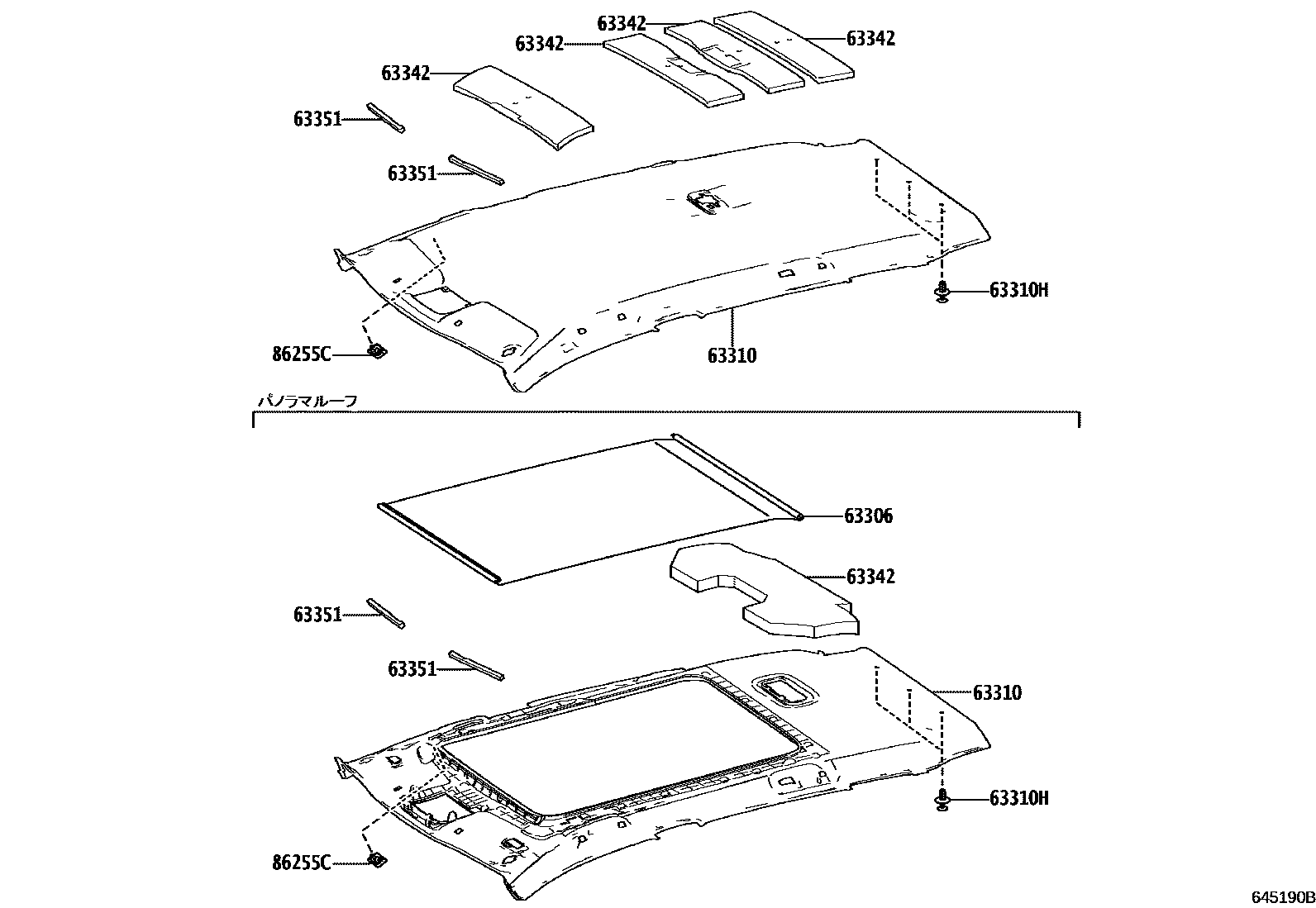

Toyota COROLLA 车顶内衬和消声垫 EPC diagram — 645190B
车顶内衬和消声垫 — 645190B (202108 – 202207)

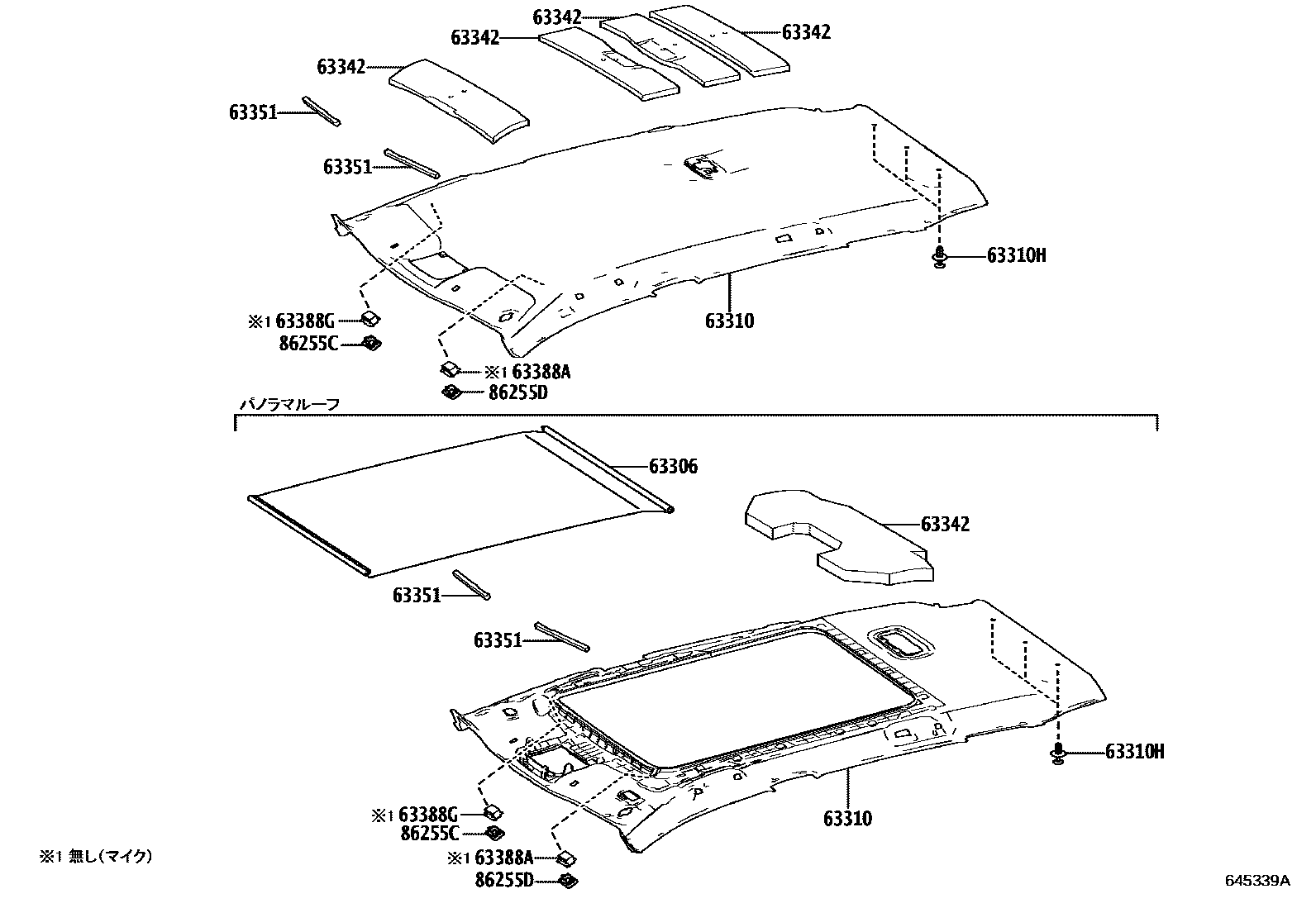

Toyota COROLLA 车顶内衬和消声垫 EPC diagram — 645339A
车顶内衬和消声垫 — 645339A (202207 – 999999)

PNC and OE references

PNCPart nameOE numbers
63342No. 2 roof muffler pad63342-16030 · 63342-16040
63351Roof side silencers63351-16030
63388Aheadliner fixing cover63388-16010
63388GToyota part63388-16010
