Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 19 PNC and OE references.

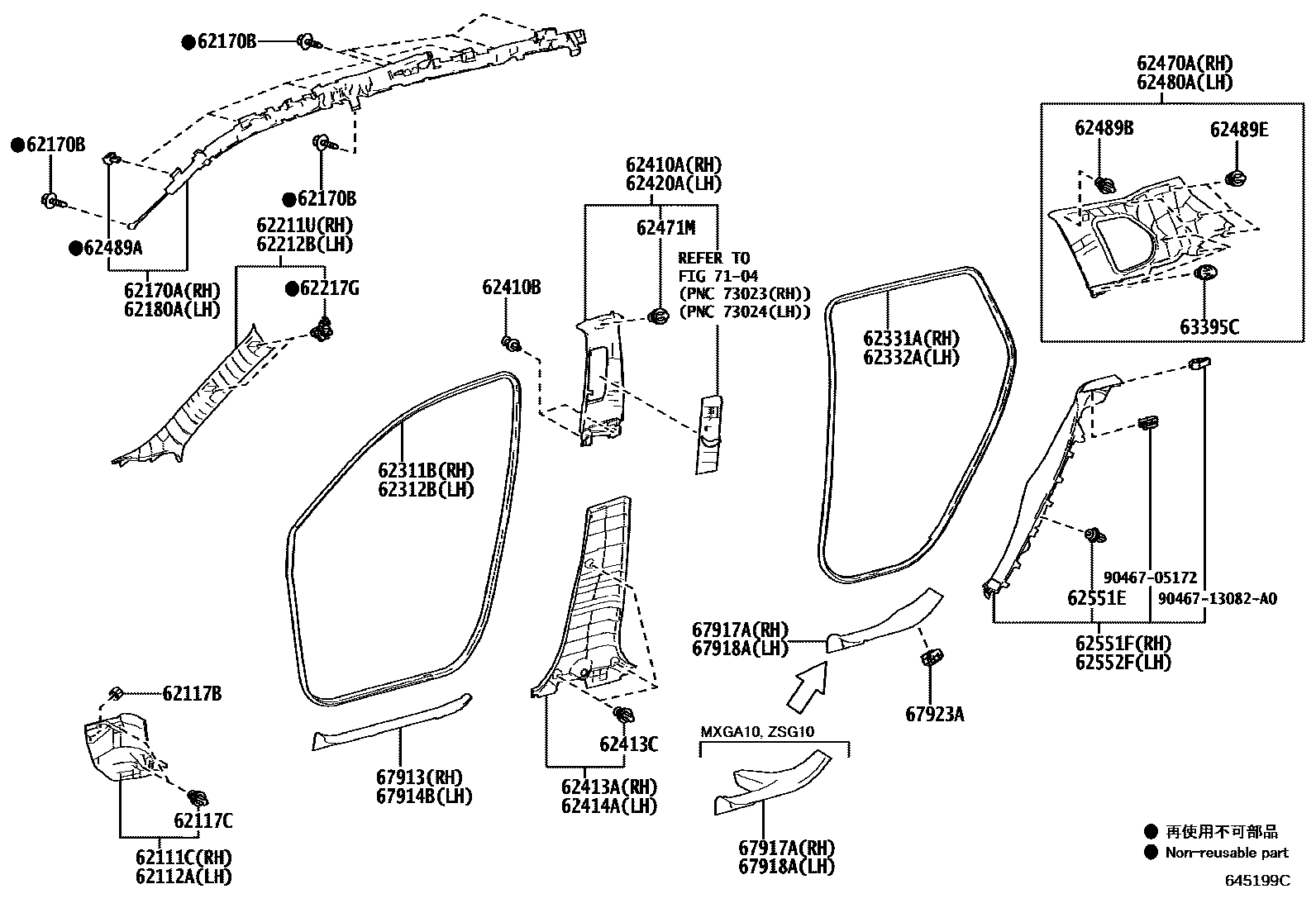

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 645199C
内饰板和车门防水胶条 — 645199C (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
62117BNo. 1 clip (for cowl side trim panel)90467-06147
62117CNo. 2 clip (for cowl side trim panel)90467-10167
62170ARight curtain air bag assembly62170-16010
62170BBolts with washers91673-80616
62180ALeft curtain air bag assembly62180-16010
62217GFront pillar decorative plate clip62217-42050 · 62217-42060
62311BRight front door opening waterproof tape62311-16010
62312BLeft front door opening waterproof tape62312-16010
62331ARight rear door opening waterproof tape62331-16010
62332ALeft rear door opening waterproof tape62332-16010
62410Bclip90467-10216
62413CClip (for the decorative panel under the center pillar)90467-10161
62471Mclip90467-10167
62489ARoof side interior panel clips90467-18017
62489BRoof side interior panel clips90467-10188
62489ERoof side interior panel clips90467-10161
62551EClips (for rear seat side trim panels)62217-13010
63395CClips (for roof side interior panels)90467-09240
67923ACar door No. 1 wear plate clip67923-20090
