Toyota COROLLA 侧梁 — Figure 6101

Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 58 PNC and OE references.

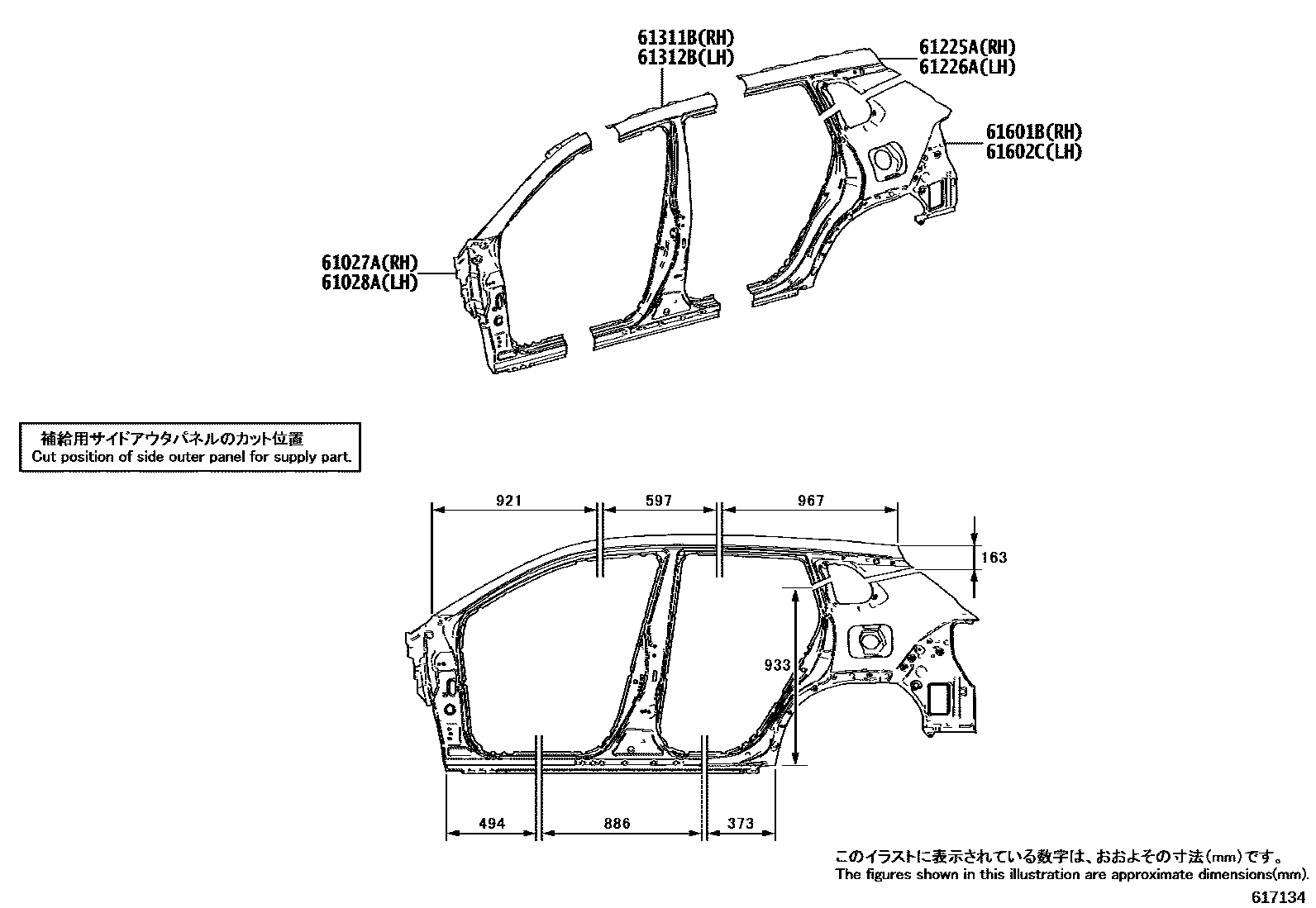

Toyota COROLLA 侧梁 EPC diagram — 617134
侧梁 — 617134 (202108 – 999999)

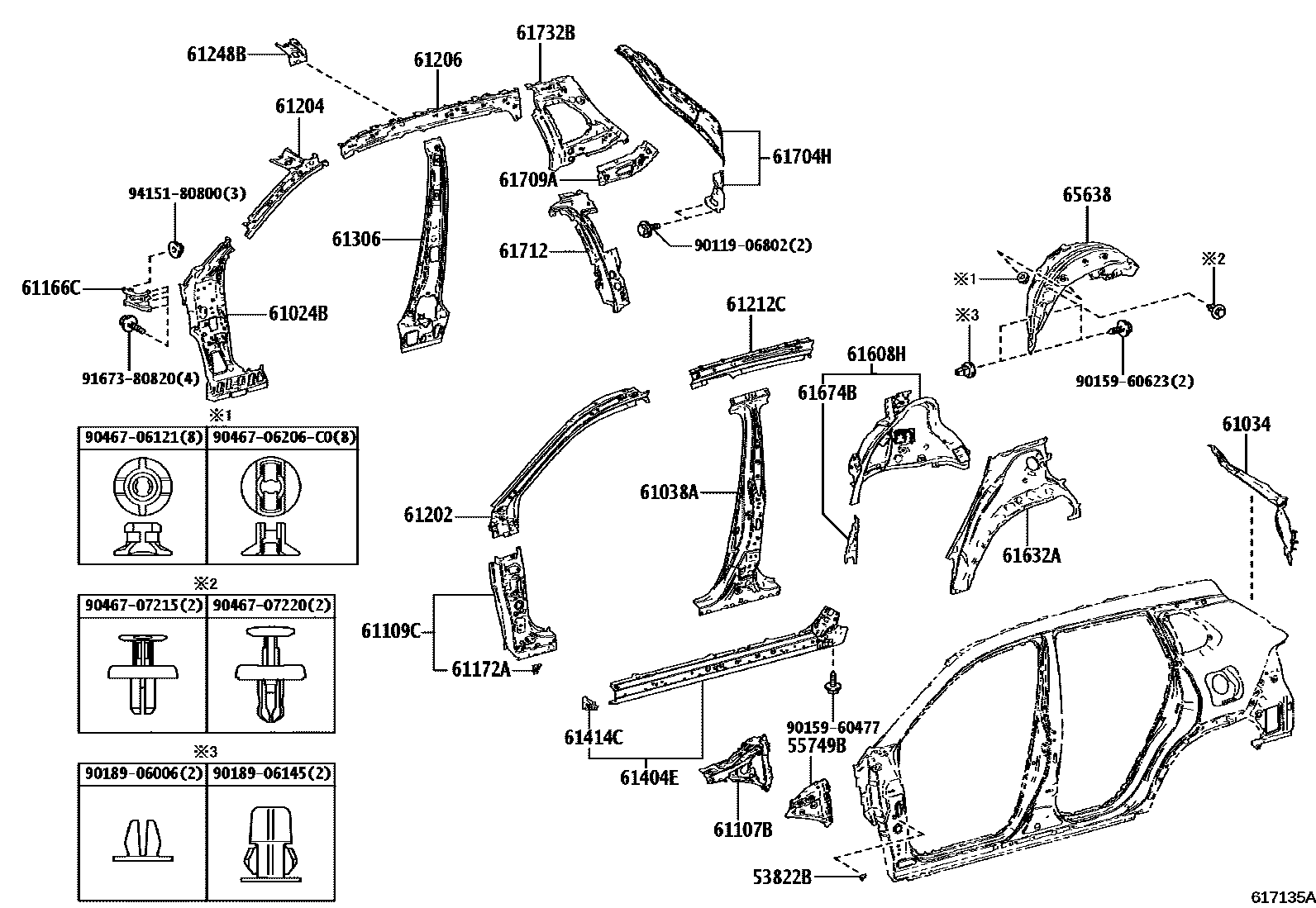

Toyota COROLLA 侧梁 EPC diagram — 617135A
侧梁 — 617135A (202108 – 999999)

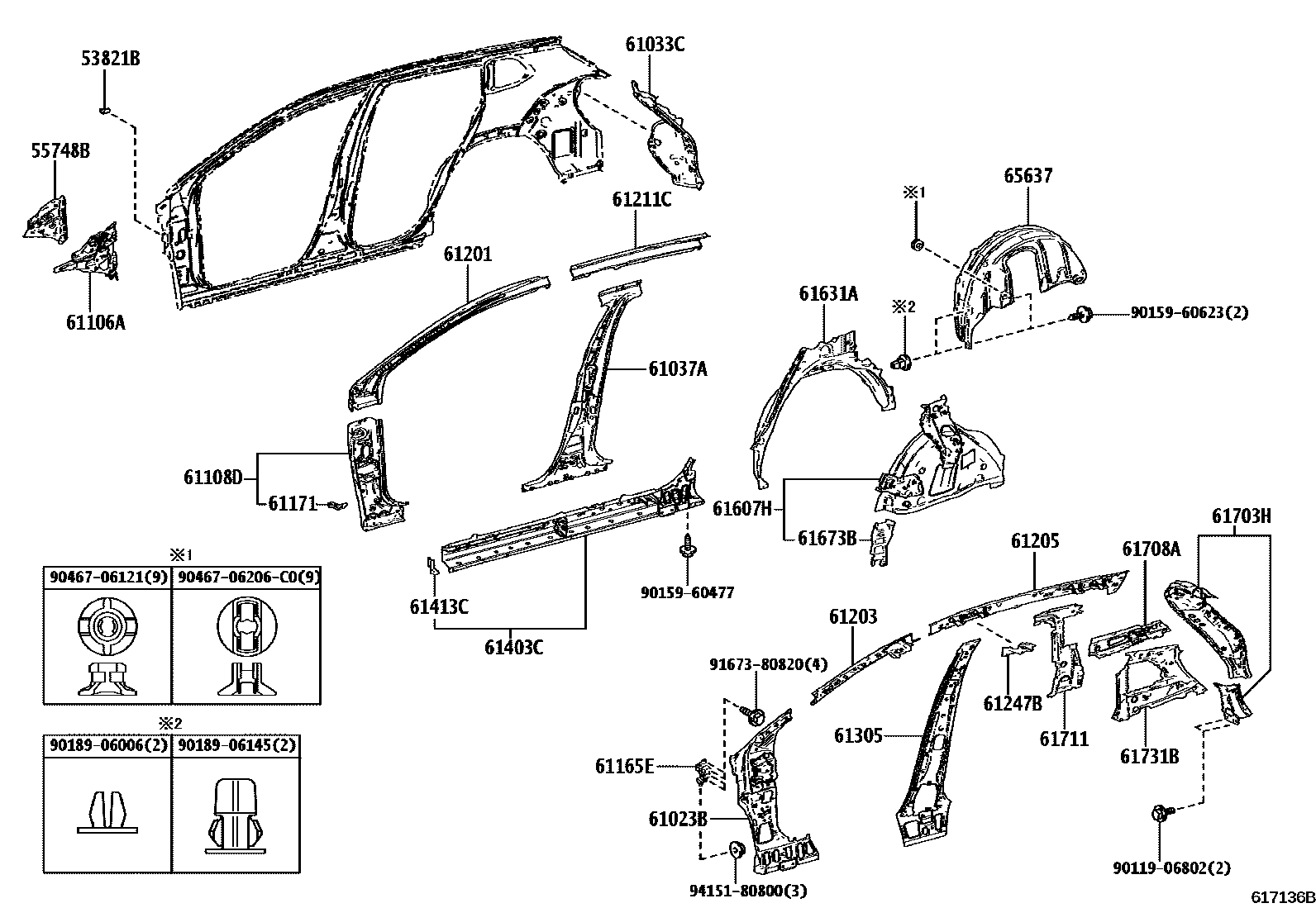

Toyota COROLLA 侧梁 EPC diagram — 617136B
侧梁 — 617136B (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
53821BRight front fender rear support53821-75020
53822BLeft front fender rear support53821-75020
55748BFrom the upper inner part of the cowl to the right bracket of the column55748-10040
55749BFrom the upper inner part of the cowl to the left bracket of the column55749-10030
61023BRight body inner front pillar sub-assembly61023-16180
61024BLeft body inner front pillar sub-assembly61024-16210
61027ARight body outer front pillar sub-assembly61027-16080
61028ALeft body outer front pillar sub-assembly61028-16080
61033CToyota part61033-16010 · 61033-16020
61034Rear door opening left reinforcement sub-assembly61034-16010 · 61034-16020
61037ARight body center pillar reinforcement sub-assembly61037-16050
61038ALeft body center pillar reinforcement sub-assembly61038-16040
61106ARight body front pillar reinforcement sub-assembly61106-16040
61107BLeft side body front pillar reinforcement sub-assembly61107-16040
61108DFront panel right lower reinforcement sub-assembly61108-16130 · 61108-16131
61109CFront panel left lower reinforcement sub-assembly61109-16130 · 61109-16131
61165EToyota part61165-12110 · 61165-12120
61166CToyota part61166-12120 · 61166-12130
61171Right inner front pillar lower fixing piece61171-16050
61172ALeft inner front pillar lower fixing piece61172-16030
61201Roof right side longitudinal beam sub-assembly61201-16140
61202Roof left side longitudinal beam sub-assembly61202-16140
61203Roof right inner longitudinal beam sub-assembly61203-16010
61204Roof left inner longitudinal beam sub-assembly61204-16010
61205Right rear roof inner longitudinal beam sub-assembly61205-16010
61206Left rear roof inner longitudinal beam sub-assembly61206-16010
61211CRoof right side rail61211-16190
61212CRoof left side rail61212-16190
61225ANo. 1 longitudinal beam on the outer right side of the roof61225-16010 · 61225-16011
61226ANo. 1 longitudinal beam on the outer left side of the roof61226-16010 · 61226-16011
61247BRoof right inner longitudinal beam reinforcement61247-16010
61248BRoof left inner longitudinal beam reinforcement61248-16010
61305Right body center pillar lower reinforcement sub-assembly61305-16070
61306Left body center pillar lower reinforcement sub-assembly61306-16070
61311BRight body outer center pillar61311-16030
61312BLeft body outer center pillar61312-16040
61403CRight door outer sill reinforcement sub-assembly61403-16900
61404ELeft door outer sill reinforcement sub-assembly61404-16900
61413CRight side door sill panel No. 2 reinforcement61413-16070
61414CLeft side door sill panel No. 2 reinforcement61414-16070
61601BRight side enclosure sub-assembly61601-16A00
61602CLeft side enclosure sub-assembly61602-16A00
61607HRight side wheel cover lining plate sub-assembly61607-16480 · 61607-16490
61608HLeft side wheel cover lining plate sub-assembly61608-16500 · 61608-16510
61631ARight wheel cover outer panel61631-16180
61632ALeft side wheel cover outer panel61632-16180
61673BRight wheel housing lining panel reinforcement61673-16020
61674BLeft side wheel housing lining plate reinforcement61674-16020
61703HRoof inner right reinforcement sub-assembly61703-16020
61704HLeft side enclosure inner panel sub-assembly61704-16010
61708ARight seat belt anchor reinforcement sub-assembly61708-16030
61709ALeft seat belt anchor reinforcement sub-assembly61709-16010
61711Roof right side outer panel61711-16020
61712Roof left outer panel61712-16020
61731BRoof right inner panel61731-16905 · 61731-16906
61732BRoof left inner panel61732-16905
65637Right rear wheel house lining65637-16010
65638Left rear wheel house lining65638-16010
