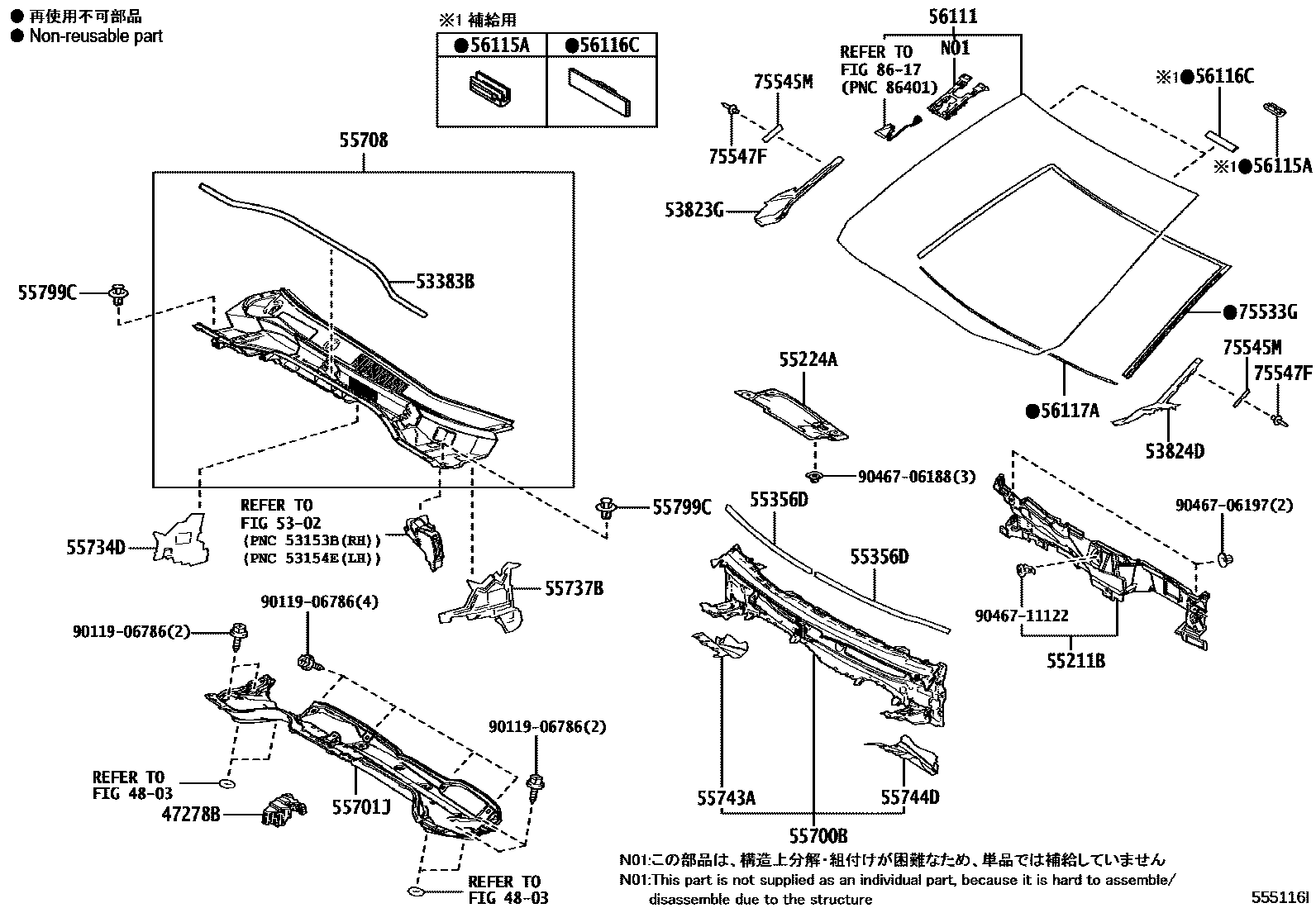

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47278B | Toyota part | 47278-10010 |
| 53383B | Engine cover to cowl upper cover seal | 53383-16050 |
| 53823G | No. 2 right front side panel protector | 53823-16010 |
| 53824D | No. 2 left front side panel protector | 53824-16010 |
| 55211B | Front panel silencer | 55211-16200 |
| 55224A | No. 2 outer insulation pad for front wall | 55224-16010 |
| 55356D | Dashboard No. 2 Cushion Pad | 55356-12260 |
| 55700B | Toyota part | 55700-16380 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-16340 |
| 55708 | Toyota part | 55708-16150 |
| 55734D | Toyota part | 55734-16040 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-16020 |
| 55743A | Toyota part | 55743-16020 |
| 55744D | Toyota part | 55744-16010 |
| 55799C | Ventilation grille clips on front apron | 90467-09242 |
| 56111 | windshield | 56101-16910 · 56101-16911 · 56101-16912 · 56101-16913 · 56101-16914 · 56101-16915 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 75533G | Windshield outer protective strip | 75533-16220 |
| 75545M | Toyota part | 75545-16040 |
| 75547F | Toyota part | 75547-51021 |
