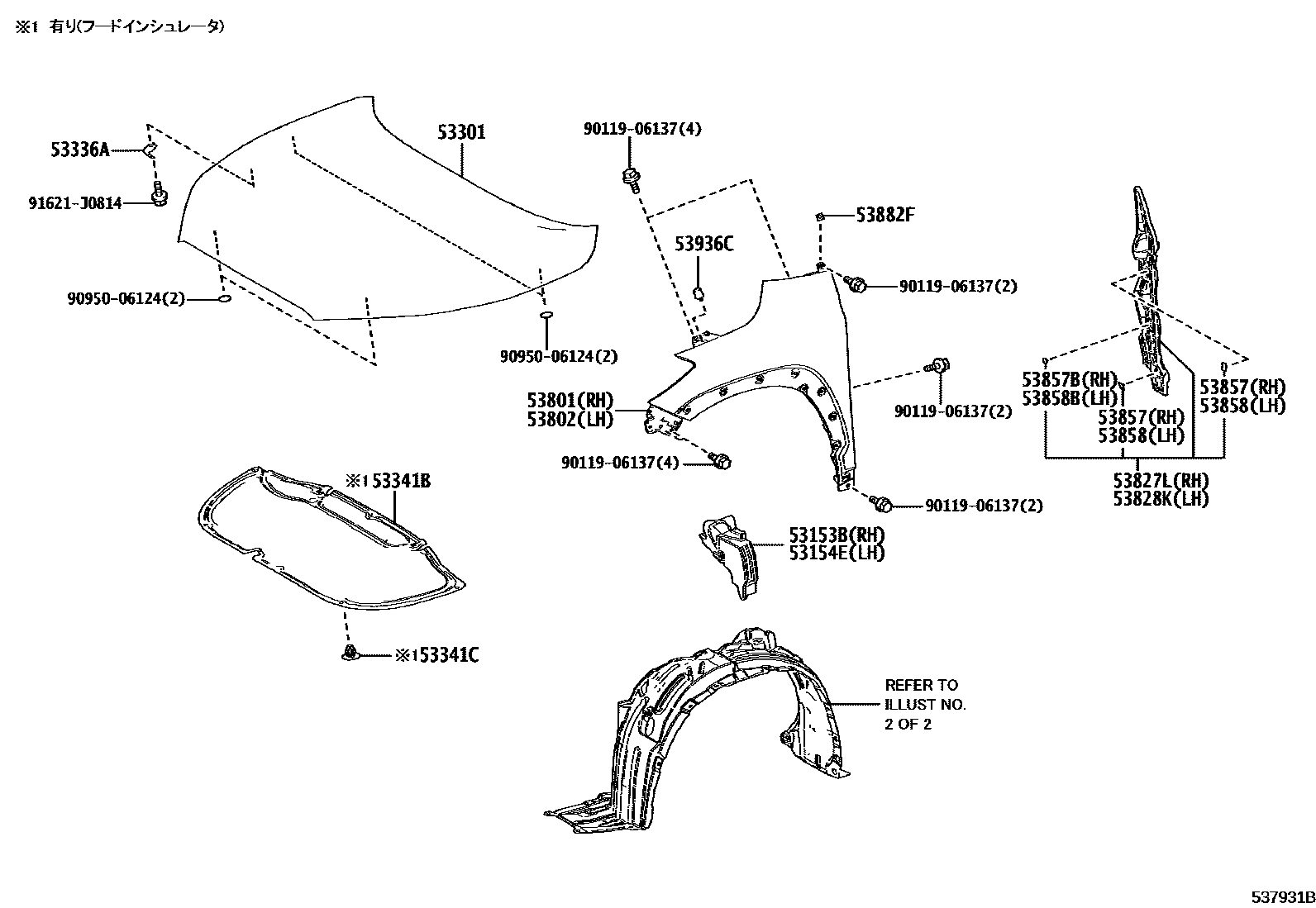

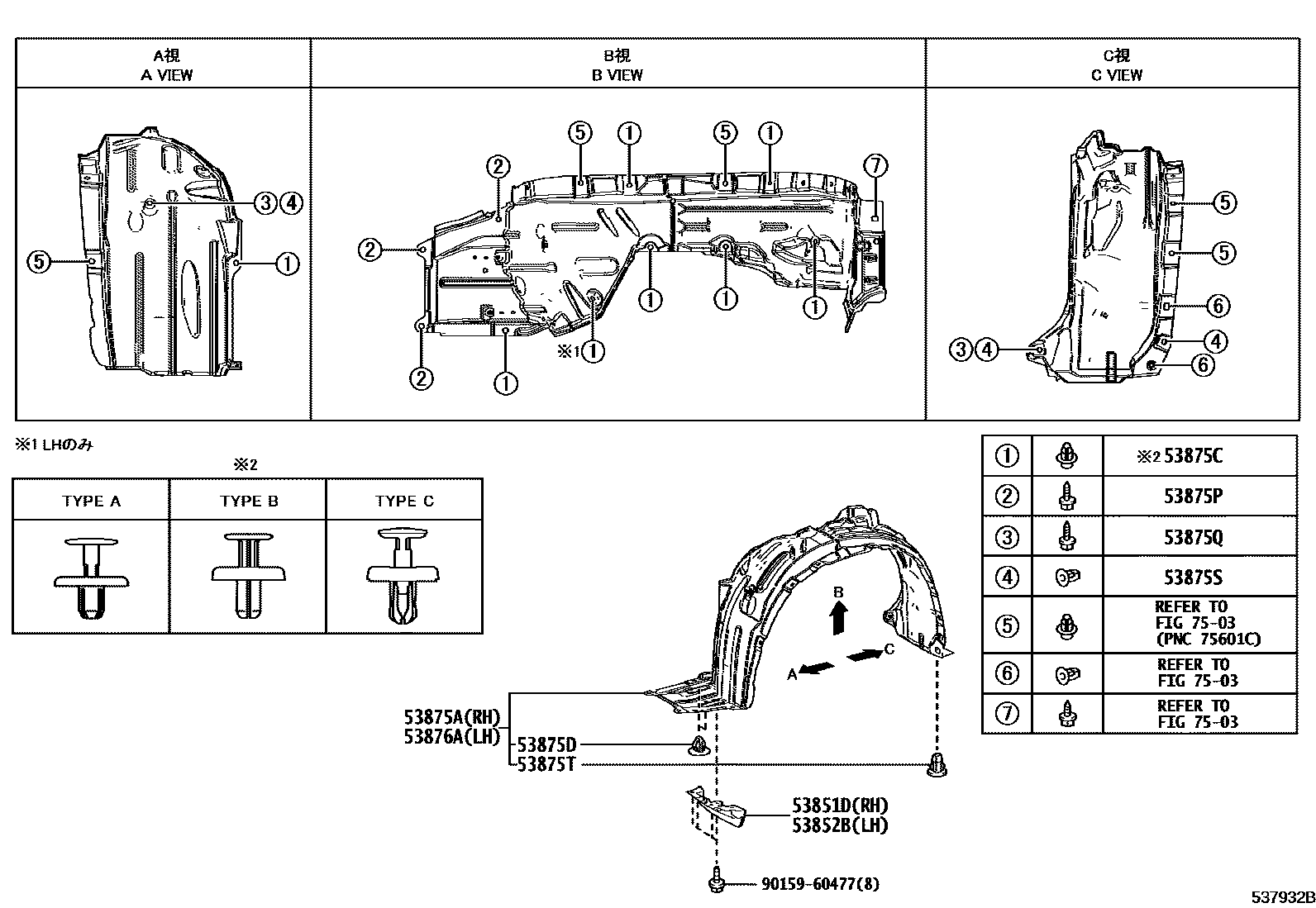

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153B | front side deflector | 53153-16010 |
| 53154E | Toyota part | 53154-16010 |
| 53301 | Engine cover sub-assembly | 53301-16170 |
| 53336A | Engine cover strut bracket | 53336-16010 |
| 53341B | engine cover gasket | 53341-16050 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53801 | Right front fender sub-assembly | 53801-16470 |
| 53802 | Left front fender sub-assembly | 53802-16470 |
| 53827L | Right front fender side panel protector | 53827-16030 |
| 53828K | Left front fender side panel protector | 53828-16030 |
| 53851D | Right front fender outer panel pad | 53851-16020 |
| 53852B | Left front fender exterior panel pad | 53852-16020 |
| 53857 | Right front fender external panel fixing piece | 53857-12010 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-12010 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |
| 53875A | Right front fender lining | 53875-16090 |
| 53875C | Front fender lining clip | 90467-07214 · 90467-07215 · 90467-07220 |
| 53875D | Toyota part | 90467-06192 |
| 53875P | Toyota part | 90159-60477 |
| 53875Q | Toyota part | 90159-60623 |
| 53875S | Toyota part | 90189-06006 · 90189-06145 |
| 53875T | Toyota part | 90189-06236 |
| 53876A | Left front fender lining | 53876-16090 |
| 53882F | front fender seal | 53882-33060 |
| 53936C | Cushion pad | 90541-09145 |
