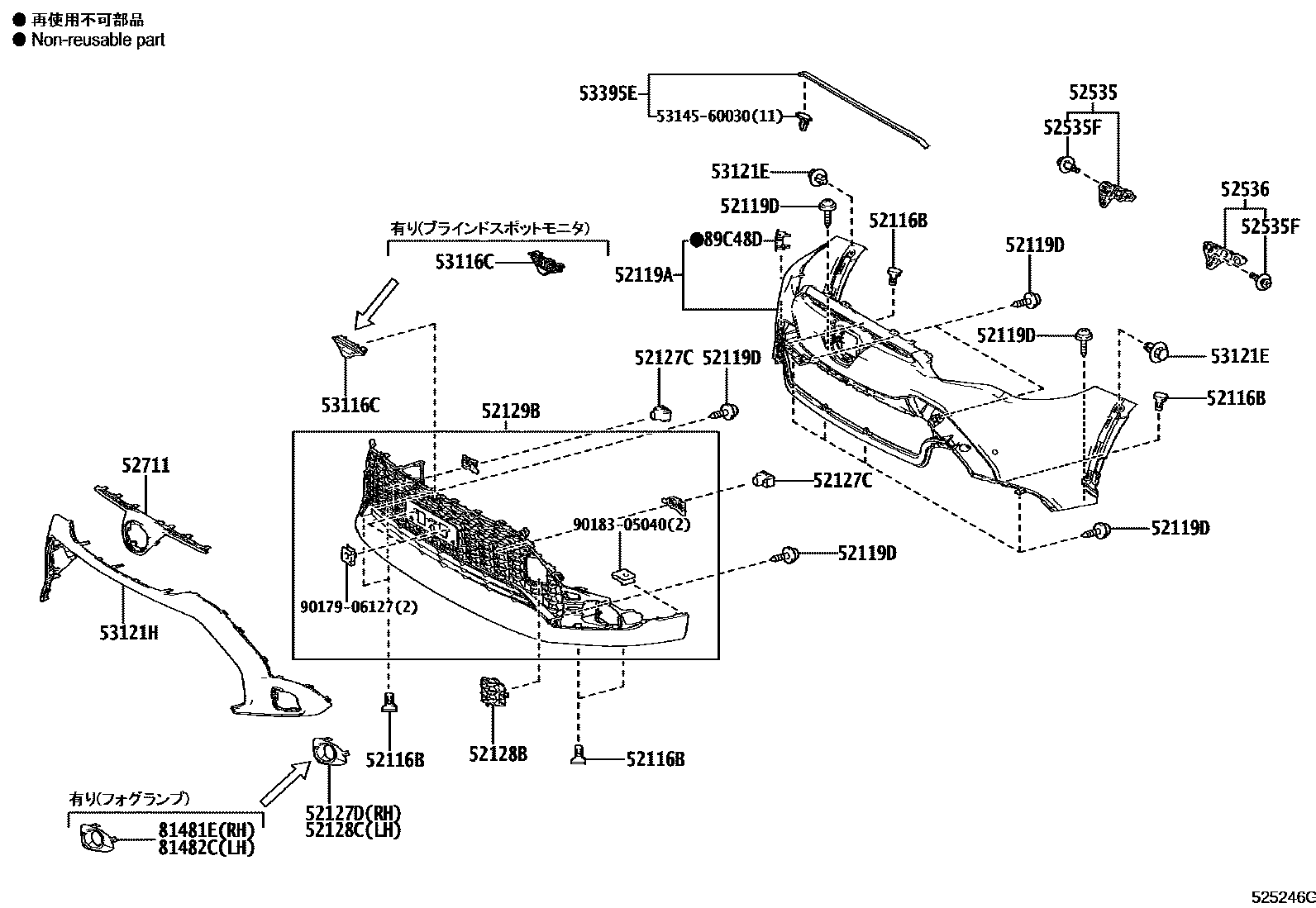

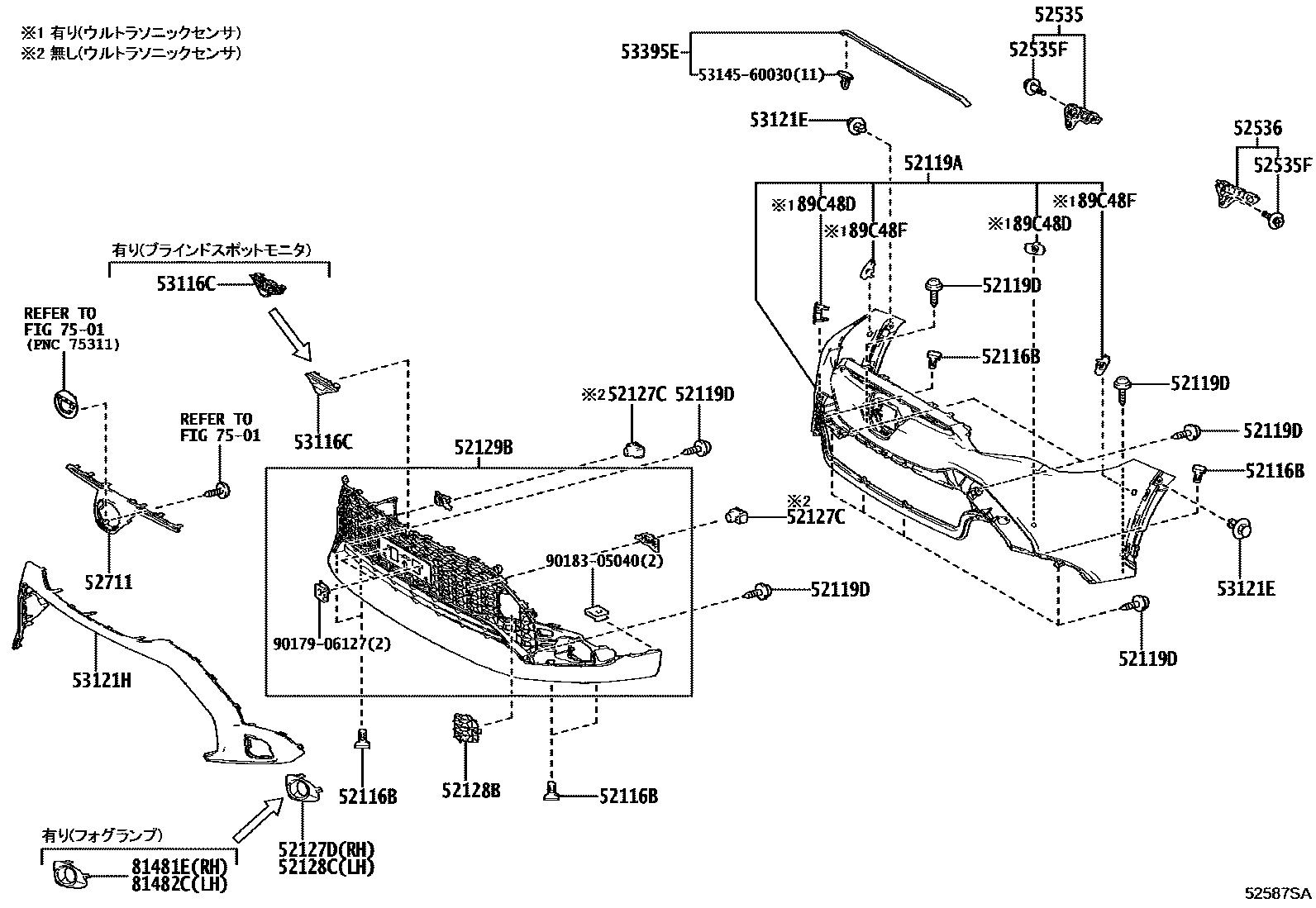

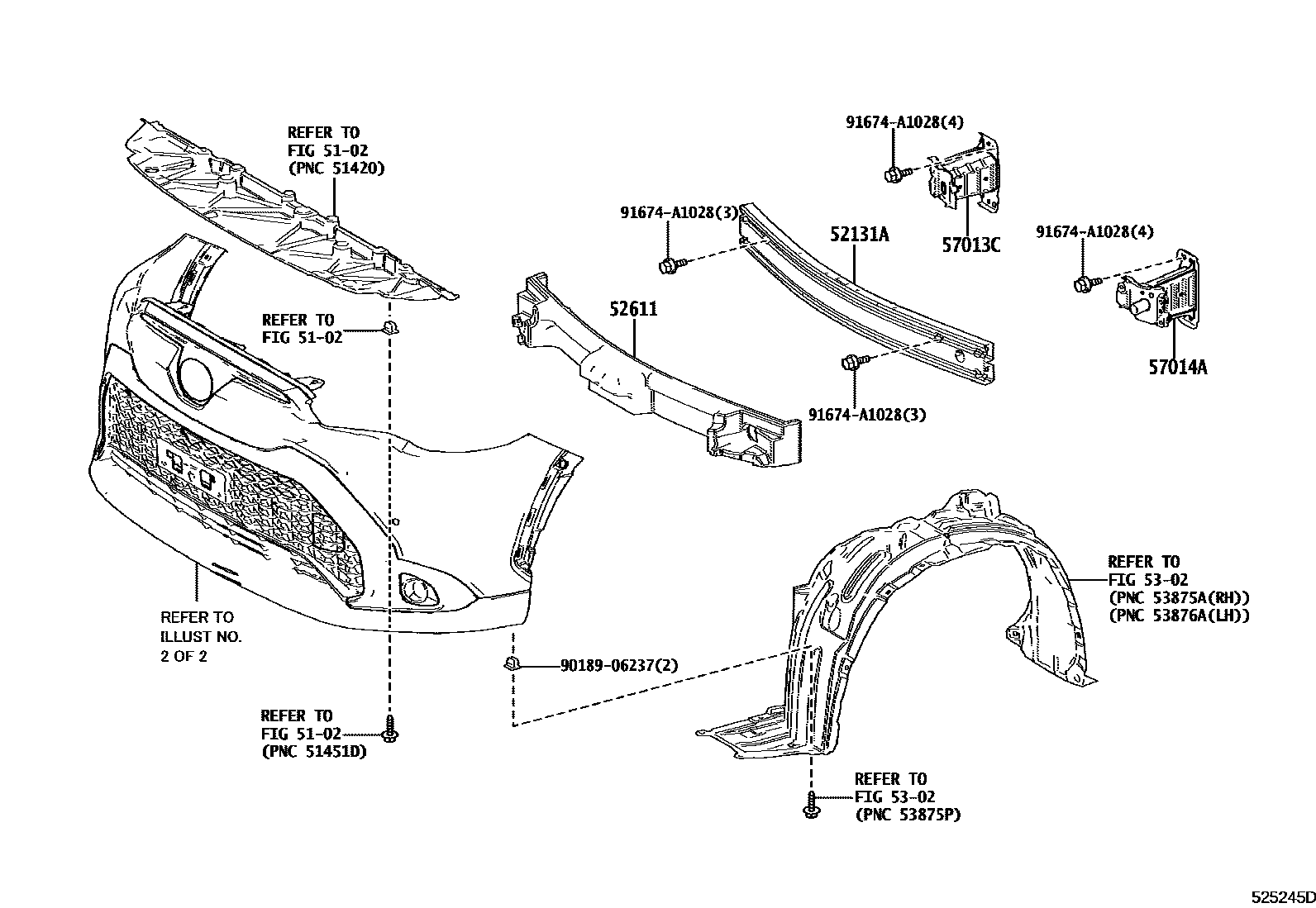

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52116B | front bumper fixings | 75392-35220 |
| 52119D | Toyota part | 90167-50063 |
| 52127C | Front bumper hole cover | 89437-16010 |
| 52127D | Front bumper right hole cover | 81481-16020 |
| 52128B | Front bumper left hole cover | 53128-16010 |
| 52128C | Front bumper left hole cover | 81482-16020 |
| 52129B | Front bumper lower cover | 52129-16900 |
| 52131A | Front bumper reinforcement | 52131-16110 |
| 52535 | Front bumper right side fixing bracket | 52535-16050 |
| 52535F | Toyota part | 90467-09237 |
| 52536 | Front bumper left fixed bracket | 52536-16040 |
| 52611 | front bumper energy absorber | 52611-16060 |
| 52711 | Front bumper protection strip | 52711-16040 |
| 53116C | Radiator grille bracket No. 2 | 53116-16010 · 53116-16020 · 53116-16040 |
| 53121E | Clamp No. 1 (for front bumper) | 90467-07215 |
| 53121H | Toyota part | 53121-16060 · 53121-16070 |
| 53395E | Engine cover to front end plate seal | 53395-16020 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-16010 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-16010 |
| 81481E | Right fog light cover | 81481-16030 |
| 81482C | Left fog light cover | 81482-16030 |
| 89C48D | Toyota part | 89348-48311 |
