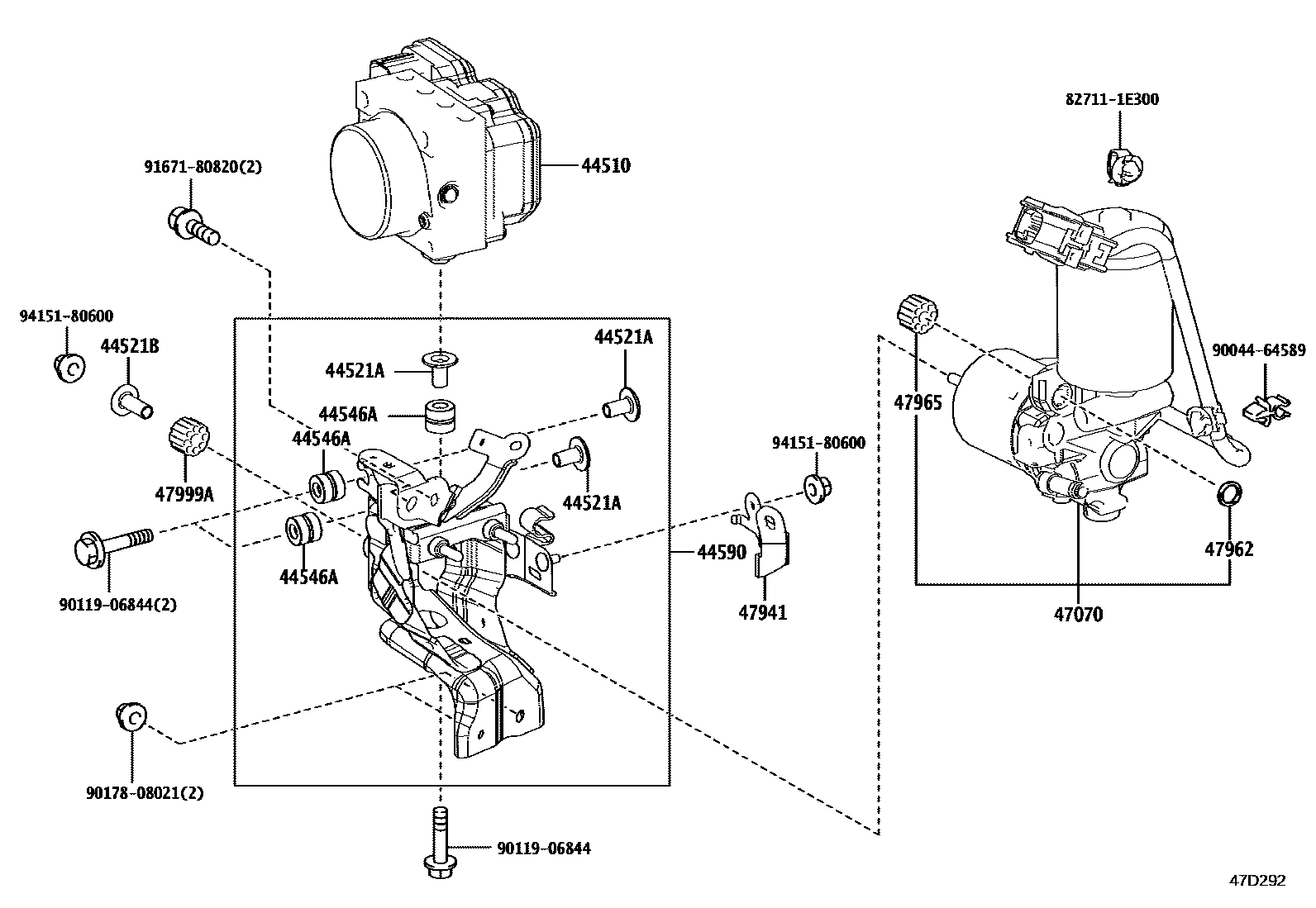

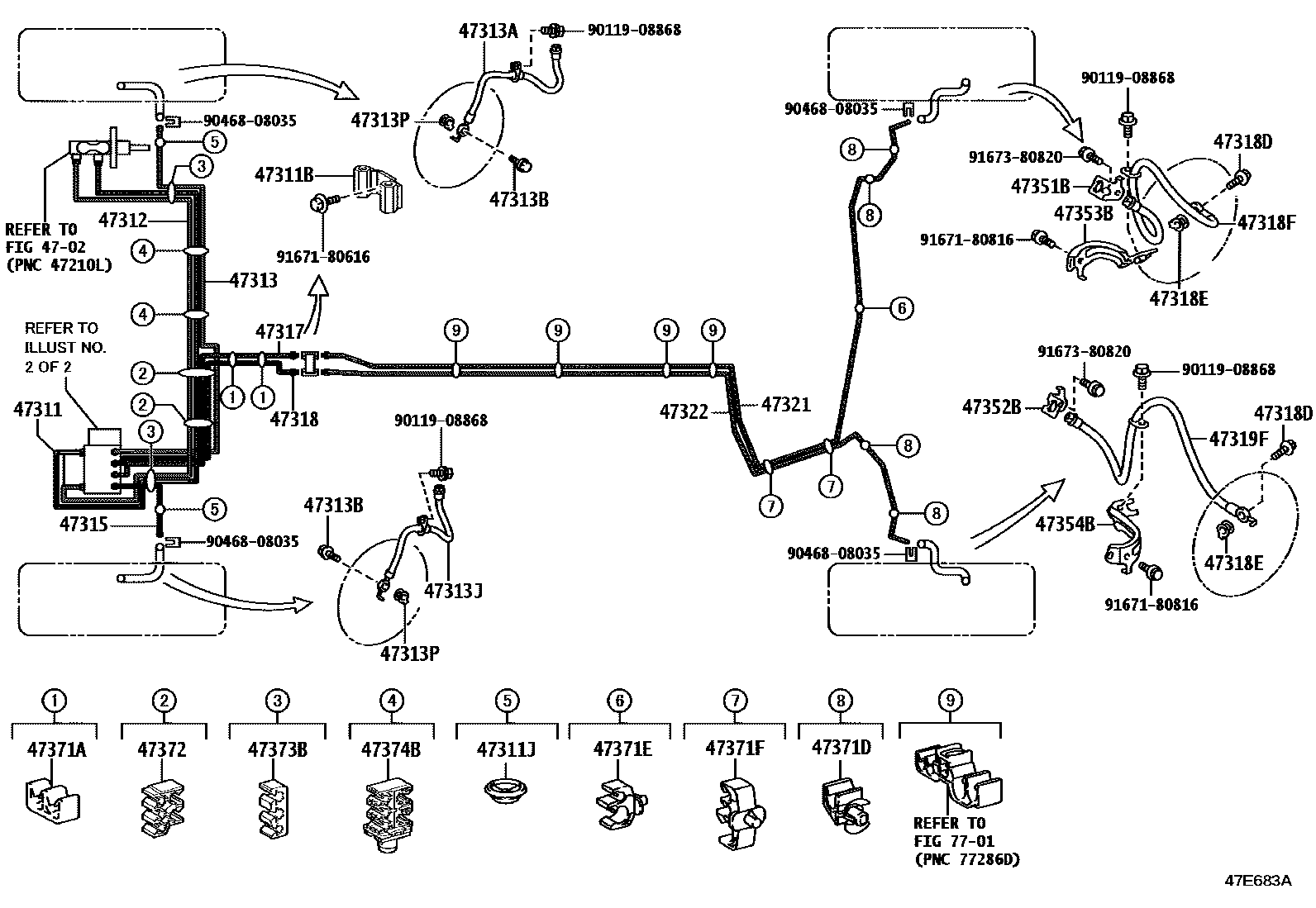

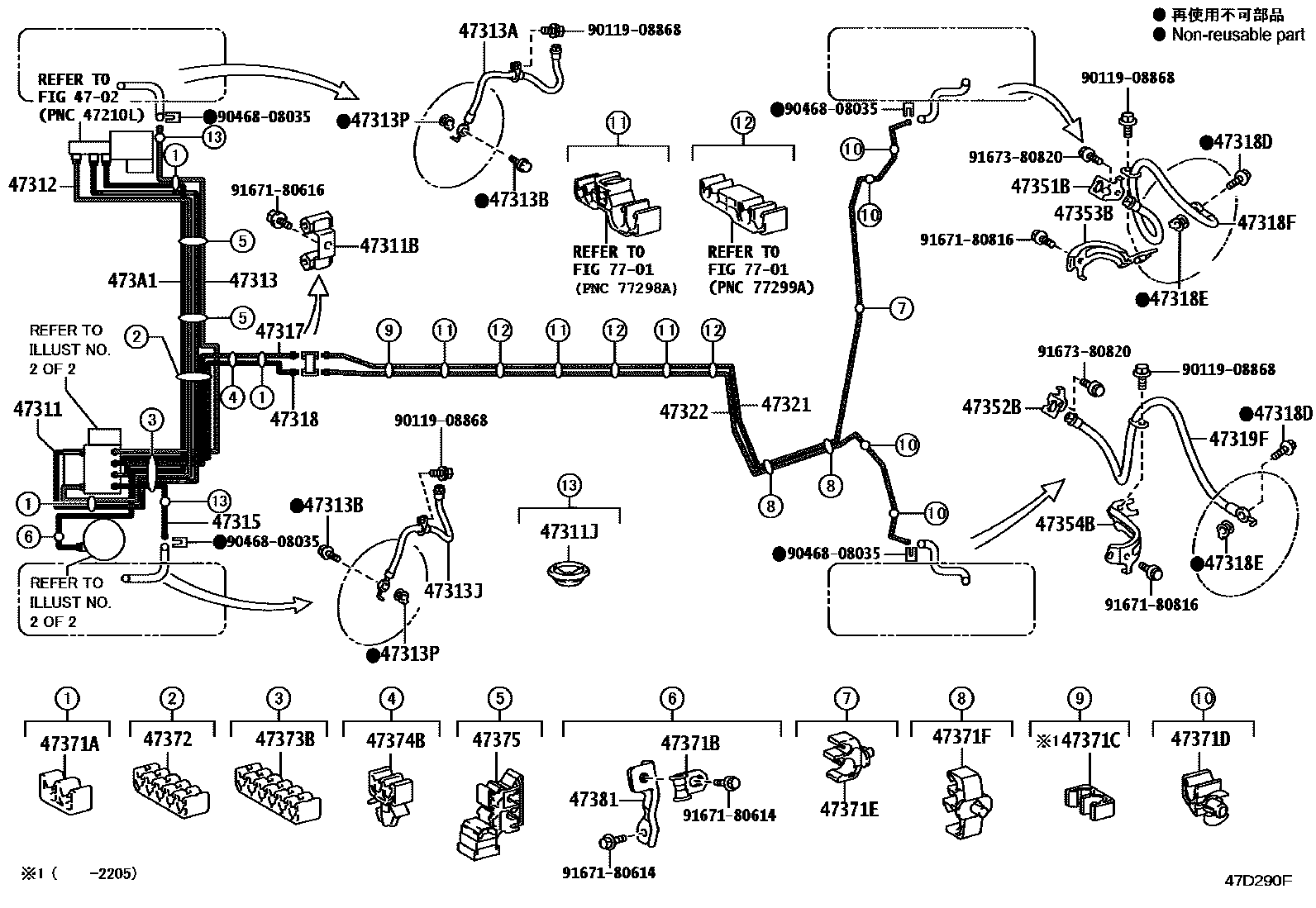

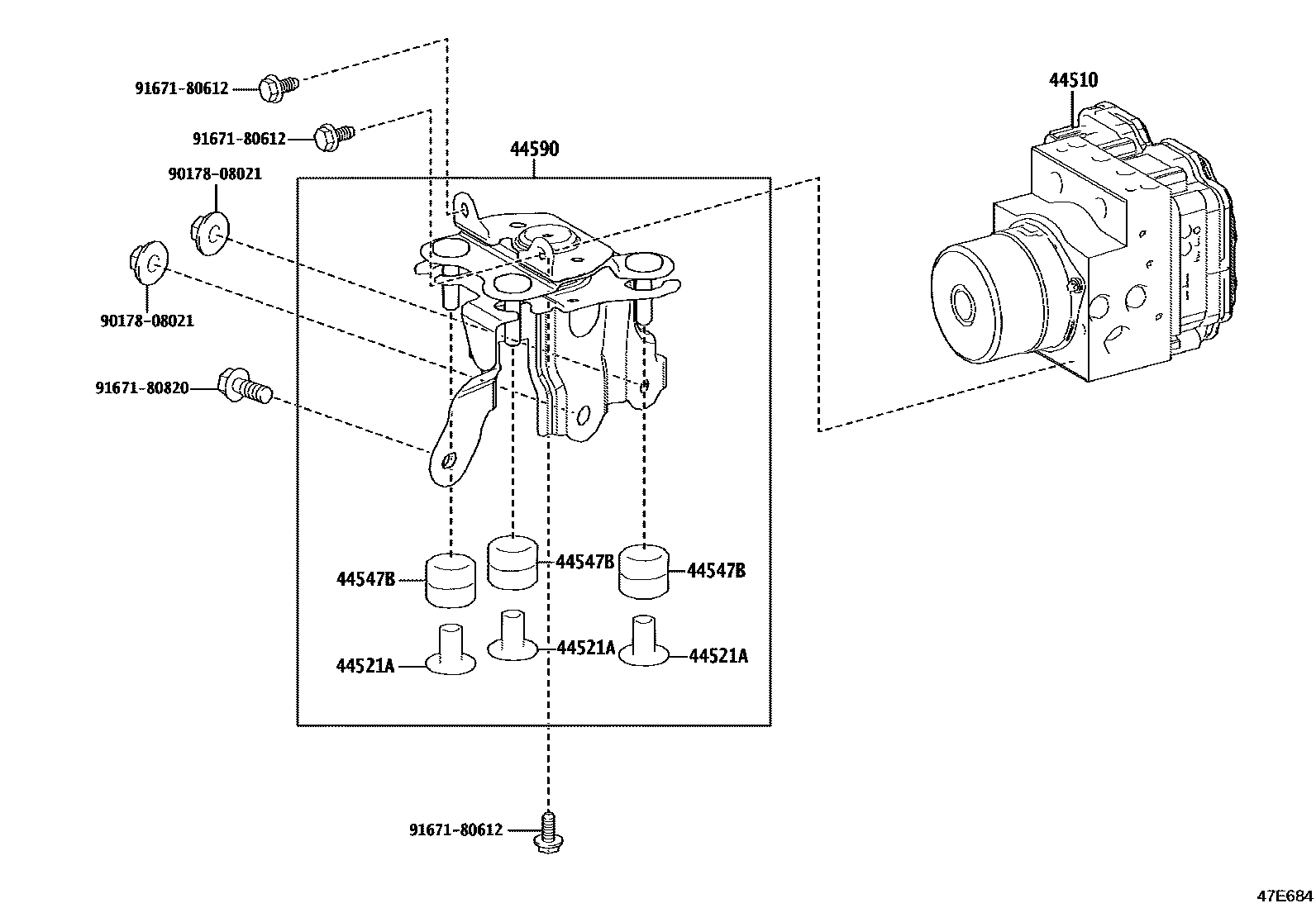

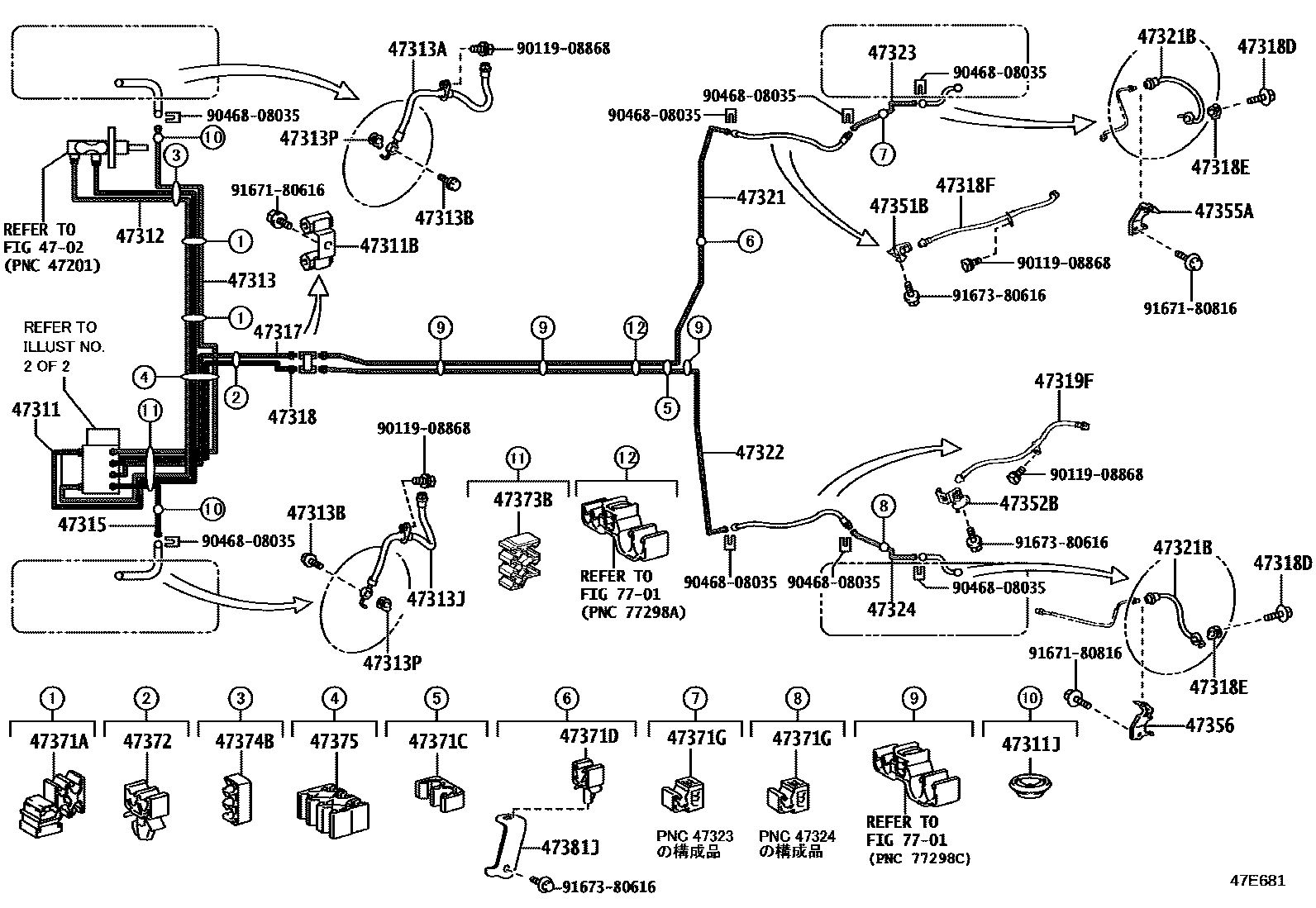

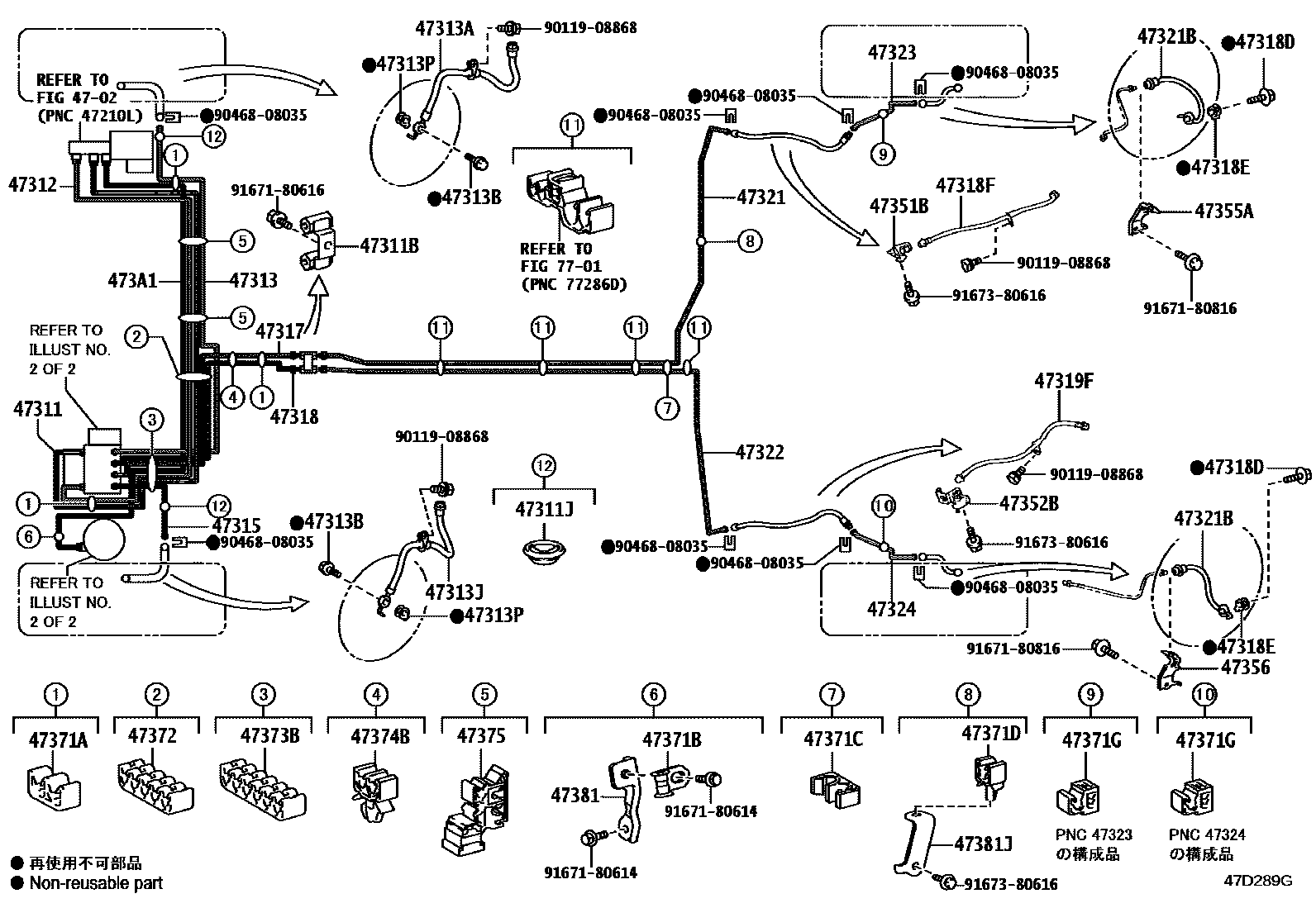

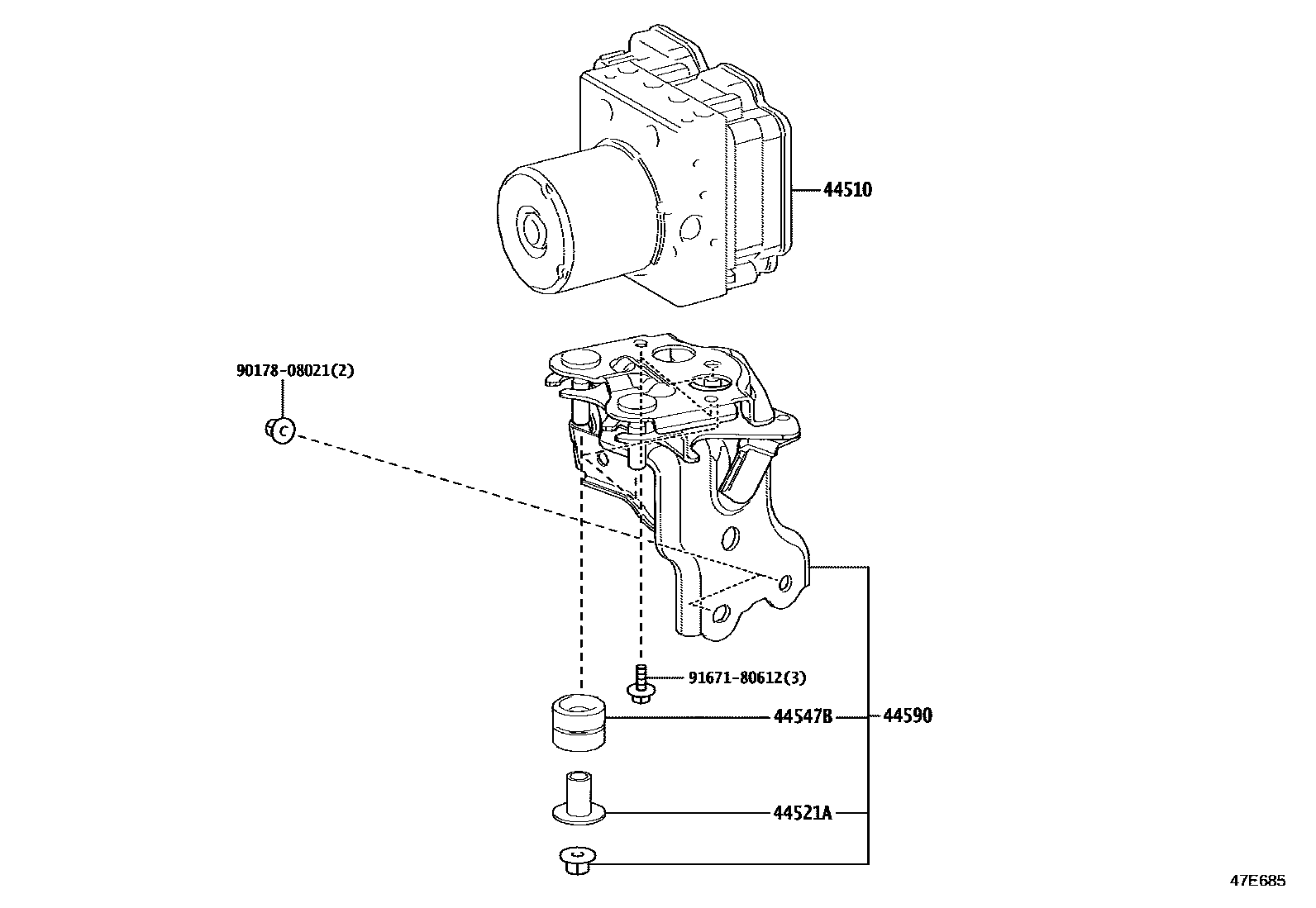

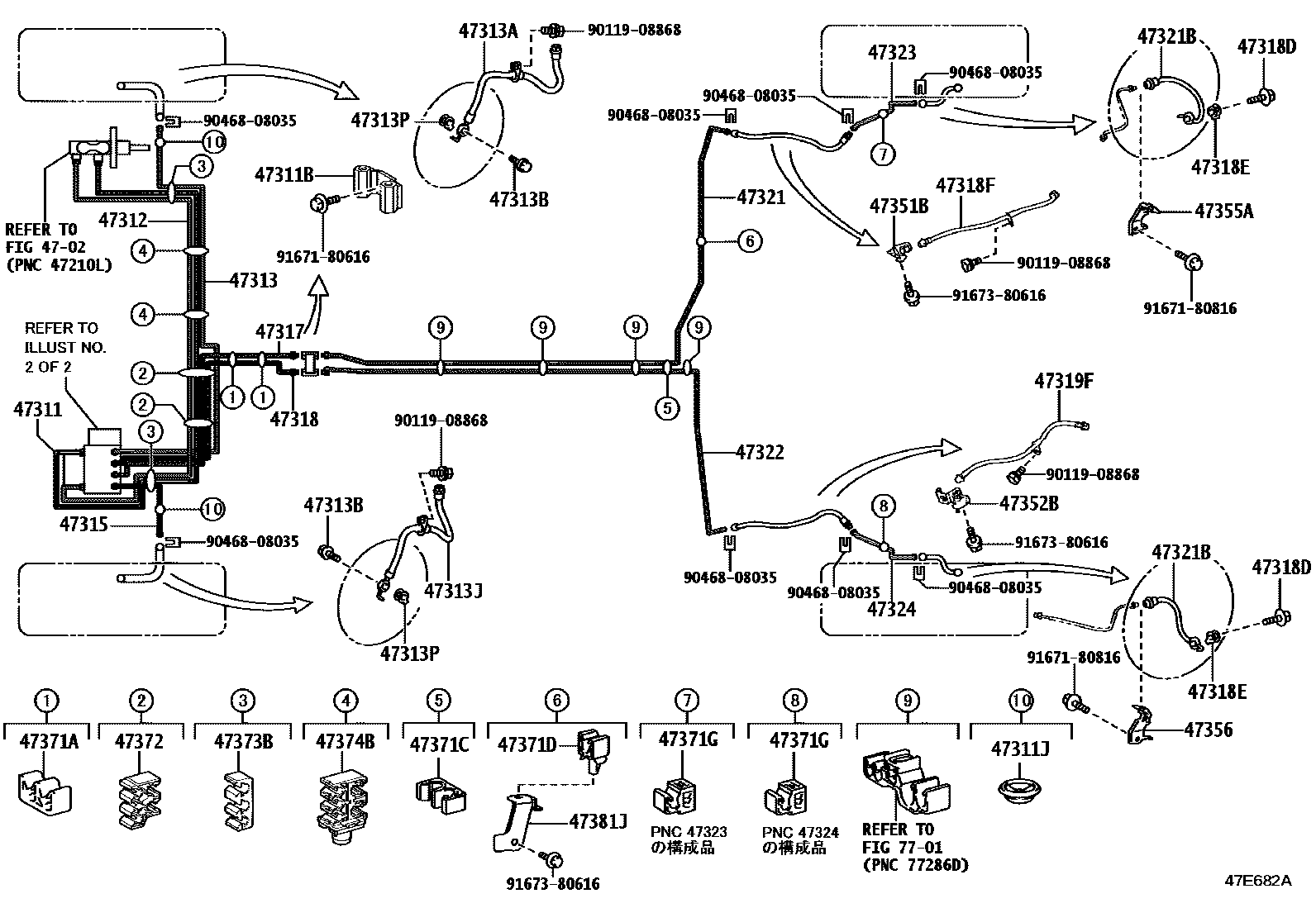

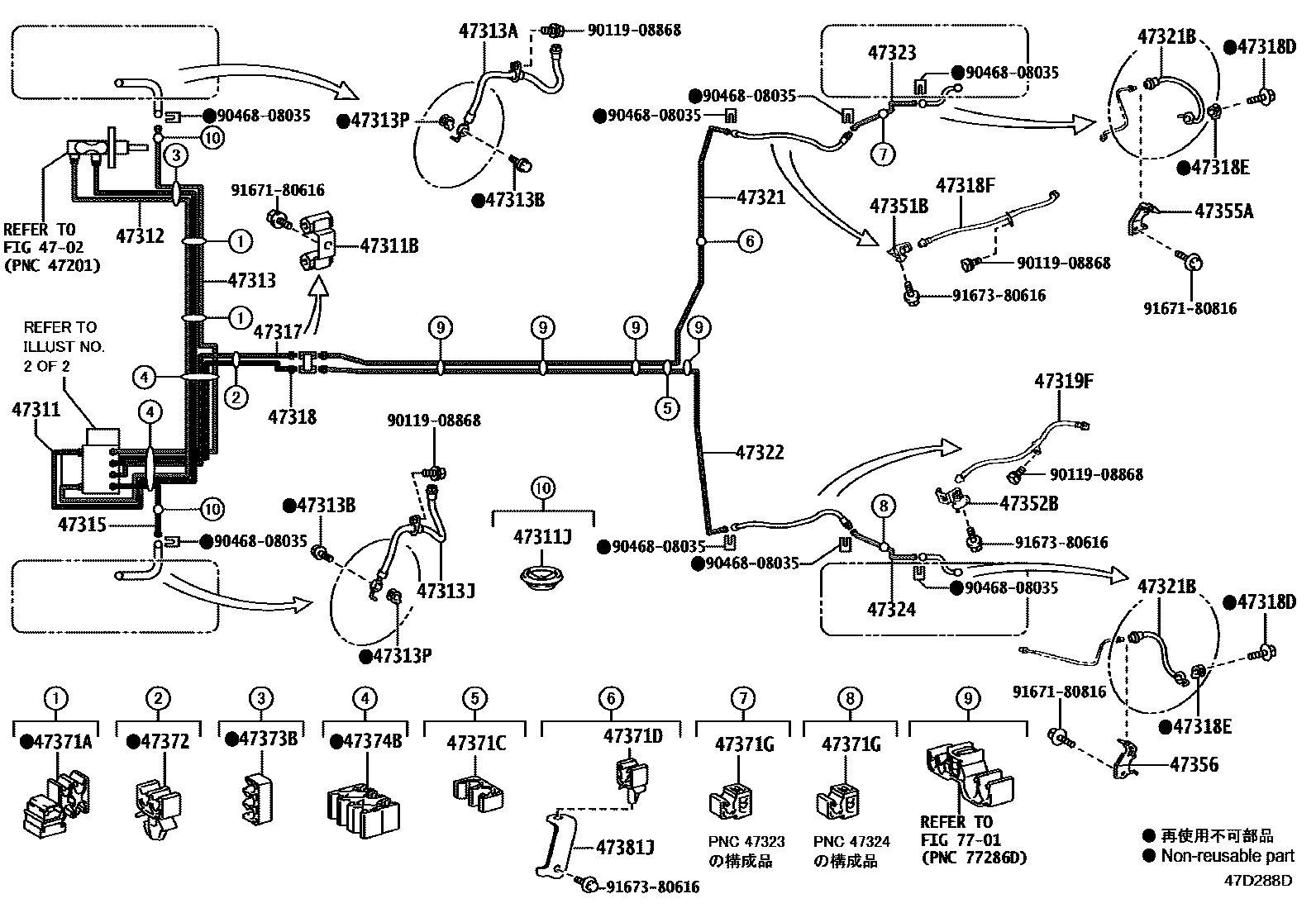

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 10 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

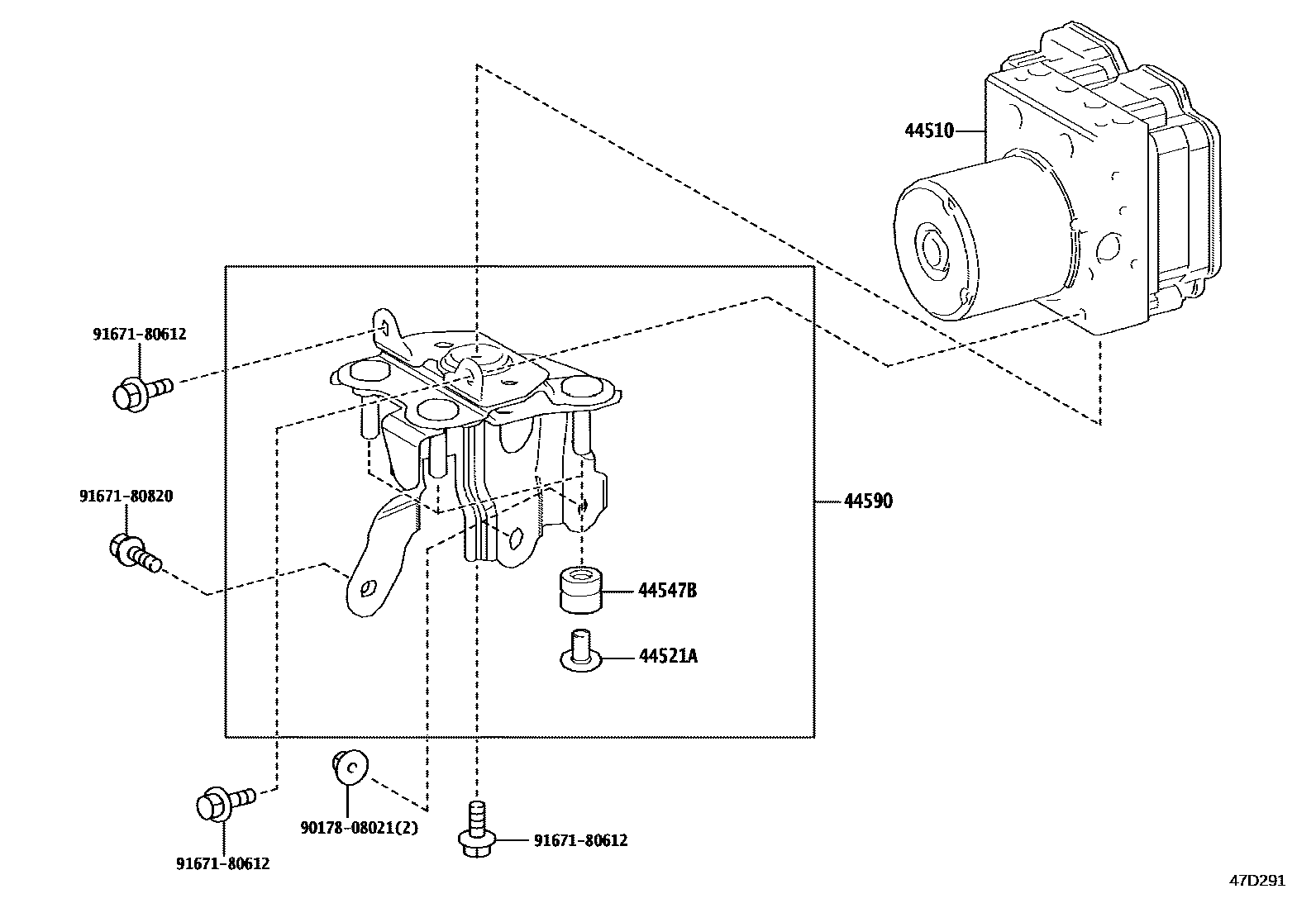

| 44510 | brake actuator assembly | 44050-16060 · 44050-16070 · 44050-16120 · 44050-16130 · 44050-16131 · 44050-16140 · 44050-16141 |
| 44521A | Toyota part | 44521-12050 · 44521-33020 |
| 44521B | Toyota part | 44521-47010 |
| 44546A | Brake actuator bolt cushion | 44546-12120 |
| 44547B | brake actuator bracket cushion | 44547-33100 |
| 44590 | Brake actuator bracket assembly | 44590-12240 · 44590-12280 · 44590-12300 · 44590-47082 |
| 47070 | Brake booster pump assembly | 47070-47100 |
| 47311 | No. 1 front brake pipe | 47311-12C70 · 47311-12C90 · 47311-12D40 · 47311-12D60 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 |
| 47311J | Seal No. 1 (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-12800 · 47312-12820 · 47312-12870 · 47312-12890 |
| 47313 | No. 3 front brake pipe | 47313-12A60 · 47313-12A70 · 47313-12B00 · 47313-12B10 |
| 47313A | No. 1 front flexible hose | 90947-02H46 · 90947-02K97 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02H47 · 90947-02K98 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47315 | No. 5 front brake pipe | 47315-12650 · 47315-12660 · 47315-12700 · 47315-12710 |
| 47317 | No. 7 front brake pipe | 47317-12630 · 47317-12640 · 47317-12670 · 47317-12680 |
| 47318 | No. 8 front brake pipe | 47318-12760 · 47318-12770 · 47318-12800 · 47318-12810 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-02H69 · 90947-02J99 · 90947-02K87 |
| 47319F | Left rear flexible hose | 90947-02H70 · 90947-02K00 · 90947-02K88 |
| 47321 | No. 1 rear brake pipe | 47321-12410 · 47321-12480 · 47321-16190 |
| 47321B | Flexible hose (for rear brake pipe) | 90947-02H23 |
| 47322 | No. 2 rear brake pipe | 47322-12570 · 47322-12650 · 47322-16190 |
| 47323 | No. 3 rear brake pipe | 47323-16220 |
| 47324 | No. 4 rear brake pipe | 47324-16220 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-16110 · 47351-47030 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-16110 · 47352-47030 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-10110 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-10060 |
| 47355A | No. 5 Flexible Hose Bracket | 47351-16140 |
| 47356 | No. 6 Flexible Hose Bracket | 47352-16140 |
| 47371A | No. 1 brake pipe clamp | 90949-01D91 · 90949-01E30 |
| 47371B | No. 6 brake pipe clamp | 90461-10854 |
| 47371C | No. 7 brake pipe clamp | 90464-00904 |
| 47371D | No. 8 brake pipe clamp | 90949-01E01 · 90949-01E10 |
| 47371E | No. 9 brake pipe clamp | 77285-12170 |
| 47371F | No. 10 brake pipe clamp | 77286-12230 |
| 47371G | No. 11 brake pipe clamp | 90949-01C82 |
| 47372 | No. 2 brake pipe clamp | 90949-01E15 · 90949-01E34 · 90949-01E40 |
| 47373B | No. 3 brake pipe clamp | 90949-01E17 · 90949-01E40 · 90949-01E43 |
| 47374B | No. 4 brake pipe clamp | 90949-01E34 · 90949-01E43 · 90949-01E44 · 90949-01E79 |
| 47375 | No. 5 brake pipe clamp | 90949-01E44 · 90949-01E49 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-47060 |
| 47381J | No. 2 brake pipe clamp bracket | 47381-12300 · 47381-16090 |
| 473A1 | Toyota part | 473A1-12010 |
| 47941 | Toyota part | 47941-47020 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
| 47999A | Bushing (for brake pull actuator bracket) | 47965-30010 |
