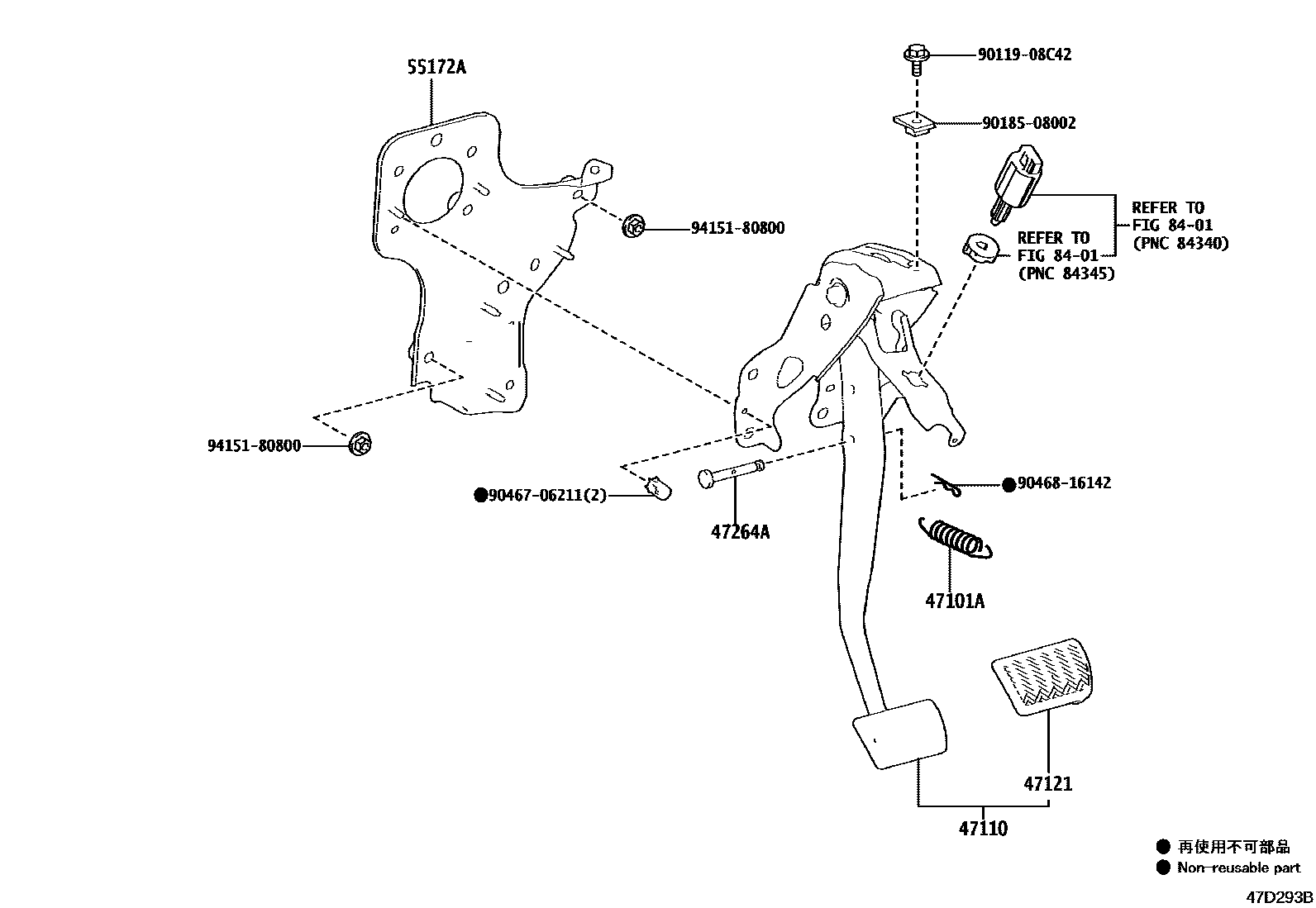

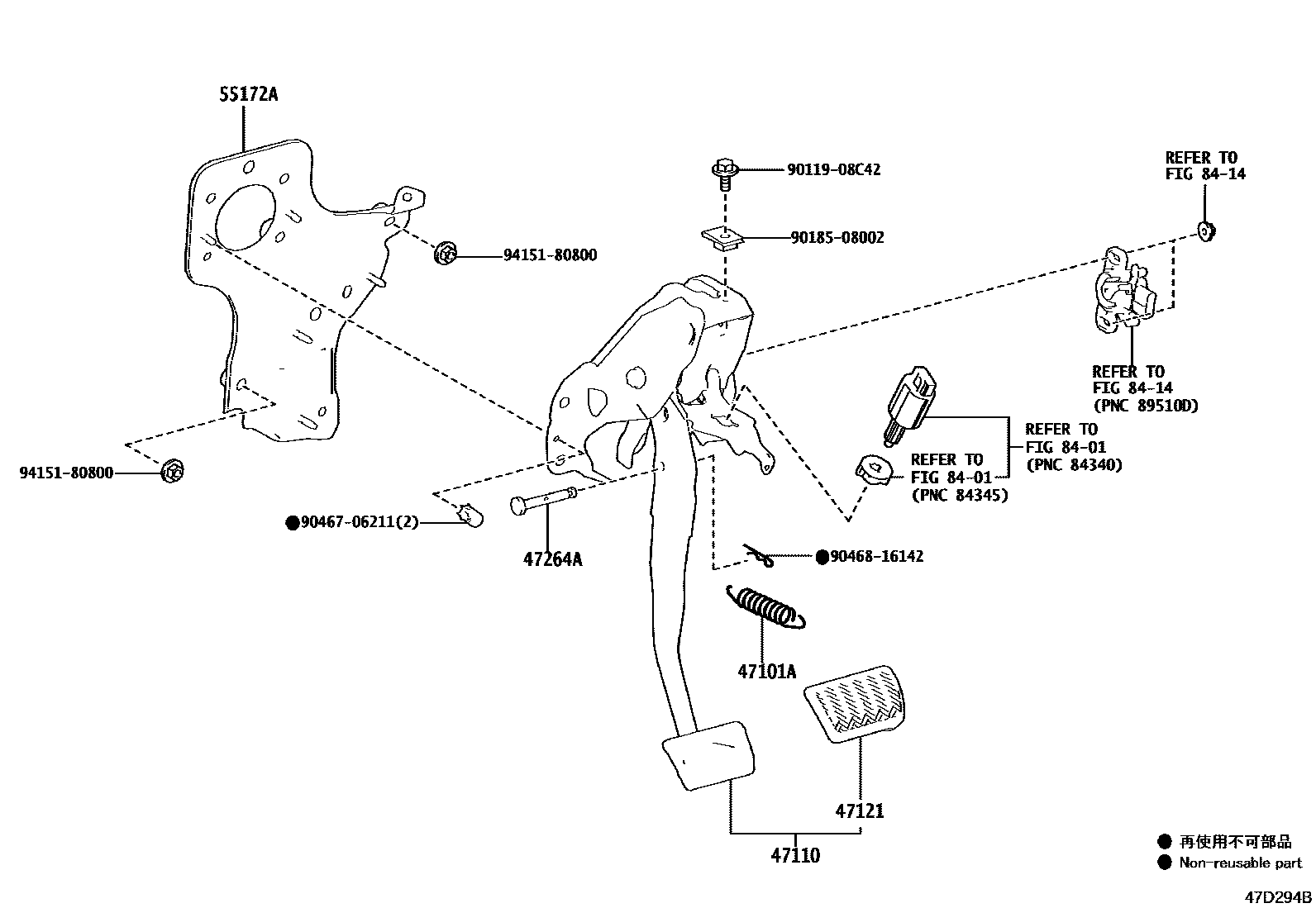

Toyota COROLLA Brake Pedal & Bracket — Figure 4701
Toyota COROLLA EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 90507-15010 · 90507-16030 |
| 47110 | Brake pedal bracket assembly | 47110-10040 · 47110-10050 · 47110-16180 |
| 47121 | brake pedal pad | 47121-16020 · 47121-47010 |
| 47264A | Pin (for push rod) | 90249-08221 |
| 55172A | Toyota part | 55172-10040 |
