Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 4 images and 7 PNC and OE references.

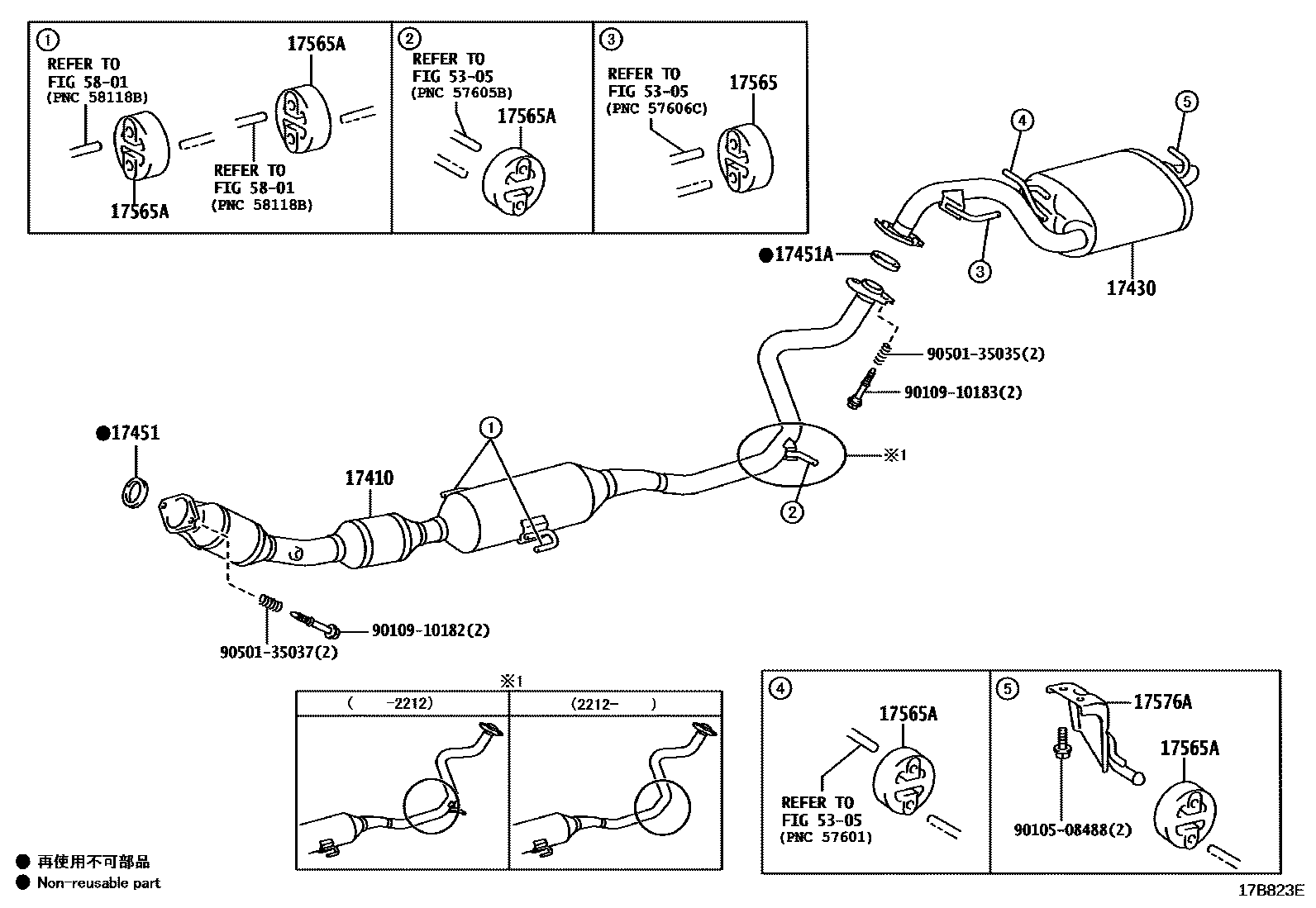

Toyota COROLLA Exhaust Pipe EPC diagram — 17B823E — Exhaust Pipe — 17B823E (202108 – 999999)

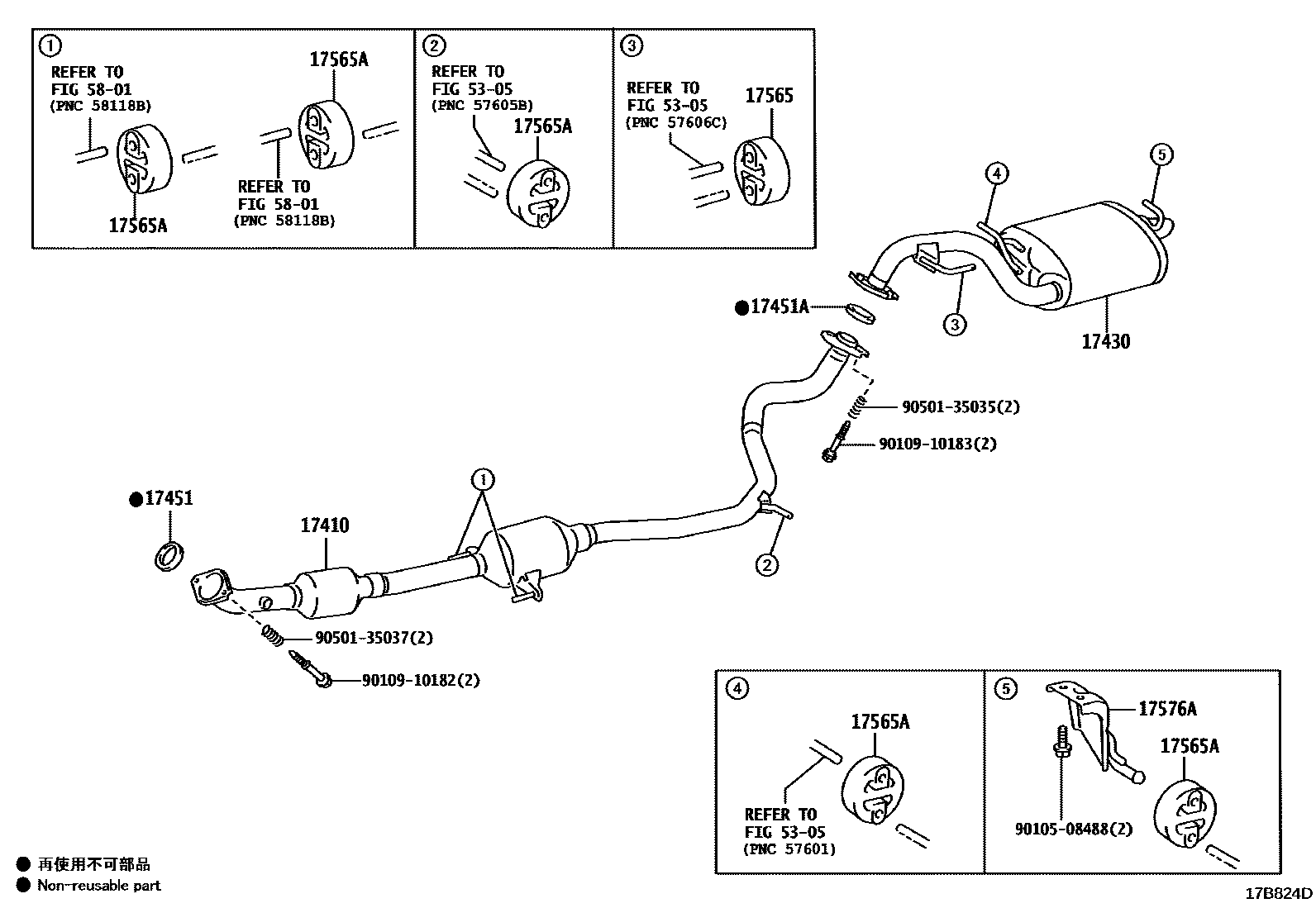

Toyota COROLLA Exhaust Pipe EPC diagram — 17B824D — Exhaust Pipe — 17B824D (202108 – 999999)

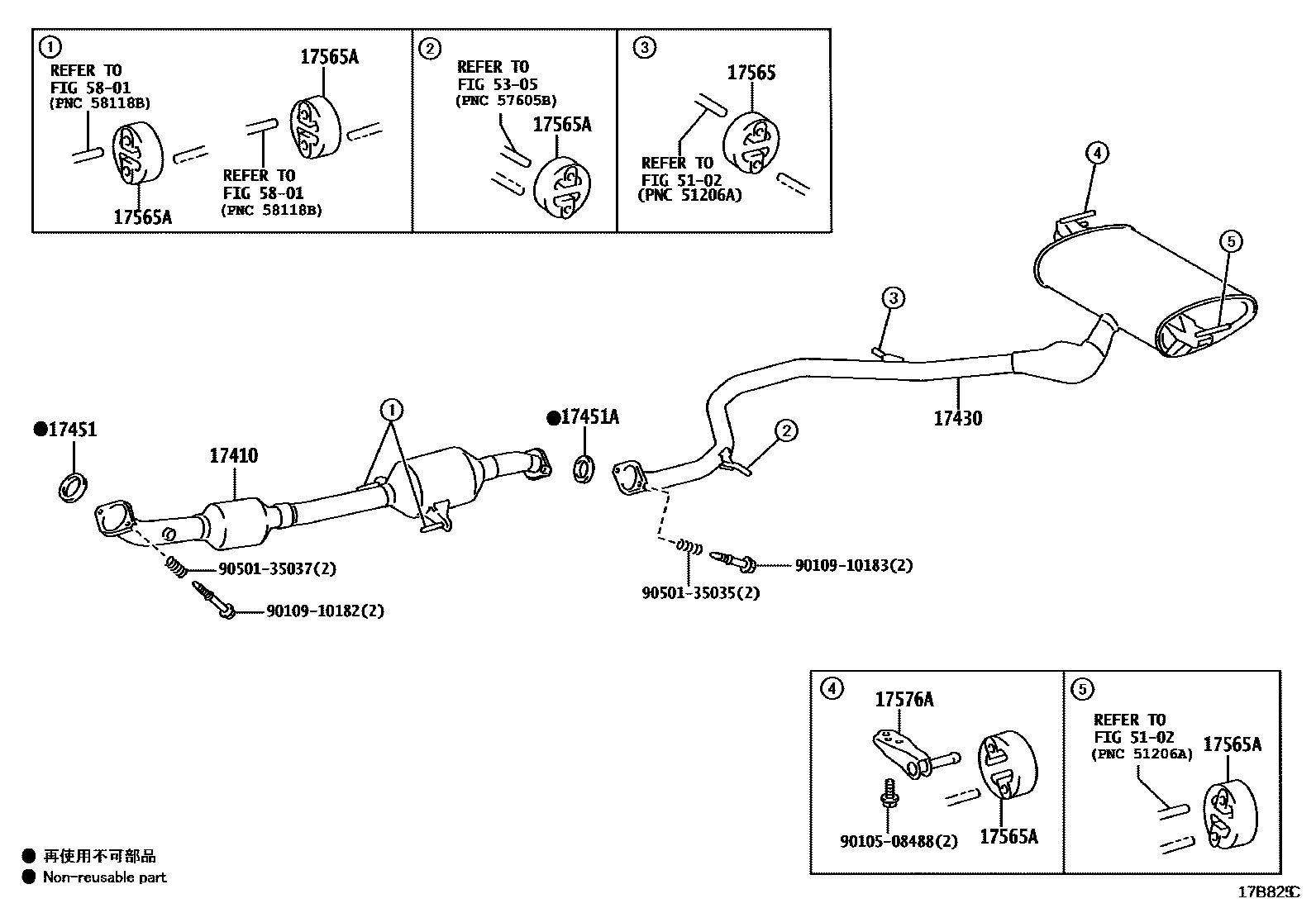

Toyota COROLLA Exhaust Pipe EPC diagram — 17B825C — Exhaust Pipe — 17B825C (202108 – 999999)

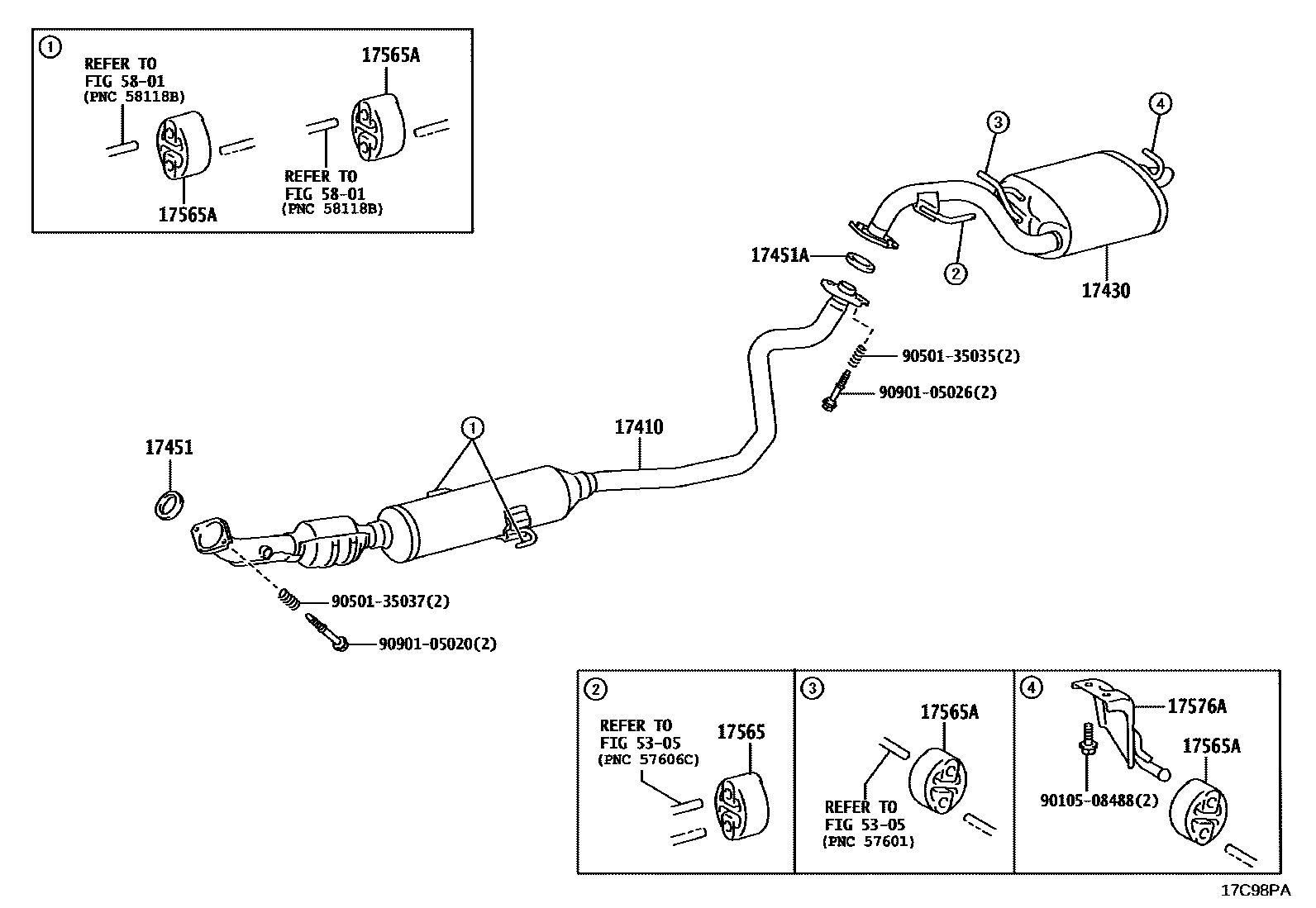

Toyota COROLLA Exhaust Pipe EPC diagram — 17C98PA — Exhaust Pipe — 17C98PA (202310 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17410-37B31 · 17410-37C20 · 17410-37D60 · 17410-37D70 · 17410-37F00 · 17410-37F30 · 17410-37F40 · 17410-37F50 · 17410-37F60 · 17410-37G00
17430	Exhaust tailpipe assembly	17430-24510 · 17430-37B80 · 17430-37B90 · 17430-37C00
17451	Exhaust pipe gasket	17451-24010 · 17451-28040 · 17451-28041
17451A	No. 2 exhaust pipe gasket	17451-23042 · 17451-23043 · 17451-24020
17565	No. 5 exhaust pipe lifting lug	17565-28010
17565A	No. 4 exhaust pipe lifting lug	17565-22040
17576A	No. 6 exhaust pipe bracket	17575-37030 · 17576-37010
