Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603

Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 8 images and 98 PNC and OE references.

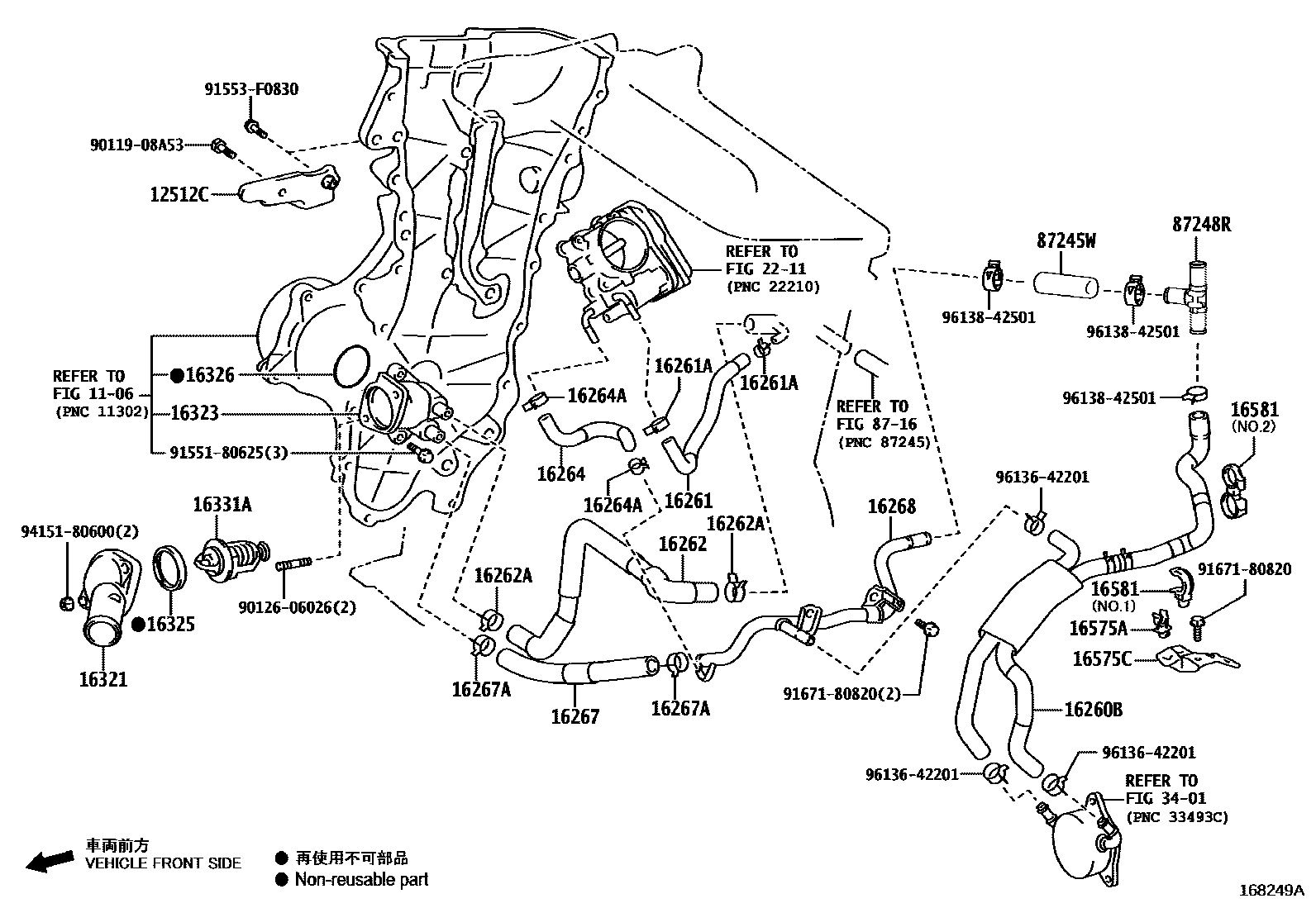

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 168249A
RADIATOR & WATER OUTLET — 168249A (202108 – 999999)

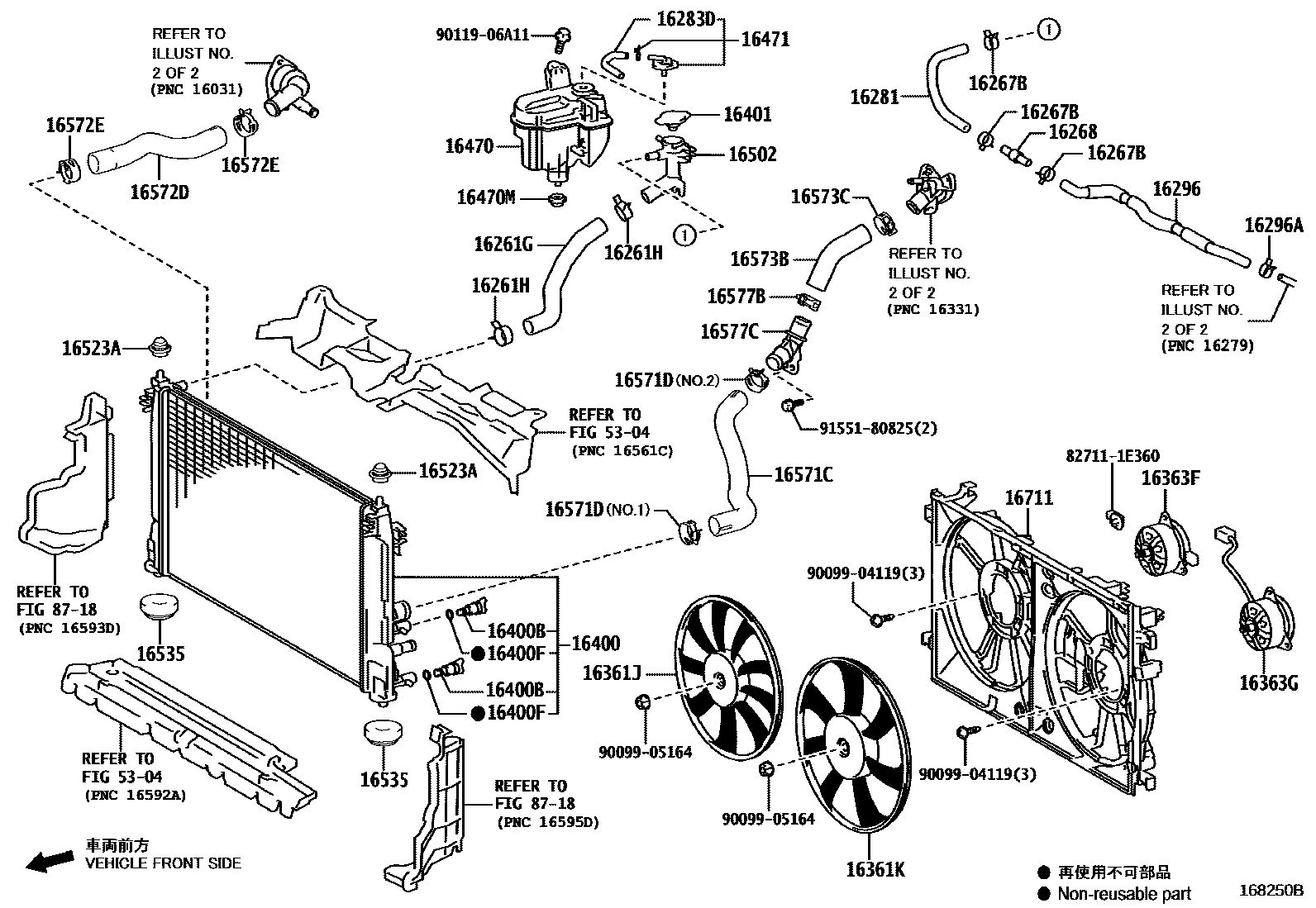

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 168250B
RADIATOR & WATER OUTLET — 168250B (202108 – 999999)

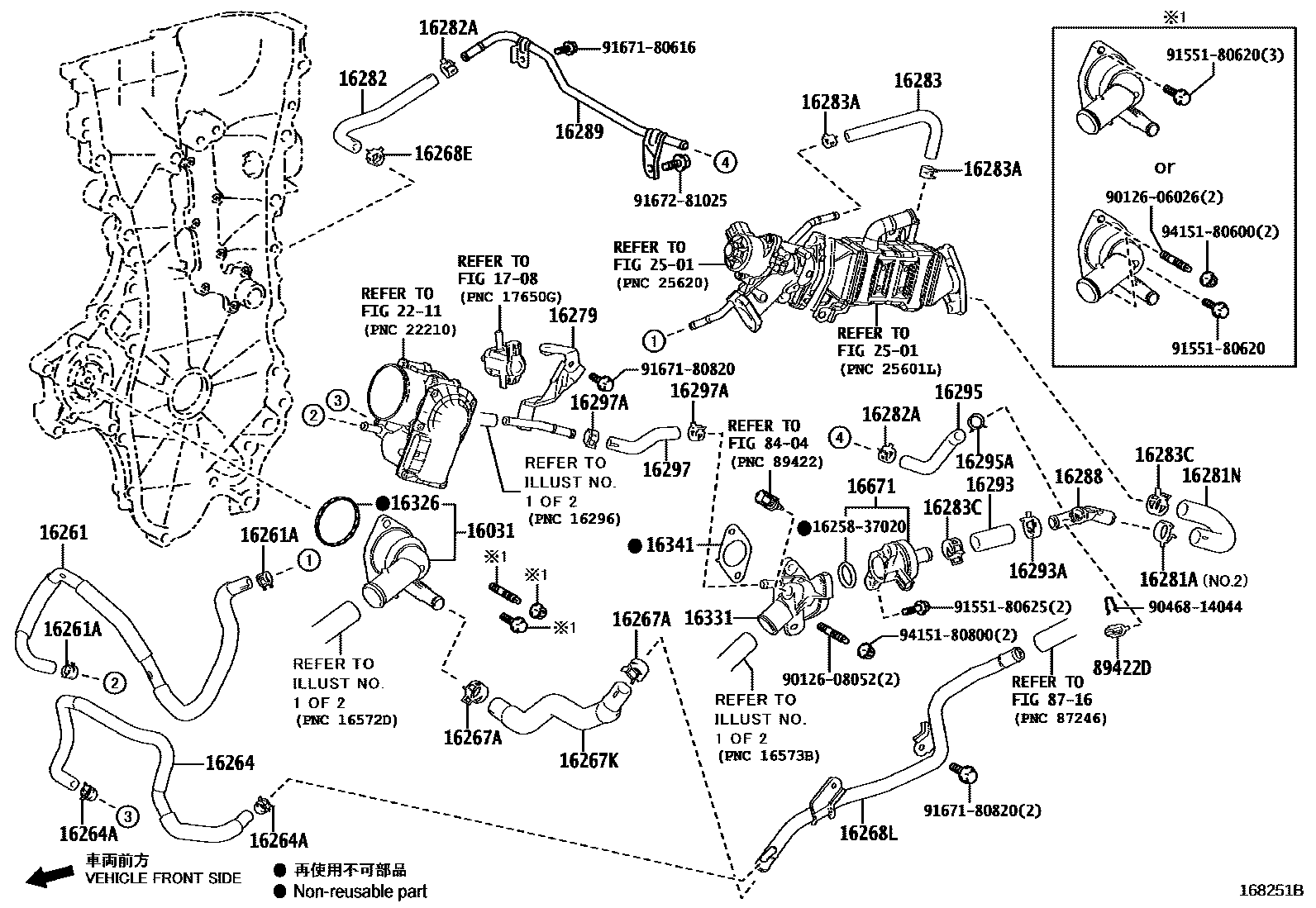

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 168251B
RADIATOR & WATER OUTLET — 168251B (202108 – 999999)

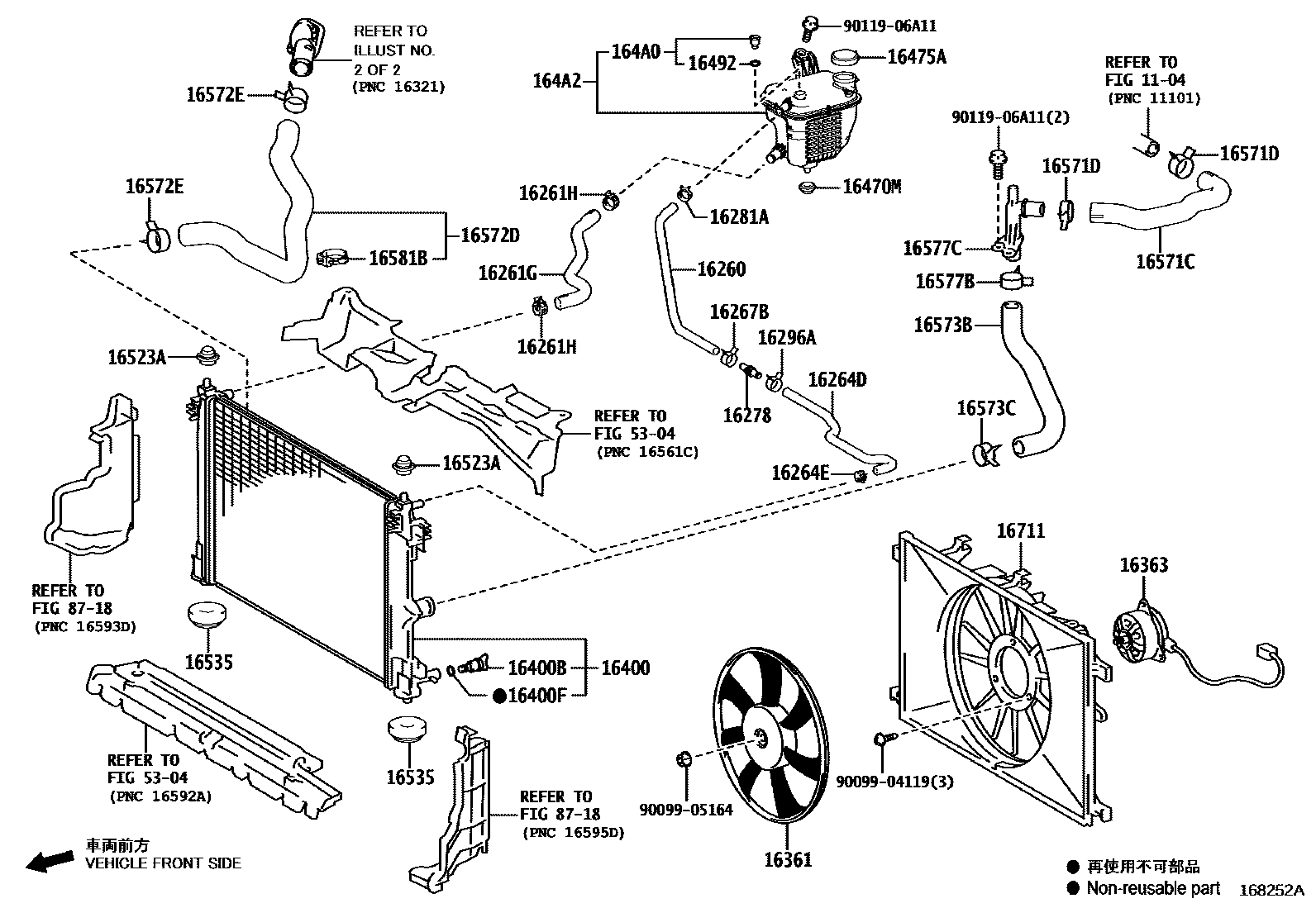

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 168252A
RADIATOR & WATER OUTLET — 168252A (202108 – 999999)

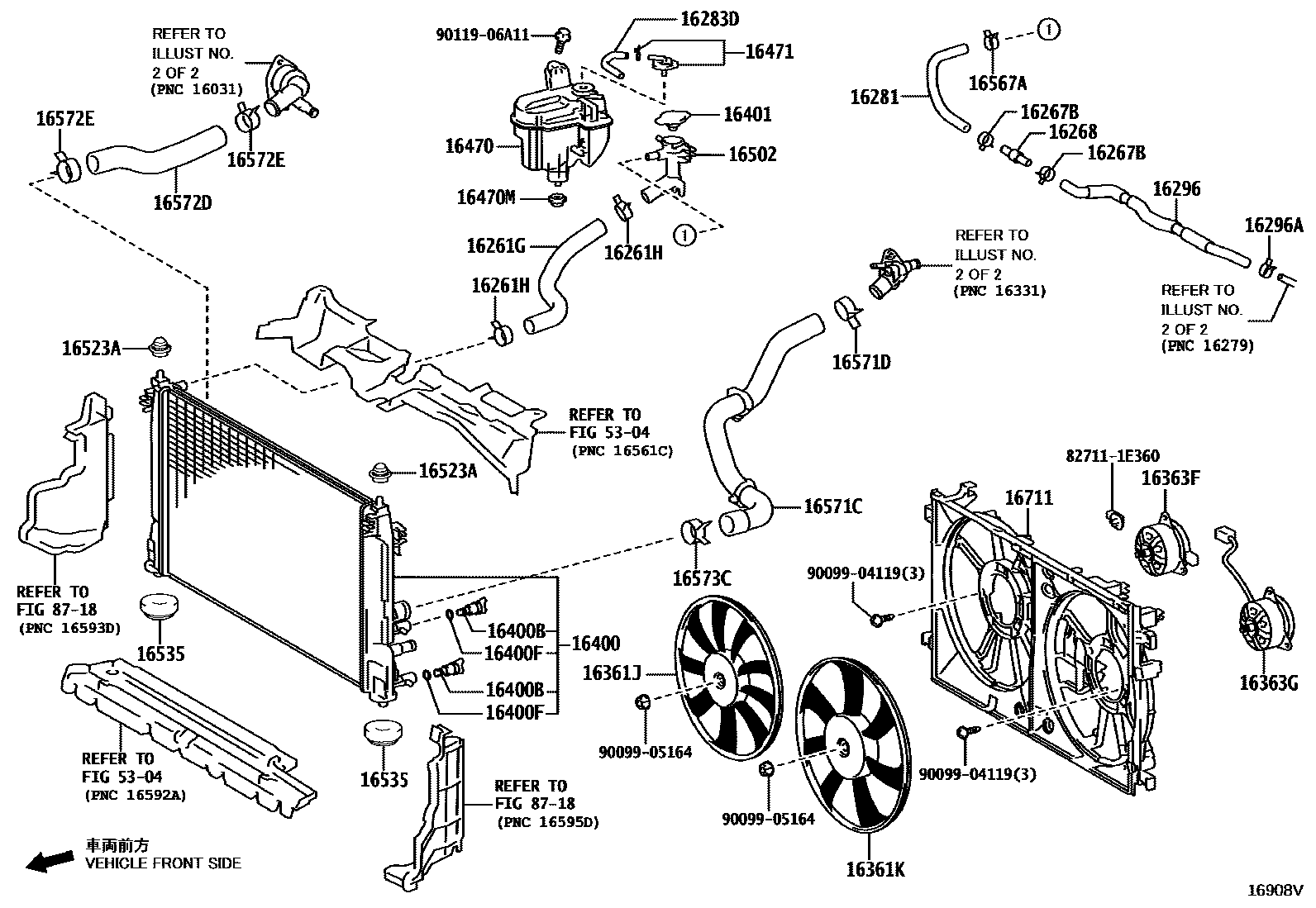

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 16908V
RADIATOR & WATER OUTLET — 16908V (202310 – 999999)

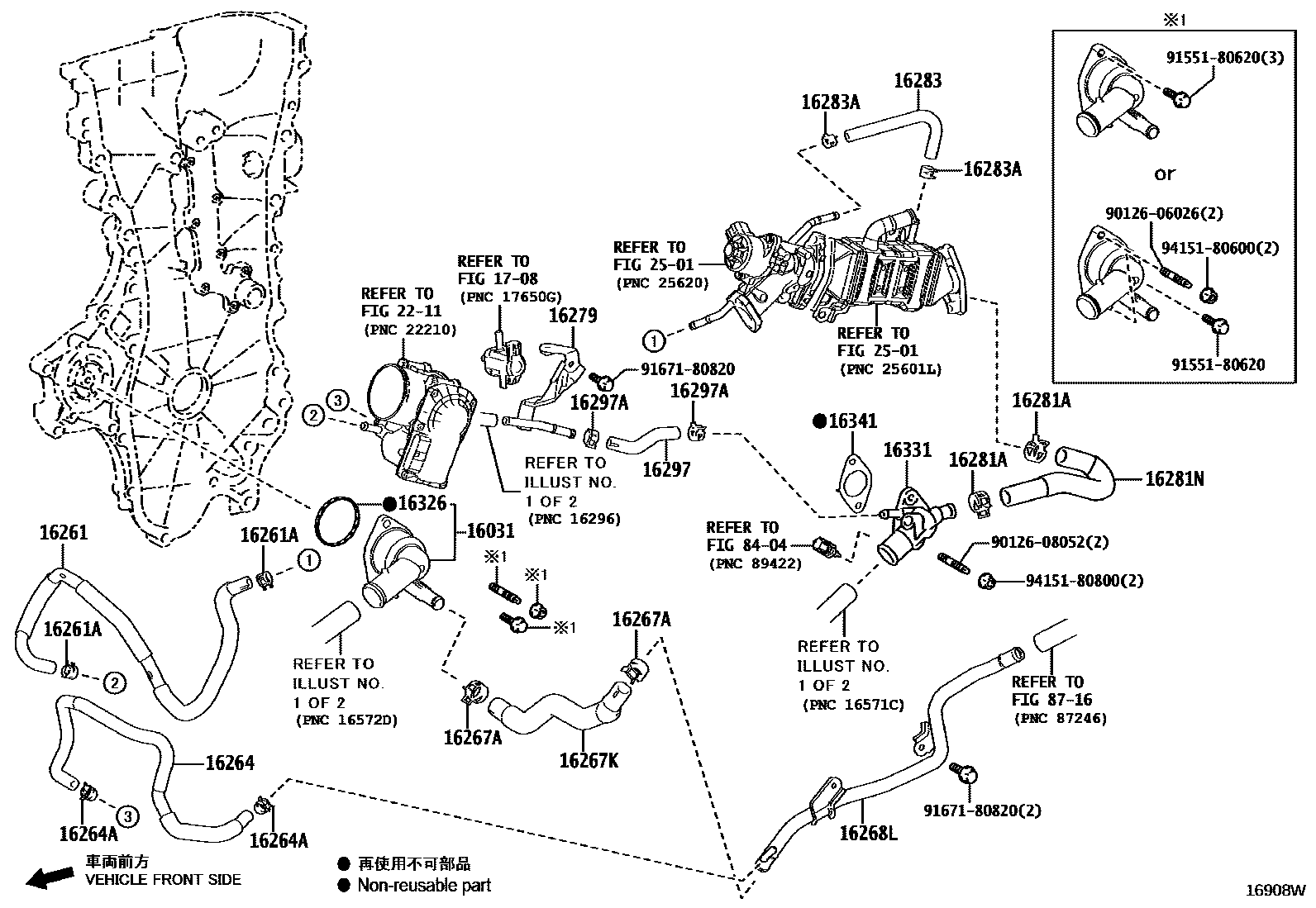

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 16908W
RADIATOR & WATER OUTLET — 16908W (202310 – 999999)

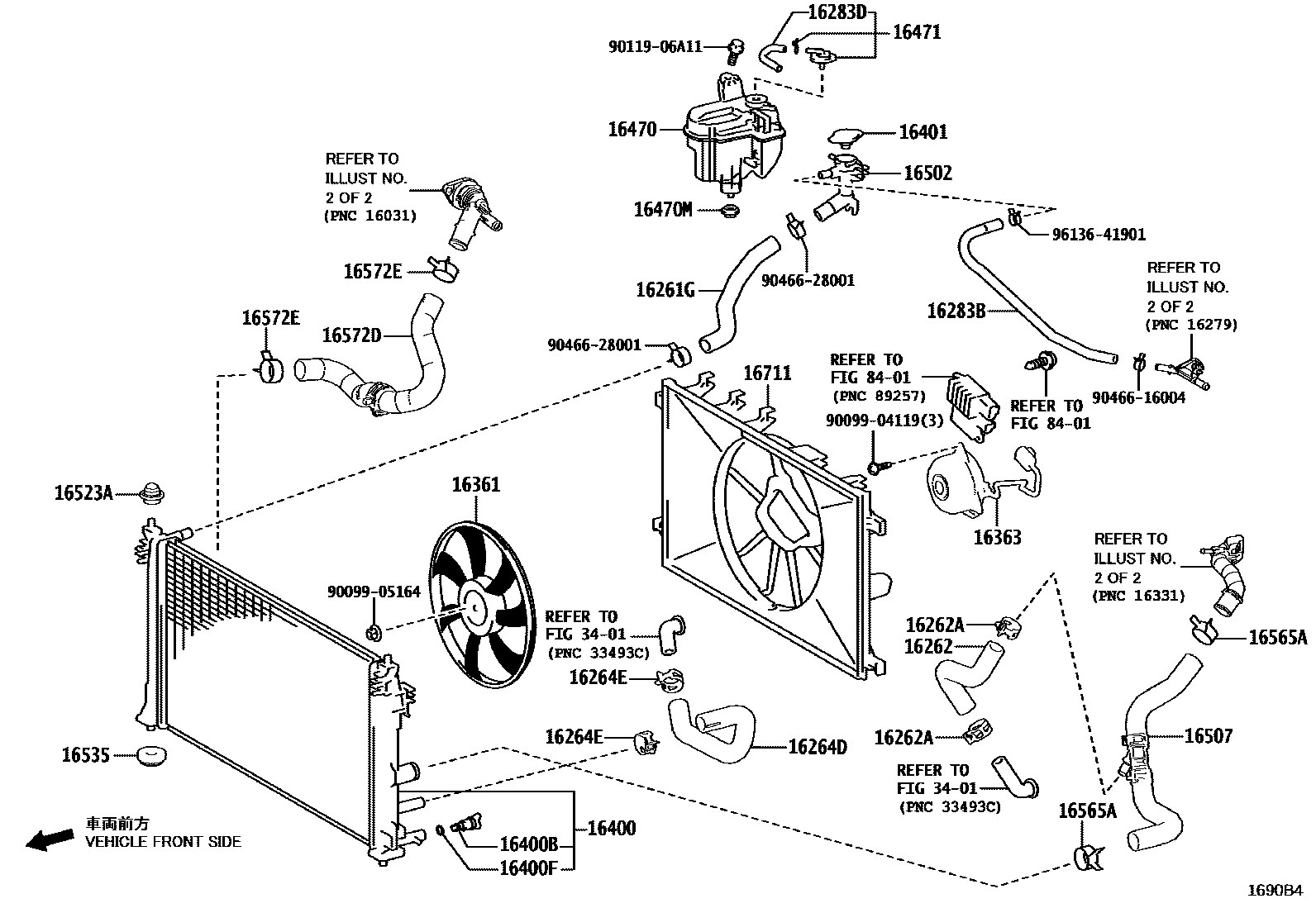

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 1690B4
RADIATOR & WATER OUTLET — 1690B4 (202310 – 999999)

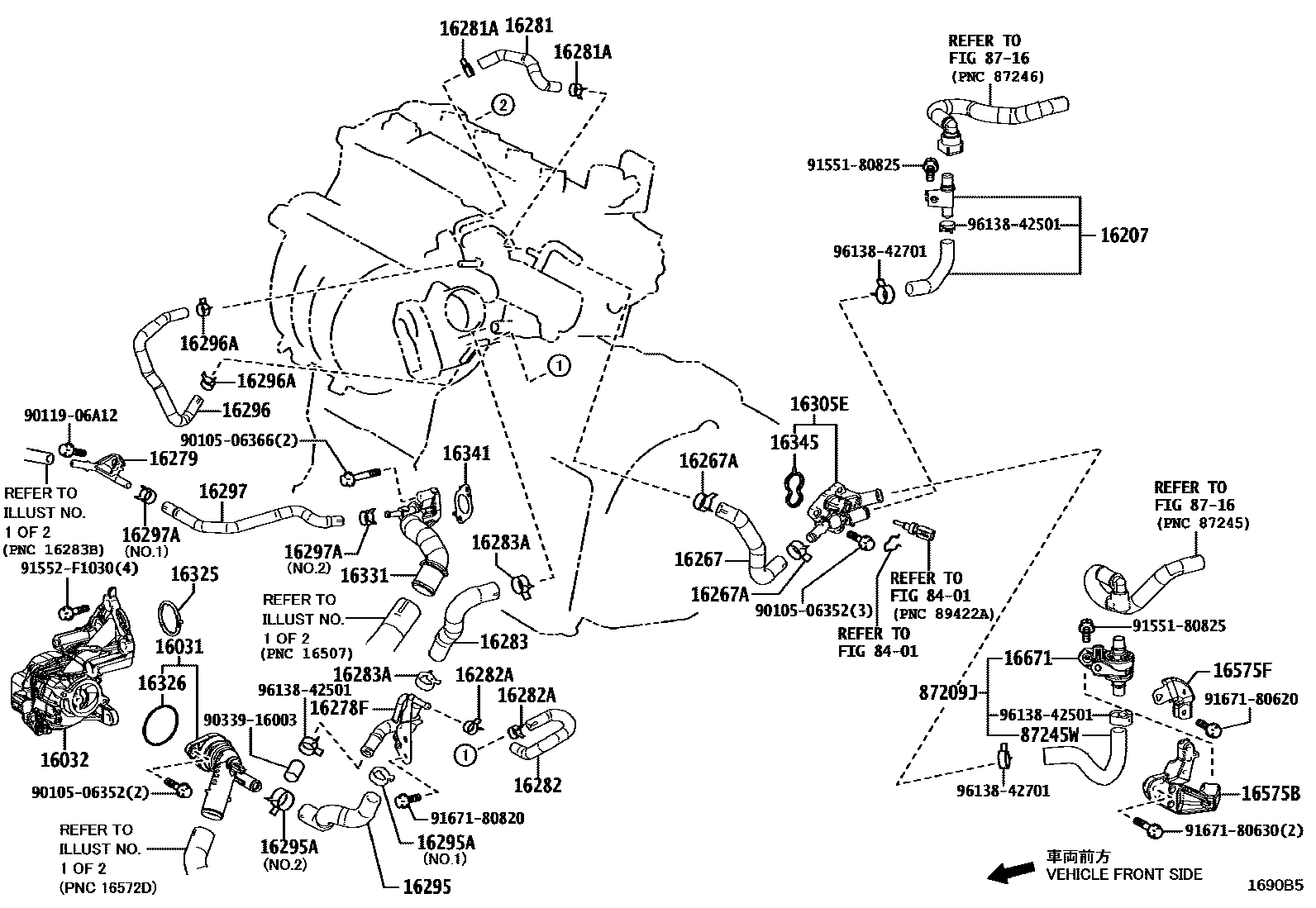

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 1690B5
RADIATOR & WATER OUTLET — 1690B5 (202310 – 999999)

PNC and OE references

PNCPart nameOE numbers
12512CNo. 2 generator bracket12512-37010
16031INLET SUB-ASSY, WATER W/THERMOSTAT16031-24040 · 16031-37010
16032Toyota part16032-24020
16207No. 2 water bypass pipe sub-assembly16207-24020
16260Water bypass hose assembly16267-37140
16260BToyota part16260-37160
16261HOSE, WATER BY-PASS16261-37031 · 16261-37160
16261ACLAMP OR CLIP, WATER BY-PASS HOSE96137-41501
16261GHOSE, WATER BY-PASS, NO.116261-24020 · 16261-37180 · 16261-37190
16261HCLIP, WATER BY-PASS HOSE NO.190466-28001 · 96138-42501
16262water inlet hose16262-24020 · 16262-37010
16262AClamp (for water inlet hose)96136-42501 · 96138-42501
16264HOSE, WATER BY-PASS, NO.216264-37031 · 16264-37130
16264ACLAMP OR CLIP, WATER BY-PASS HOSE NO.296137-41501
16264DHOSE, WATER BY-PASS, NO.216264-24070 · 16264-37190
16264ECLIP, WATER BY-PASS HOSE NO.296136-41901 · 96138-42501
16267HOSE, WATER BY-PASS, NO.316267-24040 · 16267-37010
16267ACLAMP OR CLIP, WATER BY-PASS HOSE NO.396136-42501 · 96138-42101
16267BClip (for water bypass hose)96136-41901
16267KHOSE, WATER BY-PASS, NO.316267-37100
16268PIPE, WATER BY-PASS, NO.116268-37021 · 16268-37060 · 16268-37120
16268EHose clamp (for water bypass pipe)96137-51701
16268LPIPE, WATER BY-PASS16268-37110 · 16268-37150
16278PIPE, WATER BY-PASS, NO.216268-37120
16278FHOSE, WATER BY-PASS, NO.216278-24010
16279No. 3 water bypass pipe16279-24010 · 16279-37020
16281HOSE, WATER BY-PASS, NO.416281-24030 · 16281-37180
16281ACLAMP OR CLIP, WATER BY-PASS HOSE NO.496136-42501 · 96138-41501 · 96138-42101 · 96138-42501
16281NToyota part16281-37071 · 16281-37191
16282HOSE, WATER BY-PASS, NO.516282-24020 · 16282-37090
16282AClip or clip (for No. 5 water bypass hose)96137-51701 · 96138-41501
16283HOSE, WATER BY-PASS, NO.616283-24010 · 16283-37021
16283ACLAMP OR CLIP, WATER BY-PASS HOSE NO.696137-41501 · 96138-42501
16283BHOSE, WATER BY-PASS16281-24060
16283CClip or clip (for water bypass hose)96136-42501
16283DHOSE, WATER BY-PASS, NO.616283-37030
16288No. 4 water bypass pipe16288-37010
16289No. 5 water bypass pipe16278-37021
16293No. 10 water bypass hose16293-37010
16293AClamp (for No. 10 water bypass hose)96138-42501
16295HOSE, WATER BY-PASS, NO.716295-24010 · 16295-37021
16295ACLIP, WATER BY-PASS HOSE NO.790466-16004 · 96137-41901 · 96138-42501 · 96138-42701
16296HOSE, WATER BY-PASS, NO.816296-24020 · 16296-37010
16296ACLIP, WATER BY-PASS HOSE NO.890466-16004 · 96136-41901 · 96138-41501
16297No. 9 water bypass hose16297-24010 · 16297-37010
16297AClamp (for No. 9 water bypass hose)90467-15022 · 96137-51701 · 96138-41501
16305EWater bypass outlet sub-assembly16305-24010
16321water inlet16321-37010
16323HOUSING, WATER INLET16323-37040
16325GASKET, WATER INLET HOUSING, NO.116325-25010 · 16325-28010
16326GASKET, WATER INLET HOUSING, NO.216326-37020 · 16326-37030 · 16326-47020
16331Water outlet16331-24030 · 16331-37090 · 16331-37100
16331Athermostat90916-03148
16341GASKET, WATER OUTLET16341-24010 · 16341-37010
16345Outlet pipe gasket16345-24010
16361Fan16361-24130 · 16361-37130
16361JToyota part16361-37070
16361KToyota part16361-37060
16363cooling fan motor16363-24120 · 16363-37220
16363FToyota part16363-24160 · 16363-36160
16363GToyota part16363-24170 · 16363-37060
16400Radiator assembly16400-24380 · 16400-24390 · 16400-37380 · 16400-37400
16400BRadiator drain switch screw plug16417-21280
16400FSeal (for radiator drain switch)16492-21050
16401Radiator cover sub-assembly16401-36030
16470Radiator reservoir assembly16470-37040
16470Mgasket90480-18010
16471Liquid storage tank cover sub-assembly16405-37020
16475AReservoir tank cover16475-28140
16492Toyota part16492-21050
164A0Toyota part164A0-37010
164A2Closed reservoir water tank without lid164A2-37012
16502Water injection port sub-assembly16502-37040
16507Radiator pipe sub-assembly16570-24070
16523ARadiator bracket cushion16523-37010
16535Radiator lower support16535-28030 · 90480-40021
16565Aclip90466-43002
16567AClamp (for radiator reservoir hose)96136-41901
16571CRadiator hose No. 116571-37210 · 16571-37211 · 16571-37240 · 16571-37290
16571DNo. 1 radiator hose clip90466-40001 · 90466-43002
16572DRadiator hose No. 216572-24030 · 16572-37190 · 16572-37210 · 16572-37250
16572ENo. 2 radiator hose clip90466-43002
16573BRadiator hose No. 316573-37020 · 16573-37070
16573CNo. 3 radiator hose clamp or clip90466-40001 · 90466-43002
16575ANo. 5 radiator hose clip90949-01C99
16575BNo. 2 water hose clamp bracket16575-24050
16575CNo. 1 water hose clamp bracket16575-37030
16575FToyota part16575-24060
16577BHose clamps or clips (for radiator pipes)90466-40001
16577Cradiator pipe16577-37070 · 16577-37090
16581Hose clamp (for water hose)16581-21060 · 16581-37130
16581BHose clamp (for radiator hose)16581-36030
16671water valve16671-25070 · 16671-37010
16711fan cover16711-24160 · 16711-37150 · 16711-37160 · 16711-37190
87209JToyota part87209-12810
87245WToyota part87245-12G50 · 87245-12J80
87248RToyota part87248-12330
89422Dwater temperature sensor89422-47010
