Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 3 images and 6 PNC and OE references.

Toyota COROLLA Oil Filter EPC diagram — 153500A
Oil Filter — 153500A (202108 – 999999)

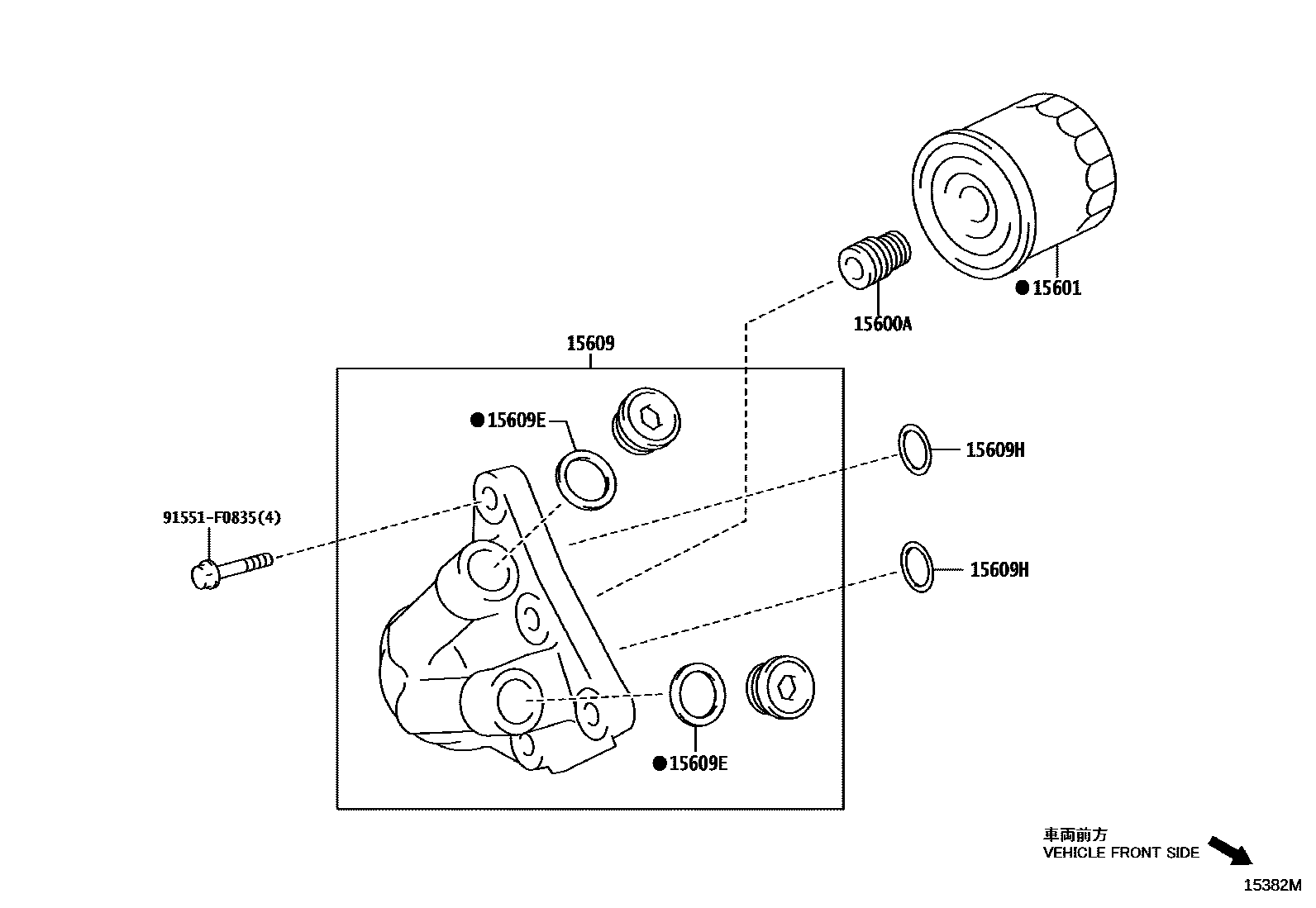

Toyota COROLLA Oil Filter EPC diagram — 15382M
Oil Filter — 15382M (202310 – 999999)

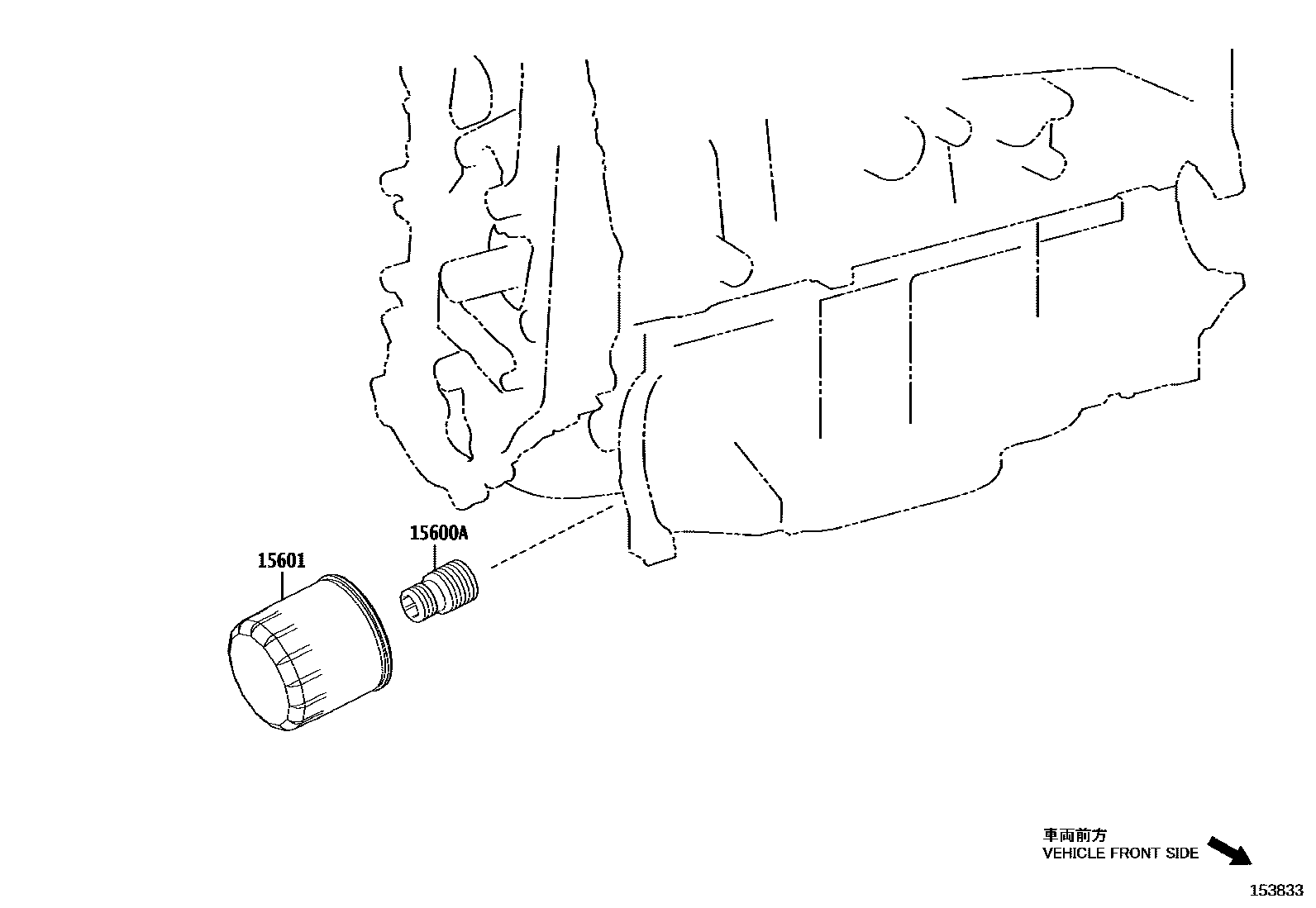

Toyota COROLLA Oil Filter EPC diagram — 153833
Oil Filter — 153833 (202310 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90904-04006
15601Oil filter sub-assembly90915-10003 · 90915-10009
15609Oil filter bracket sub-assembly15609-37060 · 15609-37070
15609DStraight threaded plug with head (for oil filter bracket)90341-20002
15609EHeaded straight thread plug liner90430-20004
15609HO-ring (for oil filter bracket)96723-24020
