Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 4 images and 10 PNC and OE references.

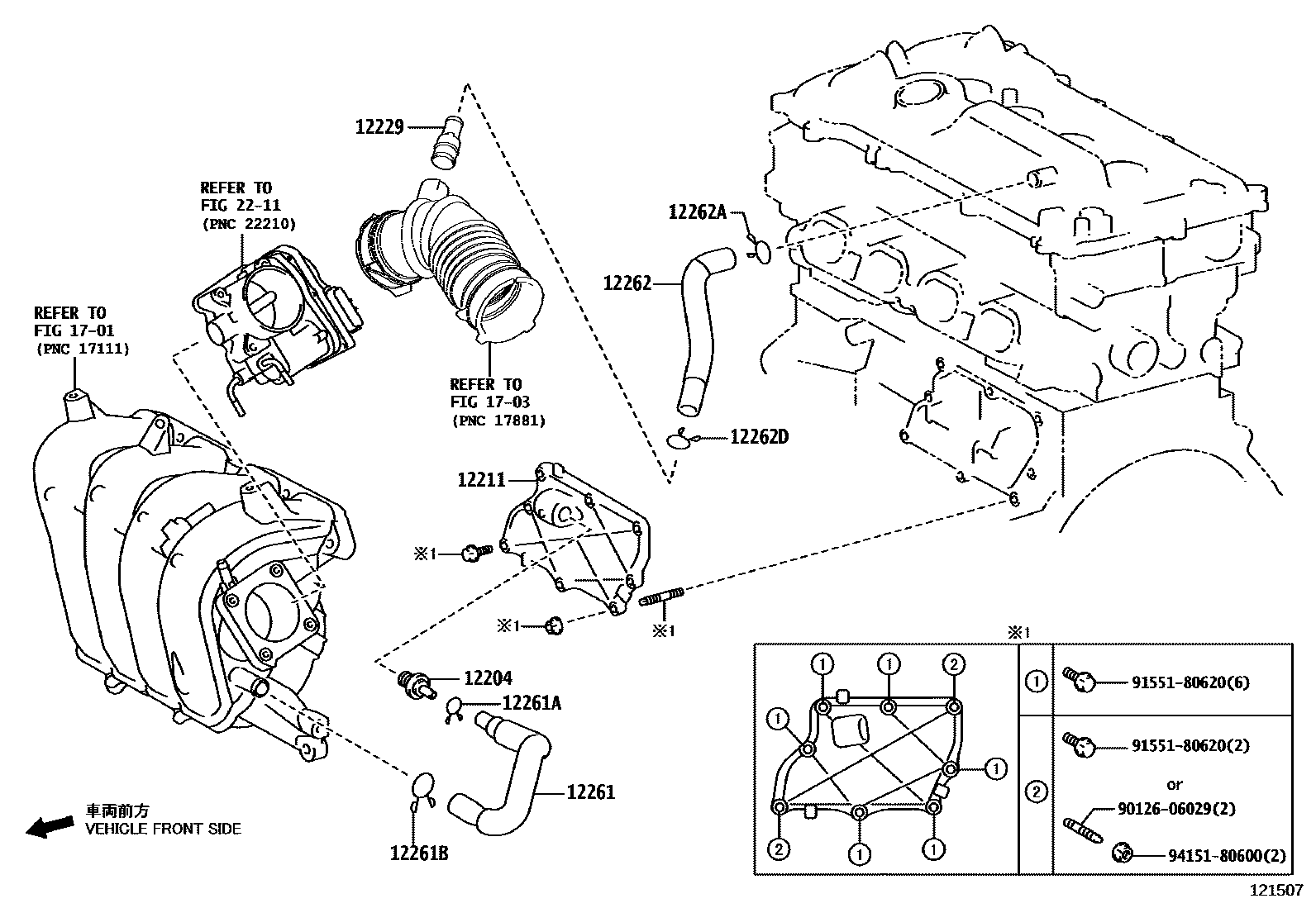

Toyota COROLLA Ventilation Hose EPC diagram — 121507
Ventilation Hose — 121507 (202108 – 999999)

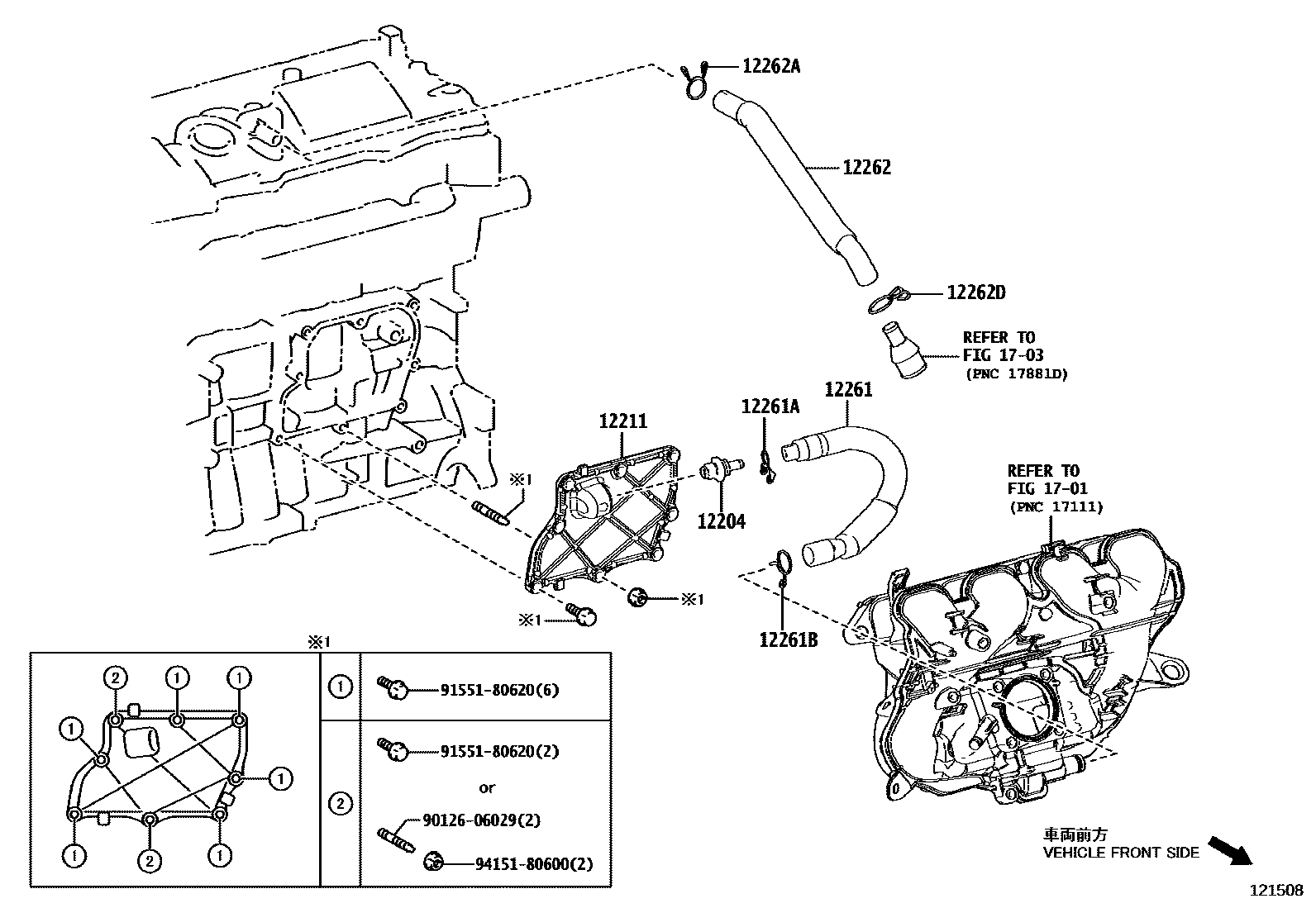

Toyota COROLLA Ventilation Hose EPC diagram — 121508
Ventilation Hose — 121508 (202108 – 999999)

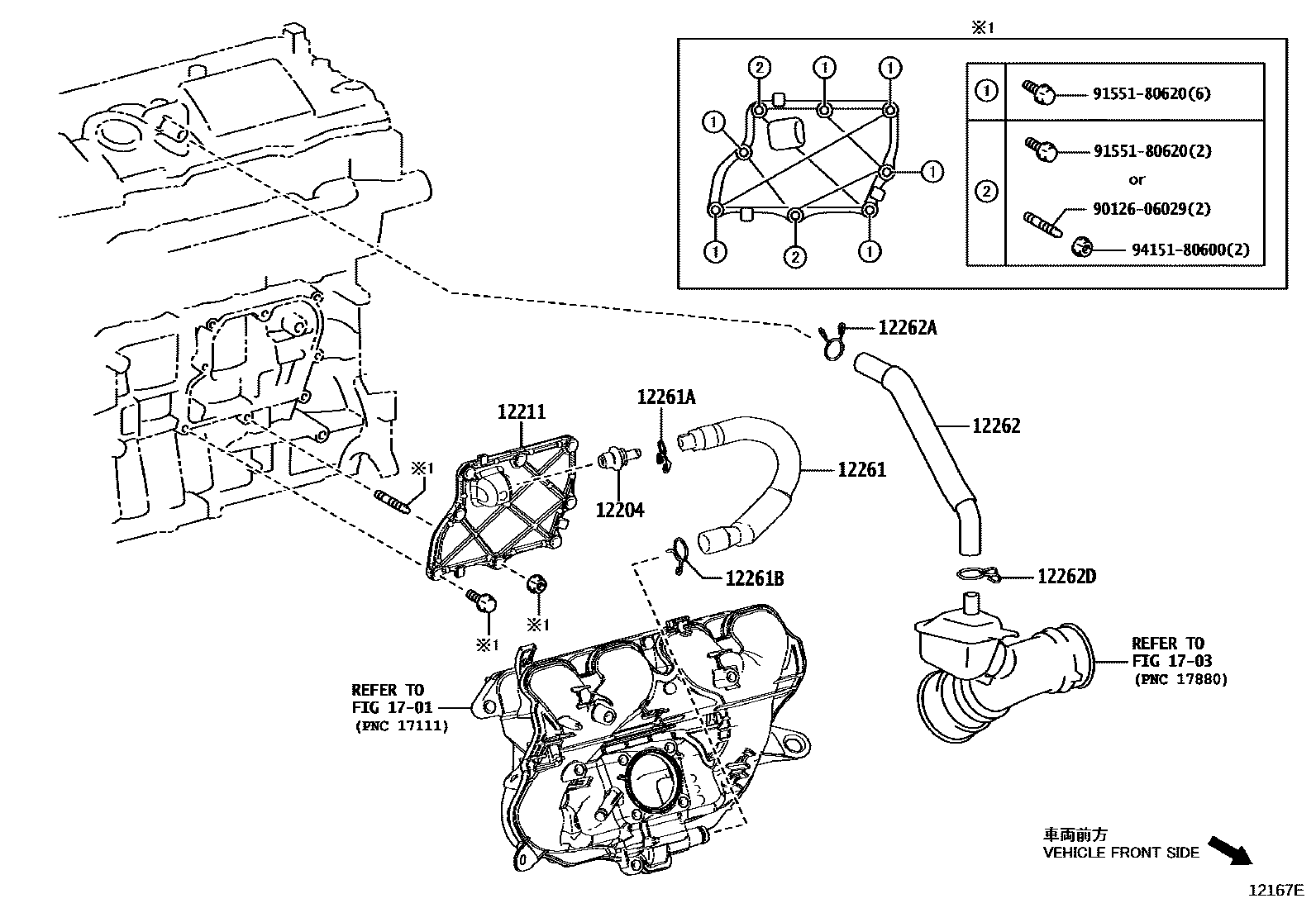

Toyota COROLLA Ventilation Hose EPC diagram — 12167E
Ventilation Hose — 12167E (202310 – 999999)

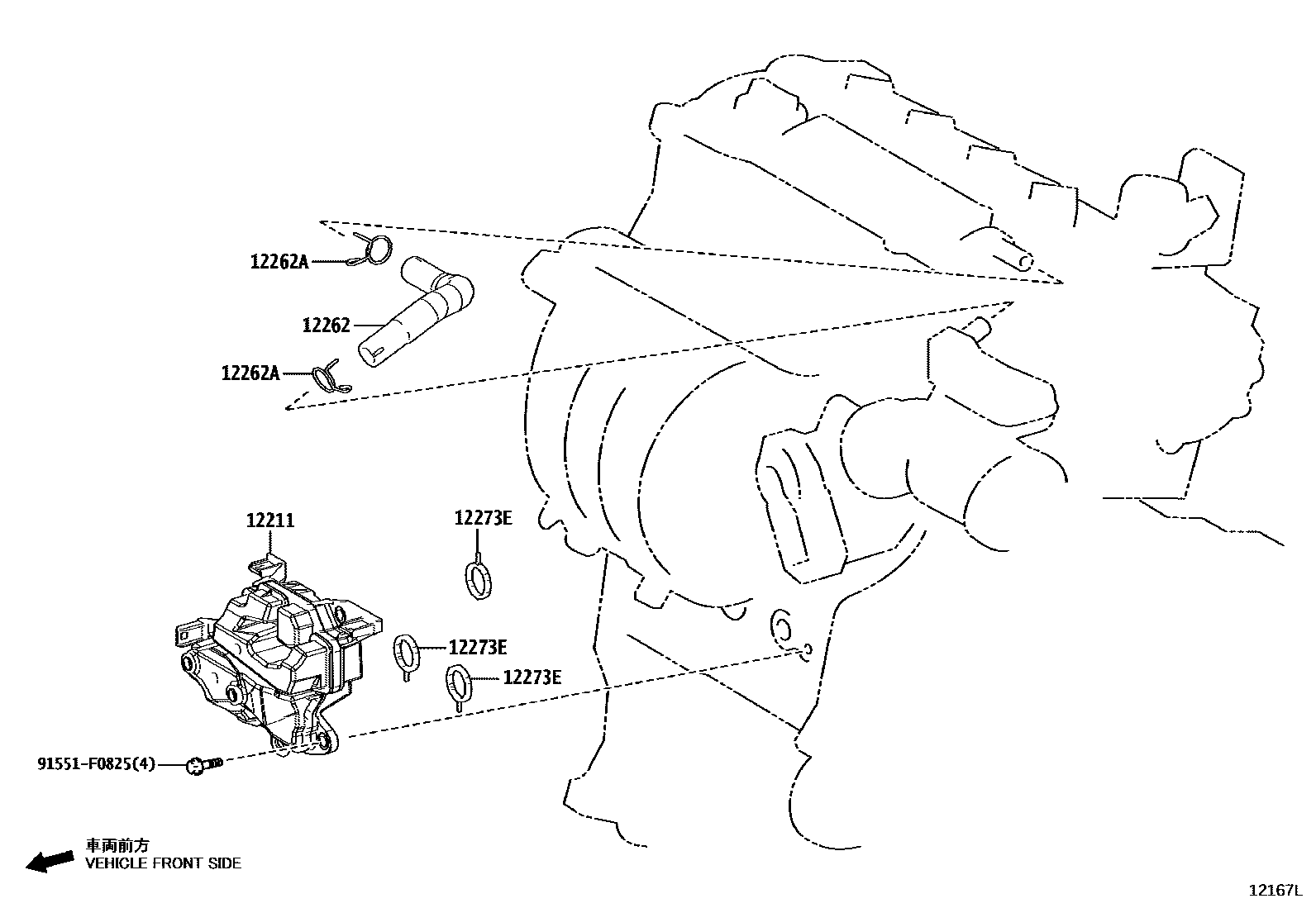

Toyota COROLLA Ventilation Hose EPC diagram — 12167L
Ventilation Hose — 12167L (202310 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-37040 · 12204-37050
12211Ventilation box No. 112211-24020 · 12211-37010
12229ventilation duct12229-21010
12261Ventilation Hose12261-37040 · 12261-37070
12261AClip or clip (for vent hose)90467-15120
12261BClip or clip (for vent hose)90466-22005
12262Ventilation hose No. 212262-24020 · 12262-37020 · 12262-37060
12262AClamp (for vent hose No. 2)90467-21004
12262DClamp (for vent hose No. 2)90467-21004
12273EToyota part12273-24010
