Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103
Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 8 images and 2 PNC and OE references.

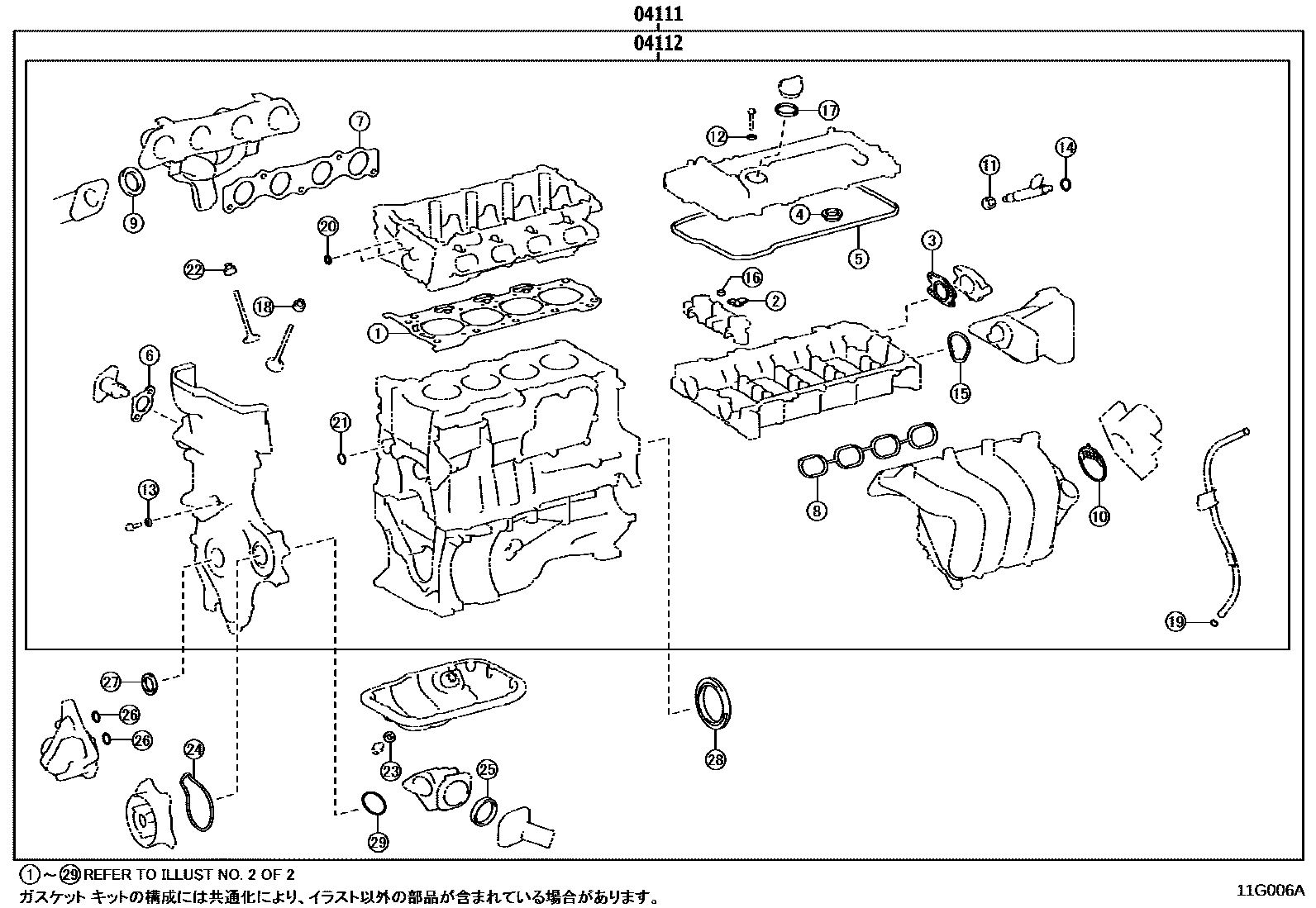

Engine Overhaul Gasket Kit — 11G006A (202108 – 999999)

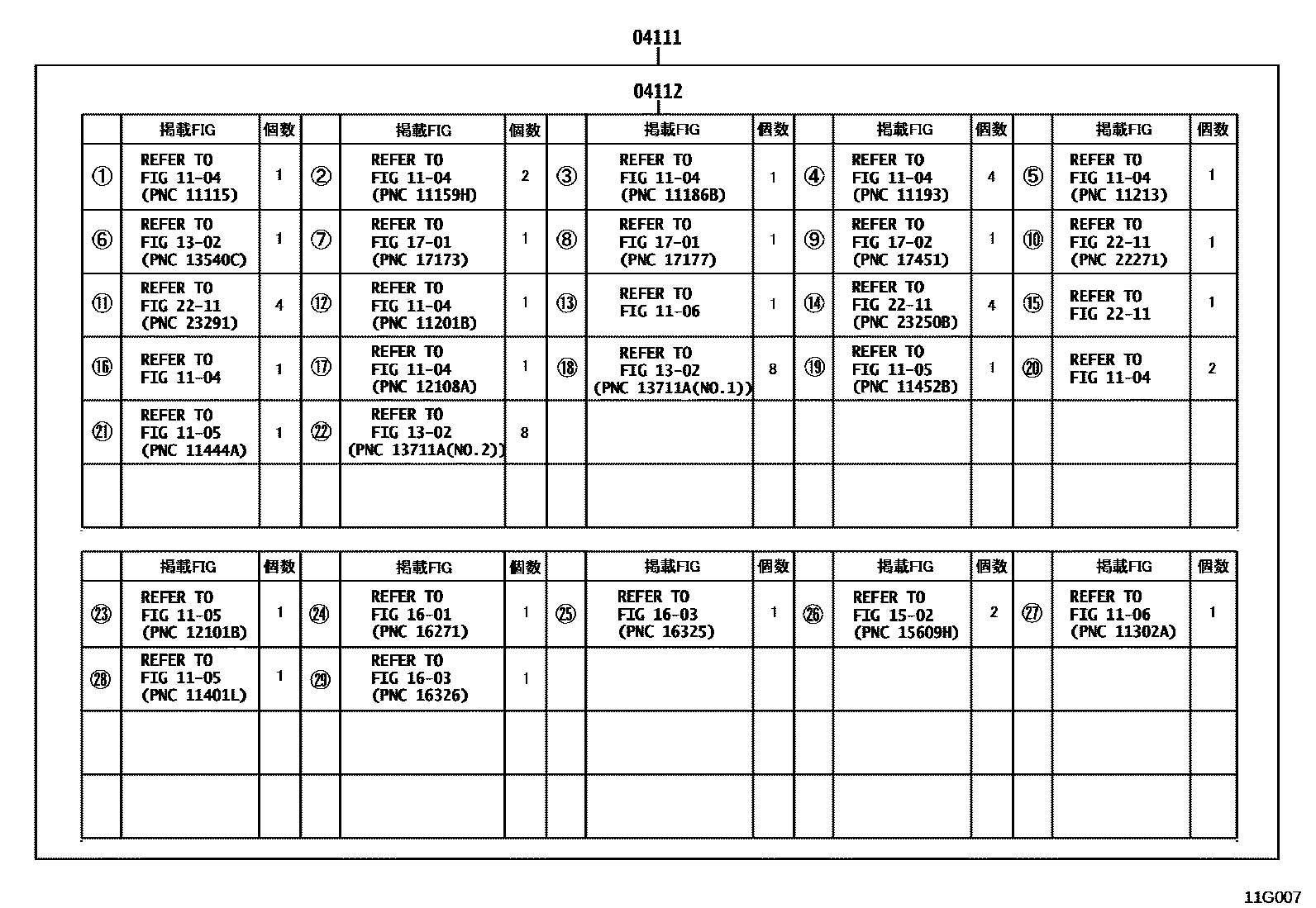

Engine Overhaul Gasket Kit — 11G007 (202108 – 999999)

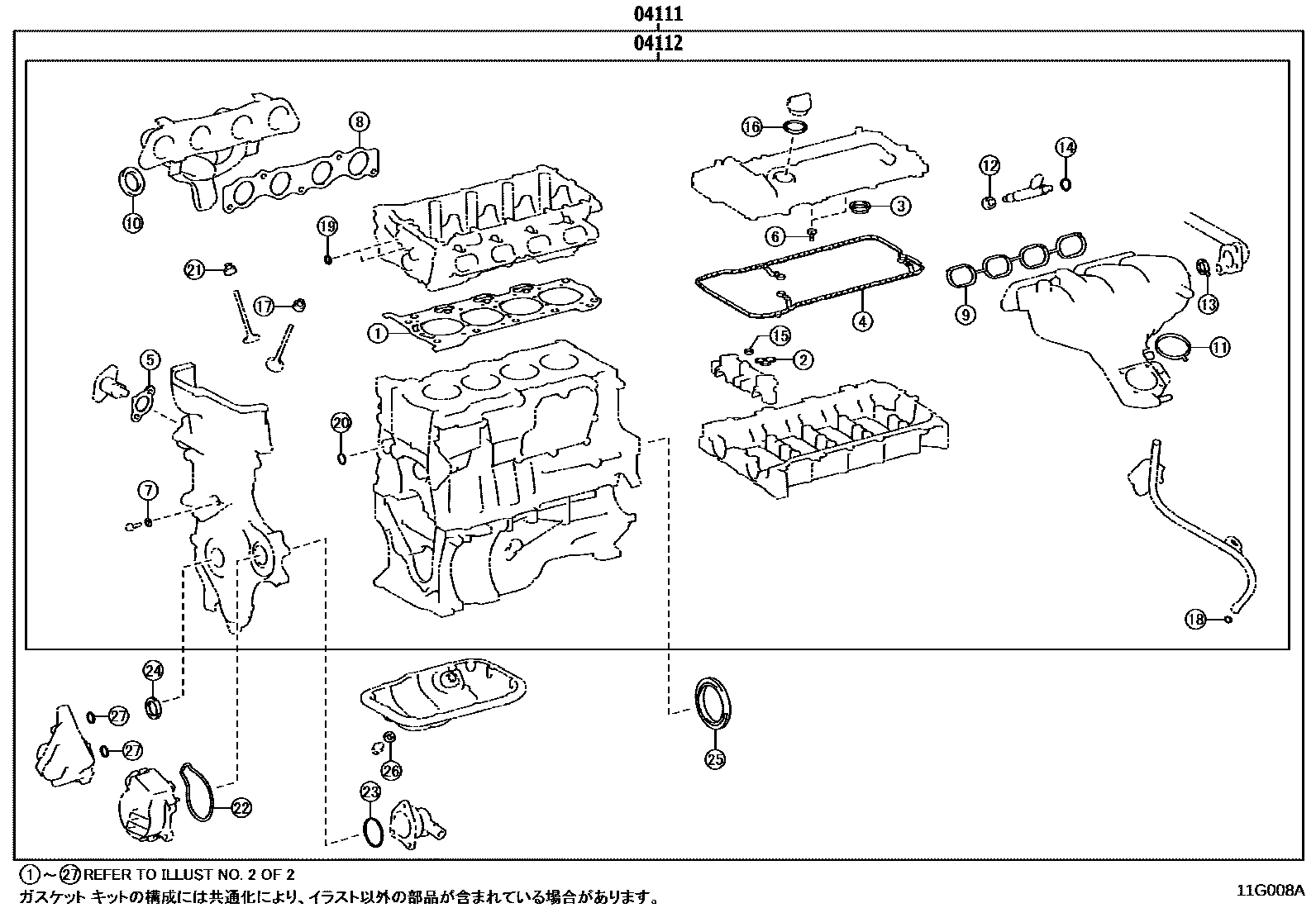

Engine Overhaul Gasket Kit — 11G008A (202110 – 999999)

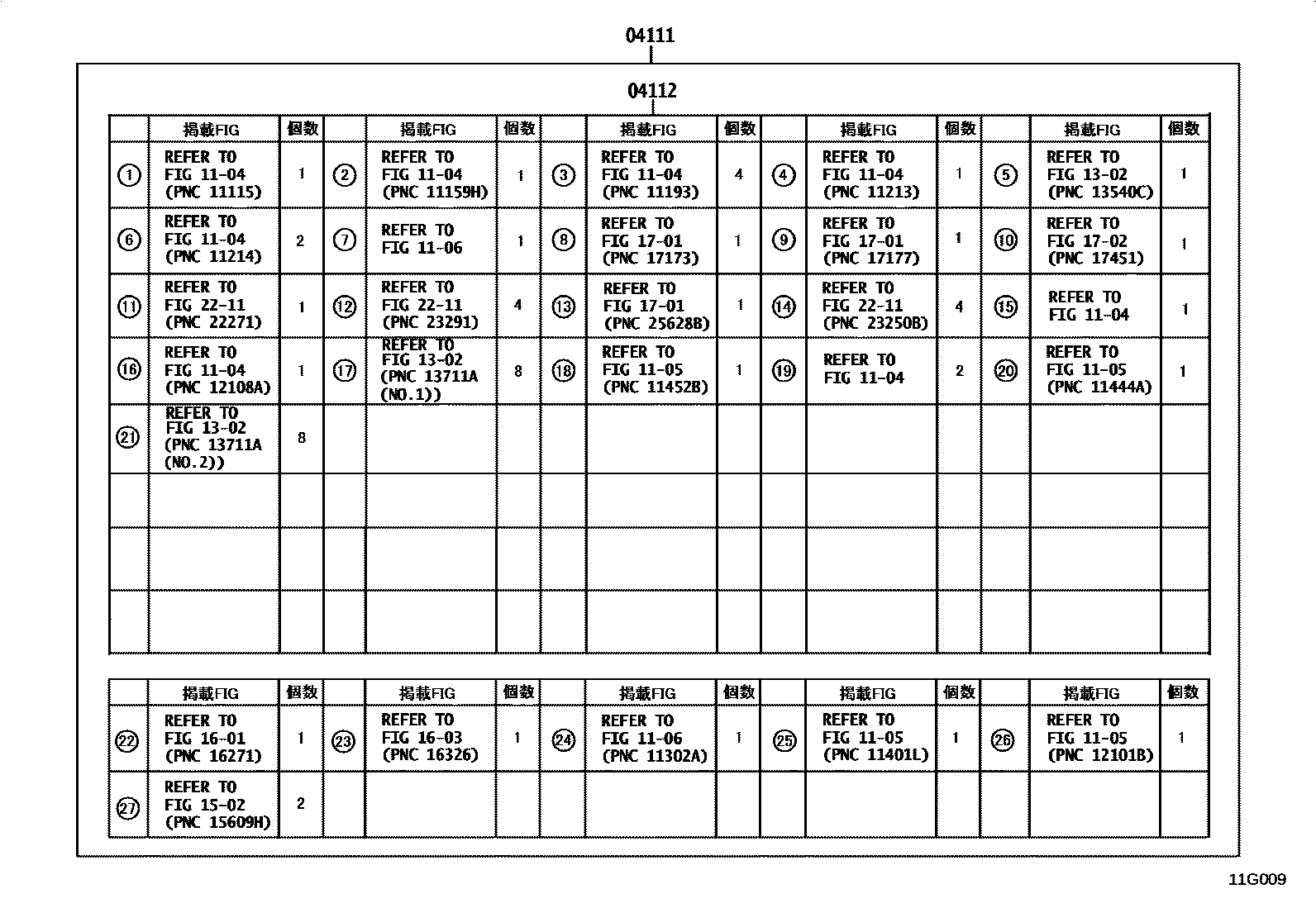

Engine Overhaul Gasket Kit — 11G009 (202110 – 999999)

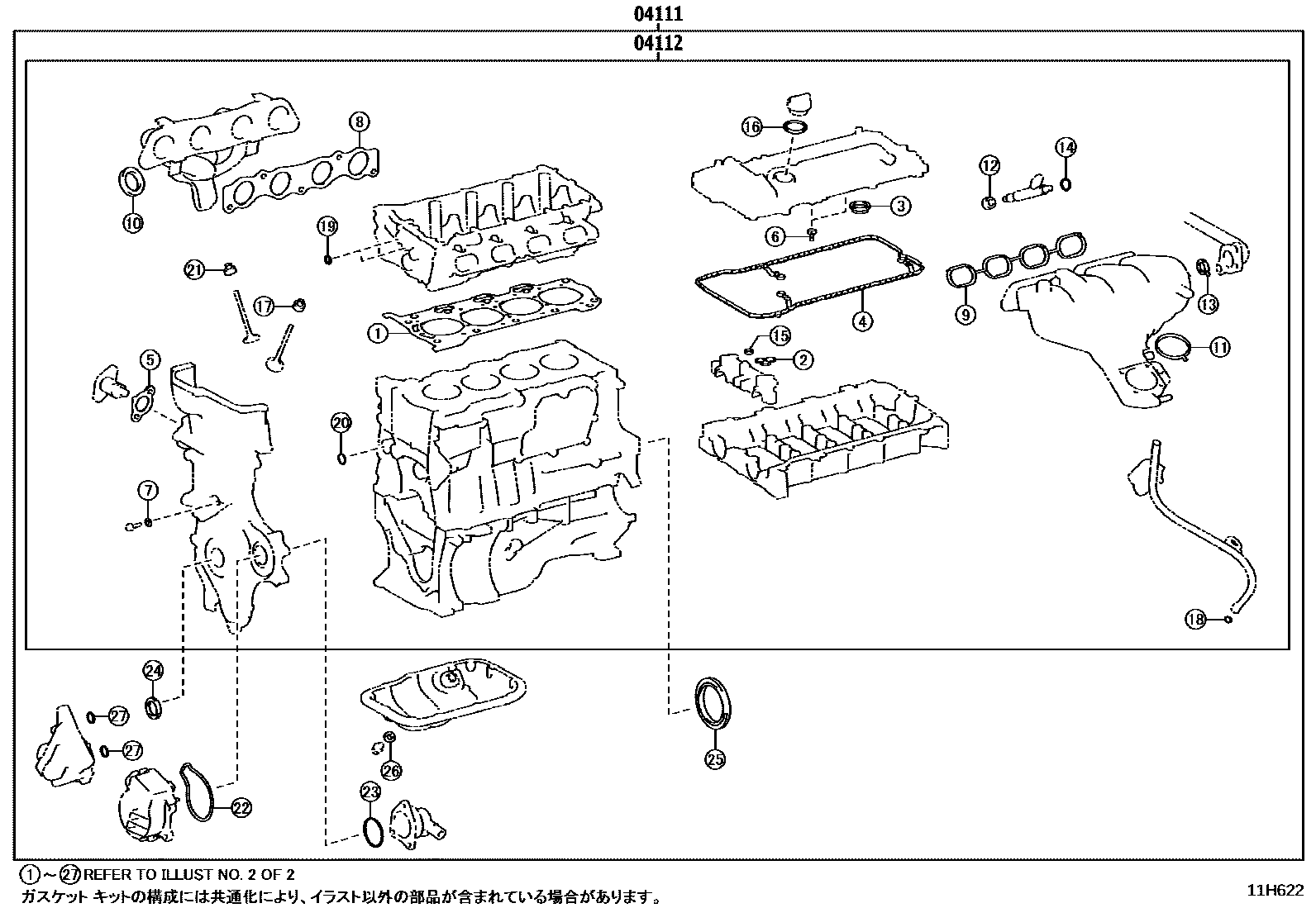

Engine Overhaul Gasket Kit — 11H622 (202310 – 999999)

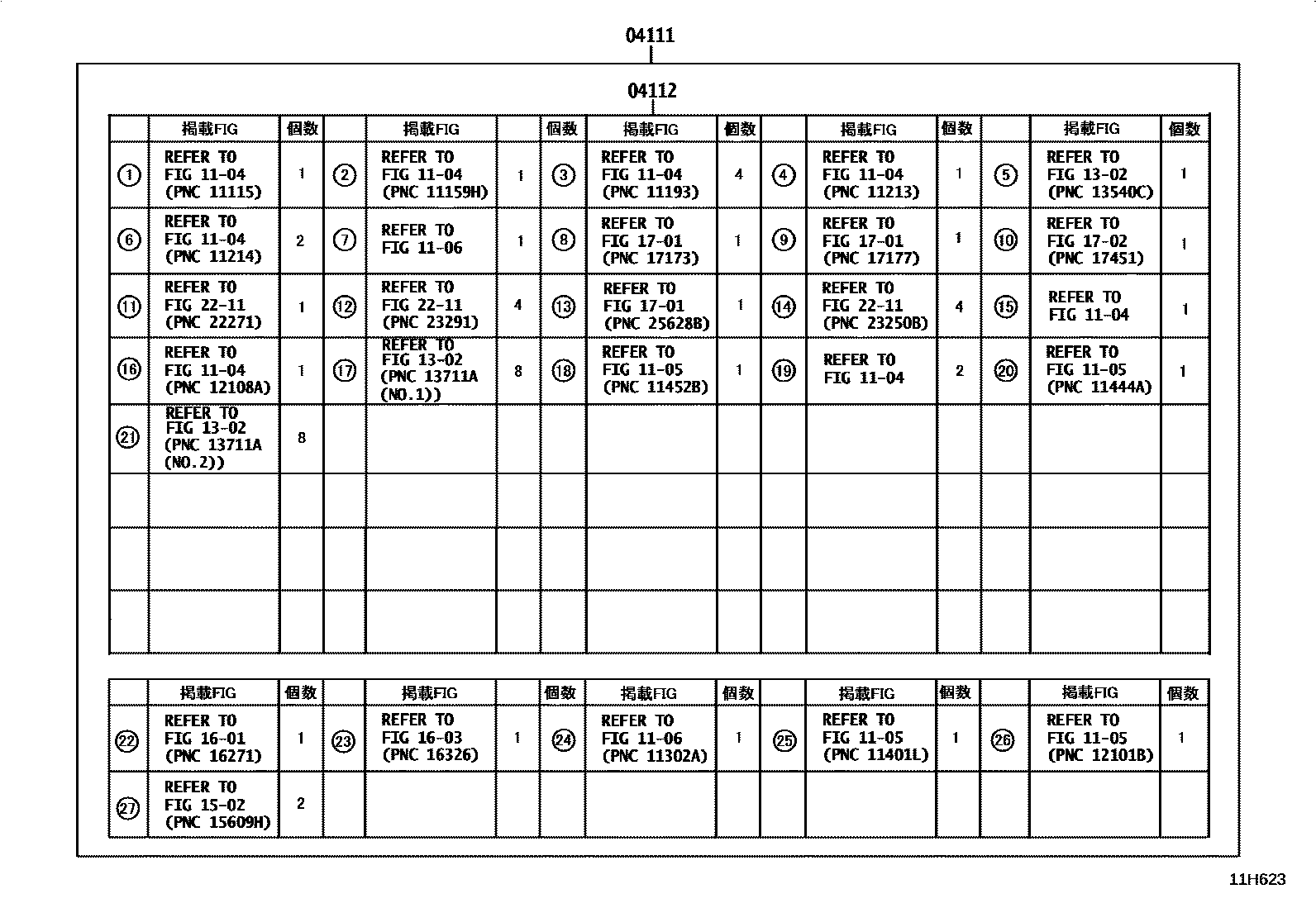

Engine Overhaul Gasket Kit — 11H623 (202310 – 999999)

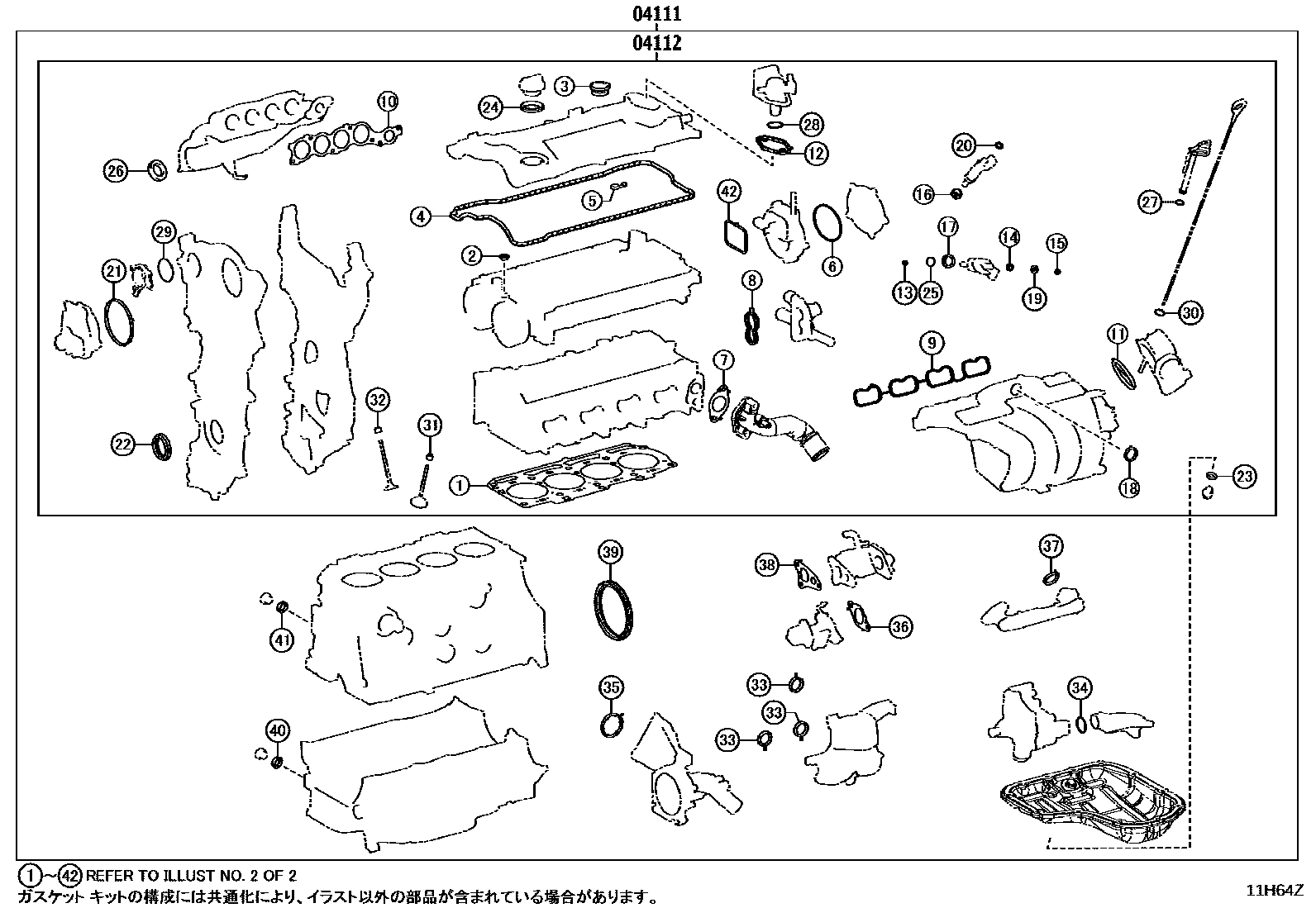

Engine Overhaul Gasket Kit — 11H64Z (202310 – 999999)

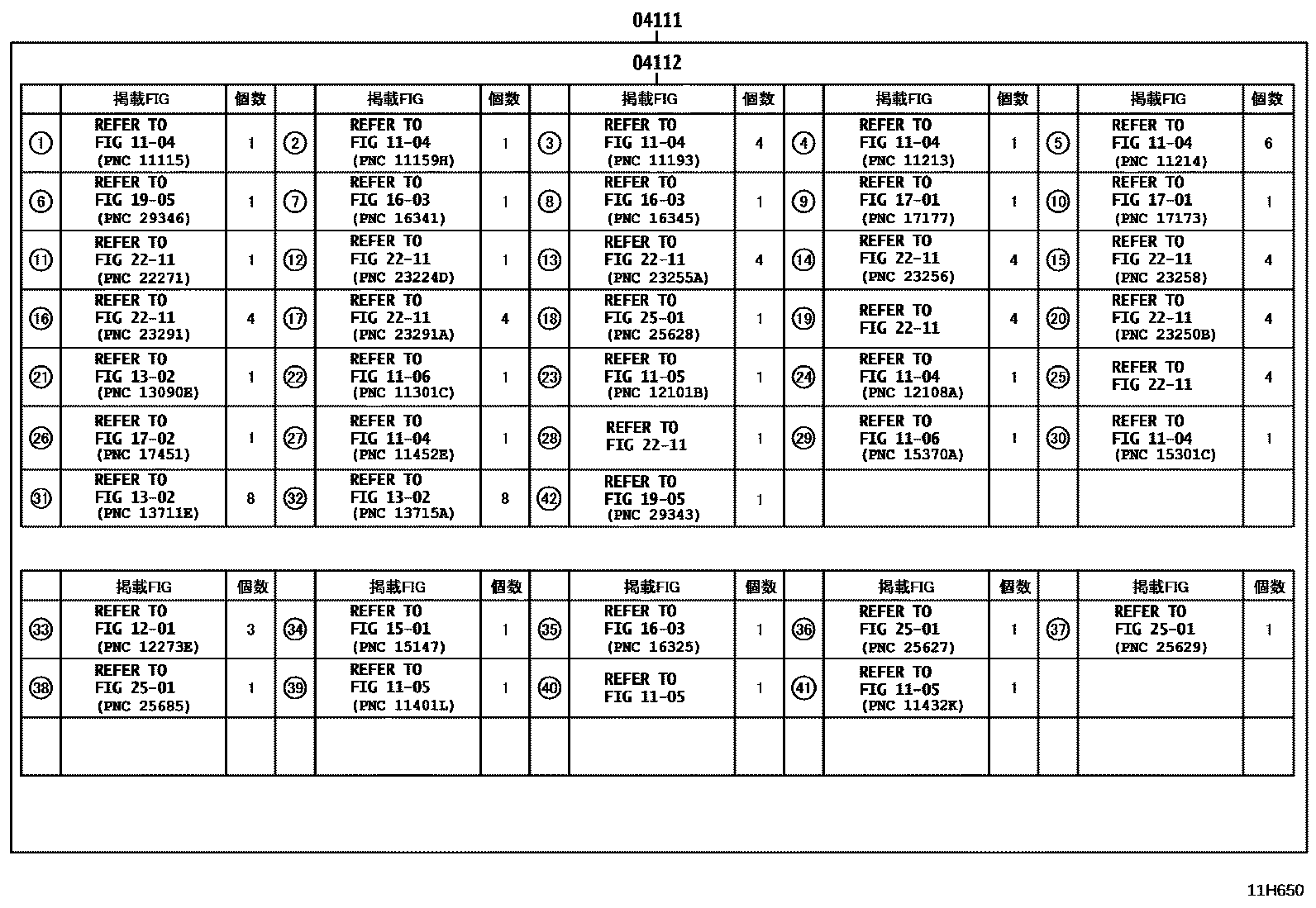

Engine Overhaul Gasket Kit — 11H650 (202310 – 999999)PNC and OE references
| PNC | Part name | OE numbers |
|---|
| 04111 | Engine overhaul gasket assembly | 04111-24200 · 04111-37540 · 04111-37541 · 04111-37560 · 04111-37561 |
| 04112 | Engine valve grinding pad assembly | 04112-24120 · 04112-37224 · 04112-37225 · 04112-37400 · 04112-37401 |
