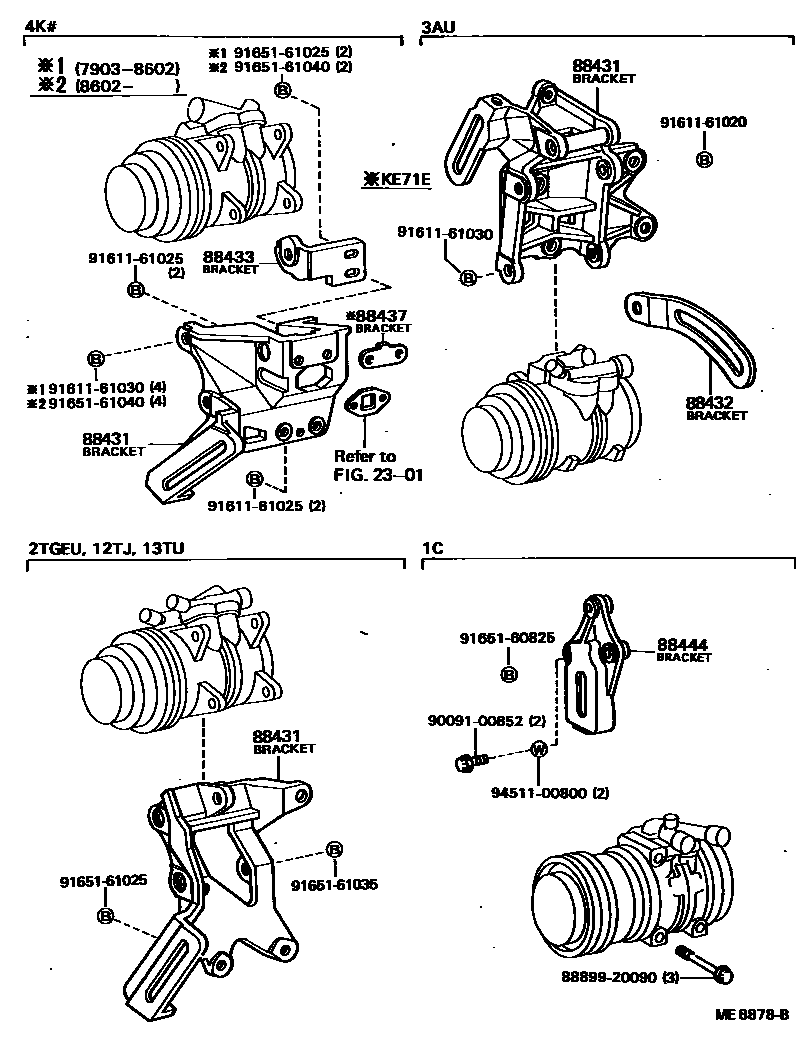

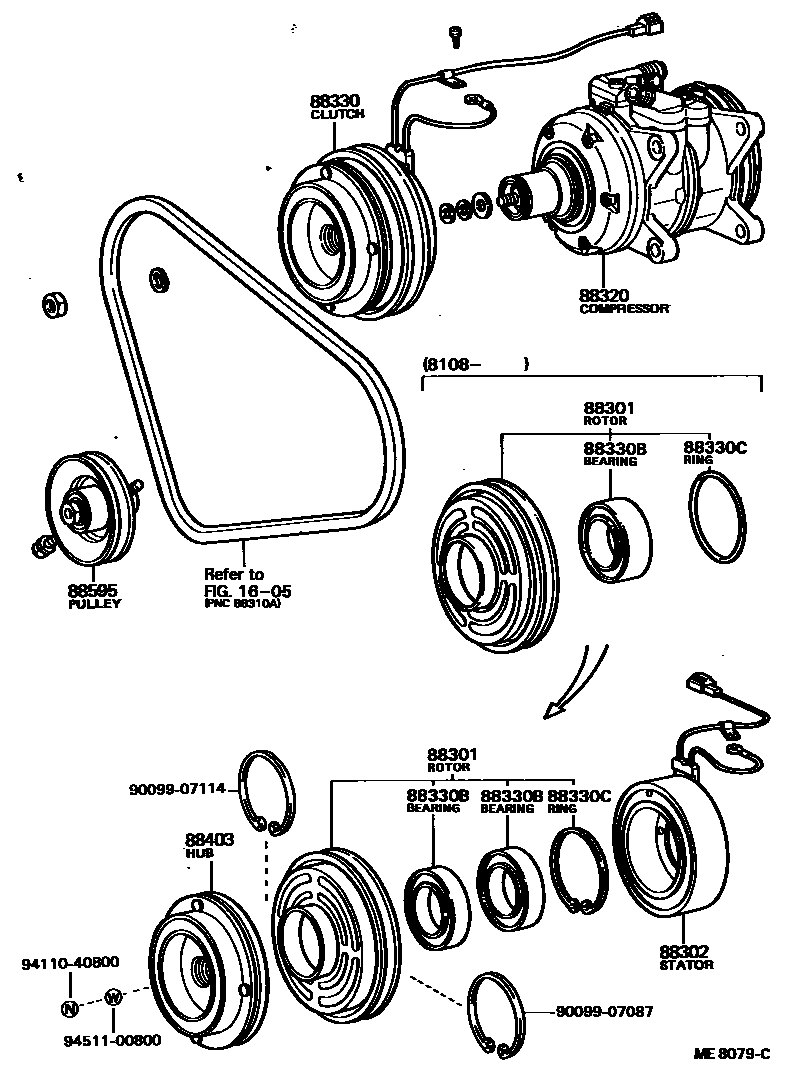

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-12040 · 88412-14010 · 88412-14020 · 88412-20060 · 88412-20070 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-14050 · 88411-22040 |
| 88320 | Cooler Compressor Assembly | 88320-12180 · 88320-12181 · 88320-12190 · 88320-12200 · 88320-12201 · 88320-12230 · 88320-20350 |
| 88330 | Magnetic Clutch Assembly | 88410-14090 · 88410-14100 · 88410-14120 · 88410-20130 · 88410-22060 |
| 88330B | Electromagnetic clutch bearing | 90099-10117 · 90099-10133 |
| 88330C | Snap ring (for electromagnetic clutch) | 90099-07094 · 90099-07114 · 90099-07118 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-14030 · 88403-22030 · 88403-26030 |
| 88431 | Compressor No. 1 mounting bracket | 88431-12200 · 88431-12201 · 88431-12230 · 88431-12240 · 88431-12241 |
| 88432 | Compressor No. 2 mounting bracket | 88688-12040 |
| 88433 | Compressor No. 3 mounting bracket | 88437-12220 |
| 88437 | Compressor No. 7 mounting bracket | 88437-12240 |
| 88444 | Idler gear bracket | 88444-20200 |
| 88595 | Cooler compressor idler pulley | 88440-12050 · 88440-12060 · 88440-12061 · 88440-12070 · 88440-20090 · 88440-30250 |
