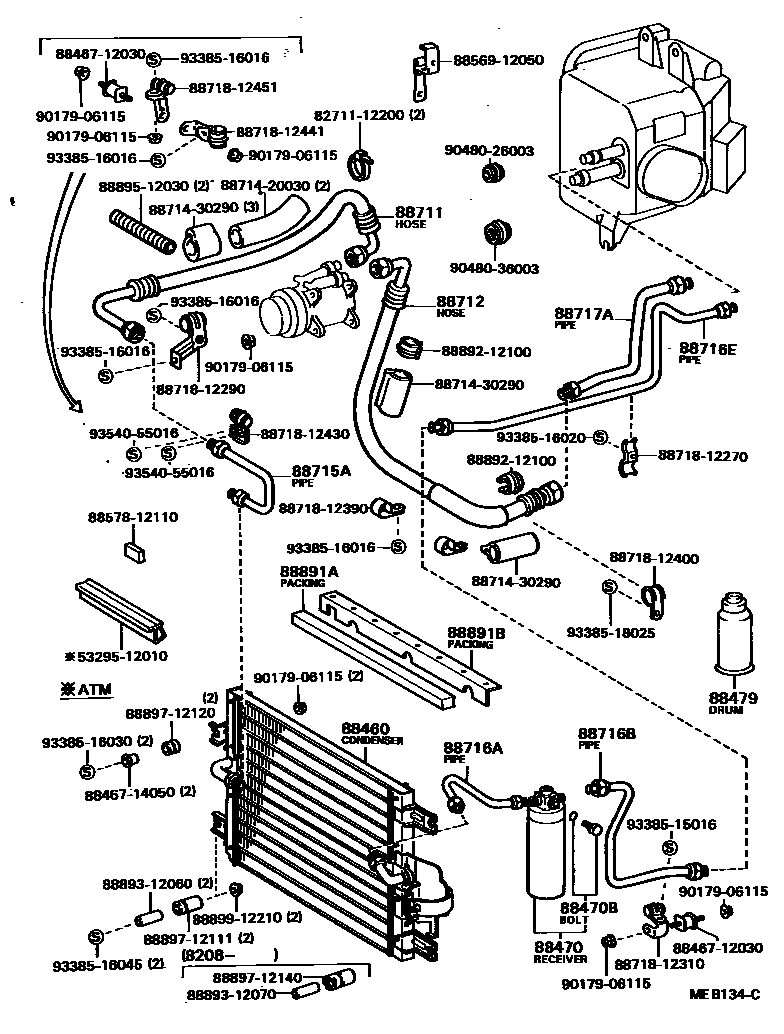

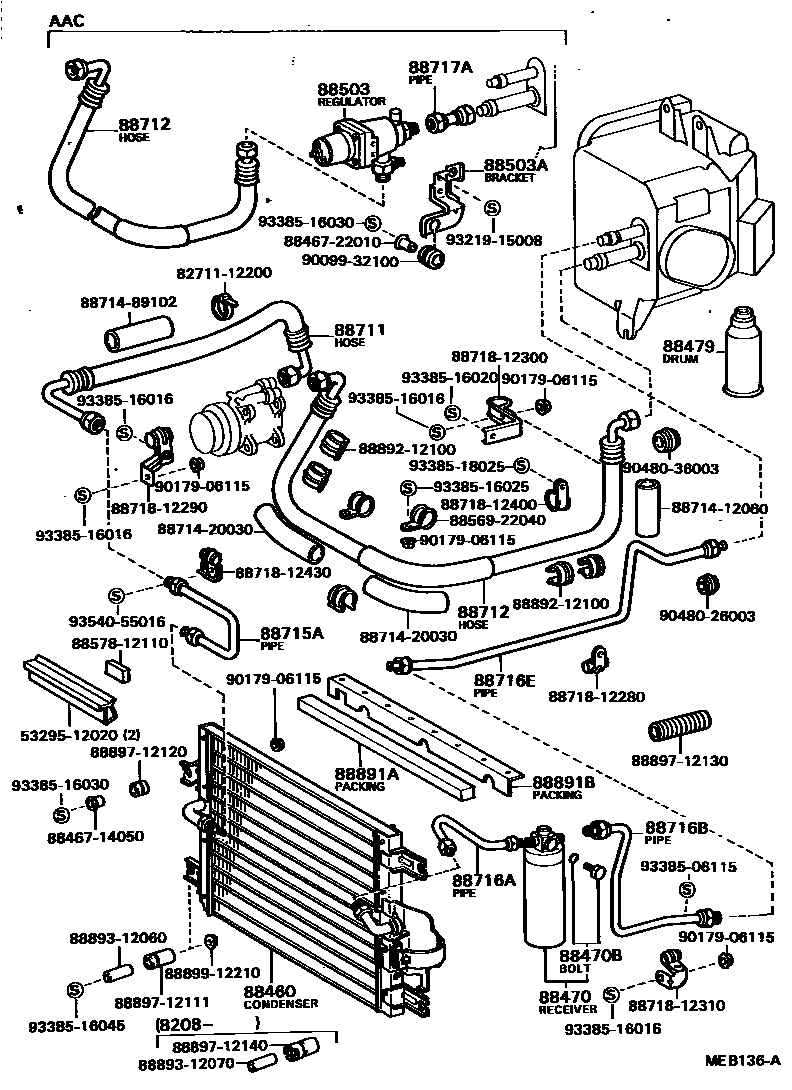

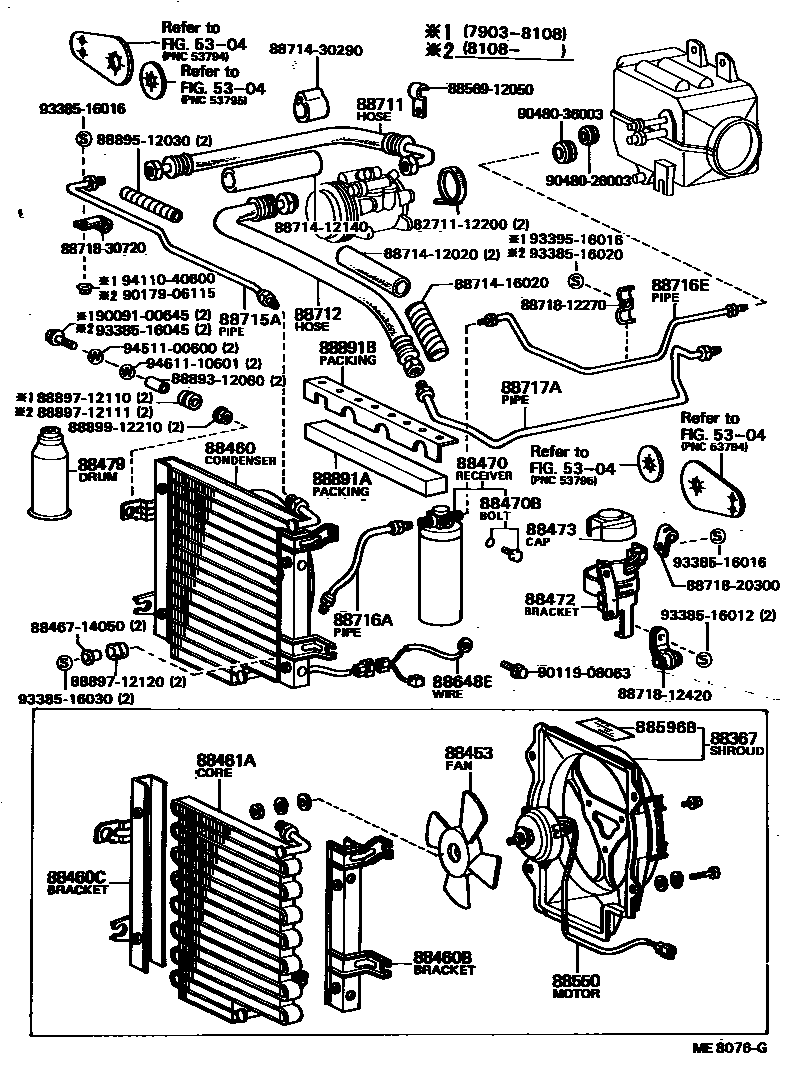

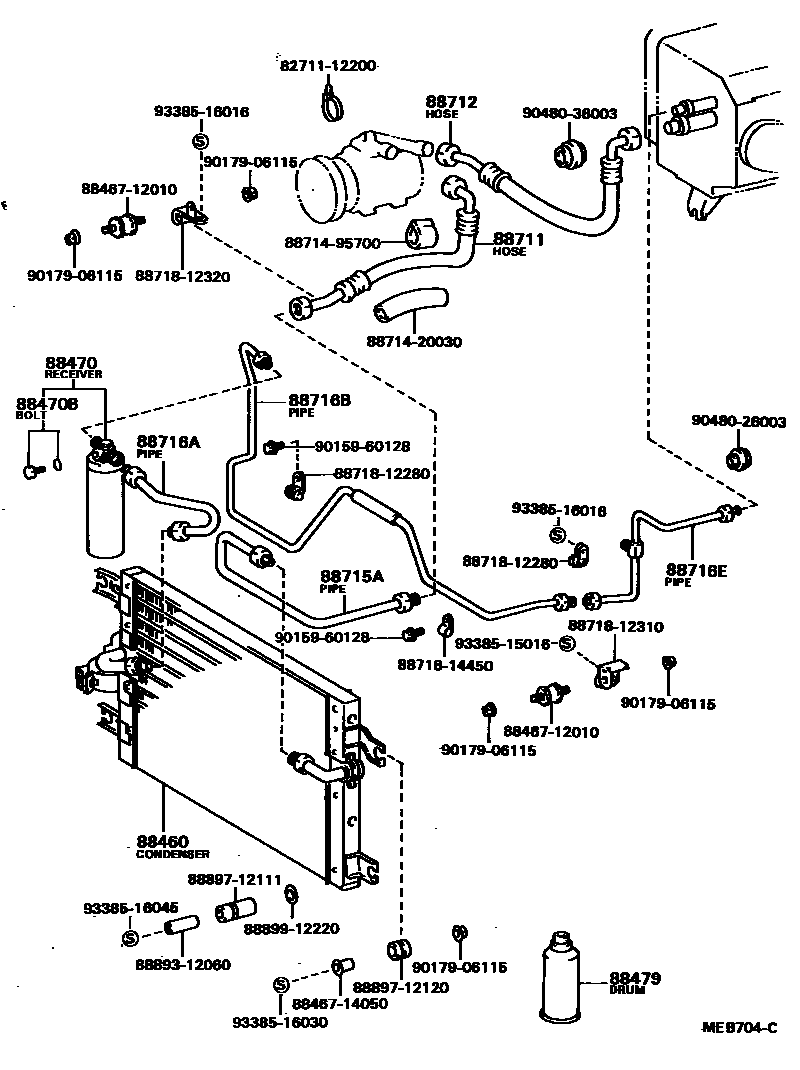

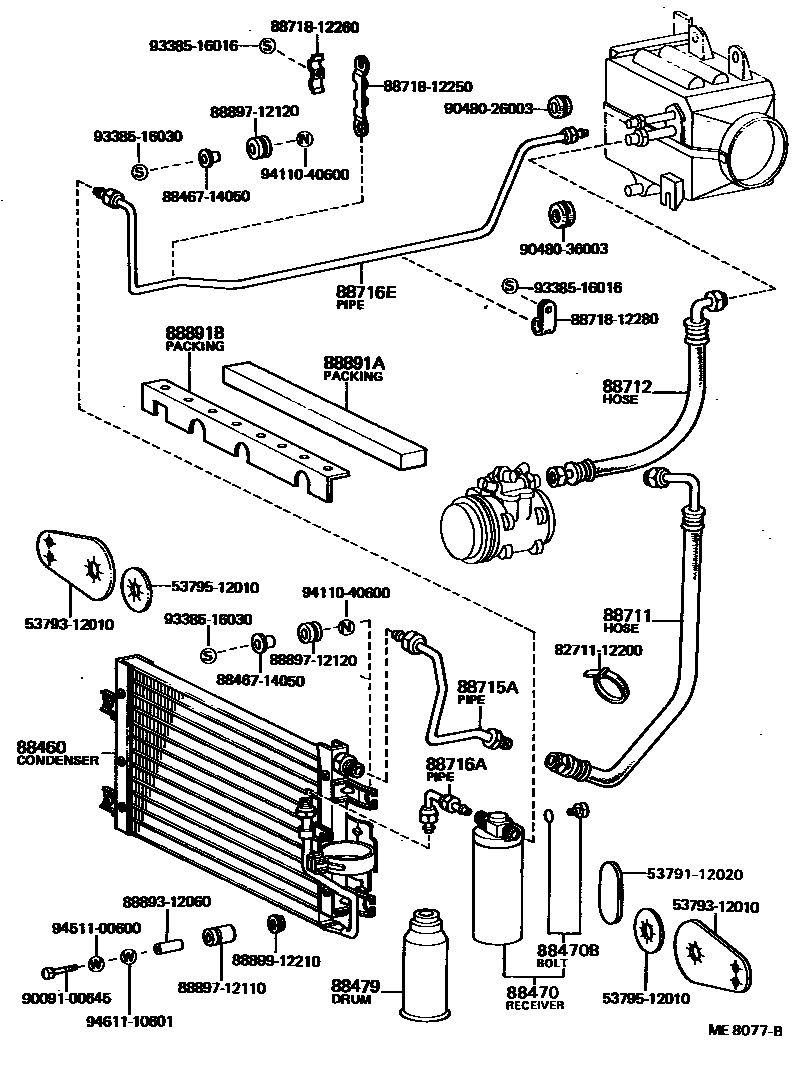

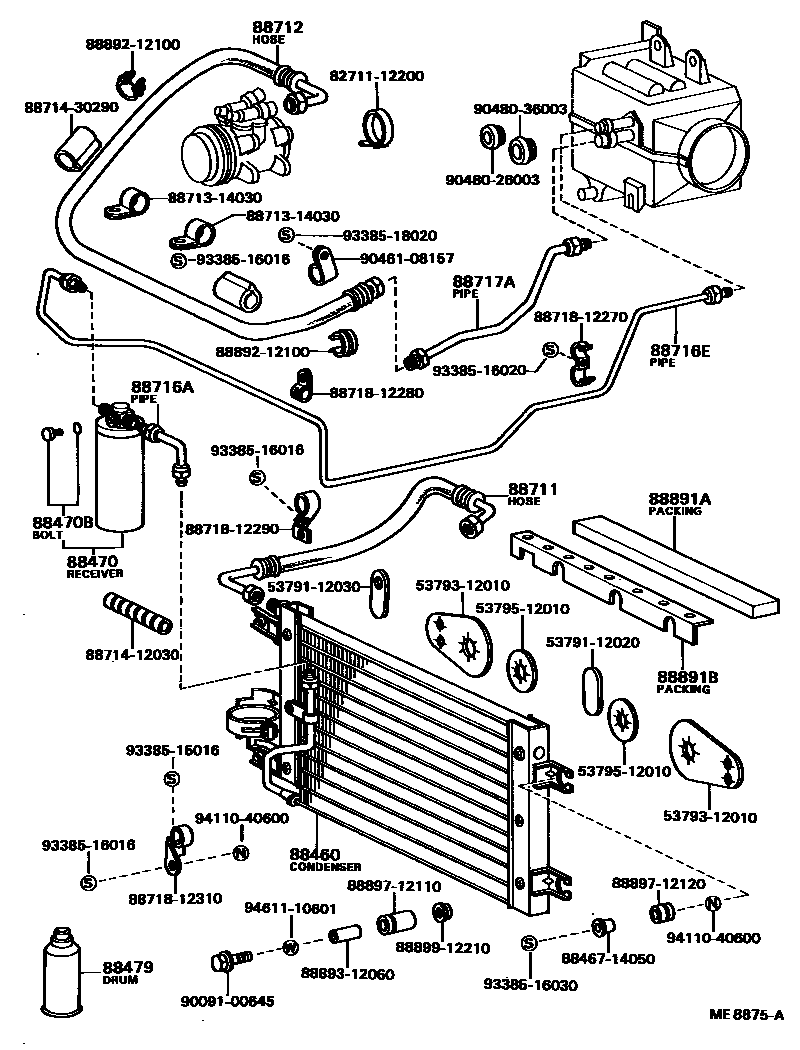

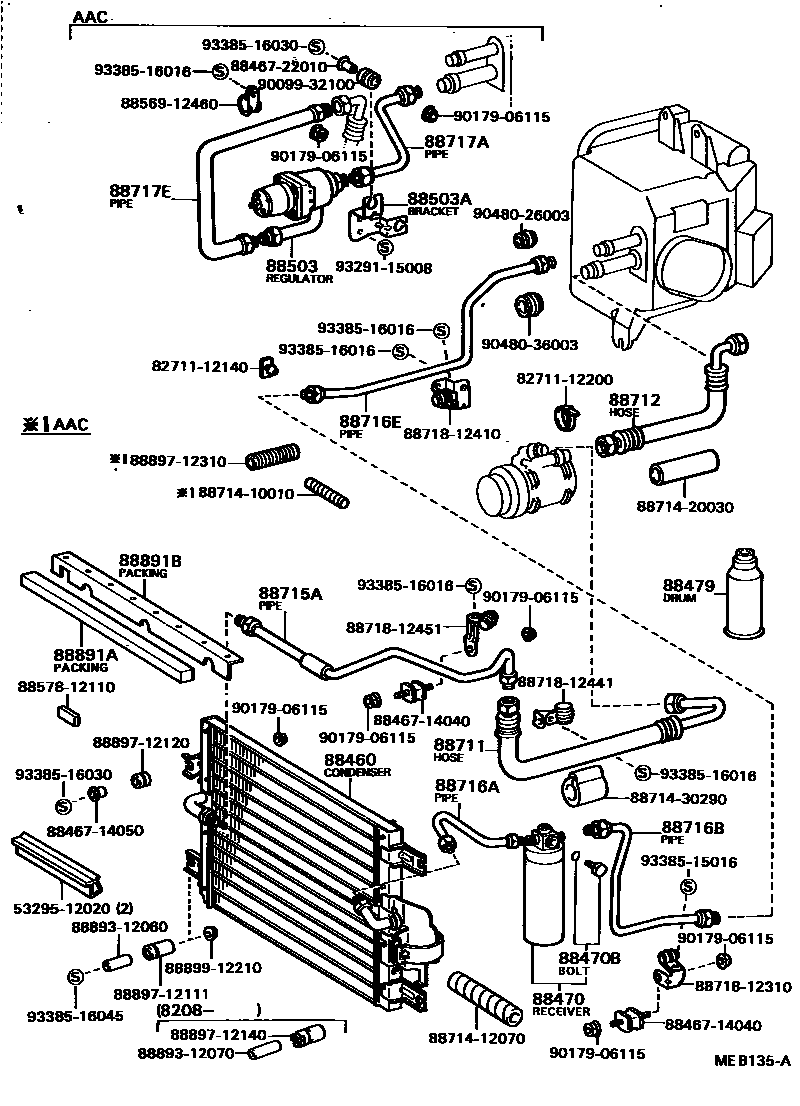

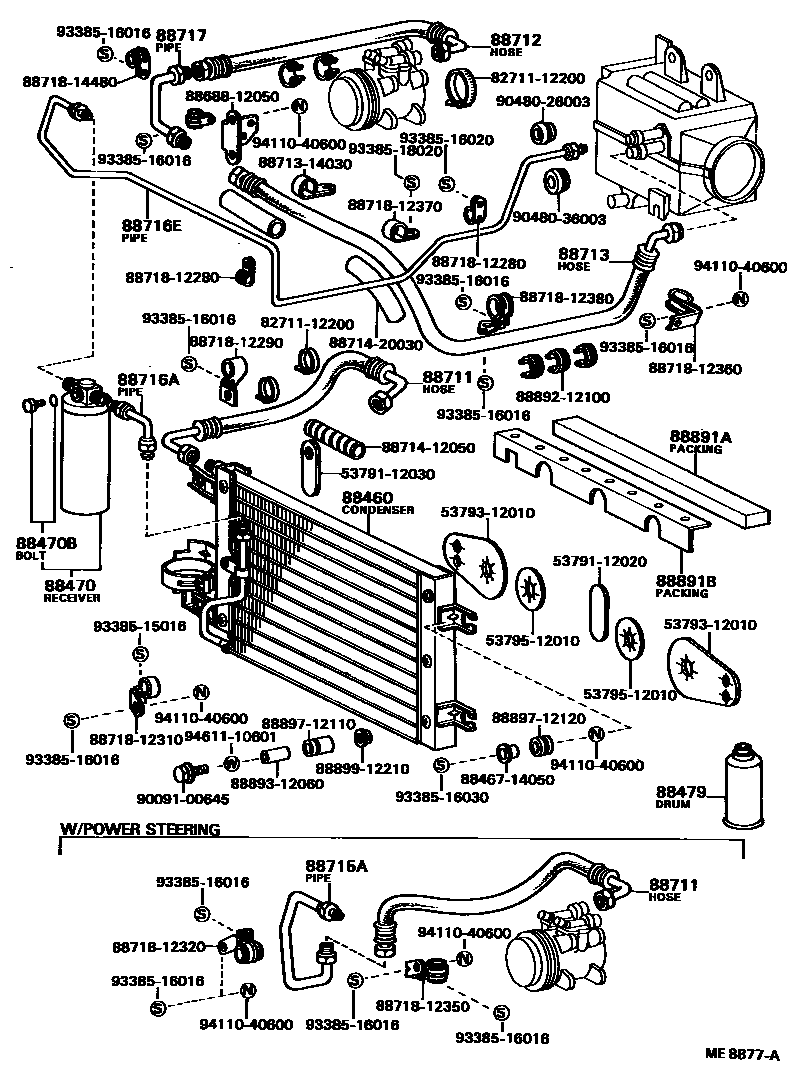

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 9 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88367 | Cooler blower fan cover | 88454-12040 |
| 88453 | Cooling fan (for condenser) | 88453-16010 |
| 88460 | Air conditioning condenser assembly | 88460-12110 · 88460-12120 · 88460-12130 · 88460-12141 · 88460-12150 · 88460-12160 · 88460-12170 · 88460-12180 |
| 88460B | No. 1 air conditioner condenser bracket | 88463-12010 |
| 88460C | No. 2 air conditioner condenser bracket | 88463-12020 |
| 88461A | Air conditioning condenser core | 88461-12010 |
| 88470 | Cooler reservoir and dryer assembly | 88470-12050 · 88470-12061 · 88470-12070 · 88470-14010 |
| 88470B | fuse bolt | 88475-12020 · 90099-04579 |
| 88472 | No. 1 liquid storage tank bracket | 88472-12180 |
| 88473 | Cooler reservoir cap | 88894-12110 · 88894-12111 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02001 |
| 88503 | Pressure regulator assembly | 88503-12010 · 88503-14050 |
| 88503A | pressure regulator bracket | 88688-12090 · 88688-12100 |
| 88550 | Blower motor assembly (for condenser) | 88550-10020 |
| 88596B | No. 1 warning nameplate | 88596-24010 |
| 88648E | Cooler wiring harness | 88648-12140 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-12140 · 88711-12150 · 88711-12151 · 88711-12160 · 88711-12170 · 88711-12180 · 88711-12190 · 88711-12200 · 88711-12230 · 88711-12240 · 88711-12290 · 88711-30510 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-12290 · 88712-12300 · 88712-12310 · 88712-12320 · 88712-12330 · 88712-12380 · 88712-12390 |
| 88713 | Cooler No. 2 refrigerant suction hose | 88712-12350 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-12120 · 88715-12130 · 88715-12131 · 88715-12150 · 88715-12160 · 88715-12210 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-12420 · 88716-12430 · 88716-12540 · 88716-12610 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-12560 · 88716-12600 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-12440 · 88716-12450 · 88716-12460 · 88716-12550 · 88716-12570 · 88716-12620 · 88716-12720 |
| 88717 | Cooler No. 1 refrigerant suction pipe | 88717-12120 |
| 88717A | Cooler refrigerant suction pipe A | 88717-12110 · 88717-12111 · 88717-12120 · 88717-12130 · 88717-12140 · 88717-22170 |
| 88717E | Cooler refrigerant suction pipe E | 88717-12150 |
| 88891A | Seal A (for cooler) | 53291-12030 · 53291-12050 |
| 88891B | Seal B (for cooler) | 53381-12100 · 53381-12110 |
