Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717

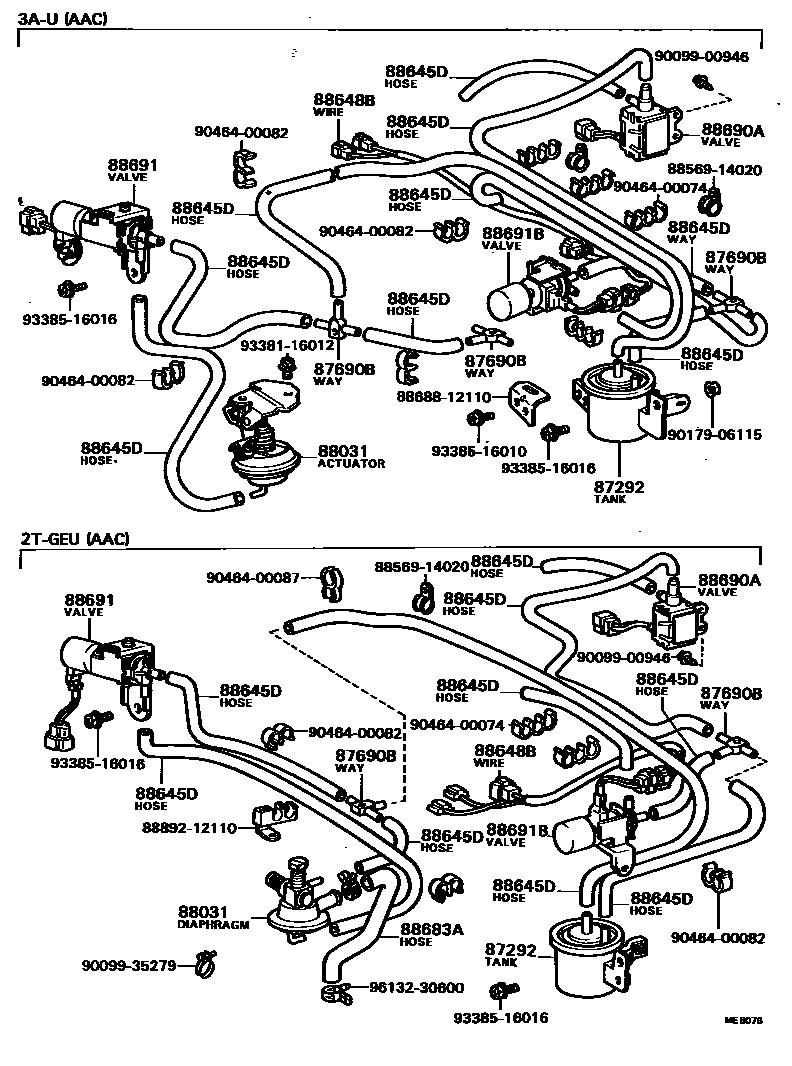

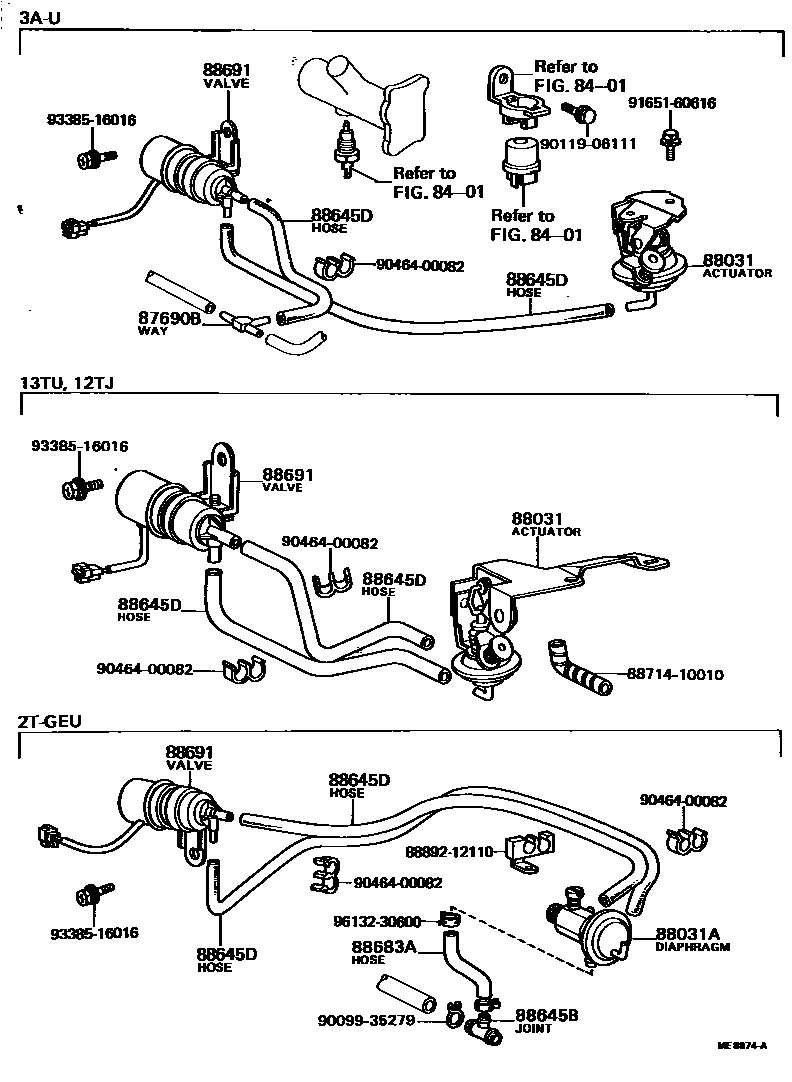

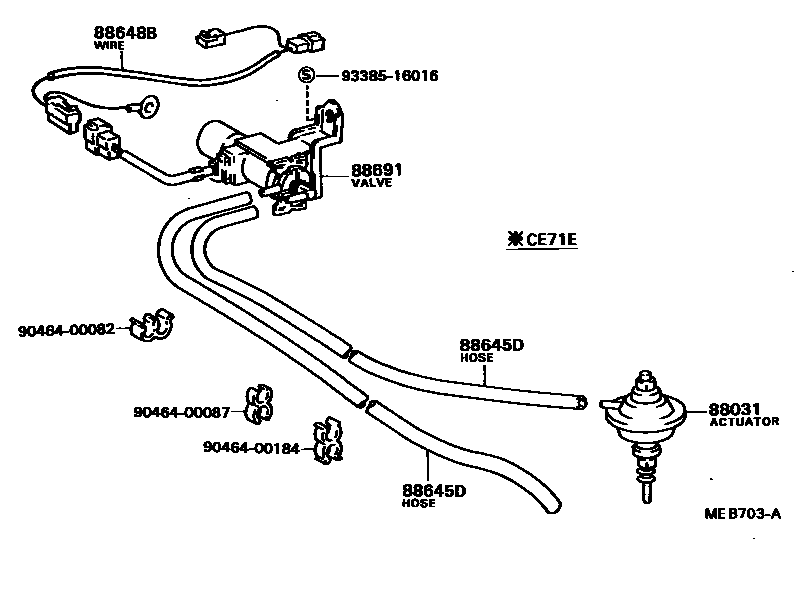

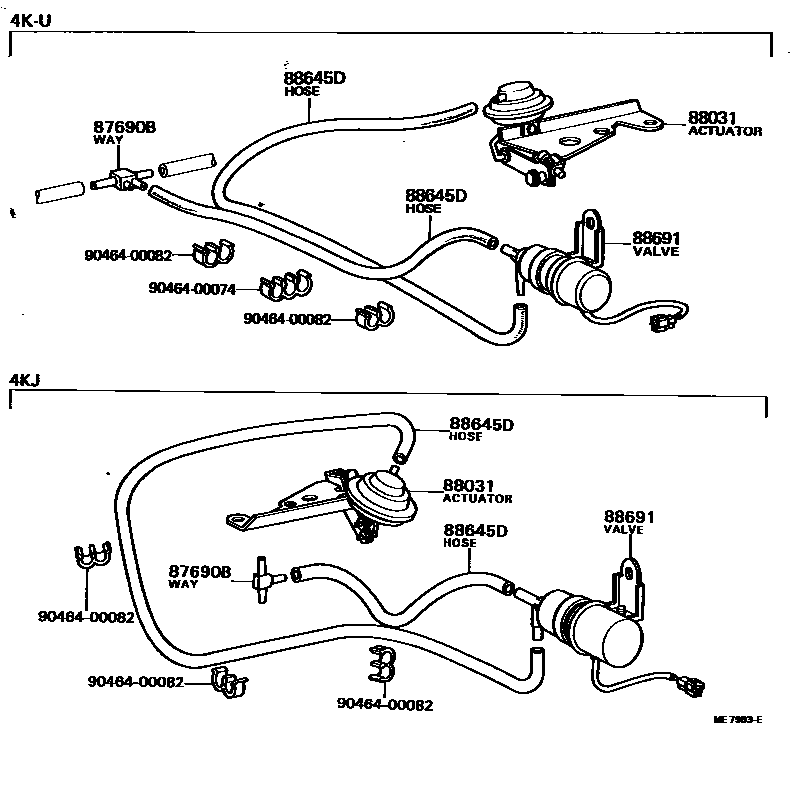

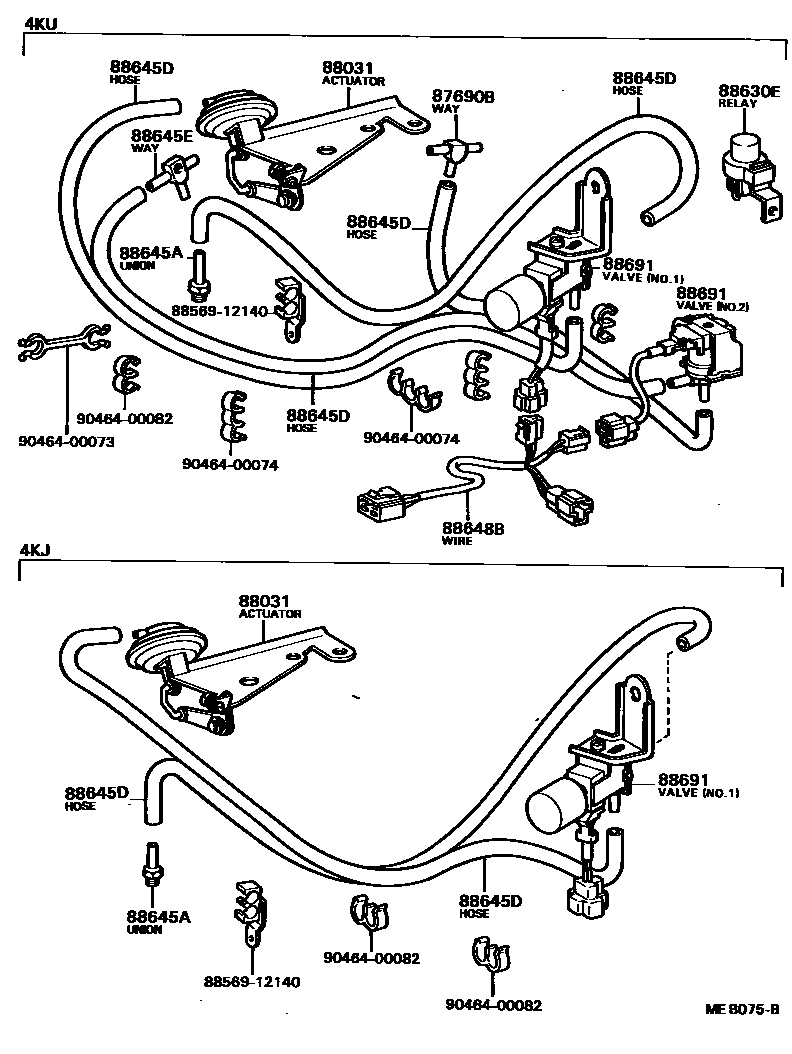

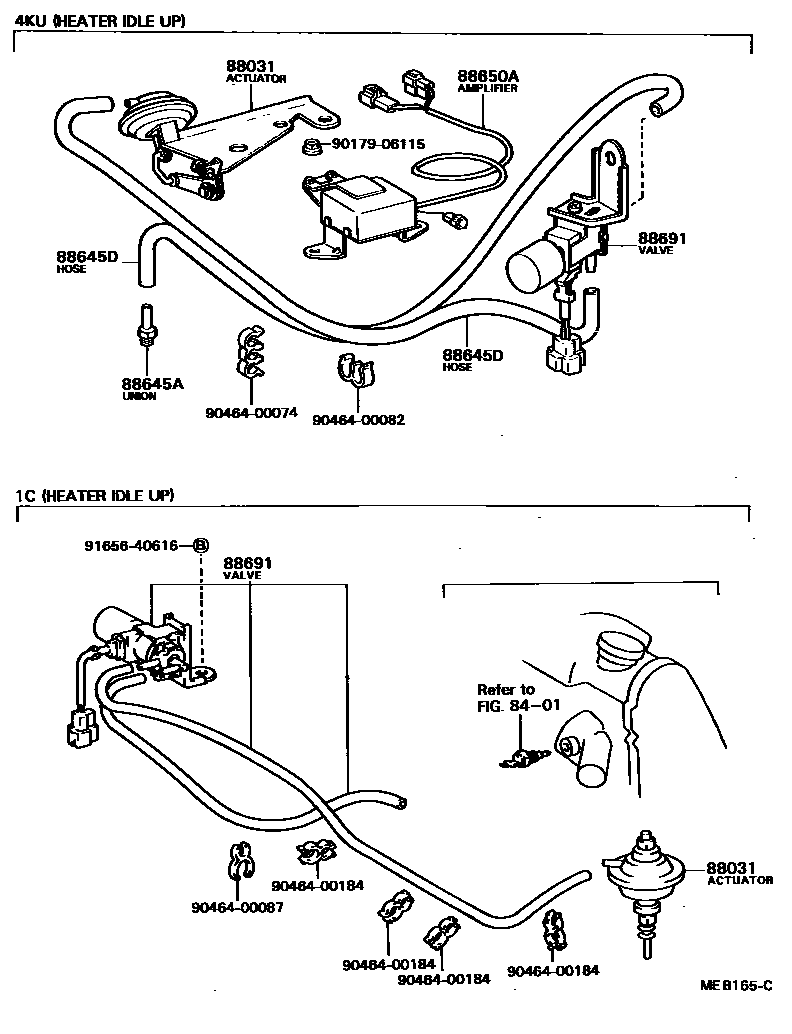

Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 6 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87292 | vacuum tank | 88683-12010 · 88683-12020 |
| 87690B | tee pipe | 90413-04005 · 90414-04002 |
| 88031 | Idle speed lift actuator assembly | 88031-12060 · 88031-12081 · 88031-12090 · 88031-12110 · 88031-12120 · 88031-27010 |
| 88031A | Idle speed lift actuator diaphragm sub-assembly | 88606-14010 |
| 88630E | Cooler relay assembly | 88630-10020 |
| 88645A | Connector (for idle lift device) | 90404-51093 |
| 88645B | Connector No. 1 (for idle speed lifting device) | 88892-14090 |
| 88645D | Hoses (for idle lift) | 90445-08194 · 90445-08198 · 90445-08222 · 95411-10030 · 95411-10060 · 95411-10330 · 95411-10395 · 95411-10430 · 95411-19930 |
| 88645E | Connector No. 2 (for idle speed lifting device) | 90413-04012 |
| 88648B | No. 1 cooler wiring harness | 88605-12261 · 88648-12170 · 88648-12180 · 88648-12240 |
| 88650A | Amplifier assembly (for heater idle speed boost) | 88650-12090 |
| 88683A | Hoses (engine to solenoid valve) | 88089-12011 |
| 88690A | Composite valve assembly | 88690-12190 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-12140 · 88690-12141 · 88690-12150 · 88690-12151 · 88690-12152 · 88690-12160 · 88690-12161 · 88690-12180 · 88690-12210 · 88690-12230 · 88690-12240 · 88690-12241 · 88691-12040 |
| 88691B | Solenoid valve (for water valve) | 88690-12141 |
