Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

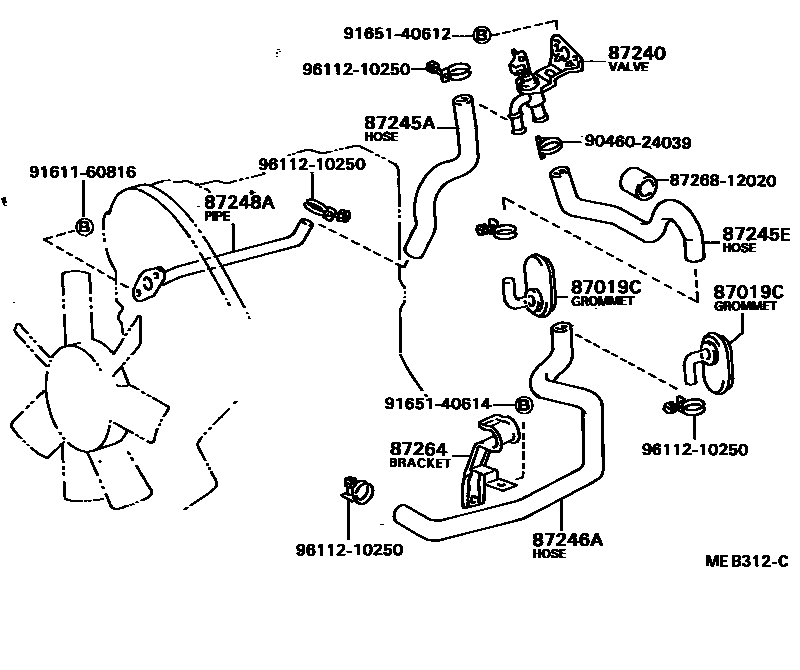

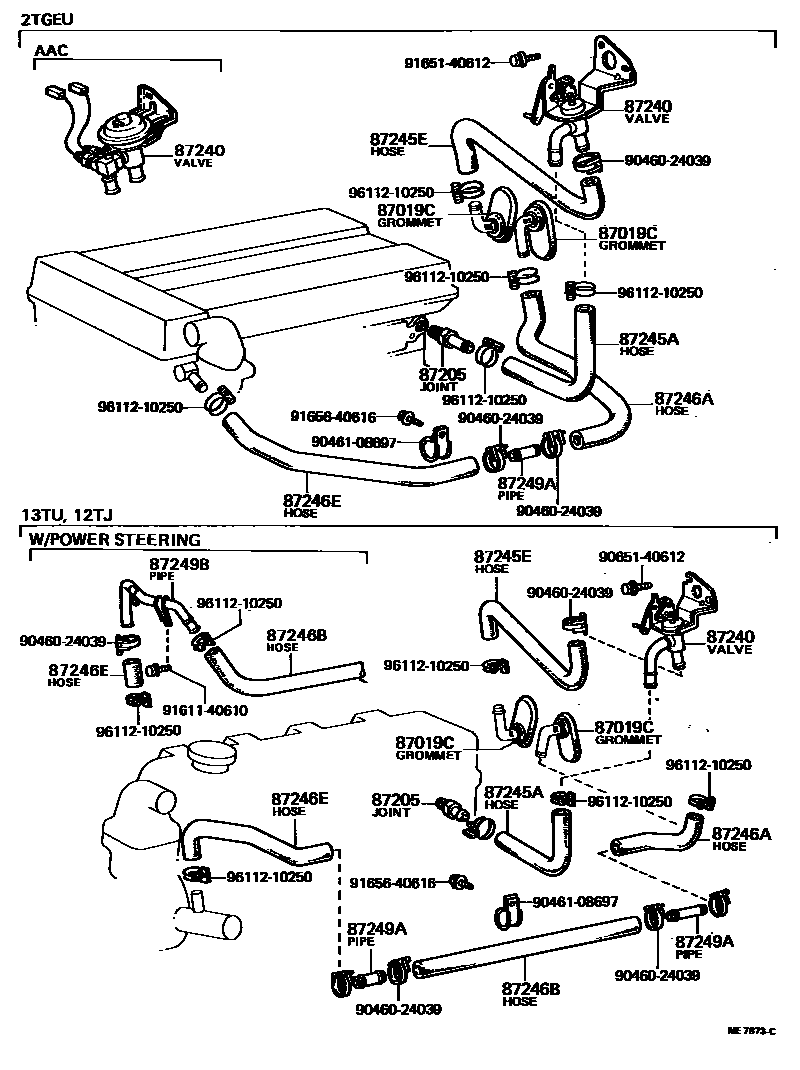

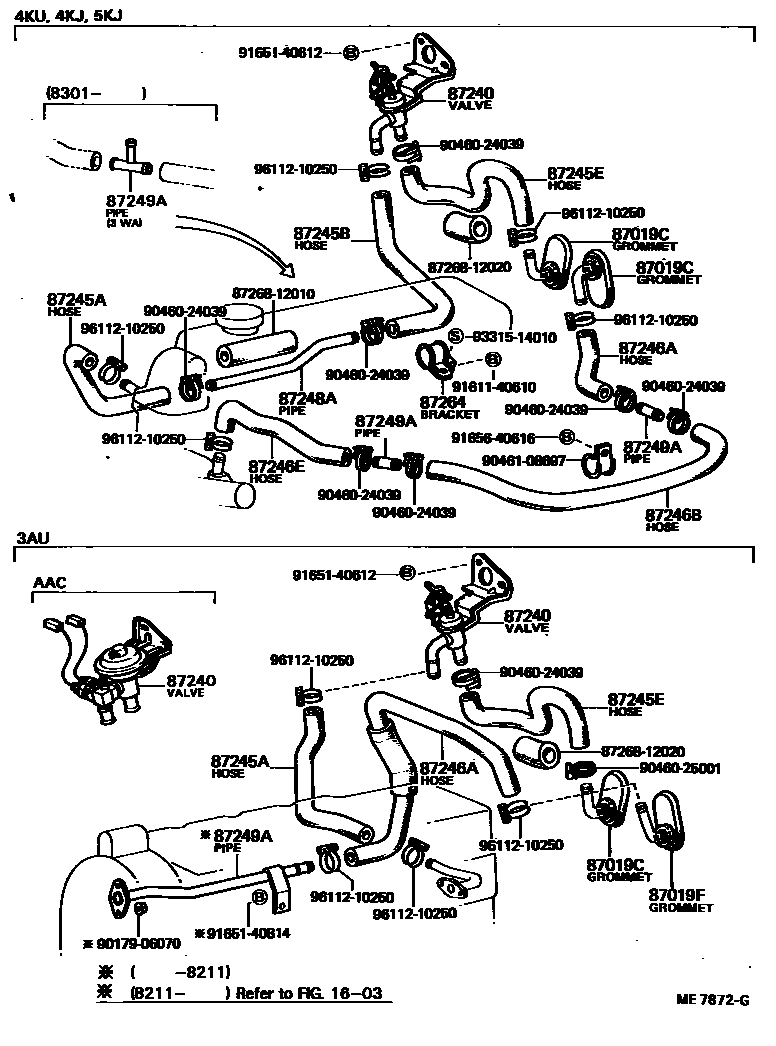

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019C | heater hose seal | 90480-01015 |
| 87019F | heater hose seal | 90480-01089 |
| 87205 | Front heater hose feedthrough connector or water inlet valve connector | 87251-14010 |
| 87240 | Heater water valve assembly | 87240-12100 · 87240-12110 · 87240-12120 · 87240-12130 · 88670-12020 · 88670-12040 |
| 87245A | Heater water inlet hose A | 87245-12261 · 87245-12390 · 87245-12420 · 87245-12590 · 87245-12600 · 87245-12850 |
| 87245B | Heater water inlet hose B | 87245-12360 |
| 87245E | Heater water inlet hose E | 87245-12350 · 87245-12410 |
| 87246A | Heater outlet hose A | 87209-12270 · 87209-12272 · 87245-12380 · 87245-12460 · 87245-12610 |
| 87246B | Heater outlet hose B | 87245-12470 · 87245-12860 · 99552-30700 · 99552-31000 |
| 87246E | Heater outlet hose E | 87245-12370 · 87245-12430 · 87245-12440 · 87245-14700 |
| 87248A | Heater water inlet pipe A | 87208-20140 · 87208-20141 · 87248-12150 · 87248-12220 · 87248-20140 |
| 87249A | Heater outlet pipe A | 87208-12011 · 87208-12012 · 87248-10150 · 87248-14090 |
| 87249B | Heater outlet pipe B | 87208-14060 |
| 87264 | Heater water hose bracket | 87263-12130 · 87263-12190 |
