Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

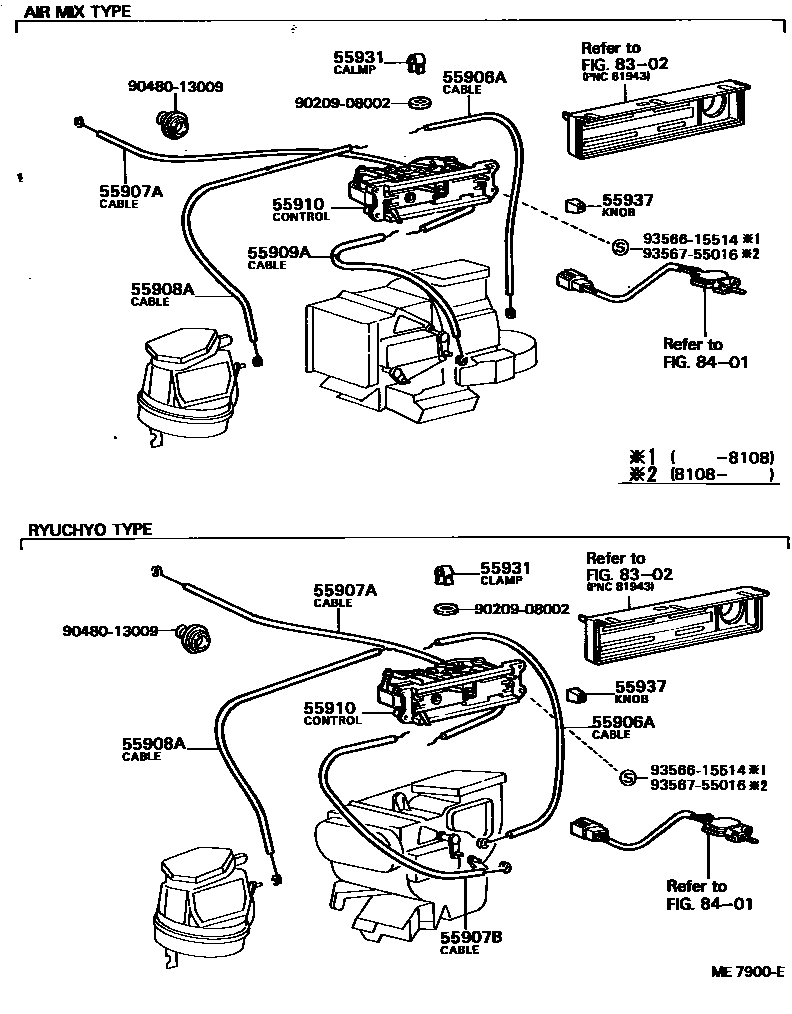

| 55906A | Defroster damper control cable sub-assembly | 55906-12120 · 55906-12140 · 55906-12150 · 55906-12160 |
| 55907A | Water valve control cable sub-assembly | 55907-12100 · 55907-12110 · 55907-12120 · 55907-12140 · 55907-12150 · 55907-12160 |
| 55907B | Temperature damper control cable sub-assembly | 55907-12190 · 55907-12200 · 55909-12110 · 55909-12120 |
| 55908A | Intake air valve control cable sub-assembly | 55908-12110 · 55908-12130 |
| 55909A | Air mix damper control cable sub-assembly | 55907-12090 · 55907-12130 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-12161 · 55910-12181 · 55910-12926 · 55910-12927 |
| 55931 | Heater control harness clip | 55933-14010 · 55933-14020 |
| 55937 | Heater lever button | 55905-12060 |

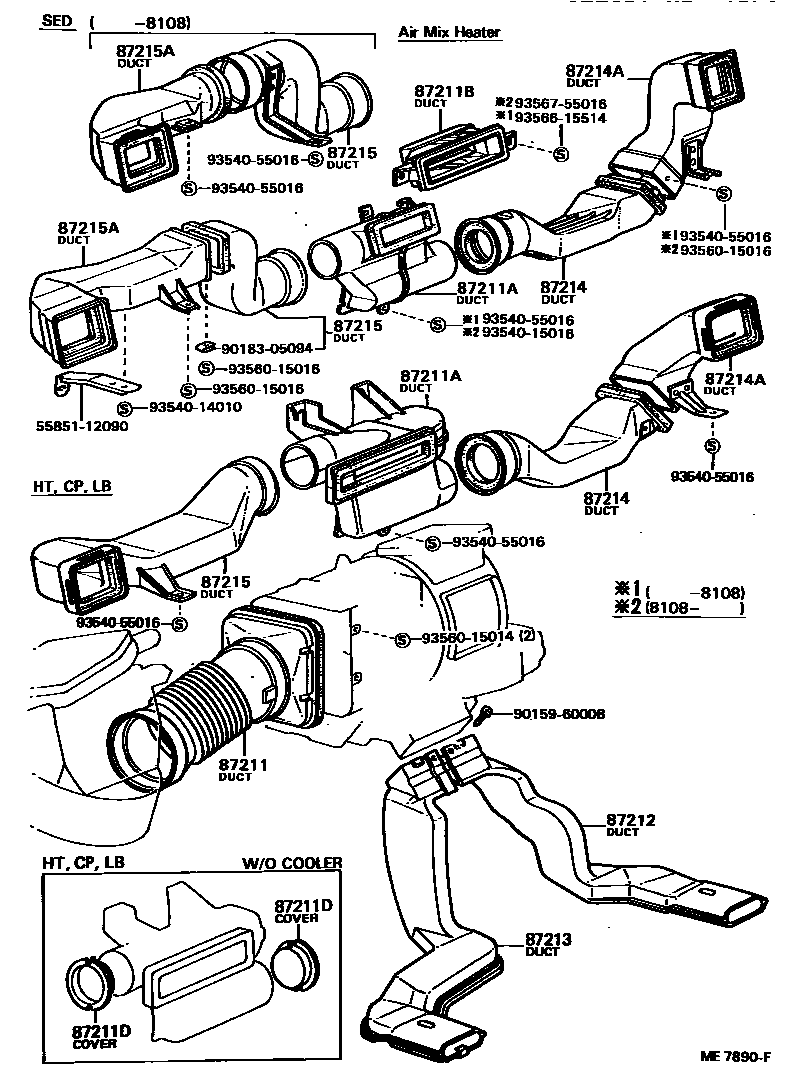

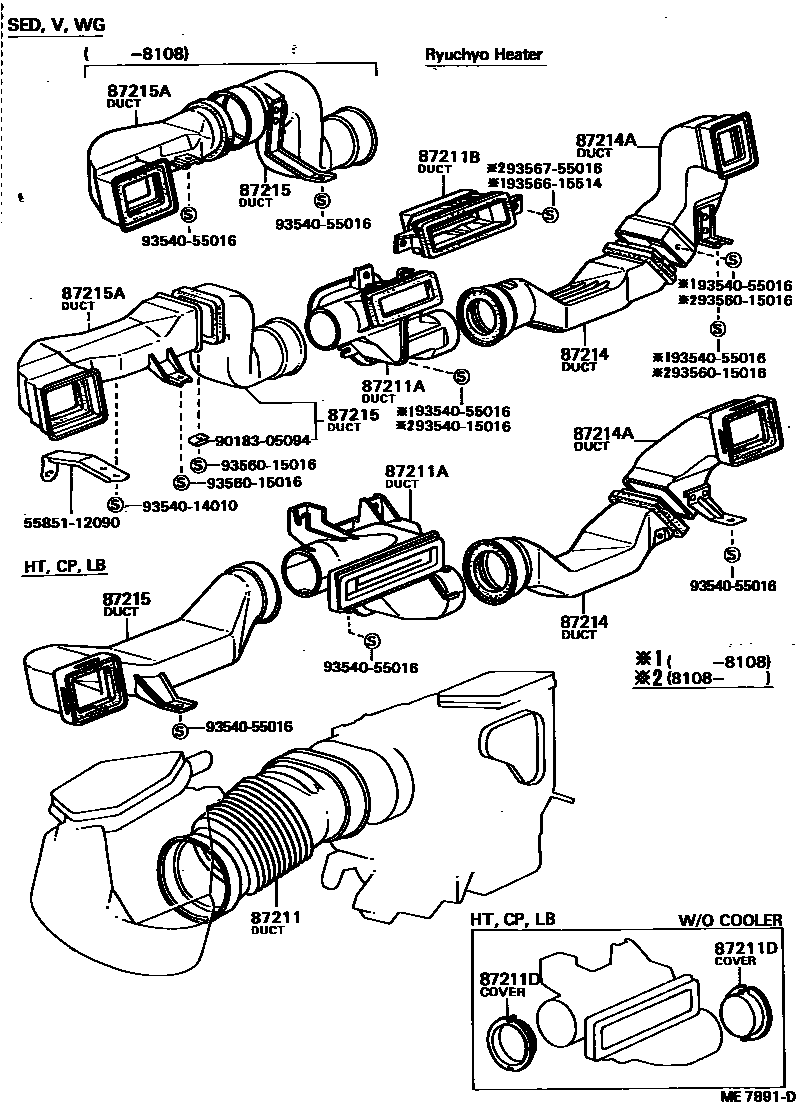

| 87211 | No. 1 air duct | 87201-12020 · 87211-12050 |
| 87211A | Duct No. 2 | 55086-12060 · 55086-12070 · 87211-12040 · 87211-12060 |
| 87211B | No. 3 air duct | 55086-12050 · 55086-12140 |
| 87211D | Heater air duct hole cover | 55792-12030 |
| 87212 | No. 1 rear air duct | 87212-12040 · 87212-12041 |
| 87213 | No. 2 rear air duct | 87203-12010 · 87203-12011 |
| 87214 | Air duct No. 1 on the right | 55085-12070 · 55844-12110 · 55844-12111 |
| 87214A | Air duct No. 2 on the right | 55084-12060 · 55084-12070 |
| 87215 | Air duct No. 1 on the left | 55087-12030 · 55087-12050 · 55845-12050 |
| 87215A | Air duct No. 2 on the left | 55088-12030 · 55088-12050 |

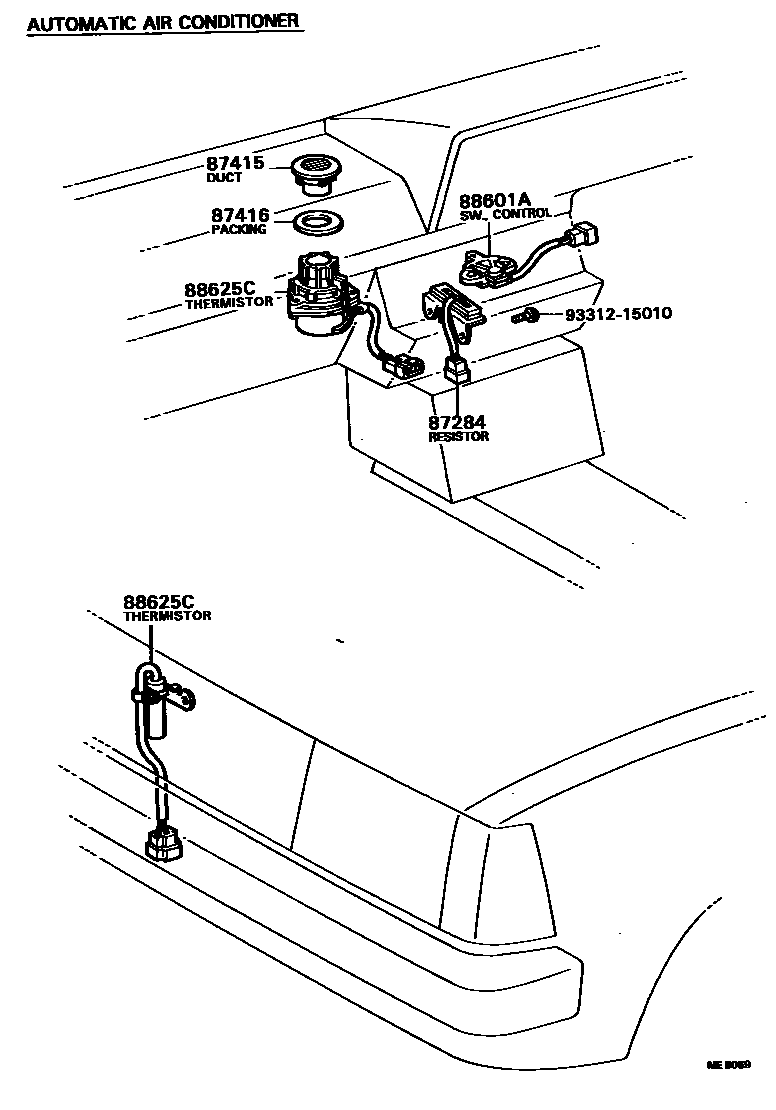

| 87284 | Variable resistor sub-assembly | 88622-12020 |
| 87415 | air duct | 88566-12010 · 88566-12020 · 88566-20010 |
| 87416 | Duct gasket | 88891-14030 |
| 88601A | Cooler control switch sub-assembly | 84660-12030 |
| 88625C | Cooler thermistor | 88625-12080 · 88625-12090 |
