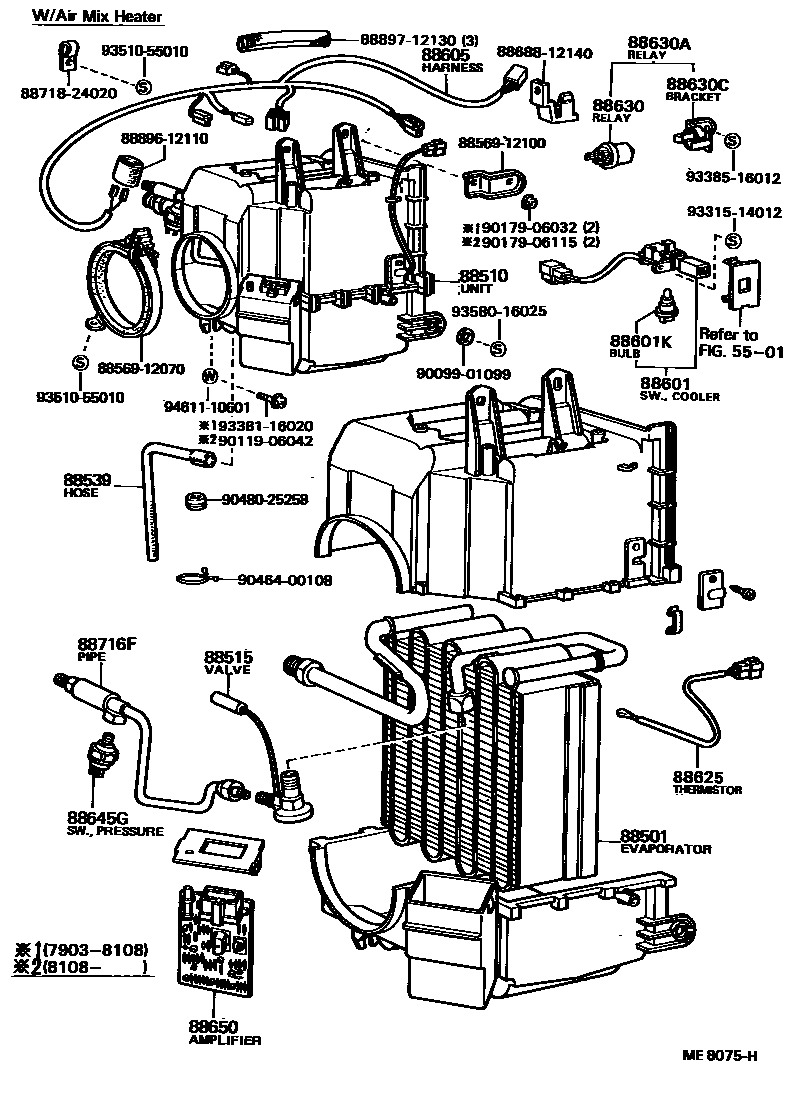

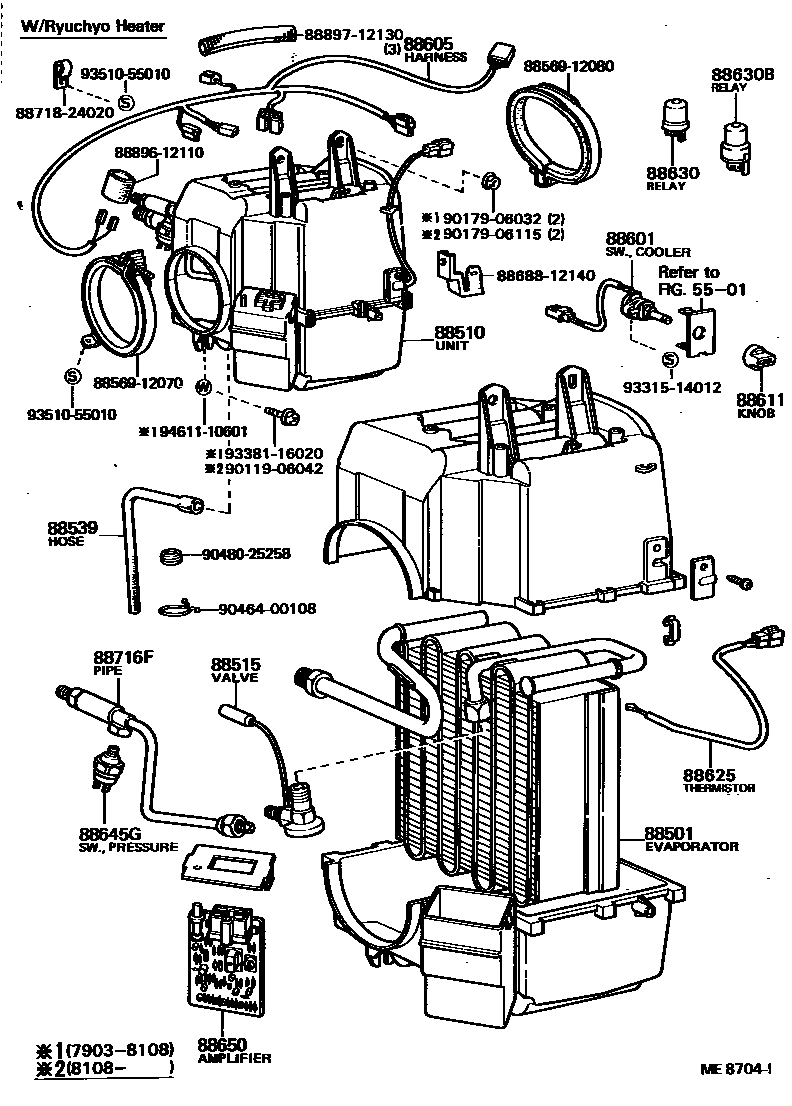

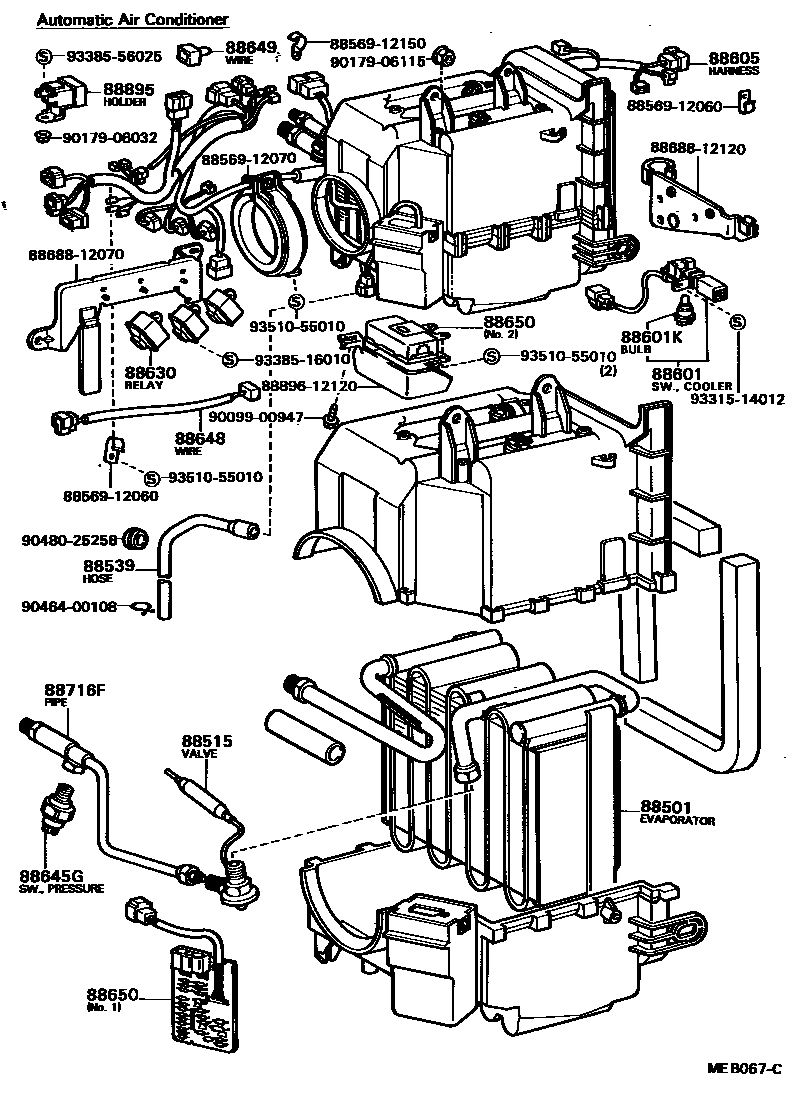

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12150 · 88501-12230 · 88501-12231 · 88501-12232 · 88501-12233 · 88501-12240 · 88501-12241 · 88501-12242 · 88501-12250 · 88501-12280 |
| 88510 | Cooler device assembly | 88510-12160 · 88510-12170 · 88510-12190 · 88510-12250 · 88510-12251 · 88510-12252 · 88510-12260 · 88510-12261 · 88510-12270 · 88510-12271 · 88510-12272 · 88510-12310 · 88510-12320 · 88510-12321 · 88510-12350 · 88510-12351 · 88510-12360 · 88510-12361 · 88510-12540 · 88510-12541 · 88510-12550 · 88510-12551 · 88510-12560 · 88510-12561 · 88510-12570 · 88510-12571 · 88510-12720 · 88510-12730 |
| 88515 | Cooler expansion valve | 88515-14040 · 88515-16031 · 88515-20040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12040 |
| 88601 | Cooler control switch sub-assembly | 84660-12010 · 88610-12020 · 88610-12021 |
| 88601K | Light bulb (for cooler switch) | 88607-14020 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-12200 · 88605-12201 · 88605-12210 · 88605-12211 · 88605-12220 · 88605-12221 · 88605-12230 · 88605-12270 · 88605-12280 · 88605-12290 · 88605-12300 · 88605-12320 · 88605-12330 · 88605-12340 · 88605-12350 · 88605-12360 · 88605-1A120 · 88605-1A130 · 88650-16010 |
| 88611 | Cooler control switch button | 88611-12030 · 88611-12031 |
| 88625 | Cooler No. 1 Thermistor | 88625-12050 · 88625-12070 |
| 88630 | Cooler relay assembly | 88925-12010 · 90987-02001 · 90987-02004 · 90987-03001 |
| 88630A | Cooler relay assembly | 88630-12090 · 88630-60020 |
| 88630B | Cooler relay assembly | 90987-02004 |
| 88630C | Cooler relay bracket | 85999-26010 |
| 88645G | pressure switch | 88645-12020 · 88645-22010 · 88645-30250 |
| 88648 | No. 1 cooler wiring harness | 88648-12190 |
| 88649 | No. 2 cooler wiring harness | 88648-12200 |
| 88650 | Cooler stabilized amplifier assembly | 88650-12070 · 88650-12080 · 88650-14070 · 88650-14090 · 88650-16010 · 88650-16020 · 88650-20100 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-12470 · 88716-12530 |
| 88895 | fuse holder | 88895-12060 |
