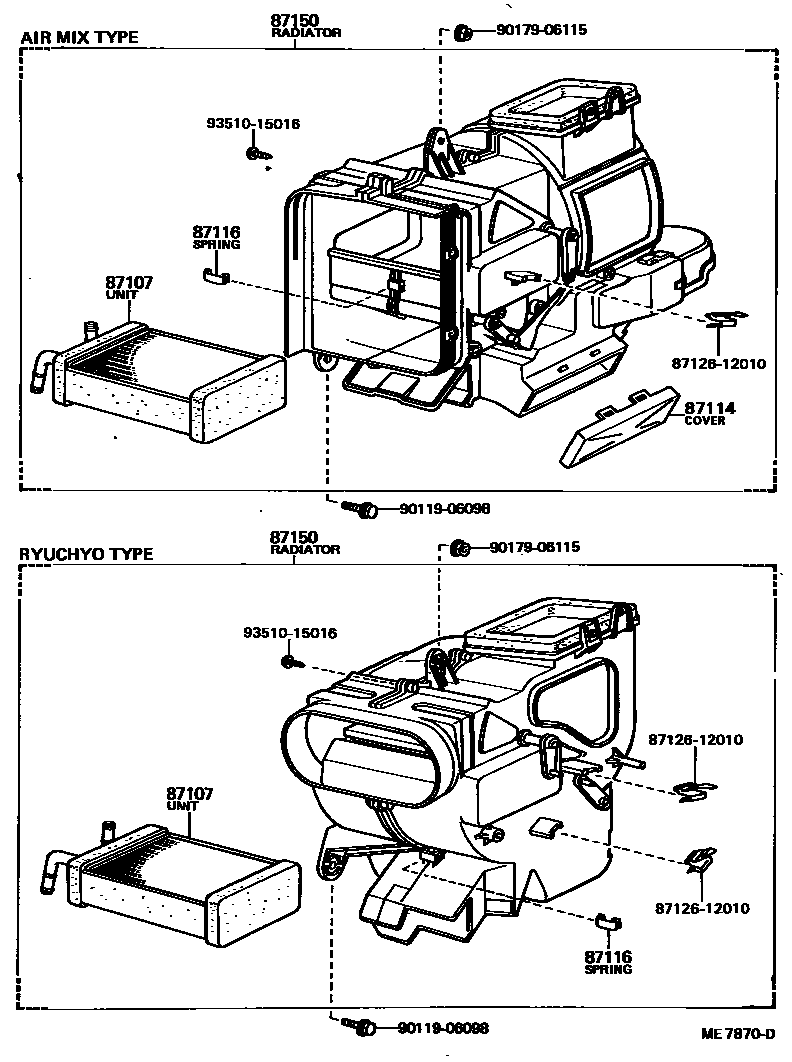

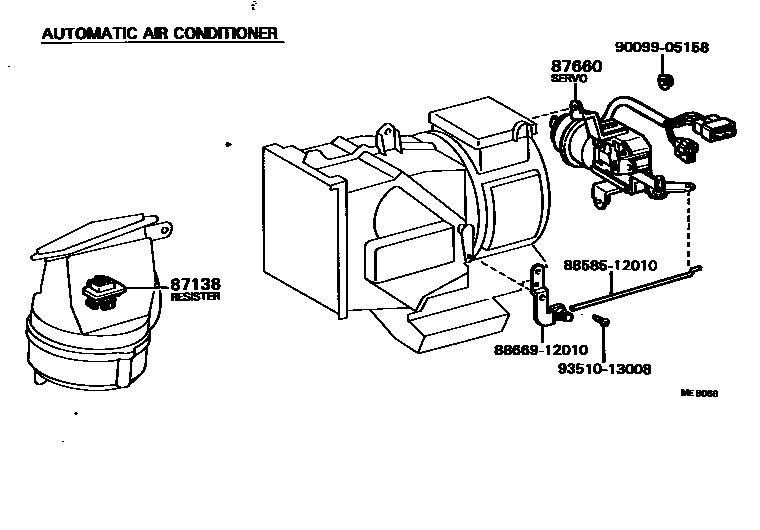

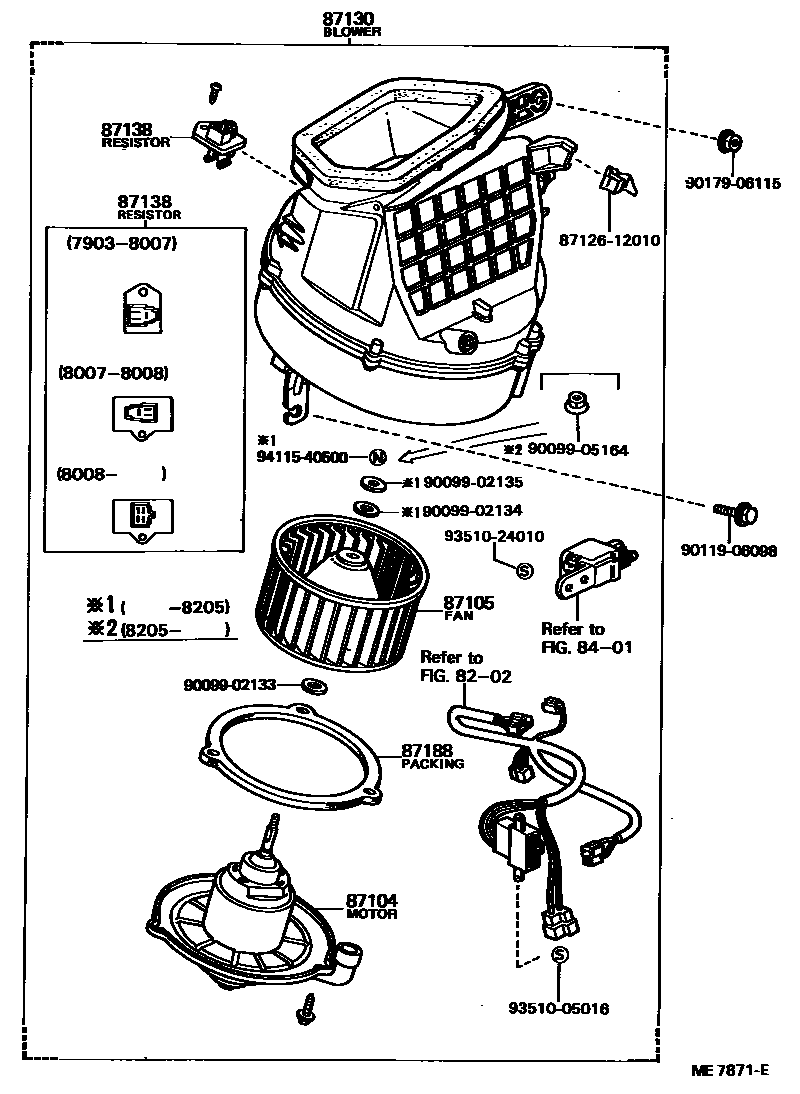

Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87104 | Heater blower motor sub-assembly | 87104-12120 · 87104-12140 |
| 87105 | Heater blower fan sub-assembly | 87105-16020 |
| 87107 | Heater radiator device sub-assembly | 87107-12180 · 87107-12190 · 87107-12200 · 87107-12210 · 87107-12220 · 87107-12260 · 87107-12270 |
| 87114 | heater cover | 87114-12070 |
| 87116 | Heater shell fastening spring | 87116-14010 |
| 87130 | Front heater blower assembly | 87130-12010 · 87130-12011 · 87130-12040 · 87130-12041 · 87130-12080 · 87130-12100 |
| 87138 | Heater Blower Resistor | 87138-12090 · 87138-12091 · 87138-12100 · 88635-12030 |
| 87150 | Heater radiator assembly | 87150-12010 · 87150-12020 · 87150-12030 · 87150-12040 · 87150-12050 · 87150-12090 · 87150-12100 · 87150-12110 · 87150-12120 · 87150-12130 · 87150-12140 · 87150-12170 |
| 87188 | Heater blower motor seal | 87127-12020 · 87127-30010 |
| 87660 | Air conditioning servo mechanism assembly | 88660-12010 |
