Toyota COROLLA 扬声器 — Figure 8602

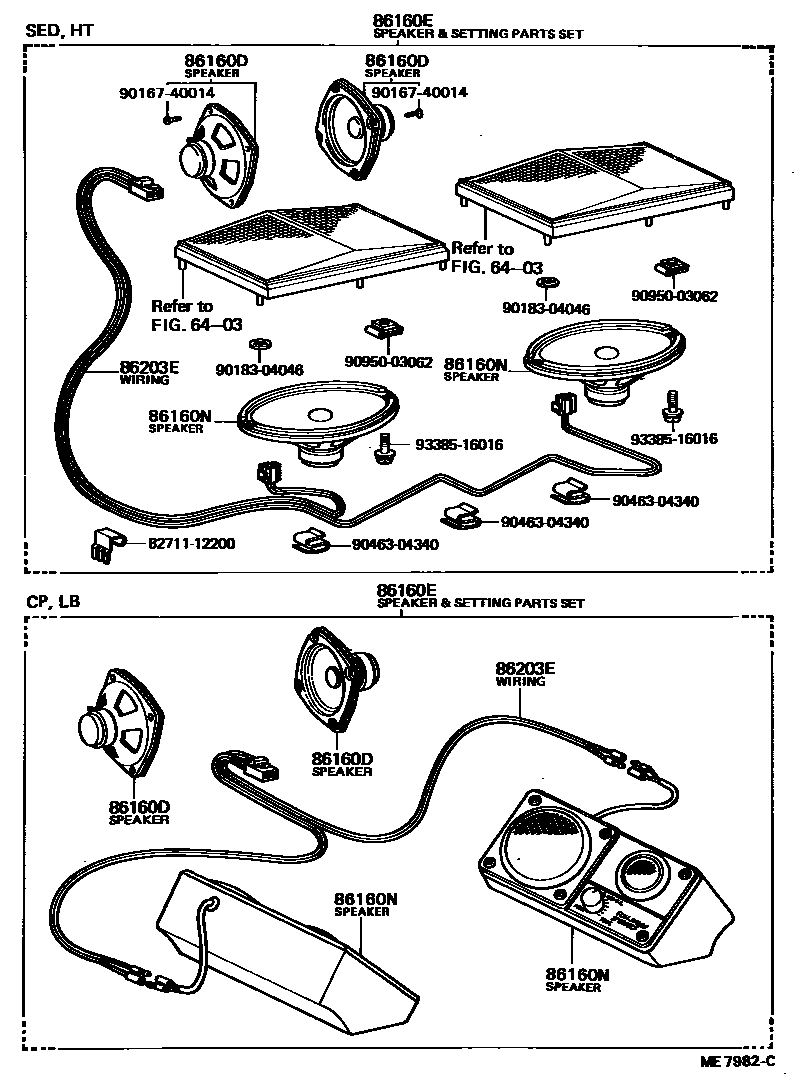

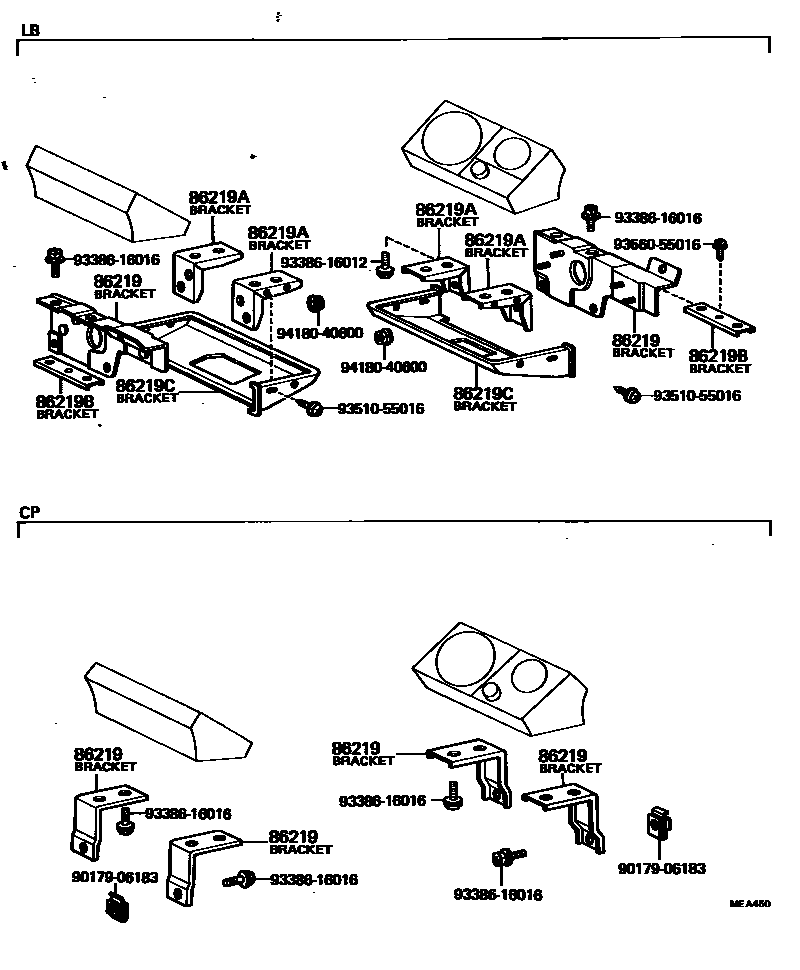

Toyota COROLLA EPC diagram 8602, 扬声器, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-19135 · 86160-19325 |
| 86160D | Front stereo part speaker assembly | 86160-19325 |
| 86160E | Stereo components speaker components | 86160-19145 · 86160-19155 |
| 86160N | Rear stereo component speaker assembly | 86150-12010 · 86150-12020 · 86160-12090 |
| 86203E | Stereo Part 1 Speaker Wire Harness | 86203-12040 · 86203-12050 |
| 86219 | Stereo Part 1 Speaker Stand | 86219-12010 · 86219-12020 · 86219-12030 · 86229-12010 |
| 86219A | Stereo Part 2 Speaker Stand | 86219-12050 |
| 86219B | Stereo assembly speaker stand No. 3 | 86219-12060 |
