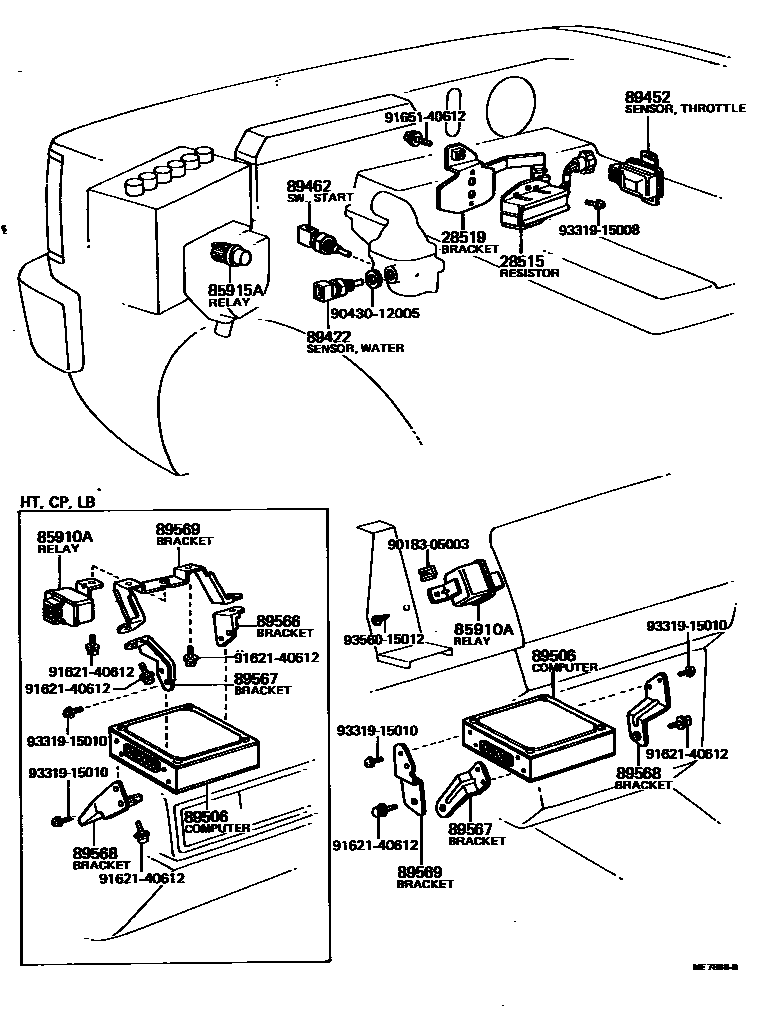

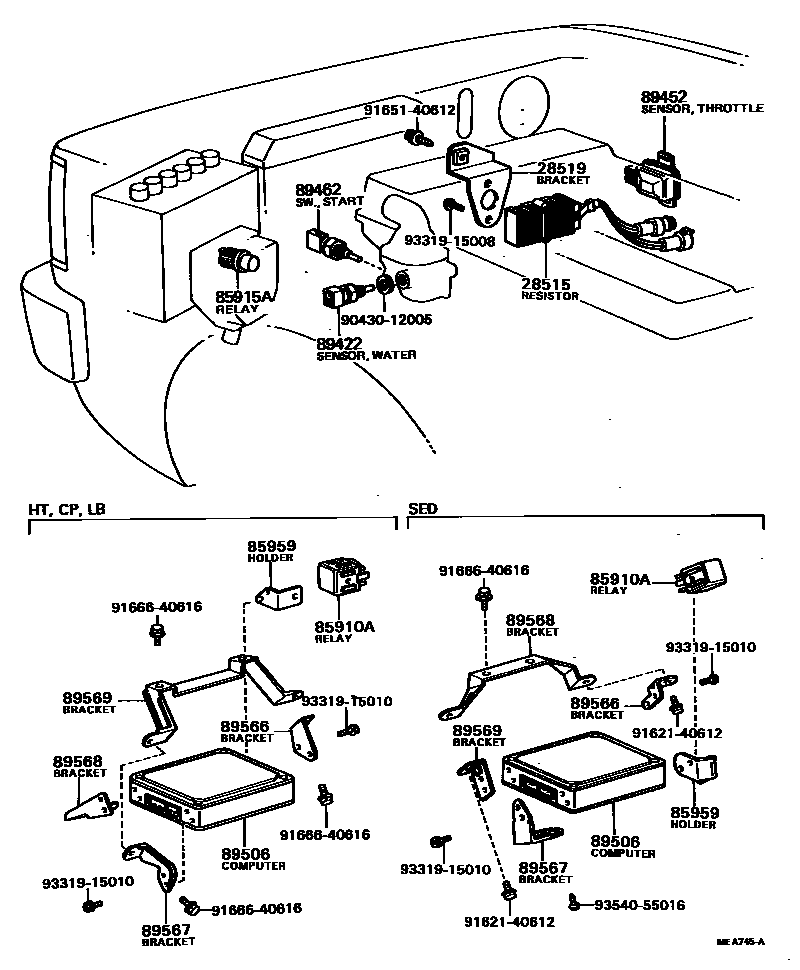

Toyota COROLLA 电子燃油喷射系统 — Figure 8404
Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28515 | Solenoid valve resistor | 28515-12011 · 28515-26030 |
| 28519 | Solenoid valve resistor bracket | 28519-26010 · 28519-26020 |
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-14020 · 85910-30040 · 85910-30050 |
| 85915A | main relay | 90987-02004 |
| 85959 | Relay mounting parts | 85959-12010 · 85959-12020 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-30020 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-12010 |
| 89462 | Start injector timing switch | 89462-30011 |
| 89506 | Fuel injection ECU assembly | 89561-12030 · 89561-12031 · 89561-12032 |
| 89566 | Fuel injection ECU bracket | 89566-12010 · 89566-12020 · 89566-12030 |
| 89567 | Fuel injection ECU bracket | 89567-12020 · 89567-12030 · 89567-12040 · 89567-12050 |
| 89568 | Fuel injection ECU bracket | 89568-12020 · 89568-12030 · 89568-12040 · 89568-12050 |
| 89569 | Fuel injection ECU bracket | 89569-12020 · 89569-12030 · 89569-12040 |
