Toyota COROLLA indicator light — Figure 8302

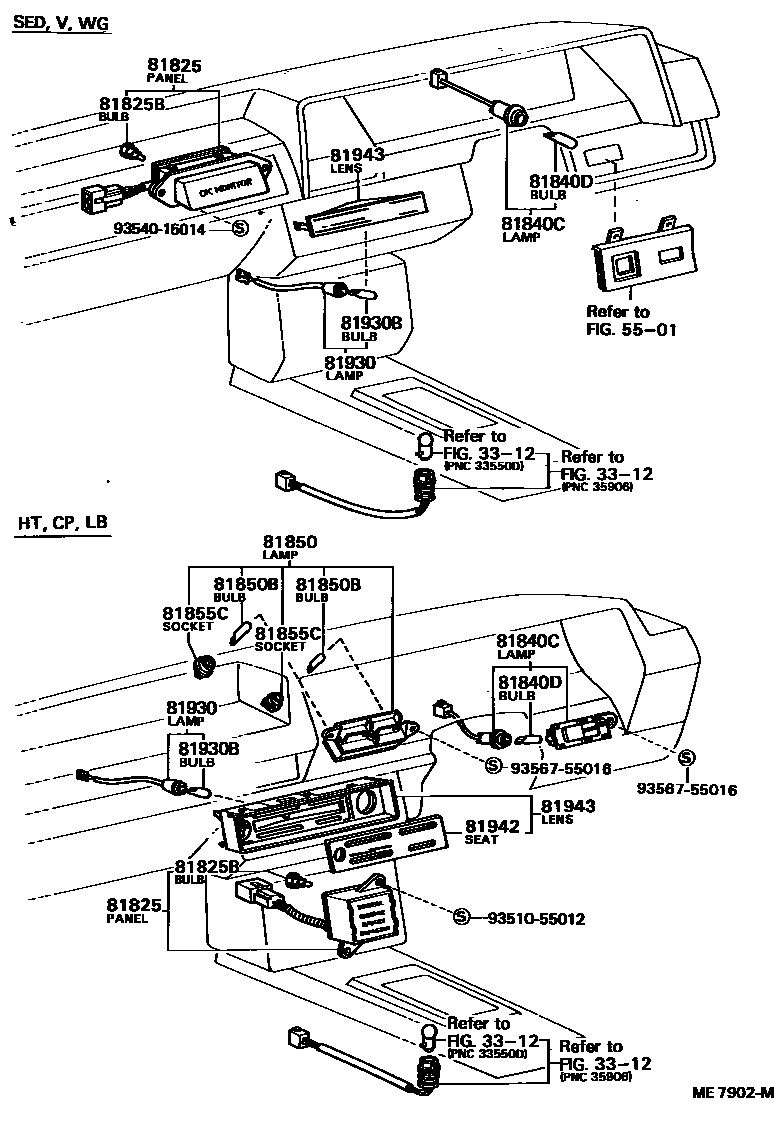

Toyota COROLLA EPC diagram 8302, indicator light, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81825 | Status indicator light board assembly | 81820-12070 · 81820-12080 |
| 81825B | Status light board light bulb | 90981-11024 |
| 81840C | Door indicator light assembly | 81840-12010 · 81840-12011 · 81850-12050 |
| 81840D | door indicator light bulb | 90981-11018 · 99132-12034 |
| 81850 | Indicator light assembly | 81850-12060 · 81850-12070 · 81850-12080 |
| 81850B | pilot light bulb | 90981-11018 · 99132-12034 |
| 81855C | Indicator lamp holder and wiring harness | 83101-10010 · 83101-22010 |
| 81930 | No. 1 heater control indicator light assembly | 81850-12040 · 81850-12041 · 81850-12042 |
| 81930B | Heater control indicator light bulb | 90981-11018 |
| 81942 | Heater control nameplate | 81942-12030 · 81942-12040 |
| 81943 | Heater control indicator light cover | 81940-12010 · 81940-12011 · 81940-12012 · 81940-12020 · 81940-12021 · 81940-12022 · 81943-12040 · 81943-12041 · 81943-12042 · 81943-12100 · 81943-12101 · 81943-12102 · 81943-12110 · 81943-12180 · 81943-12181 · 81943-12191 · 81943-12192 |
| 89539A | Drive control ECU bracket | 89539-12010 |
| 89642 | Compass display group | 89642-12020 |
| 89643 | Compass display group decorative parts | 89643-14010 |
| 89644 | Drive control ECU keyboard | 89644-12010 |
