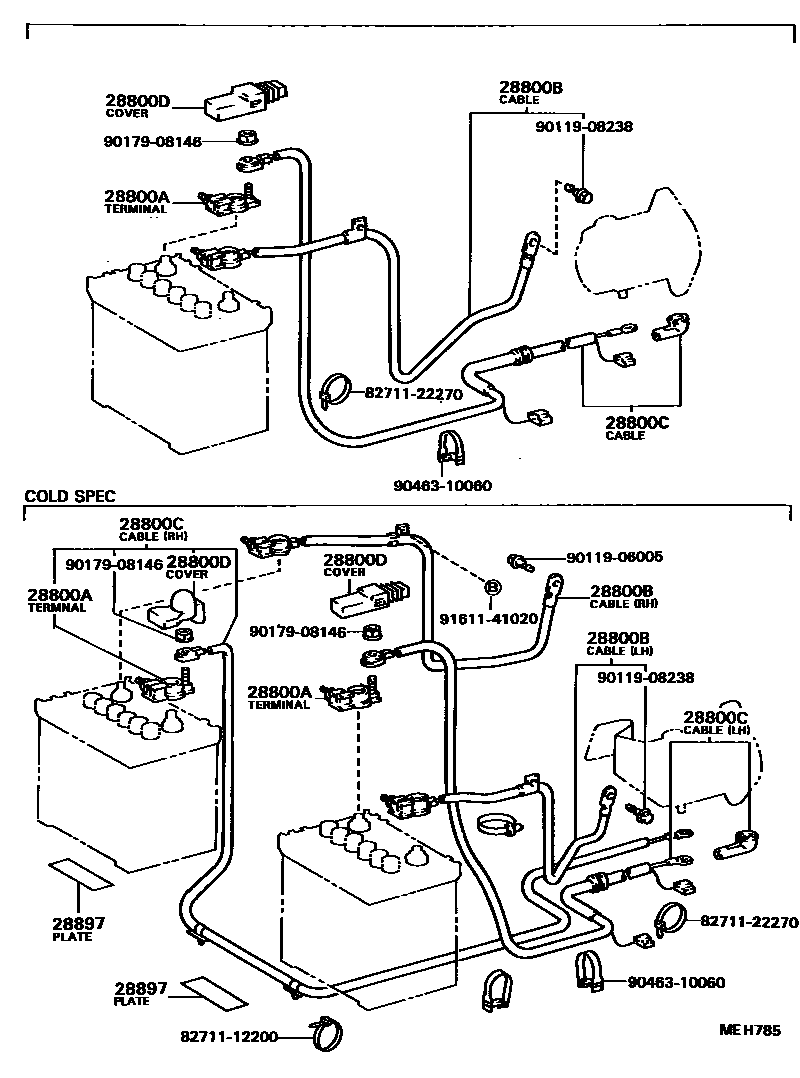

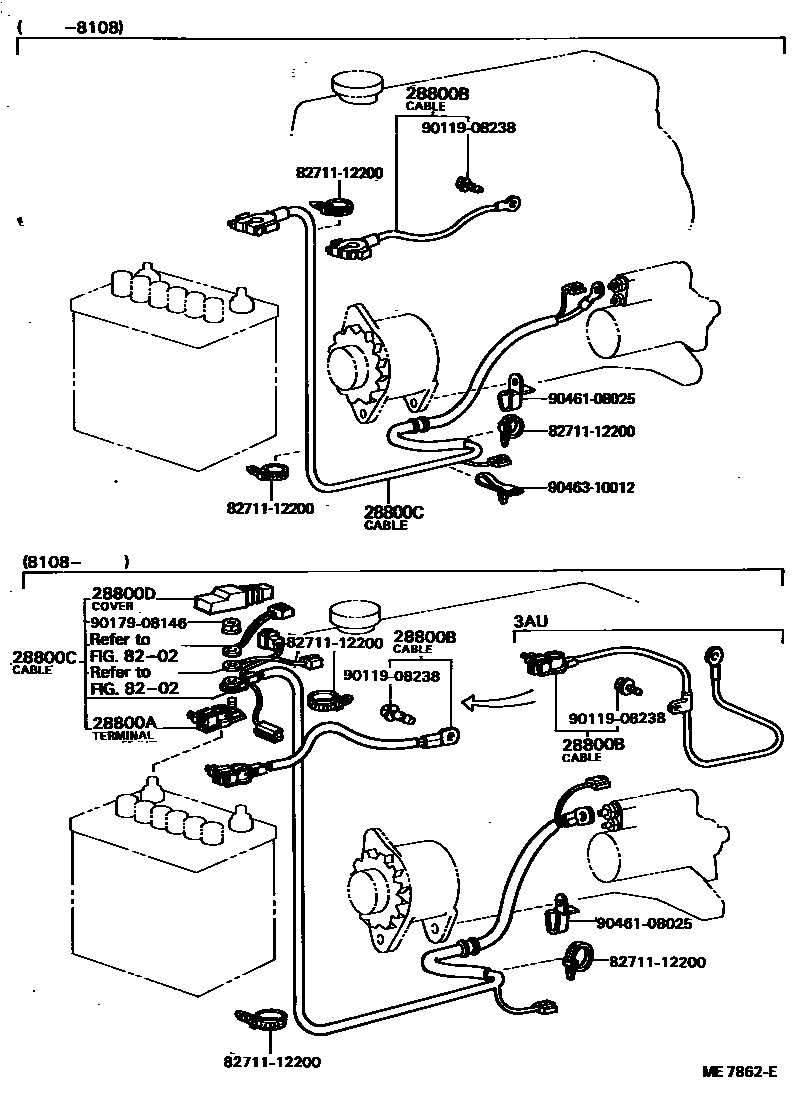

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05005 · 90982-05019 |
| 28800B | Cable between battery and ground | 82046-12120 · 82046-12150 · 82113-12010 · 82113-12020 · 82113-12050 · 82113-12060 · 82113-12070 |
| 28800C | Cable between battery and starter (for battery to main switch) | 82021-12170 · 82021-12190 · 82021-12200 · 82021-12210 · 82021-12220 · 82021-12240 · 82112-12010 · 82112-12020 · 82112-12030 · 82112-12040 · 82112-12050 · 82112-12060 · 82112-12070 · 82112-12080 · 82112-12130 · 82112-12140 |
| 28800D | Connector cover (for battery terminals) | 82821-12150 · 82821-22100 · 82821-22110 |
| 28897 | Battery warning nameplate | 28897-54030 |
