Toyota COROLLA 倒车灯 — Figure 8112

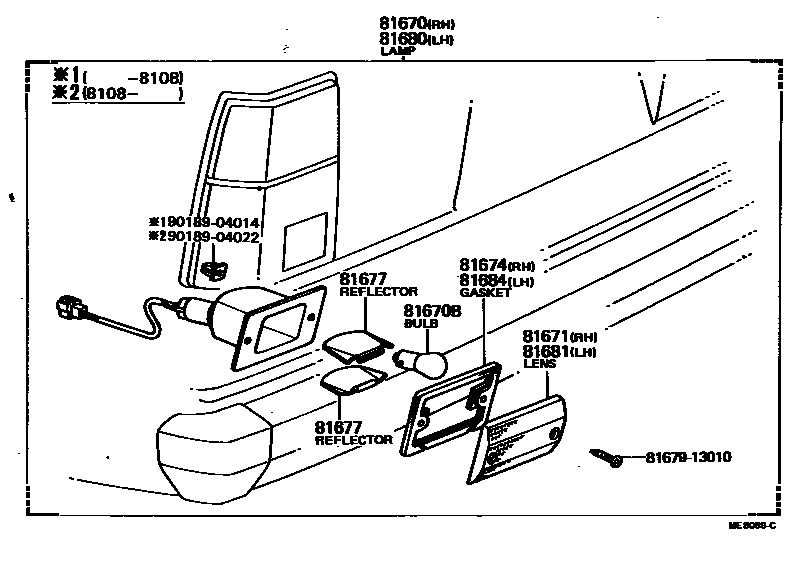

Toyota COROLLA EPC diagram 8112, 倒车灯, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81670 | Right reversing light assembly | 81670-19065 |
| 81670B | Bulb (for reversing lights) | 99132-11230 |
| 81671 | Right reversing light cover | 81671-13010 |
| 81674 | Right reversing light body gasket | 81674-13010 |
| 81677 | Reversing light reflector | 81677-13010 |
| 81680 | Left reversing light assembly | 81670-19065 |
| 81681 | Left reversing light cover | 81671-13010 |
| 81684 | Left reversing light body gasket | 81674-13010 |
