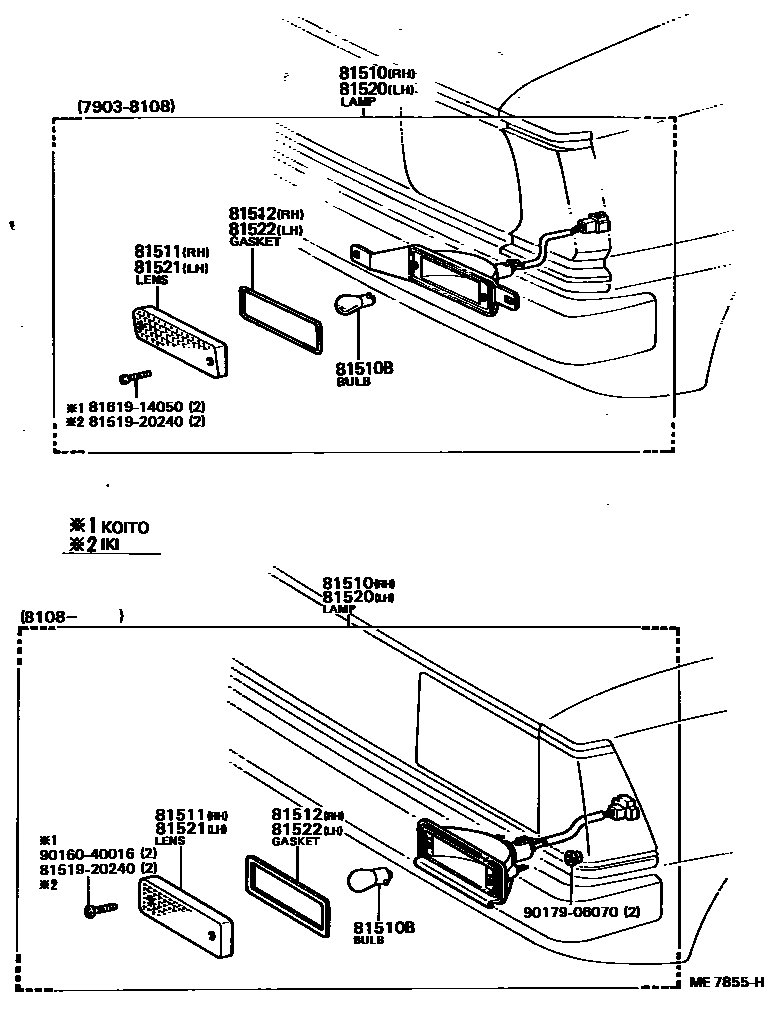

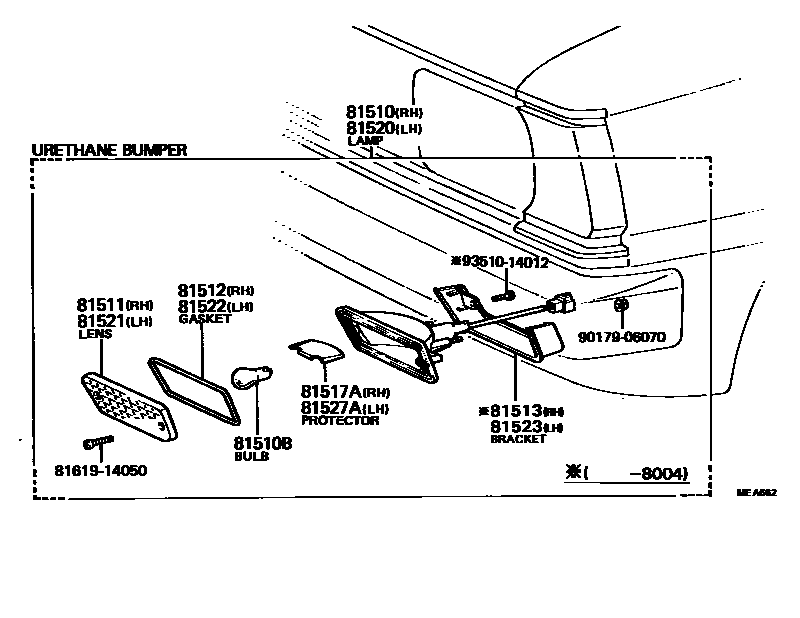

Toyota COROLLA 前转向灯 — Figure 8103
Toyota COROLLA EPC diagram 8103, 前转向灯, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-12280 · 81510-12290 · 81510-12300 · 81510-12310 · 81510-19525 · 81510-19725 · 81510-19735 · 81510-19785 · 81510-29505 |
| 81510B | Bulb (for front turn signal lamp) | 99132-11230 |
| 81511 | Right front turn signal lamp cover | 81511-12280 · 81511-12290 · 81511-14170 |
| 81512 | Right front turn signal lamp housing gasket | 81512-12290 · 81512-14140 · 81512-14150 |
| 81513 | Right front turn signal lamp bracket | 81516-14170 |
| 81517A | Right front turn signal light protective cover | 81517-14170 |
| 81520 | Left front turn signal lamp assembly | 81520-12260 · 81520-12270 · 81520-12280 · 81520-12290 · 81520-19525 · 81520-19725 · 81520-19735 · 81520-19785 · 81520-29505 |
| 81521 | Left front turn signal lamp cover | 81521-12260 · 81521-12270 · 81521-14170 |
| 81522 | Left front turn signal lamp housing gasket | 81512-12290 · 81512-14140 · 81512-14150 |
| 81523 | Left front turn signal light bracket | 81526-14170 |
| 81527A | Left front turn signal light protective cover | 81517-14170 |
