Toyota COROLLA Headlamp — Figure 8101

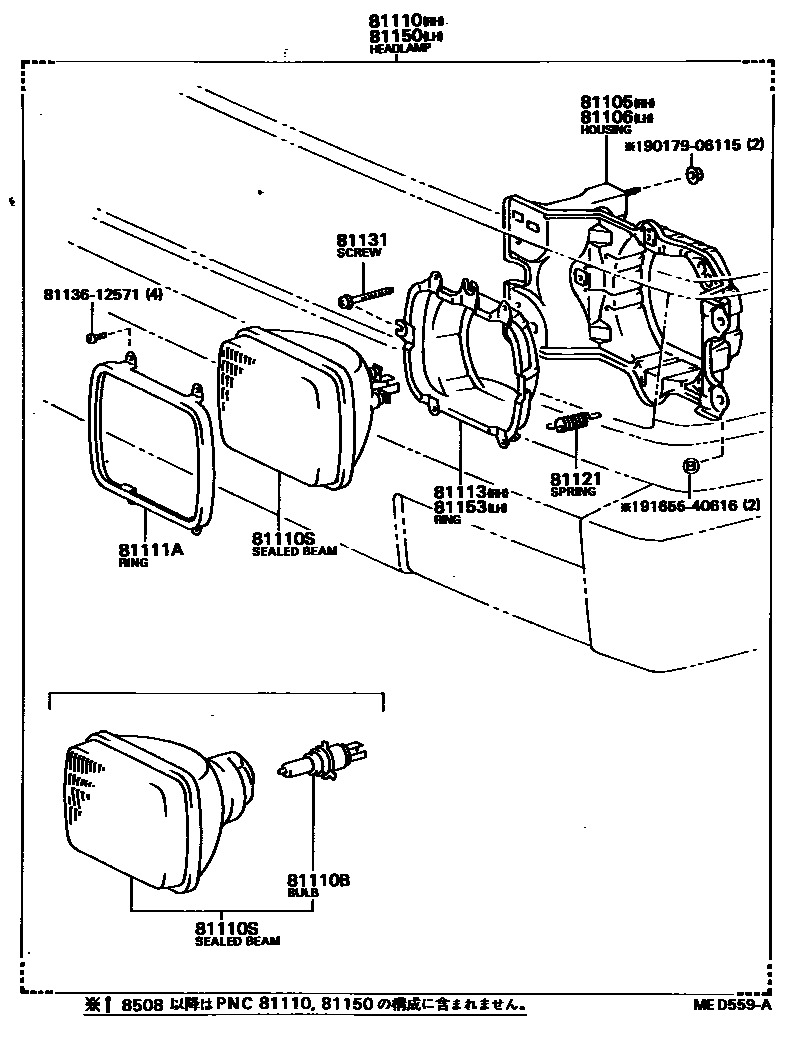

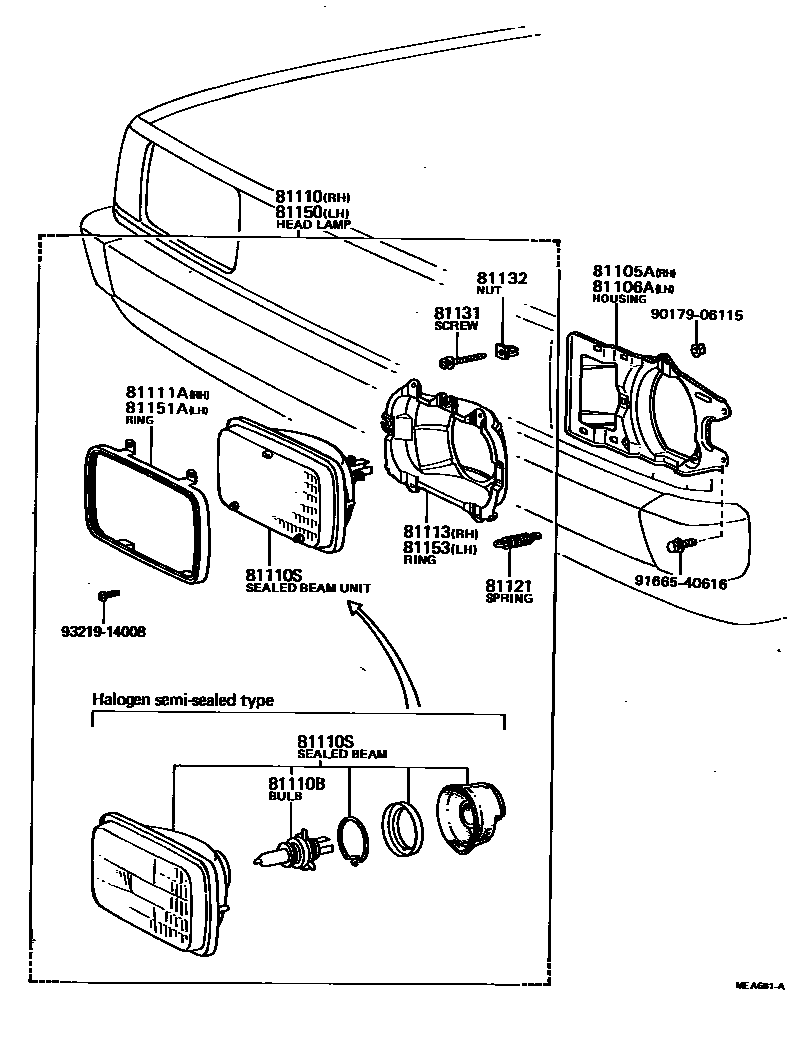

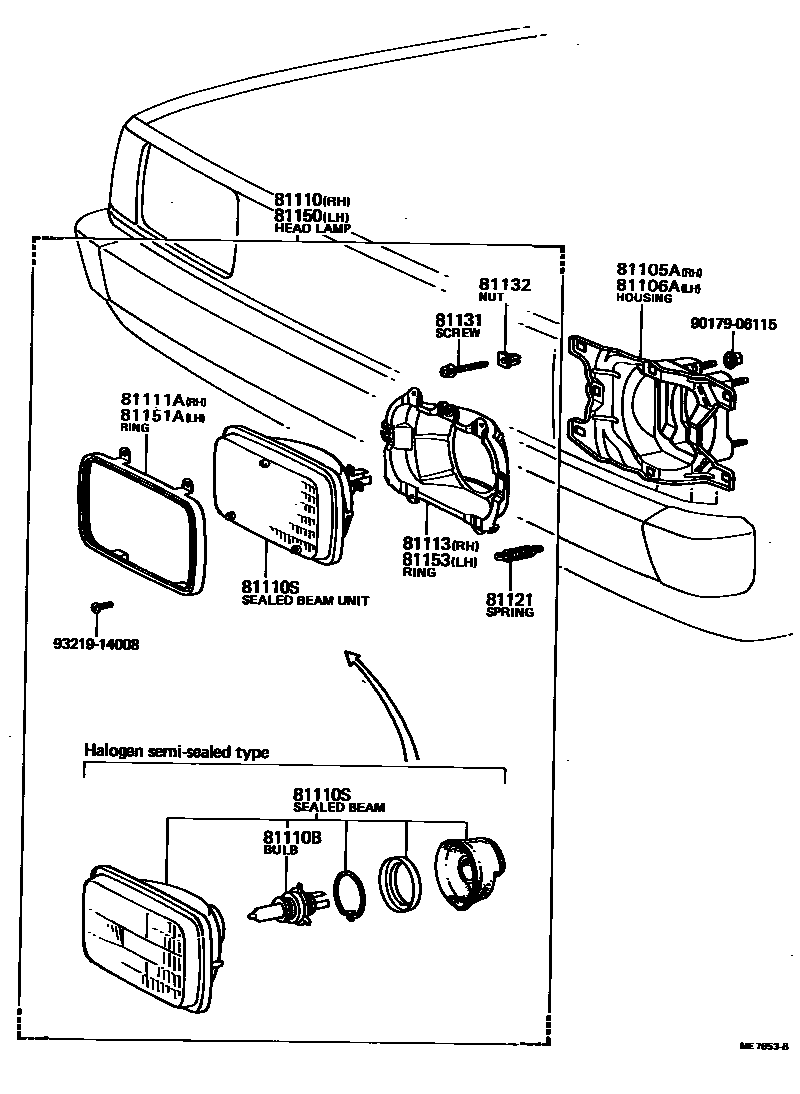

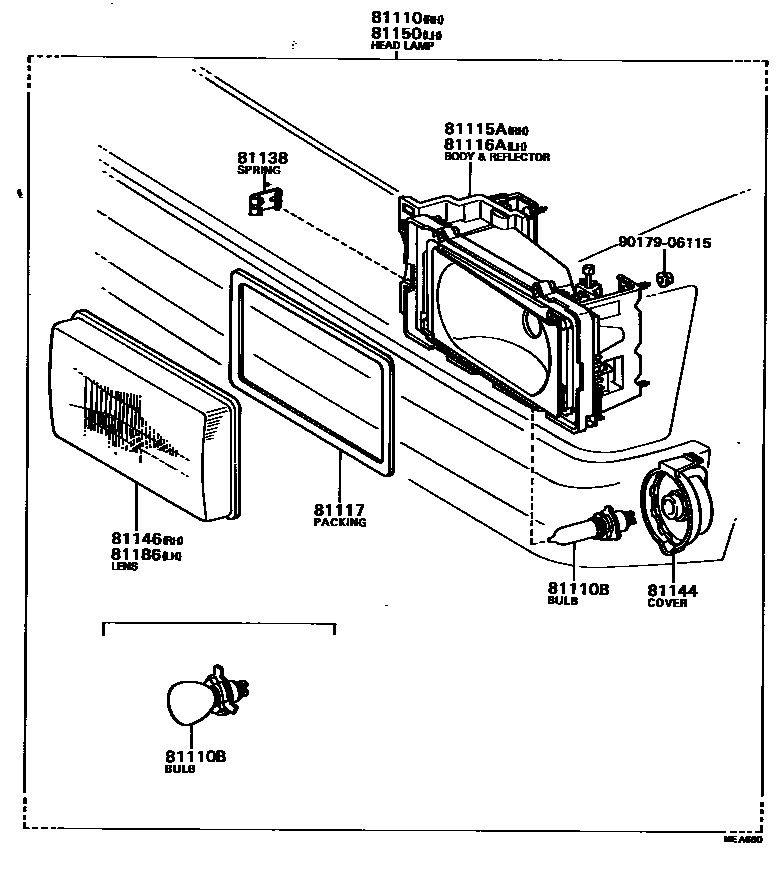

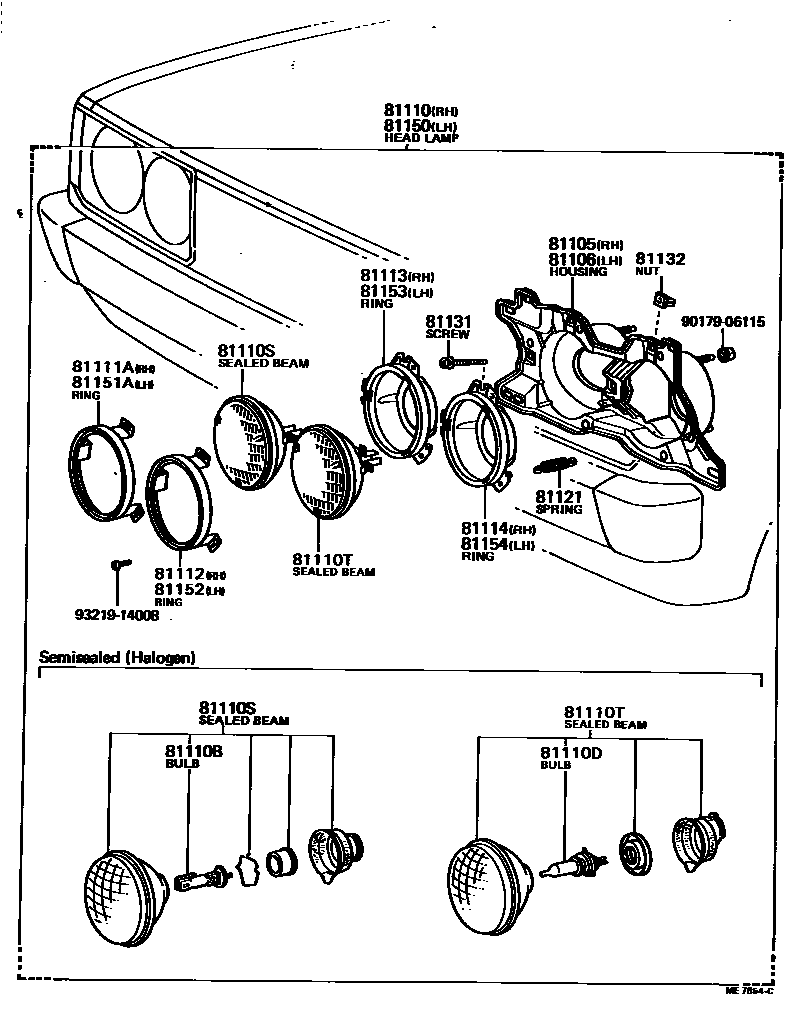

Toyota COROLLA EPC diagram 8101, Headlamp, with 5 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81105 | Right headlight housing sub-assembly | 81105-12550 · 81105-12560 · 81105-13060 · 81105-13080 |
| 81105A | Right headlight bracket sub-assembly | 53037-12040 · 53037-12061 |
| 81106 | Left headlight housing sub-assembly | 81106-12480 · 81106-12490 · 81106-13060 · 81106-13080 |
| 81106A | Left headlight bracket sub-assembly | 53037-12040 · 53038-12041 |
| 81110 | Right headlight assembly | 81110-13080 · 81110-13090 · 81110-80021 · 81110-80022 · 81110-80023 · 81110-80024 · 81110-80025 · 81110-80048 · 81110-80154 · 81110-80155 · 81110-80175 · 81110-80176 · 81110-80177 · 81110-80178 · 81110-80203 · 81110-80338 · 81110-80339 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 · 90981-13017 · 90981-13022 |
| 81110D | Bulb (for headlight No. 2) | 90981-13015 |
| 81110S | No. 1 enclosed lamp assembly | 90981-02011 · 90981-02039 · 90981-02042 · 90981-04001 · 90981-04002 · 90981-04010 · 90981-04027 · 90981-04029 |
| 81110T | No. 2 enclosed lamp assembly | 90981-02012 · 90981-02040 · 90981-02043 |
| 81111A | No. 1 closed car light fixing ring on the right | 81111-14261 · 81111-16010 · 81111-16020 · 81111-20280 |
| 81112 | No. 2 closed lamp fixing ring on the right | 81111-14261 · 81111-20280 |
| 81113 | Right No. 1 closed lamp seat | 81113-10310 · 81113-12571 · 81113-12581 · 81113-14260 · 81113-20100 · 81153-16010 · 81153-16020 |
| 81114 | Right No. 2 closed lamp seat | 81154-14260 · 81154-20100 |
| 81115A | Right headlight body and reflector sub-assembly | 81135-12830 · 81135-12840 · 81135-12850 · 81135-12860 |
| 81116A | Left headlight body and reflector sub-assembly | 81175-12760 · 81175-12770 · 81175-12780 · 81175-12790 |
| 81117 | Headlight housing seal | 81147-30490 |
| 81121 | headlight spring | 81121-12570 · 81121-12581 · 81121-16010 · 81121-16020 · 81121-20100 · 90506-18018 |
| 81131 | Headlight adjustment screw | 81131-10031 · 81131-16010 · 81131-20043 · 81131-20053 |
| 81132 | Headlight self-locking nut | 81132-20380 · 90189-05013 · 90189-05015 |
| 81138 | headlight spring | 81138-20550 |
| 81144 | No. 1 headlight cover | 81139-30490 |
| 81146 | Right headlight lampshade | 81146-30431 |
| 81150 | Left headlight assembly | 81150-13080 · 81150-13090 · 81150-80021 · 81150-80022 · 81150-80023 · 81150-80024 · 81150-80025 · 81150-80045 · 81150-80151 · 81150-80152 · 81150-80172 · 81150-80173 · 81150-80174 · 81150-80175 · 81150-80200 · 81150-80335 · 81150-80336 |
| 81151A | No. 1 closed headlight fixing ring on the left | 81111-14261 · 81111-16010 · 81111-16020 · 81111-20280 |
| 81152 | No. 2 closed headlight fixing ring on the left | 81111-14261 · 81111-20280 |
| 81153 | No. 1 closed lamp seat on the left | 81113-16010 · 81113-16020 · 81153-10250 · 81153-12501 · 81153-12511 · 81153-14260 · 81153-20100 |
| 81154 | No. 2 closed lamp seat on the left | 81114-14260 · 81114-20100 |
| 81186 | Left headlight lampshade | 81186-30541 |
