Toyota COROLLA accelerator pedal connecting rod — Figure 7801

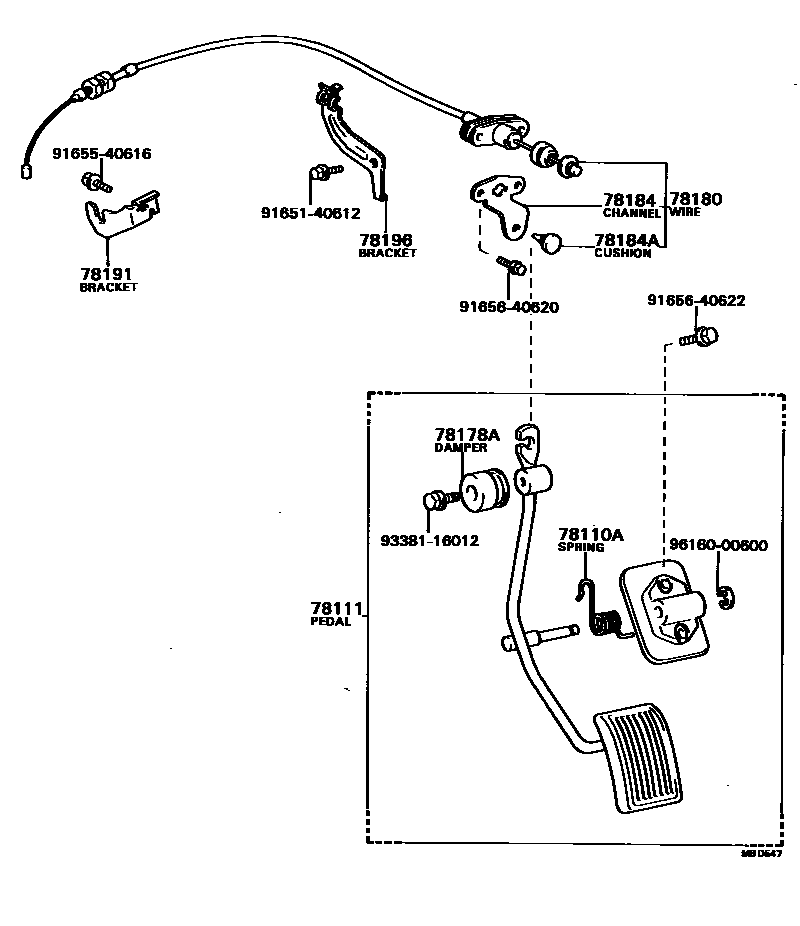

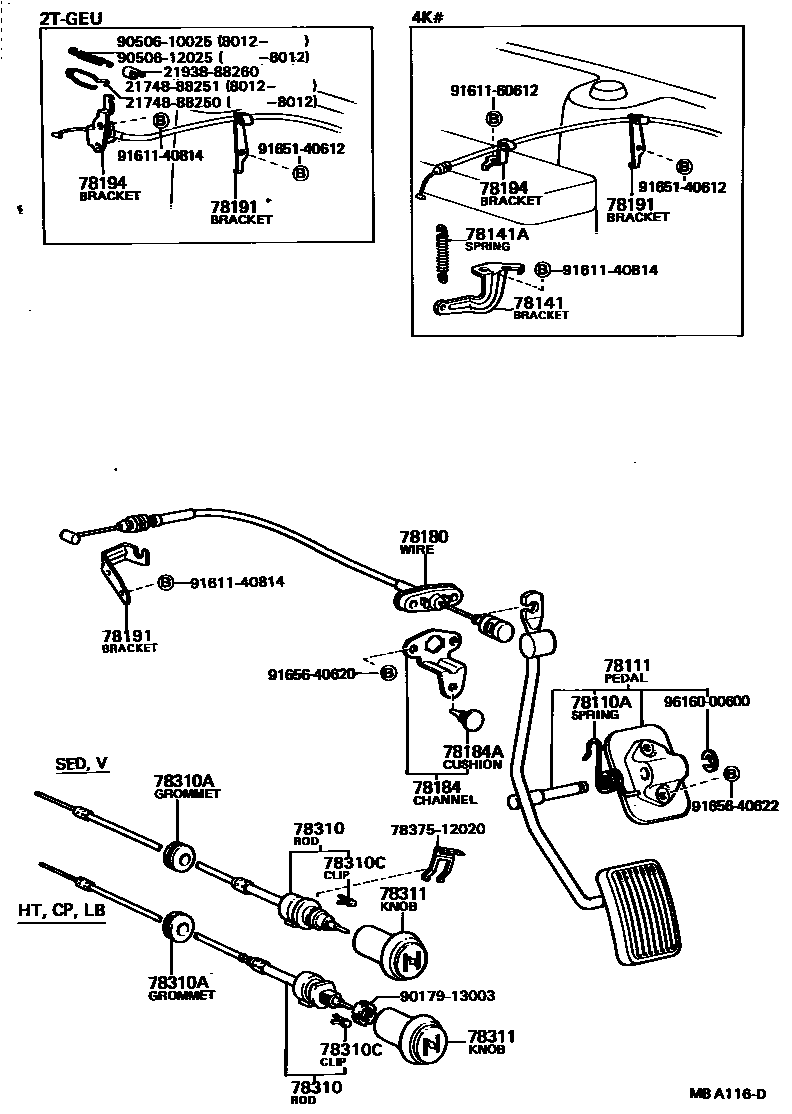

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110A | Spring (for accelerator pedal lever) | 90508-18055 · 90508-18398 |
| 78111 | accelerator pedal | 78010-12040 · 78010-12050 · 78010-12080 |
| 78141 | Throttle cable return spring bracket | 78187-12050 |
| 78141A | Tension spring (for throttle cable return spring) | 90507-12021 |
| 78178A | Accelerator pedal lever dynamic damper | 78178-12020 |
| 78180 | Throttle cable assembly | 78180-12250 · 78180-12280 · 78180-12290 · 78180-12300 · 78180-12390 |
| 78184 | Accelerator pedal idle speed adjustment stop slot | 78181-12051 · 78181-12080 |
| 78184A | Cushion pad (for accelerator pedal adjustment stop groove) | 90541-06008 |
| 78191 | Throttle cable bracket | 78184-12050 · 78184-14060 · 78186-12080 · 78189-12010 |
| 78194 | No. 2 throttle cable bracket | 21524-88261 · 21524-88262 · 78186-12041 · 78186-12070 |
| 78196 | No. 3 throttle cable bracket | 78189-12010 |
| 78310 | Choke door cable assembly | 78310-12370 · 78310-12371 · 78310-12380 · 78310-12381 |
| 78310A | Choke cable retaining ring | 90480-13055 |
| 78310C | Clip (for choke cable) | 78312-12010 |
| 78311 | Choke control cable button | 78311-12020 · 78311-12021 |
