Toyota COROLLA 后防护条 — Figure 7504

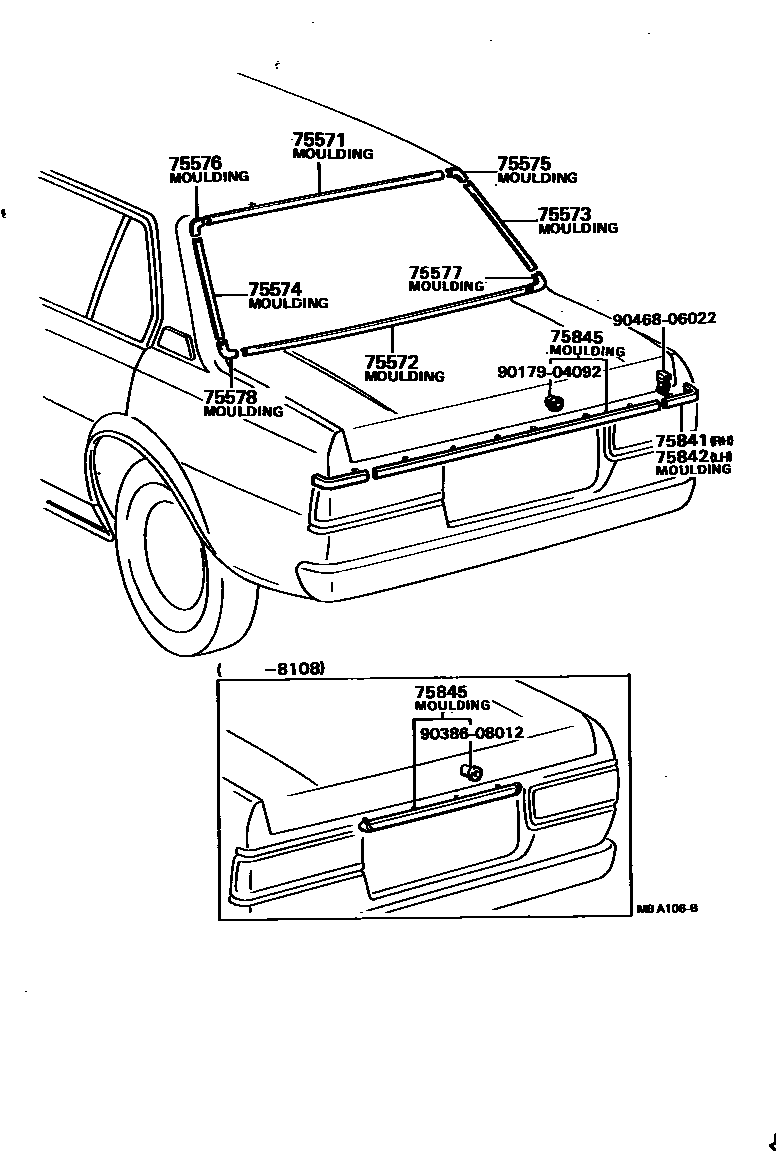

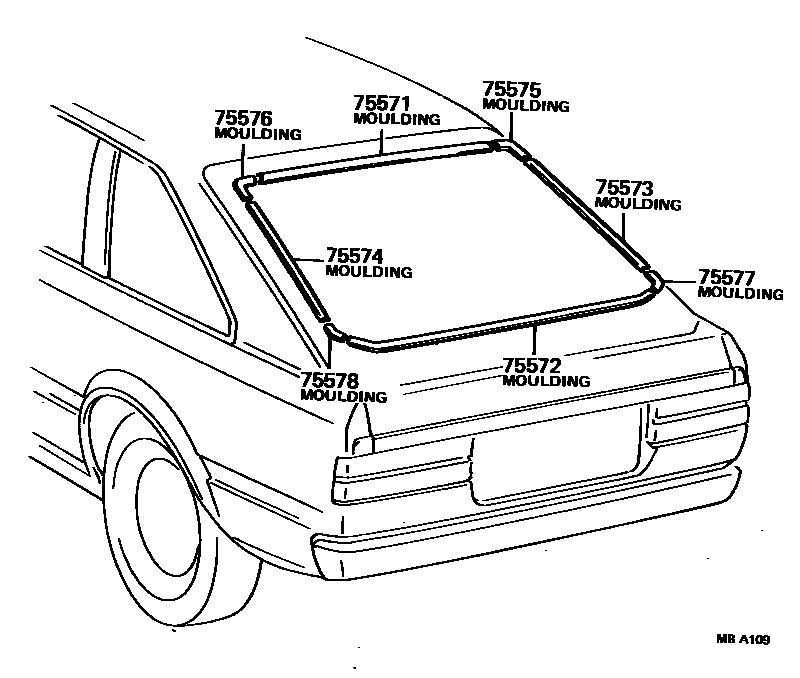

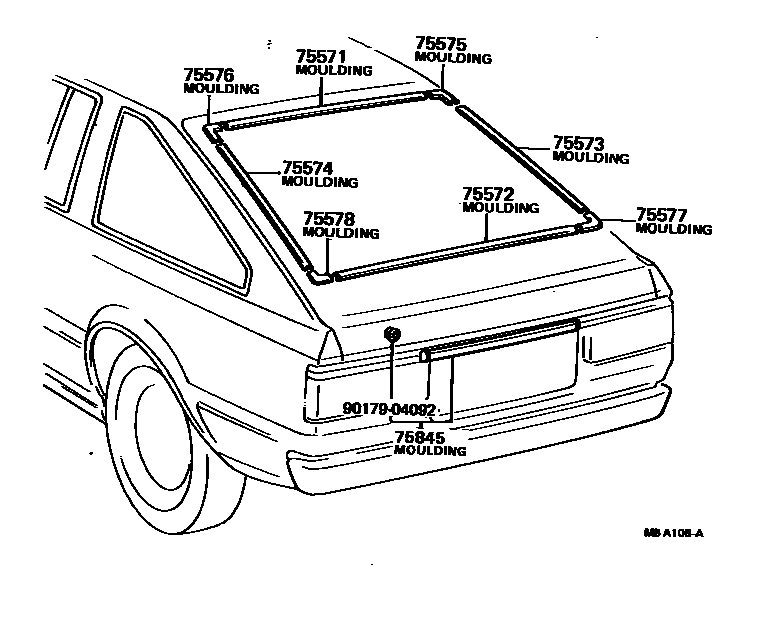

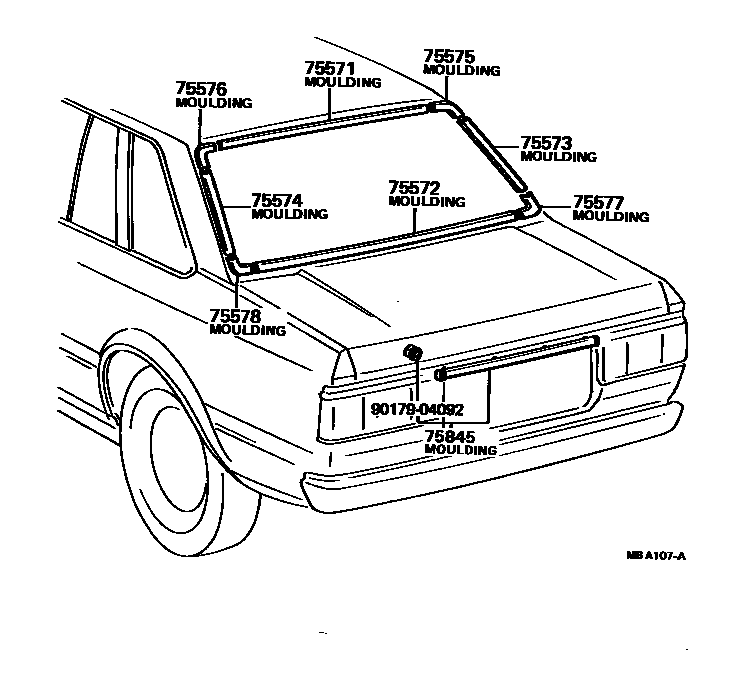

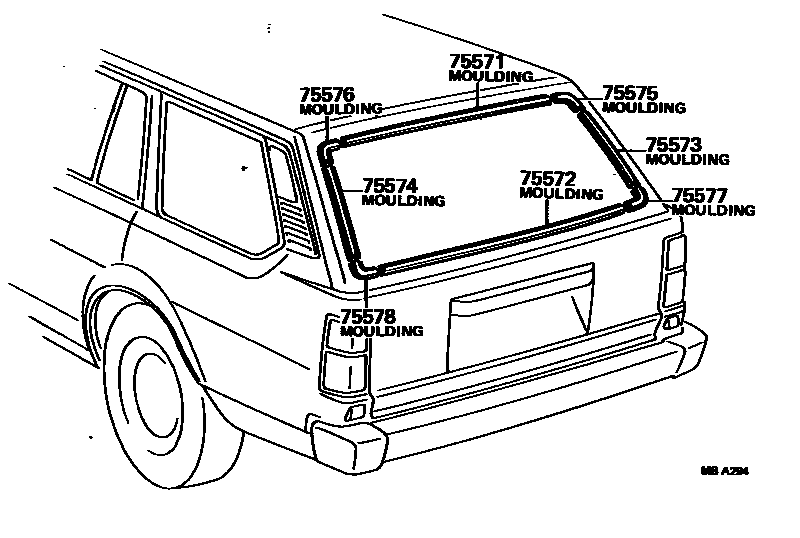

Toyota COROLLA EPC diagram 7504, 后防护条, with 5 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75571 | Protective strips on the outside of the rear window | 75571-12190 · 75571-12200 · 75571-12220 · 75571-12230 · 75571-13030 |
| 75572 | Protective strip under rear window | 75575-12130 · 75575-12140 · 75575-12160 · 75575-12170 · 75575-13010 |
| 75573 | Right protective strip on rear window side | 75573-12170 · 75573-12180 · 75573-12200 · 75573-12210 · 75573-13030 |
| 75574 | Protective strip on the left side of the rear window | 75573-12170 · 75573-12180 · 75573-12200 · 75573-12210 · 75573-13030 · 75574-12110 |
| 75575 | Protective strip on the upper right side of the rear window corner | 75581-12090 · 75581-12120 · 75581-12130 · 75581-13010 |
| 75576 | Protective strip on the upper left corner of the back window | 75581-12090 · 75581-12120 · 75581-12130 · 75581-13010 |
| 75577 | Protective strip on the lower right corner of the back window | 75583-12070 · 75583-12080 · 75583-12100 · 75583-12110 · 75583-13010 |
| 75578 | Protective strip at lower left corner of rear window | 75583-12070 · 75583-12080 · 75583-12100 · 75583-12110 · 75583-13010 |
| 75841 | Right body lower back panel protection strip | 75834-12020 |
| 75842 | Left body lower back panel protective strip | 75835-12020 |
| 75845 | Body lower back panel center protective strip | 75803-19035 · 75840-19025 · 75840-19035 · 75840-19045 · 75840-19075 · 75840-19076 · 75840-19095 |
