Toyota COROLLA 侧防护条 — Figure 7503

Toyota COROLLA EPC diagram 7503, 侧防护条, with 7 images and 58 PNC and OE references.

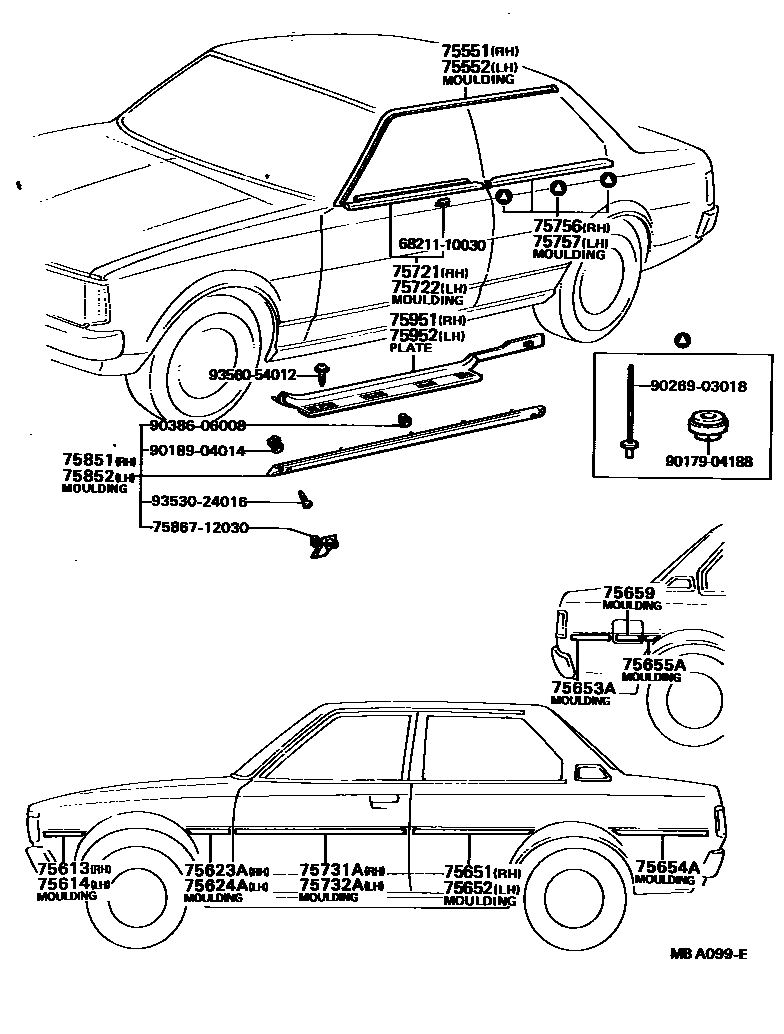

Toyota COROLLA 侧防护条 EPC diagram — MBA099E
侧防护条 — MBA099E (197903 – 198304)

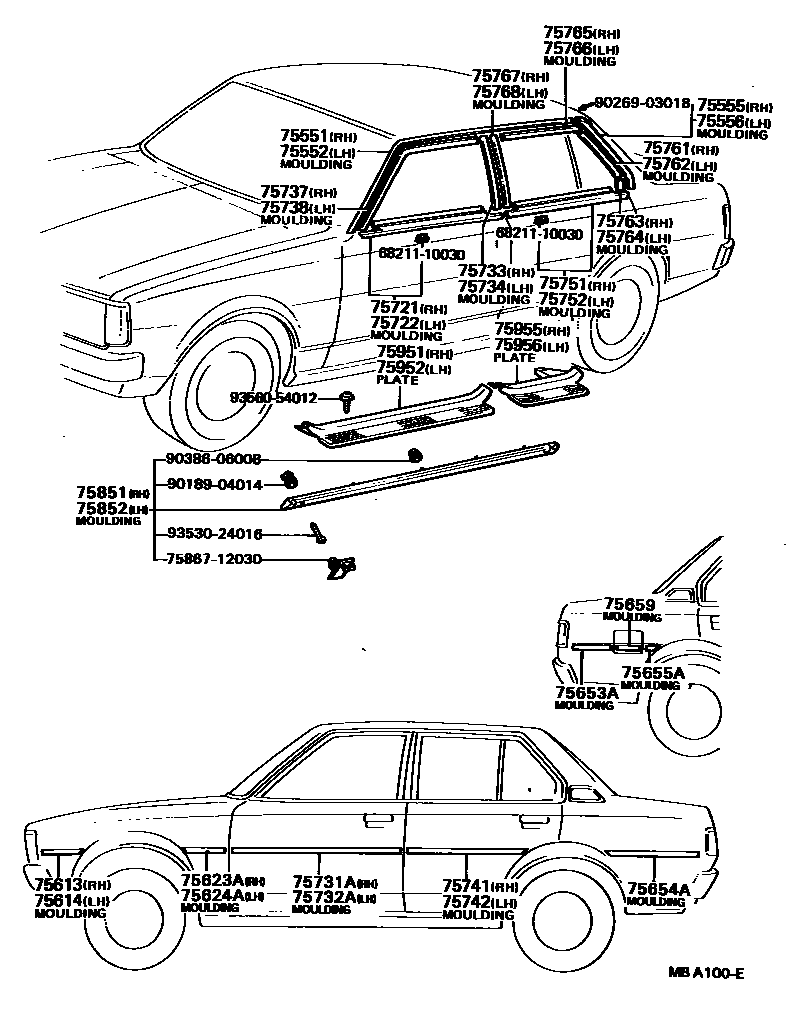

Toyota COROLLA 侧防护条 EPC diagram — MBA100E
侧防护条 — MBA100E (197903 – 198304)

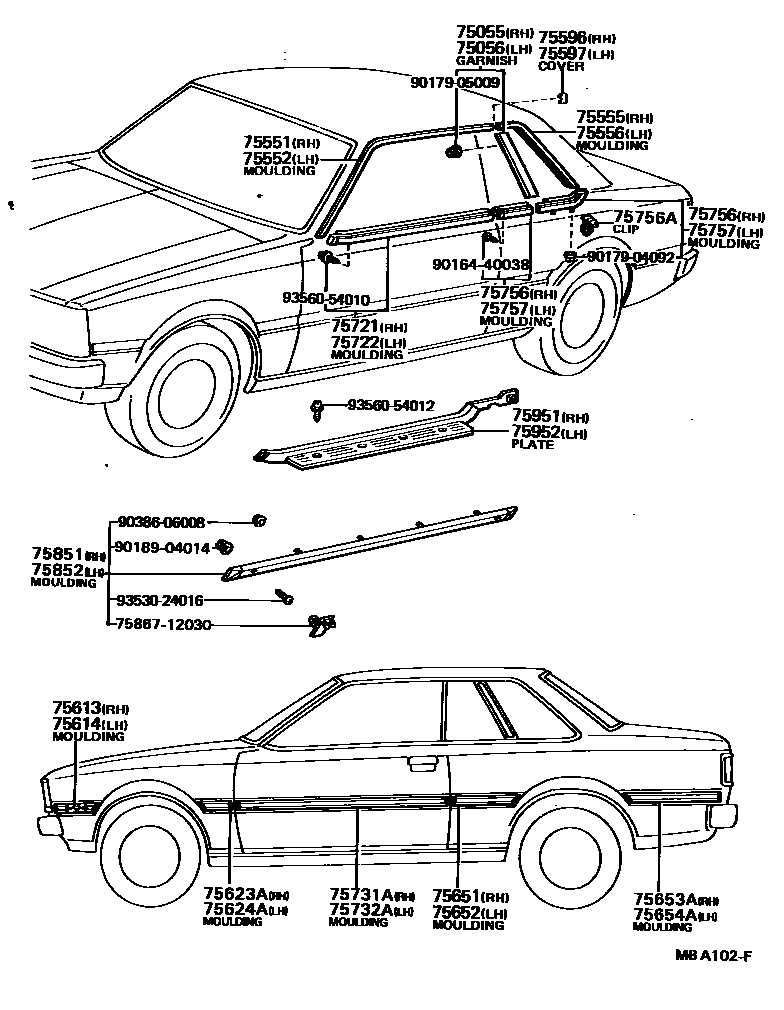

Toyota COROLLA 侧防护条 EPC diagram — MBA102F
侧防护条 — MBA102F (197903 – 198304)

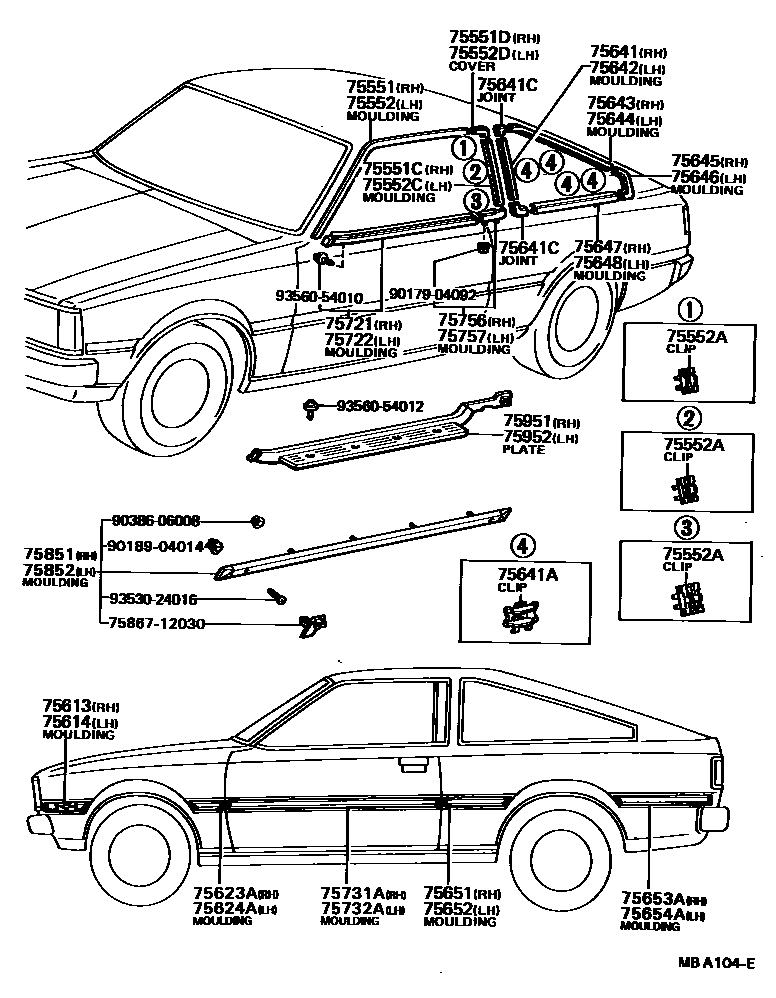

Toyota COROLLA 侧防护条 EPC diagram — MBA104E
侧防护条 — MBA104E (197903 – 198304)

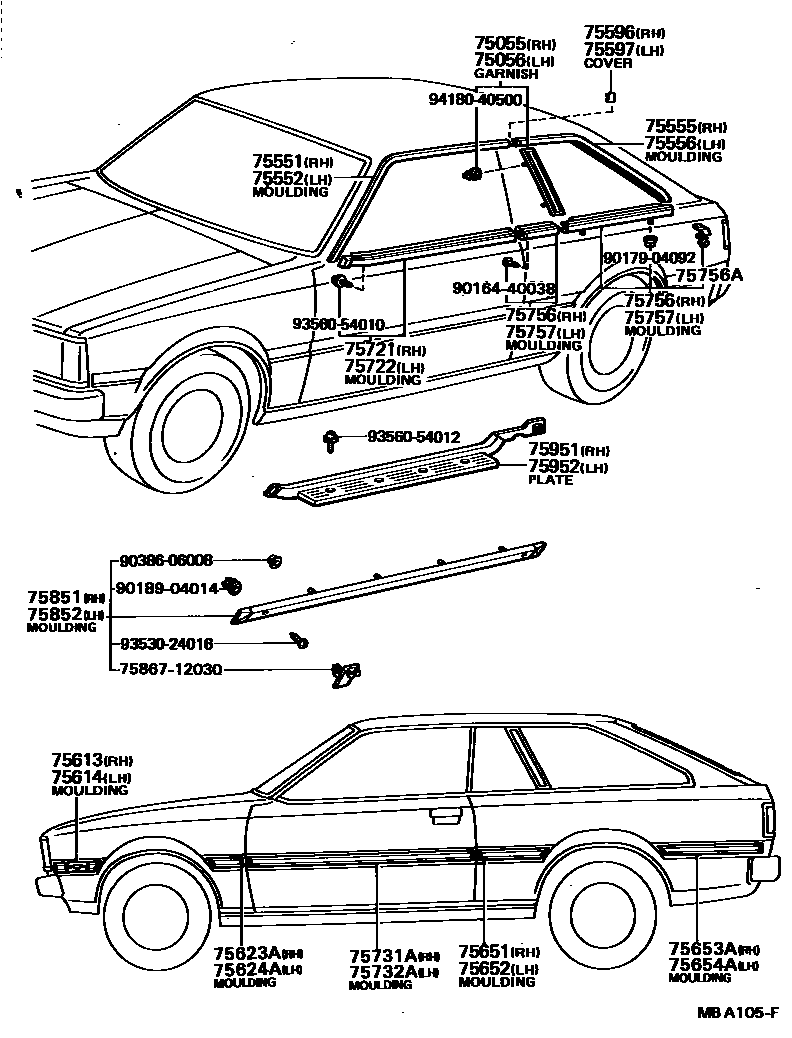

Toyota COROLLA 侧防护条 EPC diagram — MBA105F
侧防护条 — MBA105F (197903 – 198304)

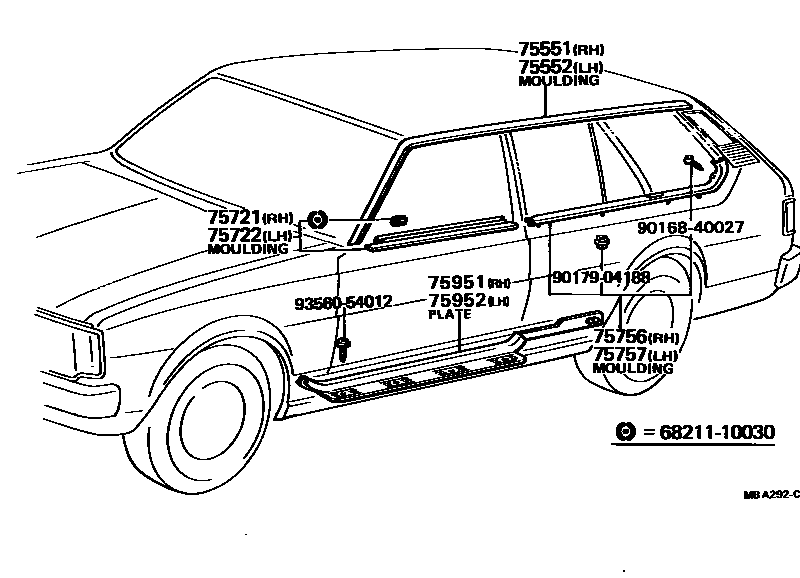

Toyota COROLLA 侧防护条 EPC diagram — MBA292C
侧防护条 — MBA292C (197908 – 999999)

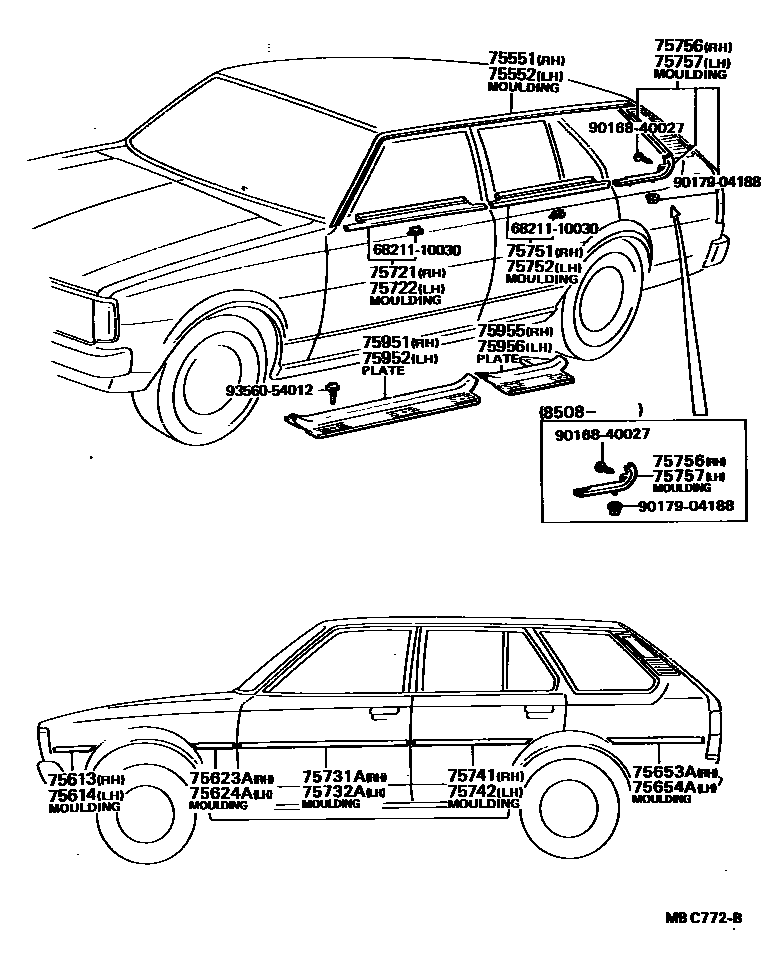

Toyota COROLLA 侧防护条 EPC diagram — MBC772B
侧防护条 — MBC772B (197908 – 999999)

PNC and OE references

PNCPart nameOE numbers
75055Right side column outer decorative panel75555-19015 · 75555-19025 · 75555-19066 · 75555-19075 · 75555-19085 · 75555-19095
75056Left side column outer decorative panel75556-19015 · 75556-19025 · 75556-19066 · 75556-19075 · 75556-19085 · 75556-19095
75551Drainage groove side decorative strip on the right side of the roof75551-12210 · 75551-12230 · 75551-12240 · 75551-12260 · 75551-12270 · 75551-13050 · 75551-13060
75551CRight center panel outer protective strip75655-12050 · 75655-12060
75551DCover (for the outer protective strip of the right center panel)75578-12020 · 75578-12030
75552Drainage groove side decorative strip on the left side of the roof75552-12210 · 75552-12230 · 75552-12240 · 75552-12260 · 75552-12270 · 75552-13050 · 75552-13060
75552ACenter side panel outer protective strip clip75395-12020 · 75396-12020 · 75397-12020
75552CLeft center panel outer protective strip75656-12050 · 75656-12060
75552DCover (for left center panel outer protective strip)75579-12010 · 75579-12020
75555Decorative strip on the right side of the roof, rear gutter side75055-12060 · 75055-12070 · 75055-12080 · 75055-12090 · 75553-19075
75556Decorative strip on the left side of the roof, rear gutter side75056-12060 · 75056-12070 · 75056-12080 · 75056-12090 · 75554-19075
75596Drainage channel side decorative strip joint cover on the right side of the roof75596-12080
75597Drainage channel side decorative strip joint cover on the left side of the roof75596-12080
75613Right front fender outer protective strip75611-12160 · 75611-12240 · 75611-12900 · 75611-12904 · 75611-13040 · 75611-13090 · 75611-13120
75614Left front fender outer protective strip75612-12120 · 75612-12200 · 75612-12900 · 75612-12904 · 75612-13040 · 75612-13090 · 75612-13120
75623ARight front fender outer rear protective strip75623-12020 · 75623-12060 · 75623-12090 · 75623-12140 · 75623-12900 · 75623-12901 · 75623-13050 · 75623-13080
75624ALeft front fender outer rear protective strip75624-12020 · 75624-12060 · 75624-12090 · 75624-12140 · 75624-12900 · 75624-12901 · 75624-13050 · 75624-13080
75641Right front corner window outer protective strip75641-12080 · 75641-12090
75641AClip (for corner window protective strip)75395-12020
75641CCorner window protective strip joint76651-12010 · 76651-12020 · 76652-12010 · 76652-12020 · 76653-12010 · 76653-12020 · 76654-12010 · 76654-12020
75642Left front corner window protection strip75642-12080 · 75642-12090
75643Protective strip on the outside of the right corner window75643-12010 · 75643-12020
75644Protective strip on the outside of the left corner window75644-12010 · 75644-12020
75645Right rear corner window protection strip75645-12010 · 75645-12020
75646Left rear corner window protection strip75646-12010 · 75646-12020
75647Right corner window outer lower protective strip75647-12010 · 75647-12020
75648Left corner window outer lower protective strip75648-12010 · 75648-12020
75651Right side outer protective strip75651-12210 · 75651-12270 · 75651-12914 · 75651-12915
75652Left side outer protective strip75652-12210 · 75652-12270 · 75652-12914 · 75652-12915
75653ARight rear side panel outer protective strip75653-12190 · 75653-12250 · 75653-12900 · 75653-12901 · 75653-13050 · 75653-13110 · 75653-13140
75654ALeft rear side panel outer protective strip75654-12160 · 75654-12230 · 75654-12900 · 75654-12901 · 75654-13050 · 75654-13110 · 75654-13140
75655ARight center panel outer protective strip75655-12070 · 75655-12100
75659Fuel filler cap protective strip75659-12010 · 75659-12040
75721Right front door waistline protection strip75710-12150 · 75710-12160 · 75710-12270 · 75710-13010 · 75710-13020 · 75710-19035 · 75710-19036 · 75710-19037 · 75710-19045 · 75710-19046 · 75710-19047 · 75710-19075 · 75710-19085
75722Left front door waistline protection strip75720-12150 · 75720-12160 · 75720-12270 · 75720-13010 · 75720-13020 · 75720-19035 · 75720-19036 · 75720-19037 · 75720-19045 · 75720-19046 · 75720-19047 · 75720-19075 · 75720-19085
75731ARight front door outer protective strip75731-12260 · 75731-12270 · 75731-12320 · 75731-12330 · 75731-12900 · 75731-12901 · 75731-13080 · 75731-13110
75732ALeft front door outer protective strip75731-12260 · 75731-12270 · 75731-12900 · 75731-12901 · 75732-12160 · 75732-12170 · 75732-13080 · 75732-13110
75733Right front door window frame rear protective strip75755-12050
75734Left front door window frame rear protective strip75756-12070
75737Right front door window frame front protective strip75751-12130
75738Left front door window frame front protective strip75752-12130
75741Right rear door outer protective strip75741-12150 · 75741-12180 · 75741-13070 · 75741-13100
75742Left rear door outer protective strip75742-12140 · 75742-12170 · 75742-13060 · 75742-13090
75751Right rear door waistline protection strip75730-12030 · 75730-13010
75752Left rear door waistline protection strip75740-12120 · 75740-13010
75756Right corner window decorative strip75067-19035 · 75067-19045 · 75608-19035 · 75608-19045 · 75608-19055 · 75608-19075 · 75660-13070 · 75660-19175 · 75660-19185 · 75660-19195 · 75660-19205 · 75660-19215
75756AWaistline side protective strip clip75791-12010
75757Left corner window decorative strip75068-19035 · 75068-19045 · 75609-19045 · 75609-19055 · 75609-19065 · 75609-19075 · 75670-13070 · 75670-19175 · 75670-19185 · 75670-19195 · 75670-19205 · 75670-19215
75761Right rear door window frame rear protective strip75765-12060
75762Left rear door window frame rear protective strip75766-12060
75763Right rear door window frame rear lower protective strip75767-12030
75764Left rear door window frame rear lower protective strip75768-12030
75765Protective strip on right rear door window frame75763-12030
75766Protective strip on left rear door window frame75764-12030
75767Right rear door window frame front protective strip75761-12030
75768Left rear door window frame front protective strip75762-12030
75851Right side door sill panel protective strip75850-19115 · 75850-19125
75852Left side door sill panel protective strip75860-19115 · 75860-19125
