Toyota COROLLA 扶手和遮阳板 — Figure 7401

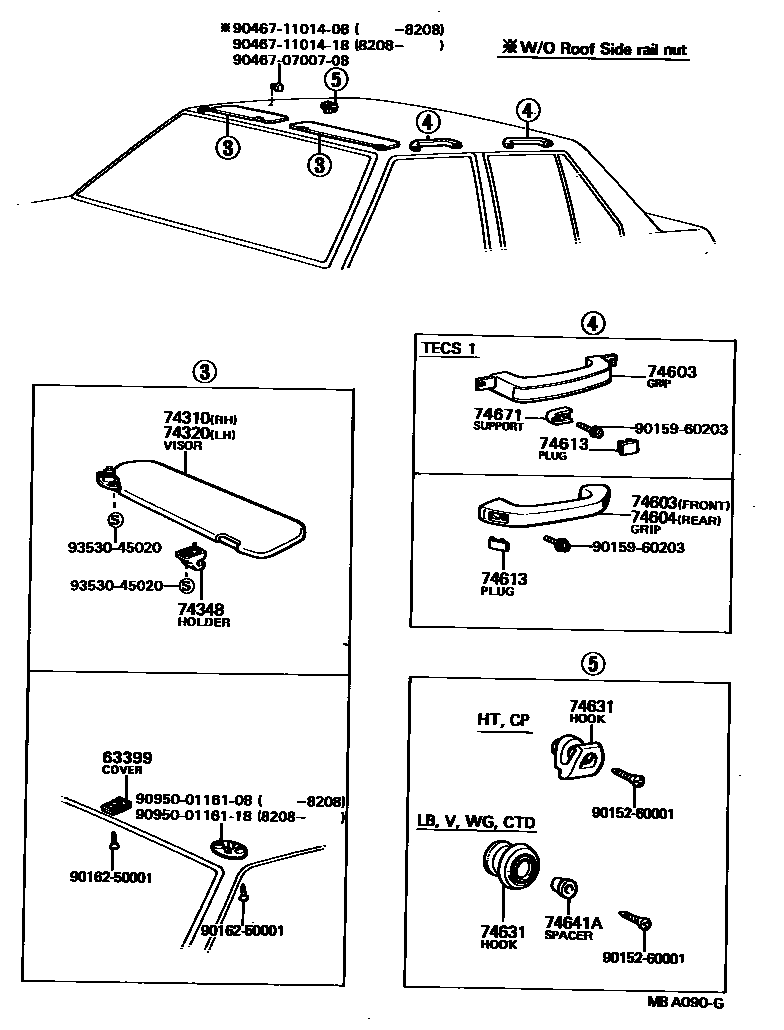

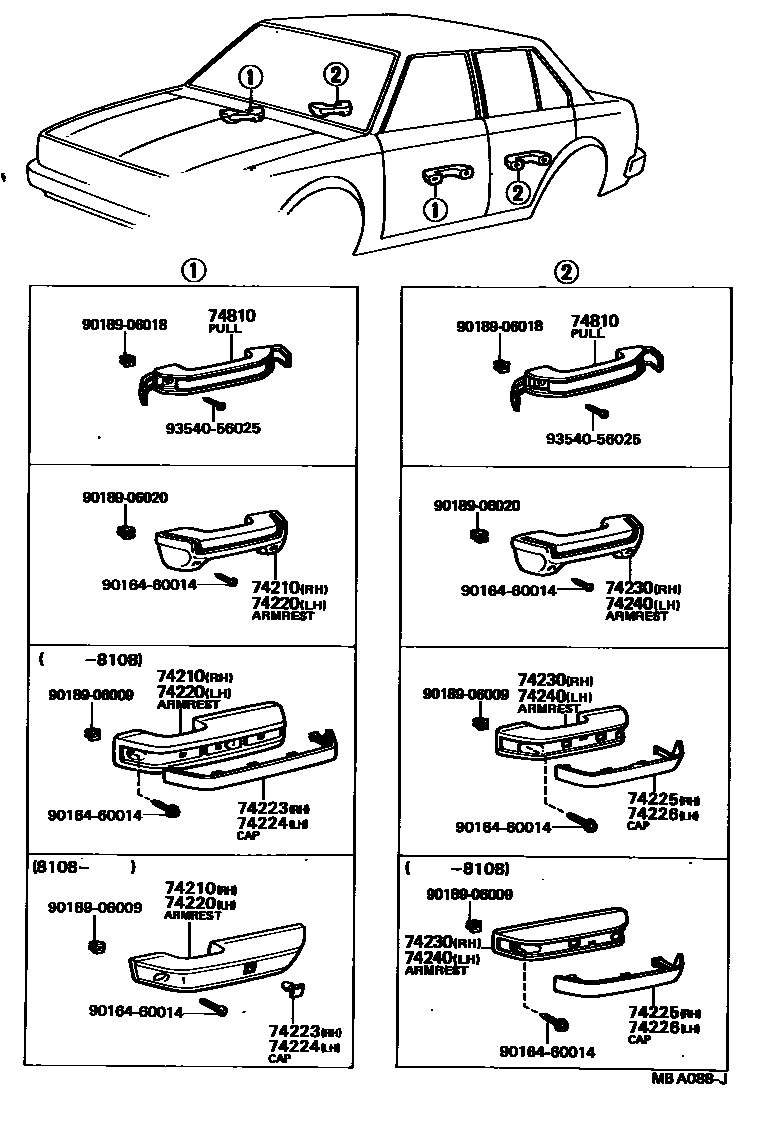

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74310 | Right sun visor assembly | 74310-12110 · 74310-12111 · 74310-12130 · 74310-12131 · 74310-12140 · 74310-12141 · 74310-12150 · 74310-12151 · 74310-12220 · 74310-12260 · 74310-12261 · 74310-12280 · 74310-12290 · 74310-12300 · 74310-13050 · 74310-13060 |
| 74320 | Left sun visor assembly | 74320-12140 · 74320-12141 · 74320-12160 · 74320-12161 · 74320-12170 · 74320-12171 · 74320-12180 · 74320-12181 · 74320-12270 · 74320-13040 |
| 74641A | Spacers (for coat hooks) | 74634-12010 |
