Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 4 images and 2 PNC and OE references.

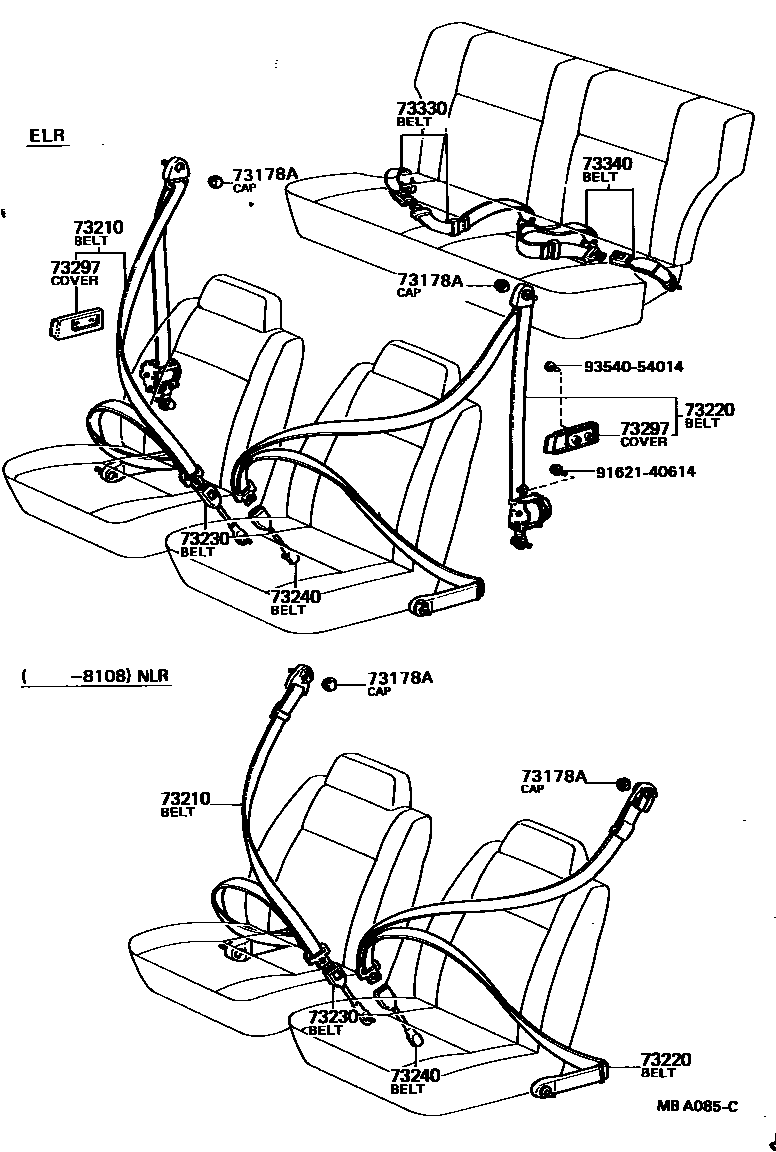

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — MBA085C — 安全带和儿童保护座椅 — MBA085C (197903 – 198308)

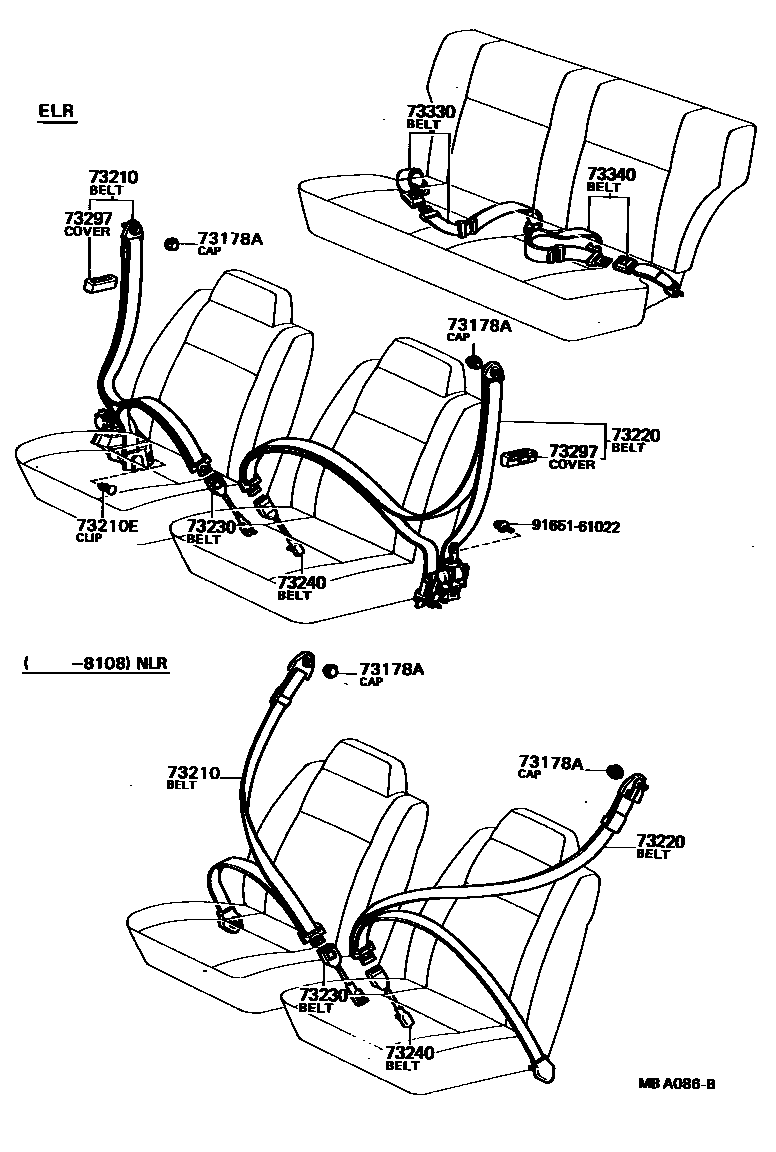

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — MBA086B — 安全带和儿童保护座椅 — MBA086B (197903 – 198308)

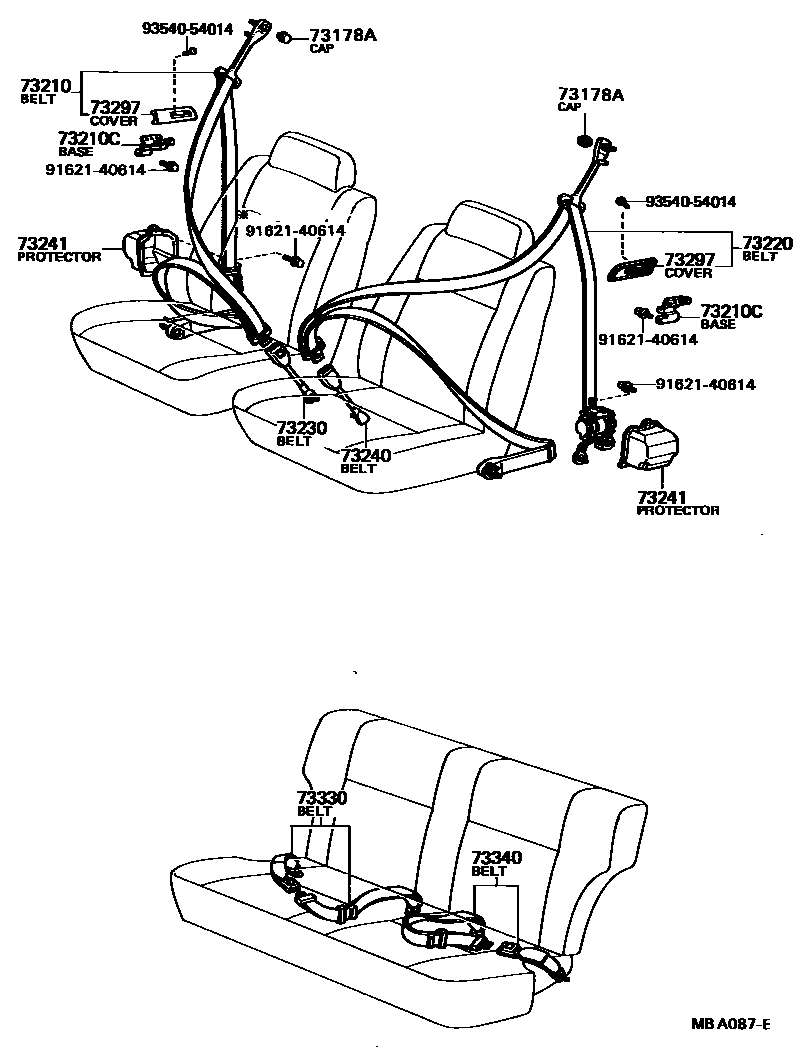

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — MBA087E — 安全带和儿童保护座椅 — MBA087E (197903 – 198304)

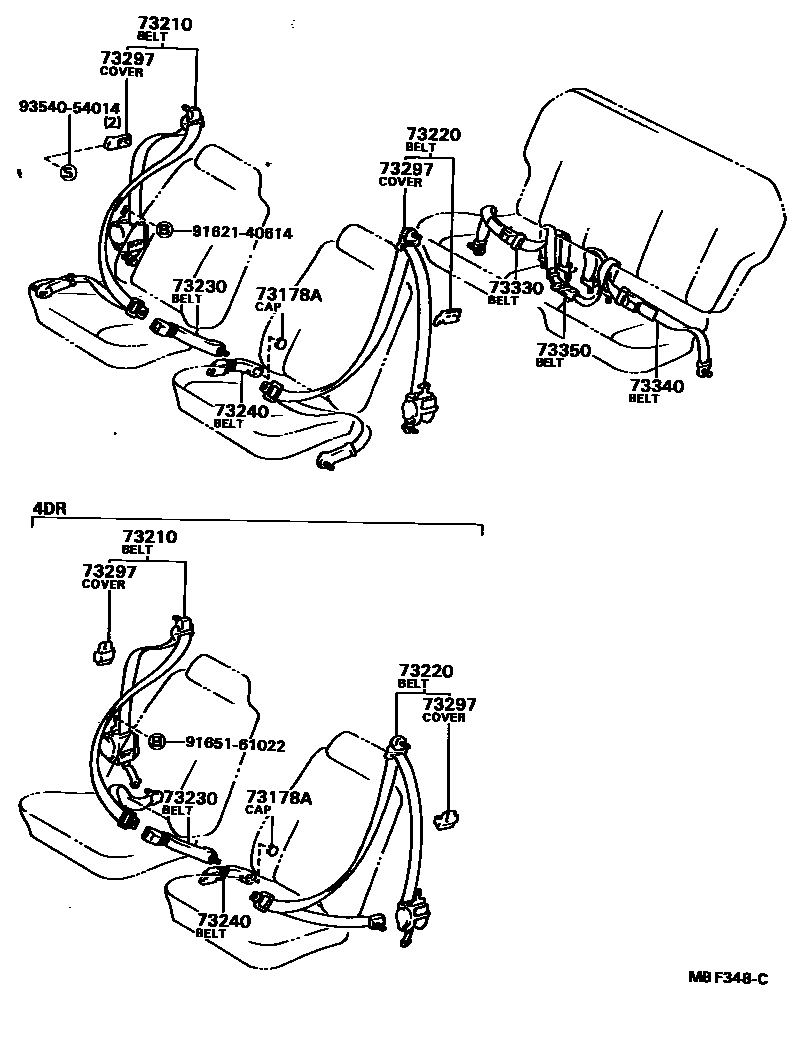

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — MBF348C — 安全带和儿童保护座椅 — MBF348C (198308 – 999999)

PNC and OE references

PNC	Part name	OE numbers
73210C	Seat belt hole cover base on side panel	62535-12070 · 62535-12080 · 62536-12040 · 62536-12050
73241	Seat belt retractor guard or housing	73241-12020 · 73242-12010
