Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

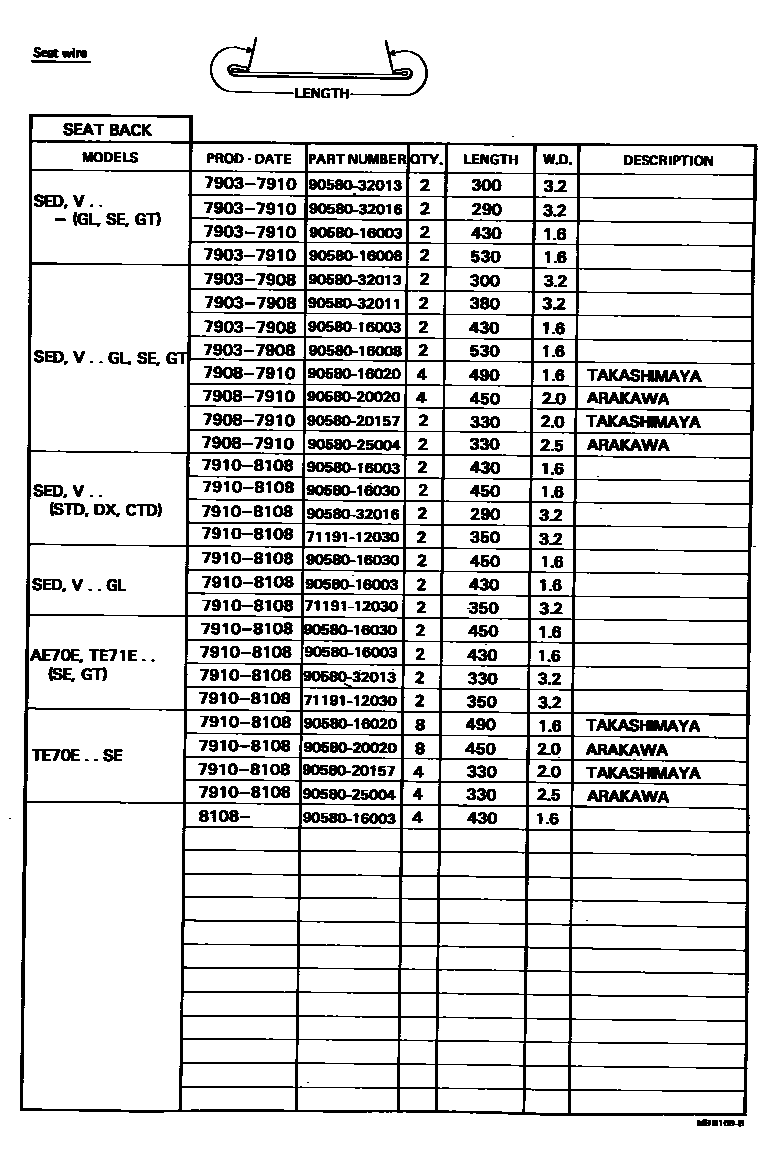

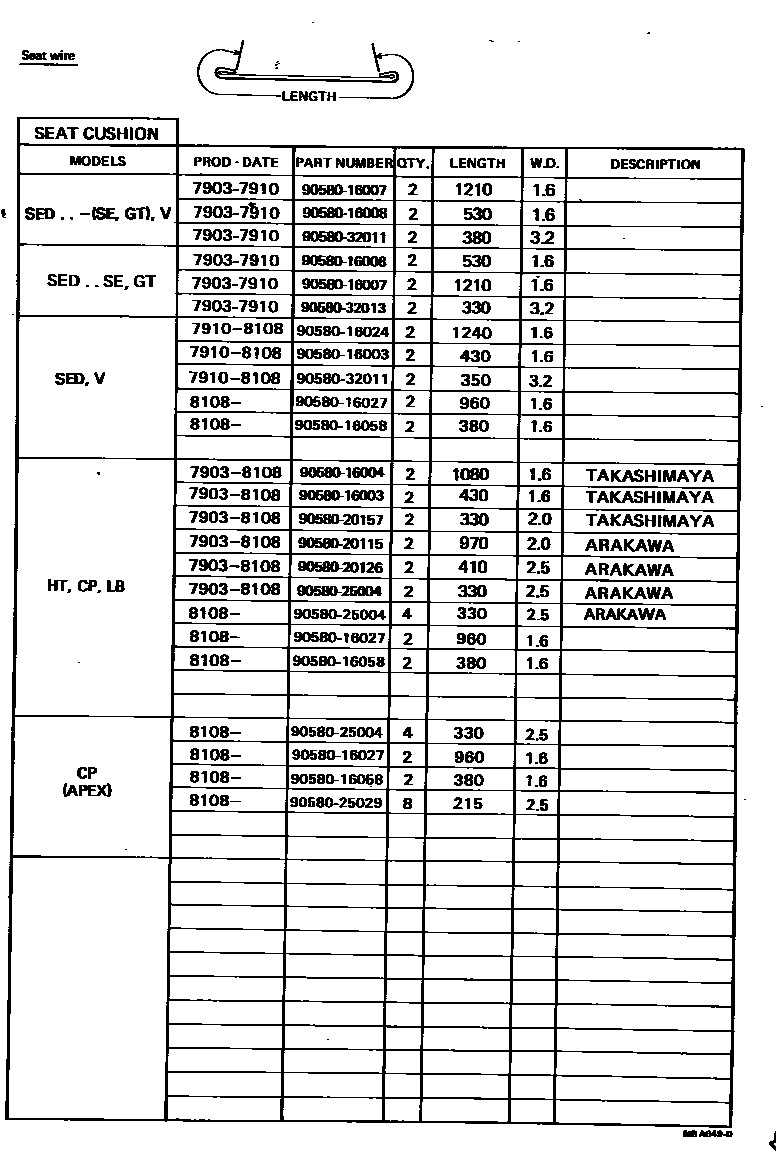

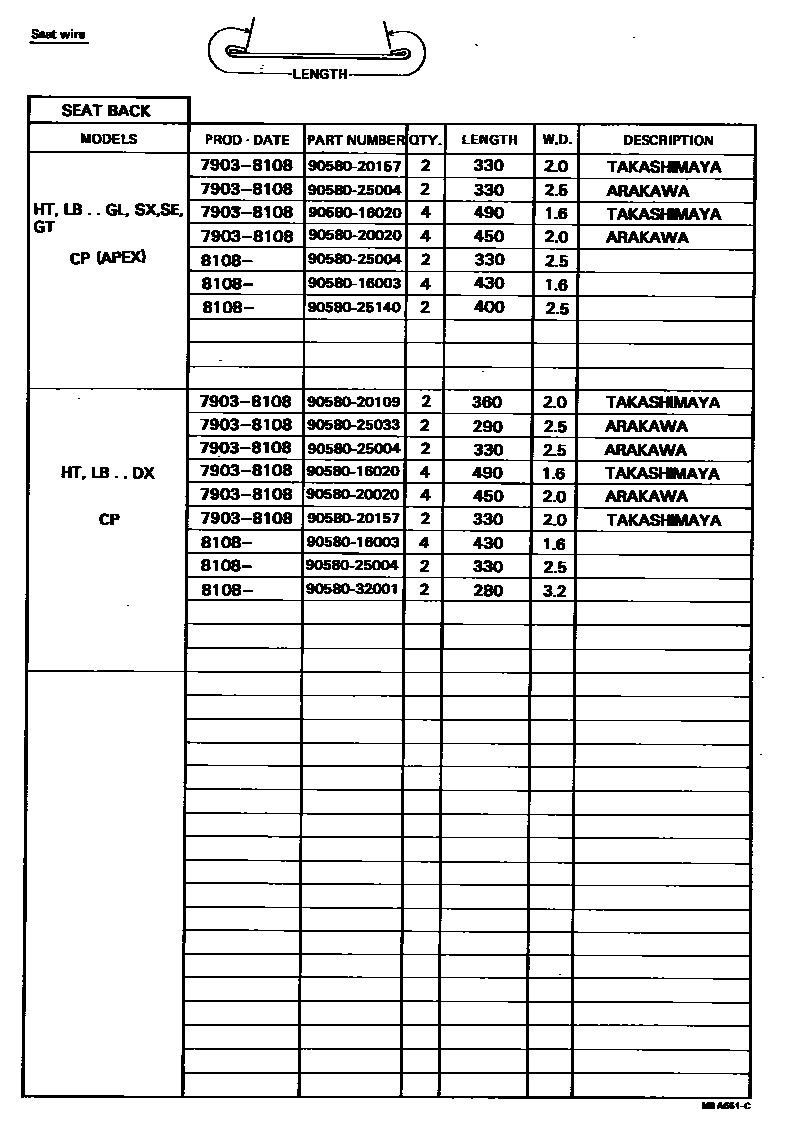

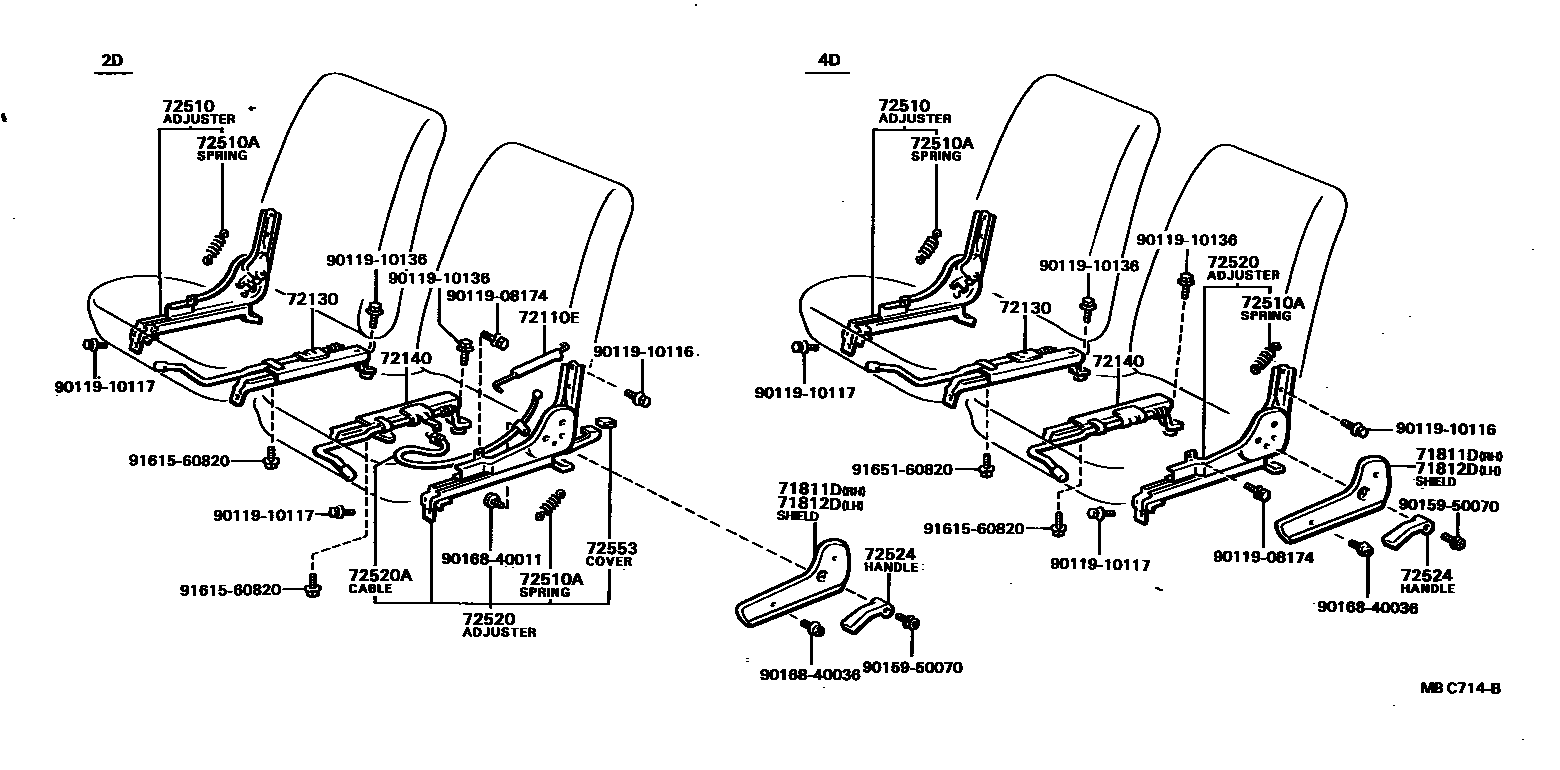

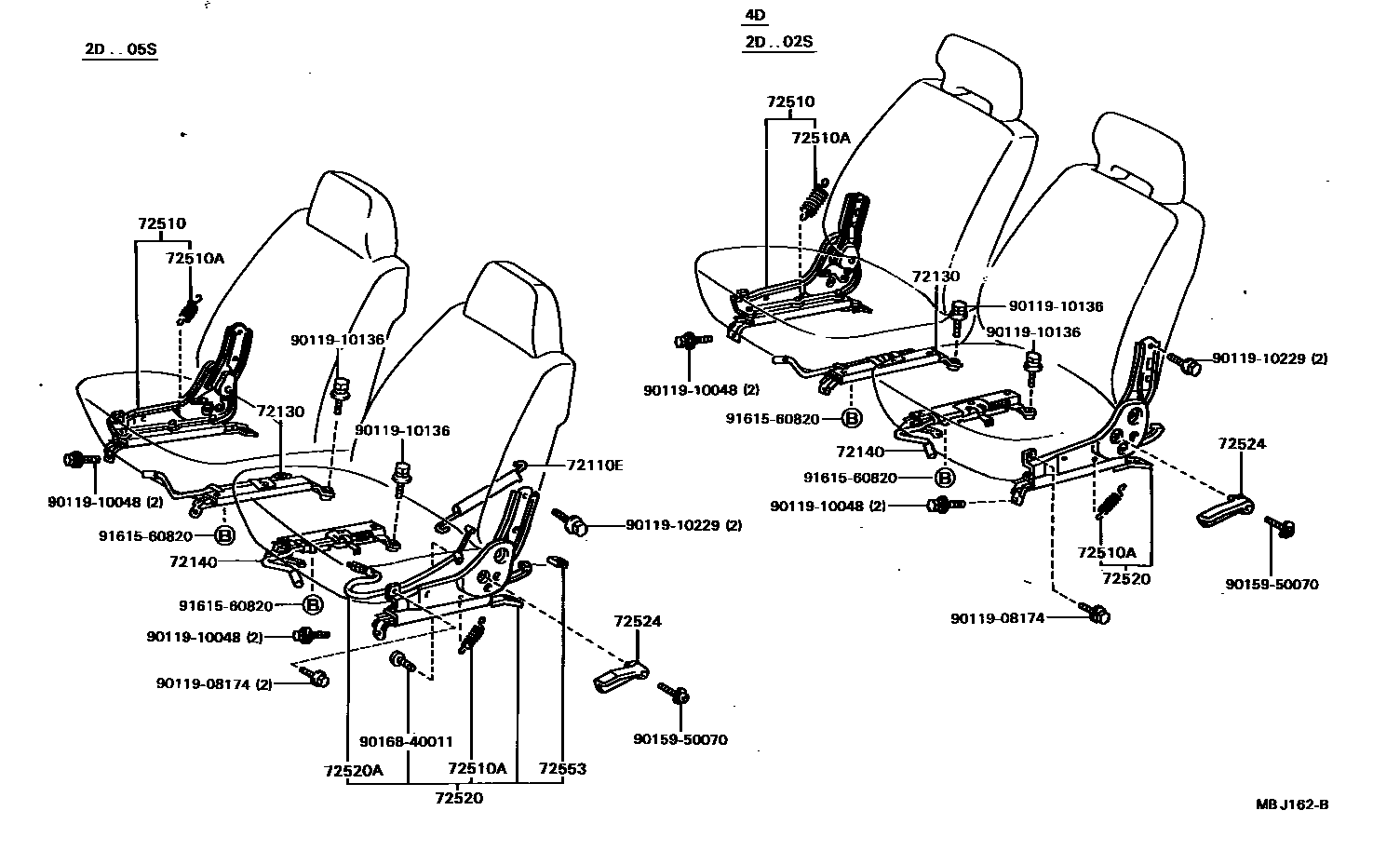

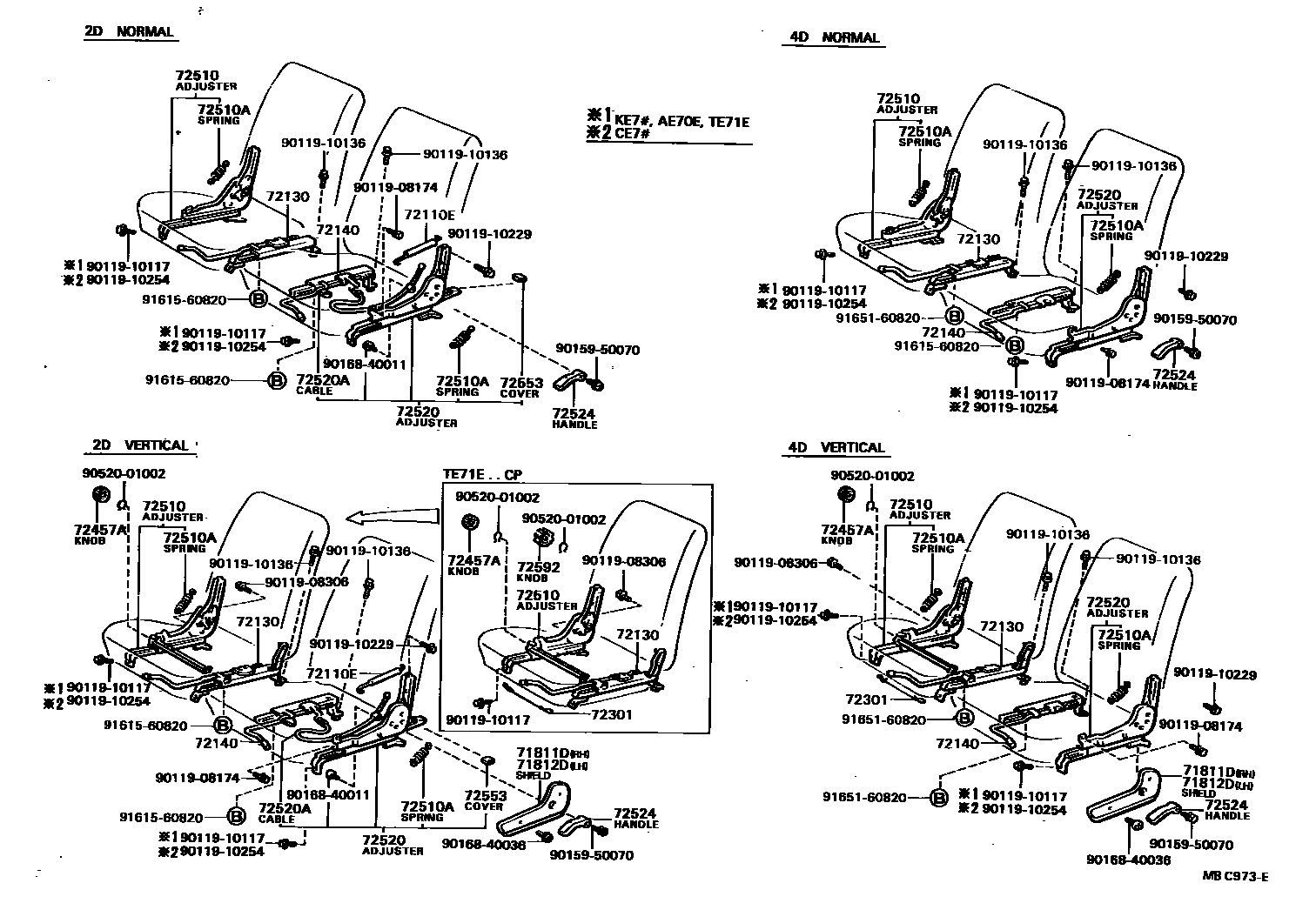

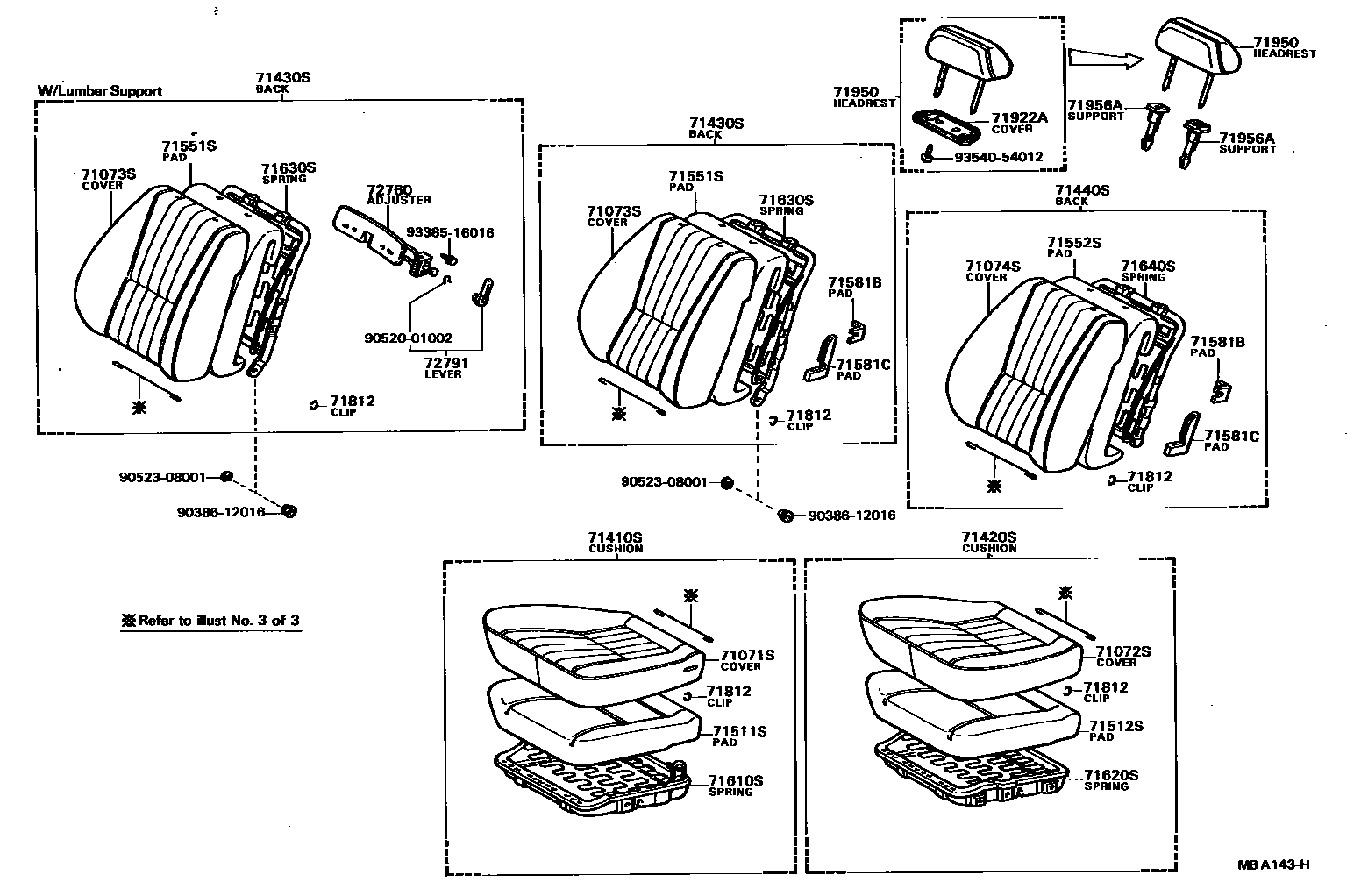

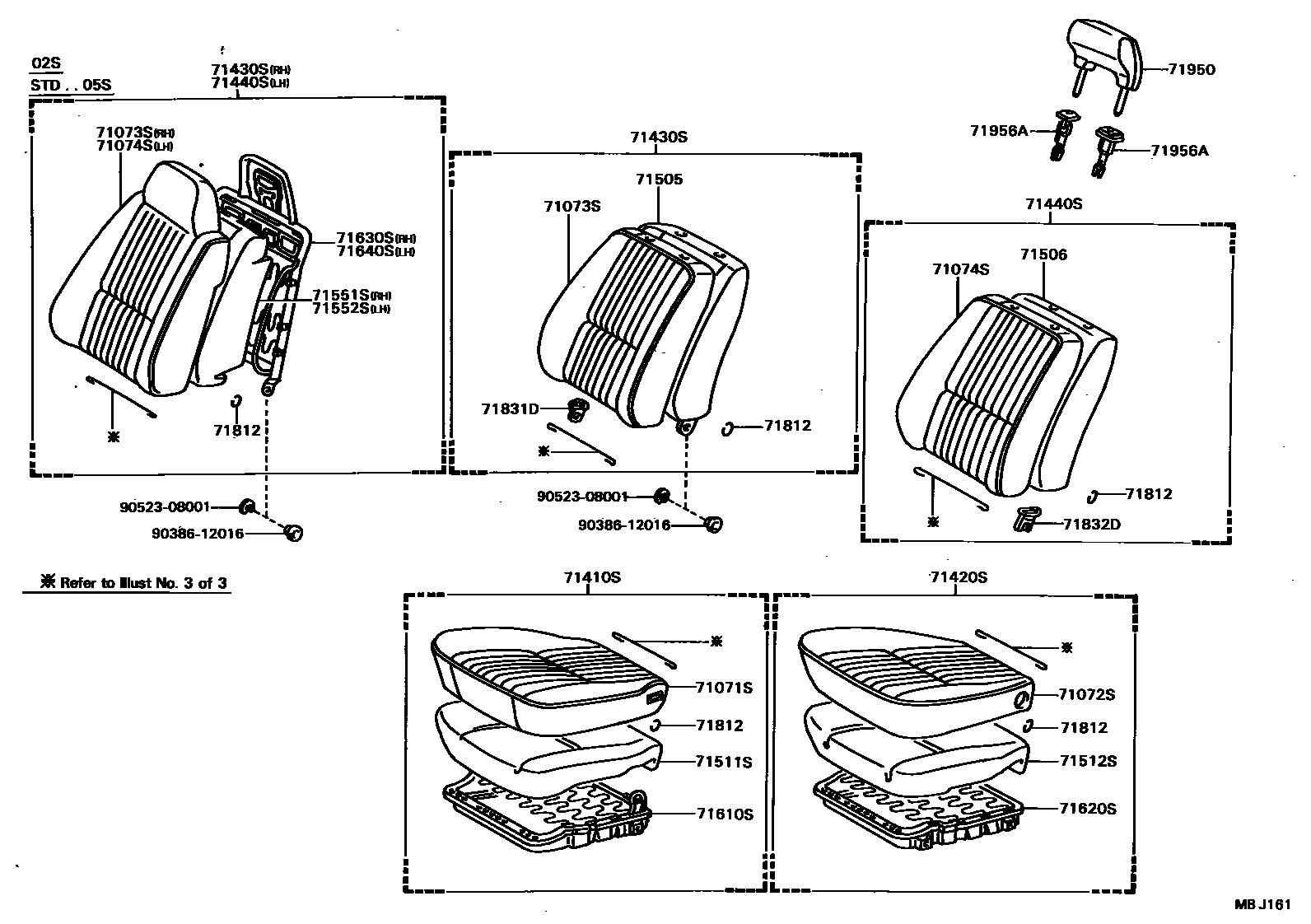

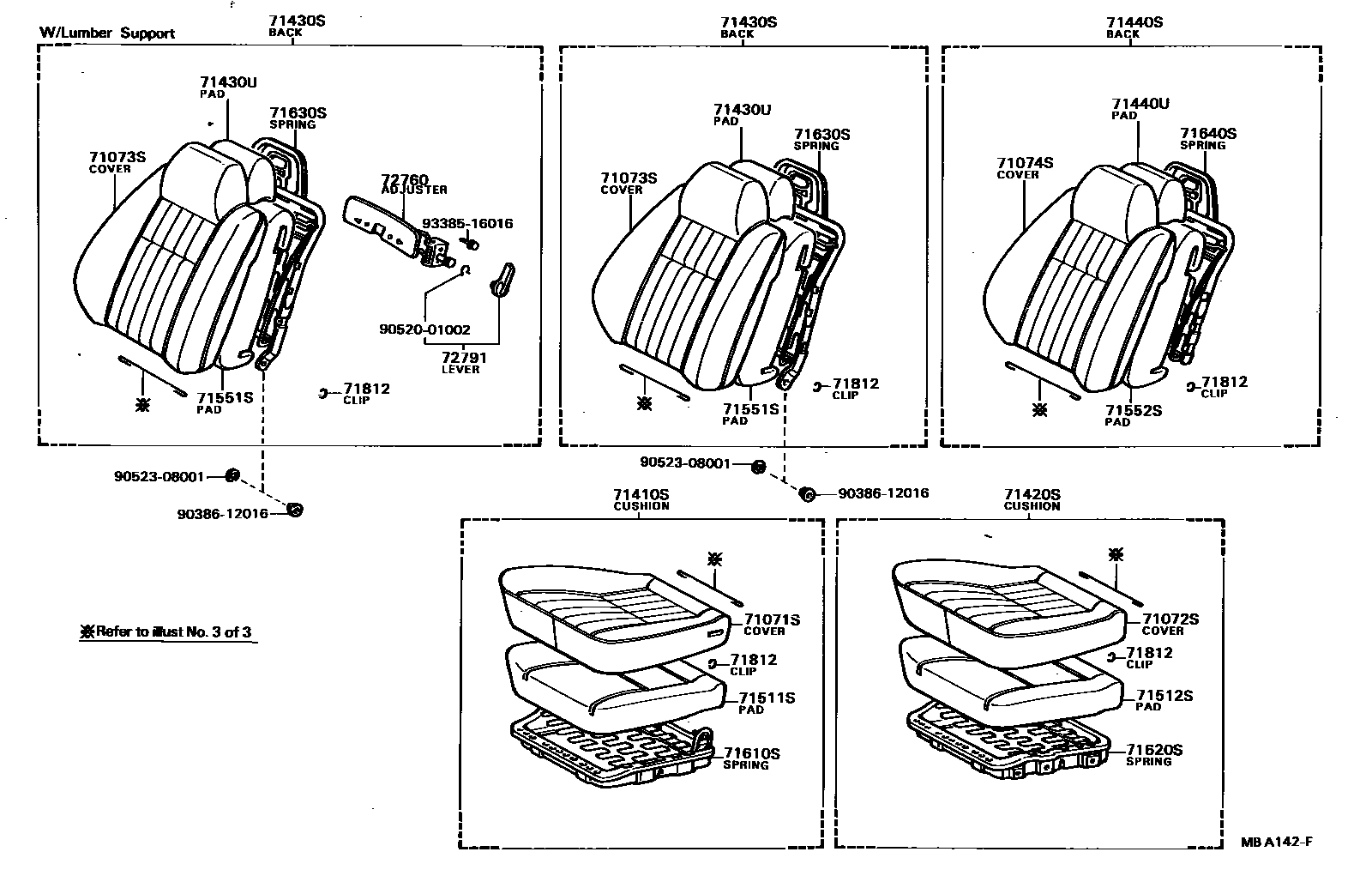

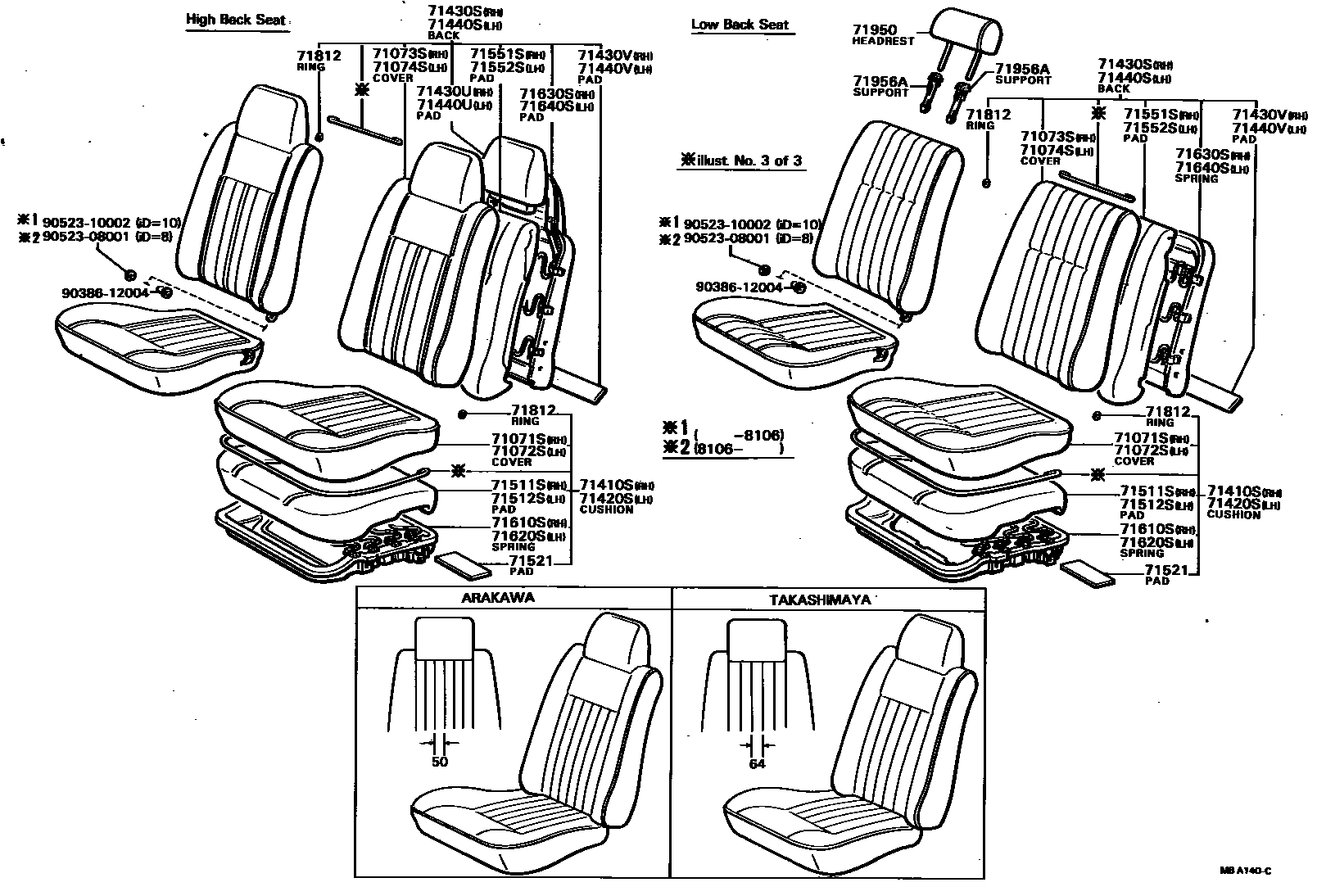

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 10 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71071S | Front right seat cushion cover (for split seats) | 71071-13130 · 71071-1A650 · 71071-1A660 · 71071-1A670 · 71071-1E300 · 71071-1E310 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-13130 · 71072-1A640 · 71072-1A650 · 71072-1A660 · 71072-1E080 · 71072-1E090 |
| 71073S | Front right seat back cover (for split seats) | 71073-13060 · 71073-1A810 · 71073-1A820 · 71073-1E010 · 71073-1E560 · 71073-1E580 |
| 71074S | Front left seat back cover (for split seats) | 71074-12530 · 71074-12860 · 71074-13030 · 71074-1A010 · 71074-1A510 · 71074-1A520 |
| 71410S | Front right seat cushion assembly (for split seats) | 71410-13140 |
| 71420S | Front left seat cushion assembly (for split seats) | 71420-13140 |
| 71430S | Front right seat back assembly (for split seats) | 71430-13070 |
| 71430U | Seat back cushion on the right side of the front row No. 2 (for split seats) | 71561-12140 · 71561-12141 · 71561-12160 · 71561-12170 |
| 71430V | No. 3 seat back cushion on the right side of the front row (for separate type) | 71581-12020 |
| 71440S | Front left seat back assembly (for split seats) | 71440-13070 |
| 71440U | Front left seat No. 2 seat back cushion (for split seats) | 71561-12140 · 71561-12141 · 71561-12160 · 71561-12170 |
| 71440V | Front left seat No. 3 seat back cushion (for split seats) | 71581-12020 |
| 71505 | Front right seat back cushion sub-assembly with frame | 71505-13010 |
| 71506 | Front left seat back cushion sub-assembly with frame | 71506-13010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12290 · 71511-12291 · 71511-12320 · 71511-12321 · 71511-12410 · 71511-12420 · 71511-12430 · 71511-13010 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12290 · 71511-12291 · 71511-12320 · 71511-12321 · 71511-12410 · 71511-12420 · 71511-12430 · 71511-13010 |
| 71521 | Front A seat cushion muffler | 71521-12160 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12280 · 71551-12281 · 71551-12291 · 71551-12300 · 71551-12301 · 71551-12310 · 71551-12311 · 71551-12321 · 71551-12350 · 71551-12380 |
| 71552S | Front left seat back cushion (for split seats) | 71551-12280 · 71551-12281 · 71551-12291 · 71551-12300 · 71551-12301 · 71551-12310 · 71551-12311 · 71551-12321 · 71551-12350 · 71551-12380 |
| 71581B | Front B seat back corner cushions | 71582-12080 |
| 71581C | Front C seat back corner cushions | 71583-12030 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-12110 · 71610-12111 · 71610-12120 · 71610-12130 · 71610-12131 · 71610-12140 · 71610-12150 · 71610-16010 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-12110 · 71620-12111 · 71620-12120 · 71620-12130 · 71620-12131 · 71620-16010 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-10041 · 71630-10051 · 71630-12170 · 71630-12180 · 71630-12190 · 71630-12191 · 71630-12200 · 71630-12210 · 71630-12220 · 71630-12230 · 71630-12240 · 71630-12310 · 71630-16040 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-10041 · 71640-10051 · 71640-12160 · 71640-12170 · 71640-12180 · 71640-12181 · 71640-12190 · 71640-12200 · 71640-12210 · 71640-12270 |
| 71812 | Clip (for front seat cushion cover) | 90468-18071 |
| 71831D | Front right seat hinge cover | 71831-10010 |
| 71832D | Front left seat hinge cover | 71831-10010 |
| 71950 | Front seat headrest assembly | 71910-12190 · 71910-12250 · 71910-12380 · 71910-12420 · 71920-12050 |
| 72110E | No. 1 tensioning spring (for seat slide rail) | 90506-18020 · 90507-18001 · 90507-18013 |
| 72130 | Right seat inner slide rail assembly | 72130-12120 · 72130-12190 · 72130-12200 · 72130-12290 · 72130-13010 |
| 72140 | Left seat inner slide rail assembly | 72140-12100 · 72140-12110 · 72140-12111 · 72140-12170 · 72140-12180 · 72140-12280 · 72140-12290 · 72140-12291 · 72140-13010 · 72140-13020 |
| 72301 | Seat slide rail balance harness sub-assembly | 72301-12020 |
| 72510 | Front right seat backrest tilt adjuster assembly | 72010-12160 · 72010-12230 |
| 72510A | Tension spring No. 1 (for seat back recliner) | 90506-18015 |
| 72520A | Adjuster to seat rail cable | 72210-12050 · 72210-12080 · 72210-13010 |
| 72553 | Seat back tilt pedal cover | 72553-12020 · 72553-12030 · 72553-12040 |
| 72760 | Right lumbar support adjuster assembly | 72750-12010 · 72750-12020 |
