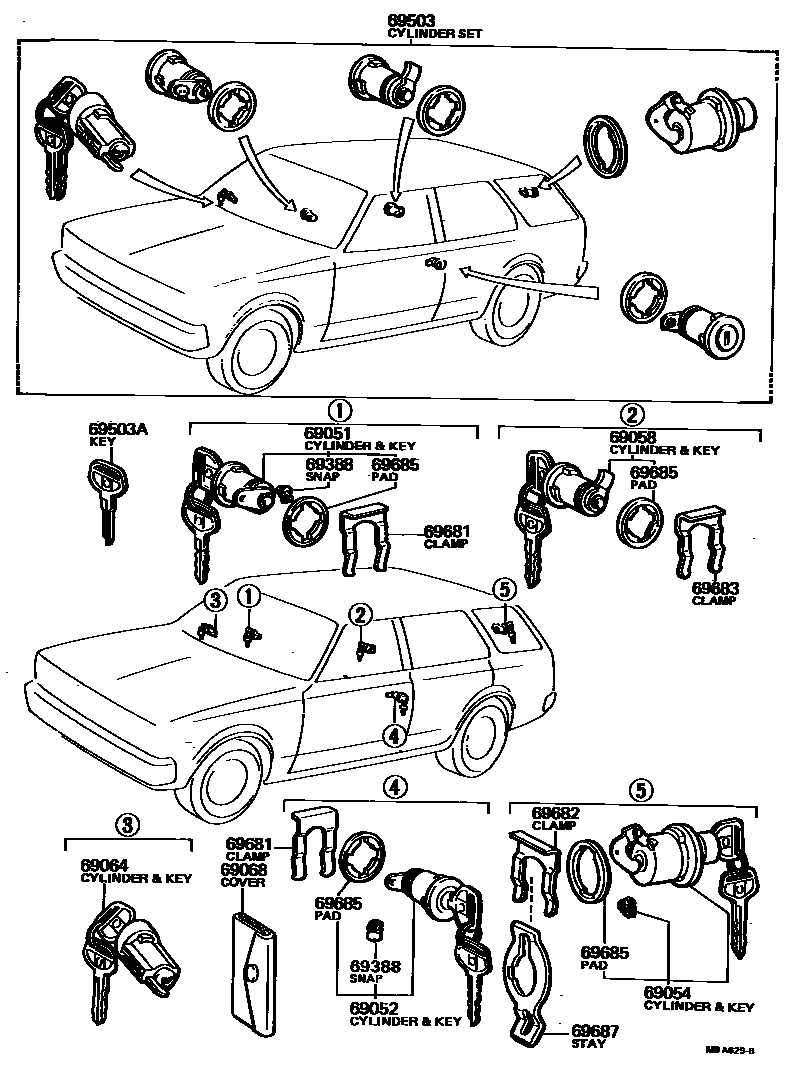

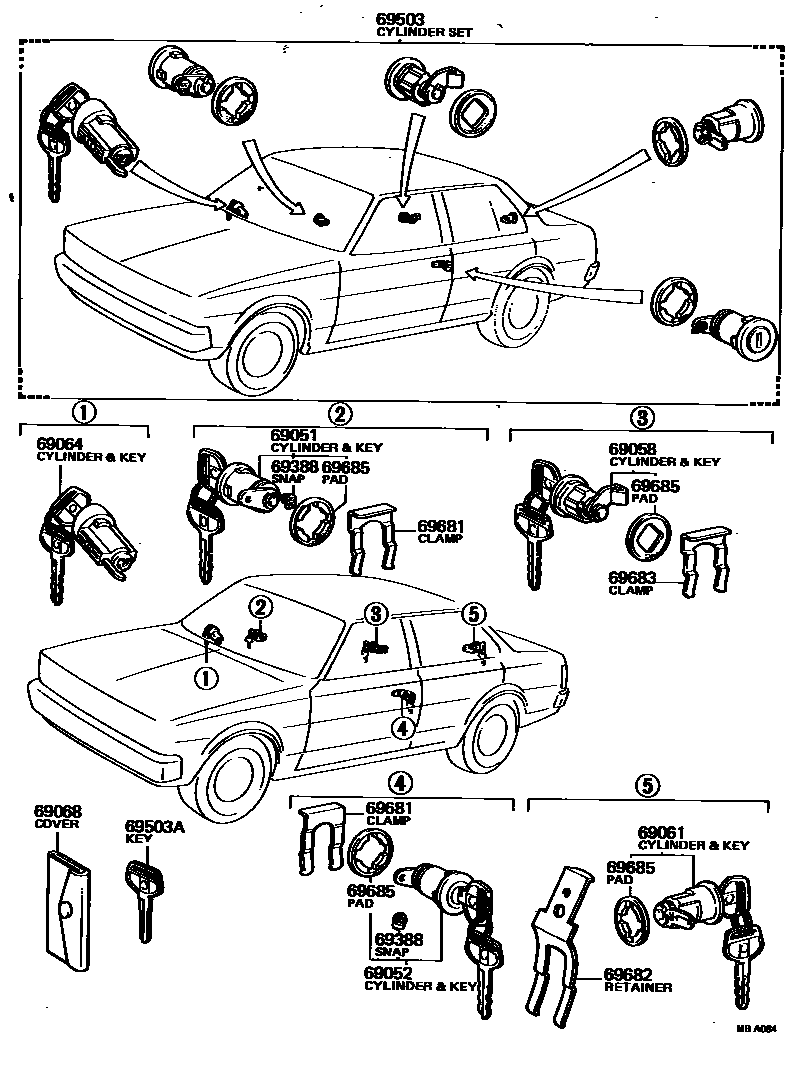

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-19175 · 69051-19176 · 69051-19315 · 69051-29266 · 69051-29285 · 69051-29286 |
| 69052 | Left door lock cylinder and key assembly | 69052-19175 · 69052-19176 · 69052-19315 · 69052-29266 · 69052-29285 · 69052-29286 |
| 69054 | Rear door lock cylinder and key assembly | 69055-19205 · 69055-19365 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-19065 · 69058-19075 · 69058-19175 |
| 69061 | Luggage lock cylinder and key assembly | 69055-19155 · 69055-19165 |
| 69064 | Ignition switch lock cylinder and key assembly | 69057-12030 · 69057-13020 · 69057-13021 · 69057-13022 |
| 69068 | Key cover sub-assembly | 69555-20010 |
| 69388 | Lever clip (for door lock) | 69377-30020 · 69759-24080 · 69759-24090 |
| 69503 | Door lock cylinder components | 69005-12140 · 69005-12160 · 69005-13050 · 69005-13051 · 69005-13052 · 69005-13053 · 69005-13054 |
| 69503A | external tooth key | 90999-00066 · 90999-00067 |
| 69681 | Door lock cylinder and sleeve clip | 69681-20040 |
| 69682 | Lock cylinder fixing parts | 69551-13020 · 69561-12050 · 69561-12090 · 69561-12100 · 69561-12110 |
| 69683 | Fuel filler cap lock core clip | 69581-14010 · 69681-20040 |
| 69685 | Lock cylinder liner | 69513-12020 · 69513-14010 · 69553-13020 · 69685-12010 |
| 69687 | Rear door lock cylinder stay | 69687-13020 · 69687-13030 |
