Toyota COROLLA 背门锁和背门把手 — Figure 6709

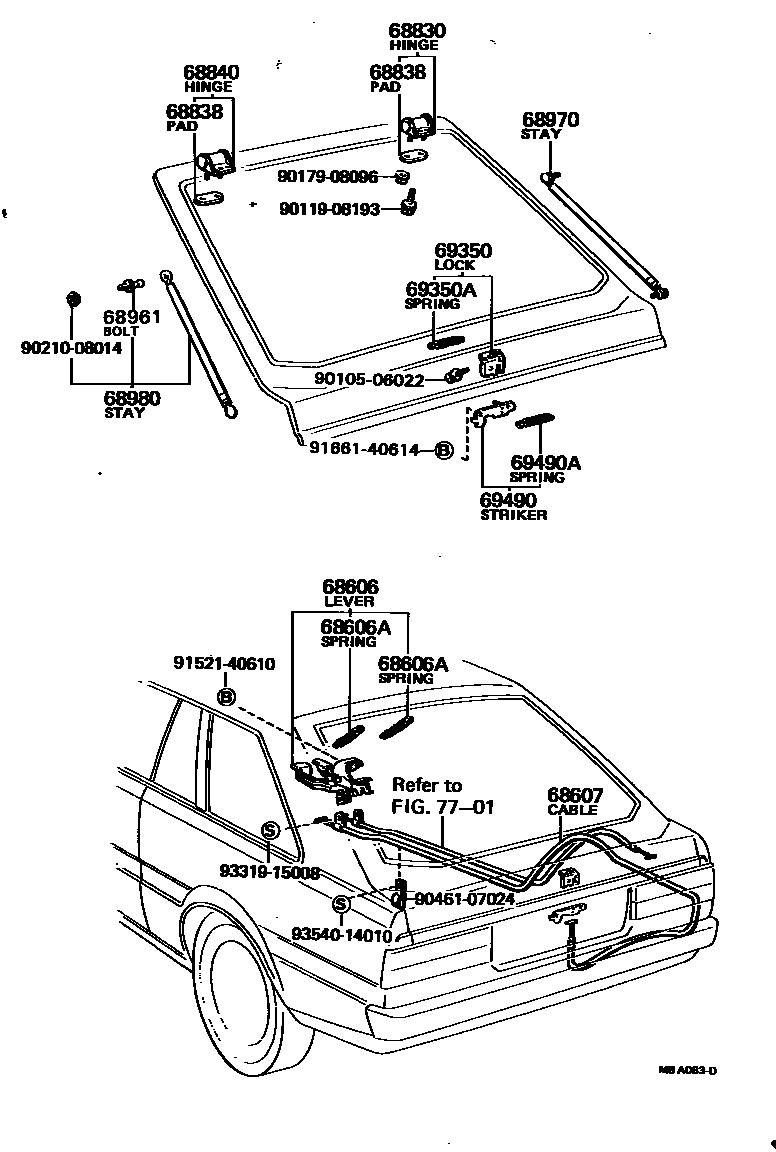

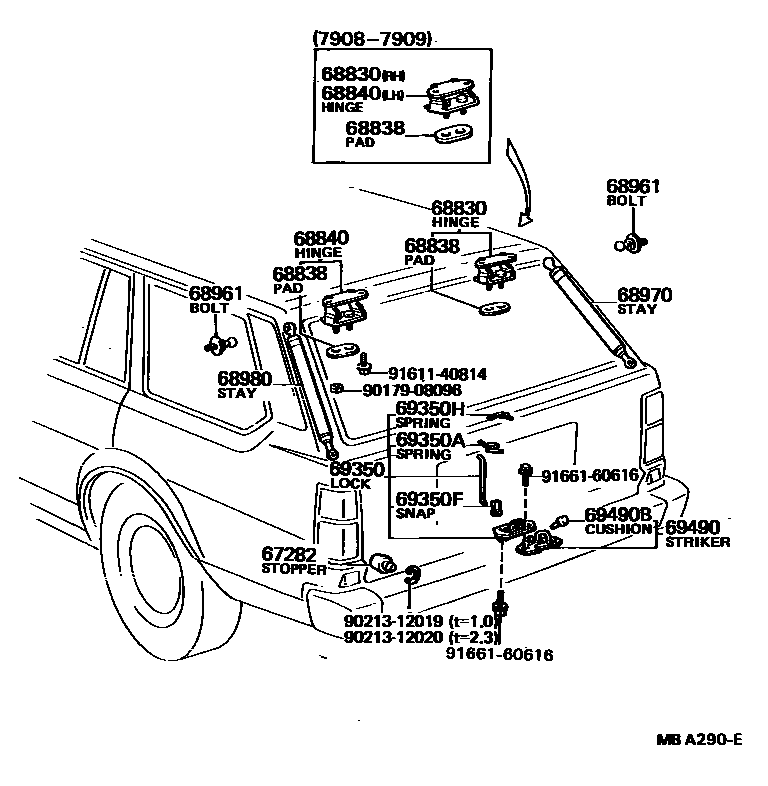

Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67282 | No. 1 rear door stop | 67281-13030 · 67281-13040 |
| 68606 | Rear door lock opening lever sub-assembly | 64606-12030 |
| 68606A | Tension spring (for the rear door lock opening lever) | 90506-09004 |
| 68607 | Rear door lock control cable sub-assembly | 64607-12070 |
| 68830 | Back door right hinge assembly | 68801-14020 · 68810-13070 · 68810-13071 |
| 68838 | Back door hinge No. 1 gasket | 68838-14020 · 68838-15010 |
| 68840 | Back door left hinge assembly | 68801-14020 · 68810-13070 · 68810-13071 |
| 68961 | Rear door support rod bolts | 68961-12010 · 68961-13010 · 68961-14010 |
| 68970 | Back door right support rod assembly | 68950-19105 · 68950-19115 · 68950-19125 · 68950-19135 · 68950-19145 · 68950-19155 · 68950-19165 · 68950-19255 · 68950-19275 |
| 68980 | Back door support rod assembly | 68950-19105 · 68950-19115 · 68950-19125 · 68960-19055 · 68960-19065 · 68960-19075 · 68960-19085 · 68960-19145 · 68960-19155 |
| 69350 | Rear door lock assembly | 69350-13040 · 69350-13041 · 69350-13060 · 69350-20010 |
| 69350A | Spring (for rear door lock) | 90506-07006 · 90508-08004 |
| 69350F | Door lock lever buckle | 69377-13020 · 69377-30020 |
| 69350H | Torsion spring (for rear door lock) | 90508-12027 |
| 69490 | Back door lock assembly | 69430-12040 · 69430-20020 · 69430-91255 |
| 69490A | Spring (for rear door latch) | 90506-08001 · 90506-08107 |
| 69490B | Cushion pad (for rear door latch) | 90541-06002 |
