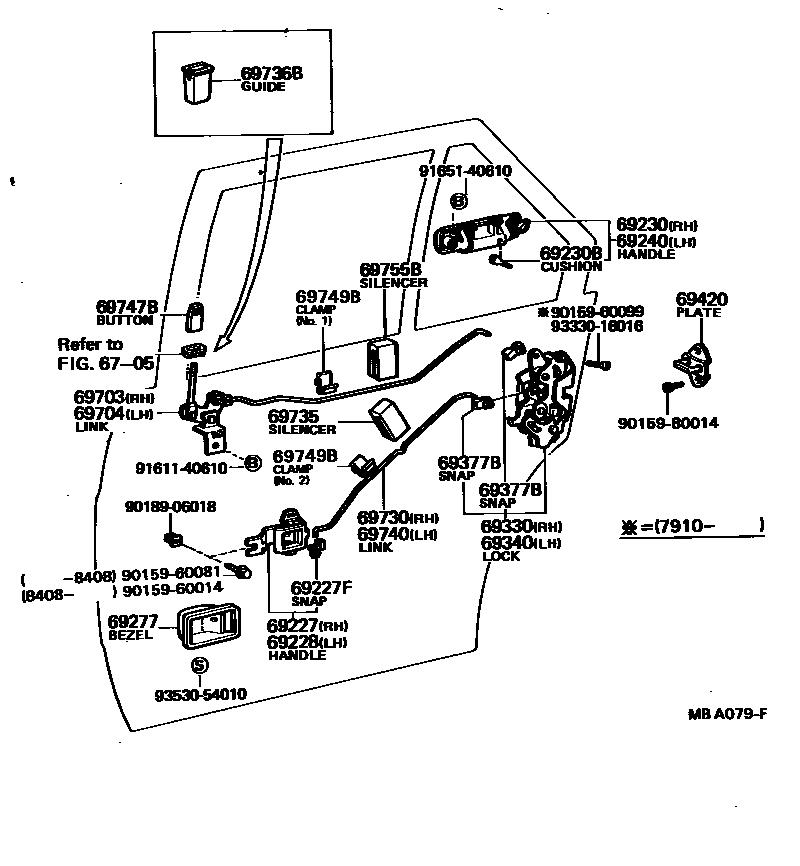

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69227 | Right rear door inner handle | 69205-20020 |
| 69227F | Buckle (for rear door inner handle) | 69273-30020 · 69279-12010 |
| 69228 | Left rear door inner handle | 69206-20020 |
| 69230 | Right rear door outer handle assembly | 69210-12071 · 69230-12040 |
| 69230B | Cushion pad (for rear door outer handle) | 90541-03021 |
| 69240 | Left rear door outer handle assembly | 69220-12071 · 69240-12040 |
| 69330 | Right rear door door lock assembly | 69330-12050 · 69330-12060 · 69330-12130 · 69330-12140 |
| 69340 | Left rear door lock assembly | 69340-12050 · 69340-12060 · 69340-12130 · 69340-12140 |
| 69377B | Rear door lock lever buckle | 69377-30020 |
| 69420 | Rear door lock plate assembly | 69410-12040 · 69410-12070 |
| 69703 | Right rear door lock control link sub-assembly | 69770-12010 |
| 69704 | Left rear door lock control link sub-assembly | 69780-12010 |
| 69730 | Right rear door opening control linkage assembly | 69713-12020 |
| 69735 | Rear door lock link silencer | 69759-12011 |
| 69736B | Rear door lock link guide block | 69736-12030 · 69736-22020 · 69736-22021 |
| 69740 | Left rear door opening control linkage assembly | 69714-12030 |
| 69749B | Rear door lock link clamp | 69749-12010 · 69749-30020 |
| 69755B | Rear door lock link silencer | 69759-30021 |
