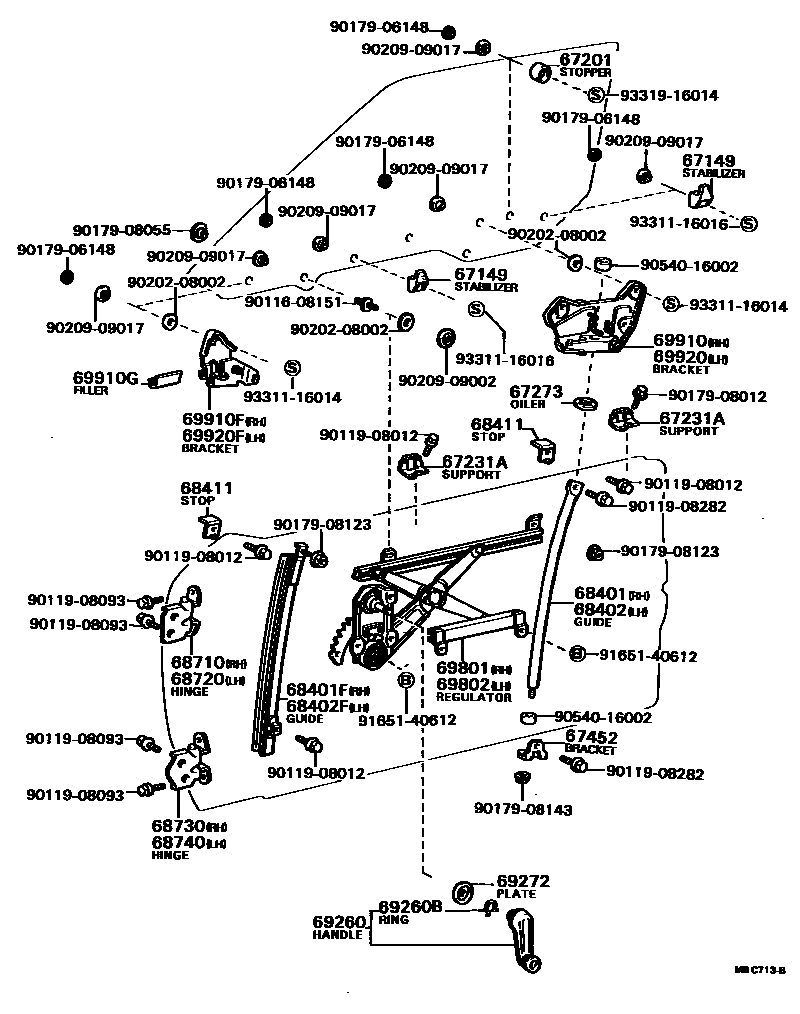

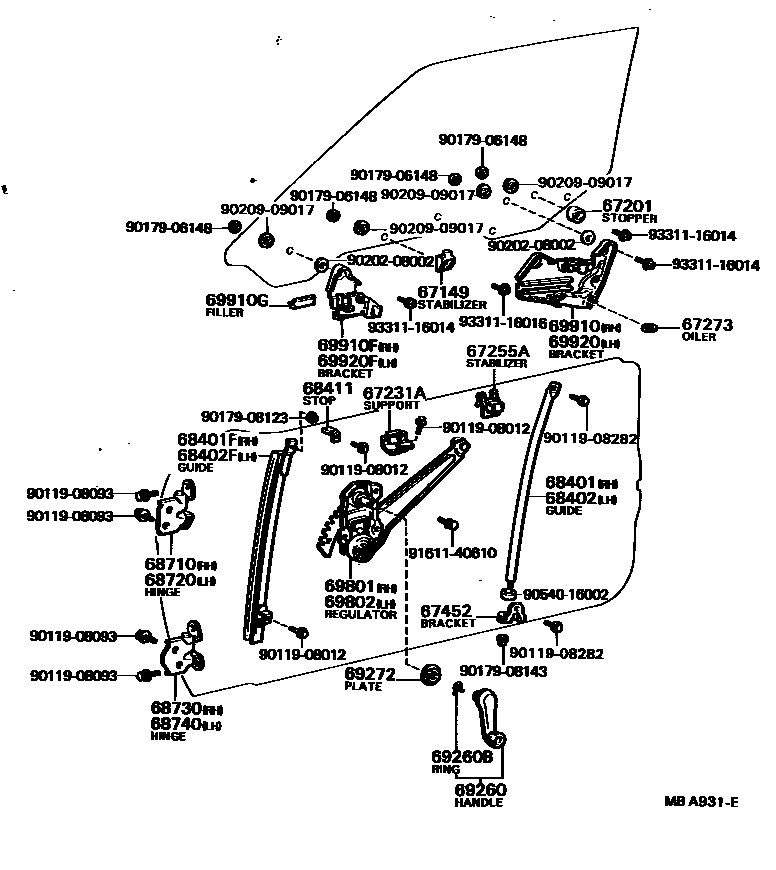

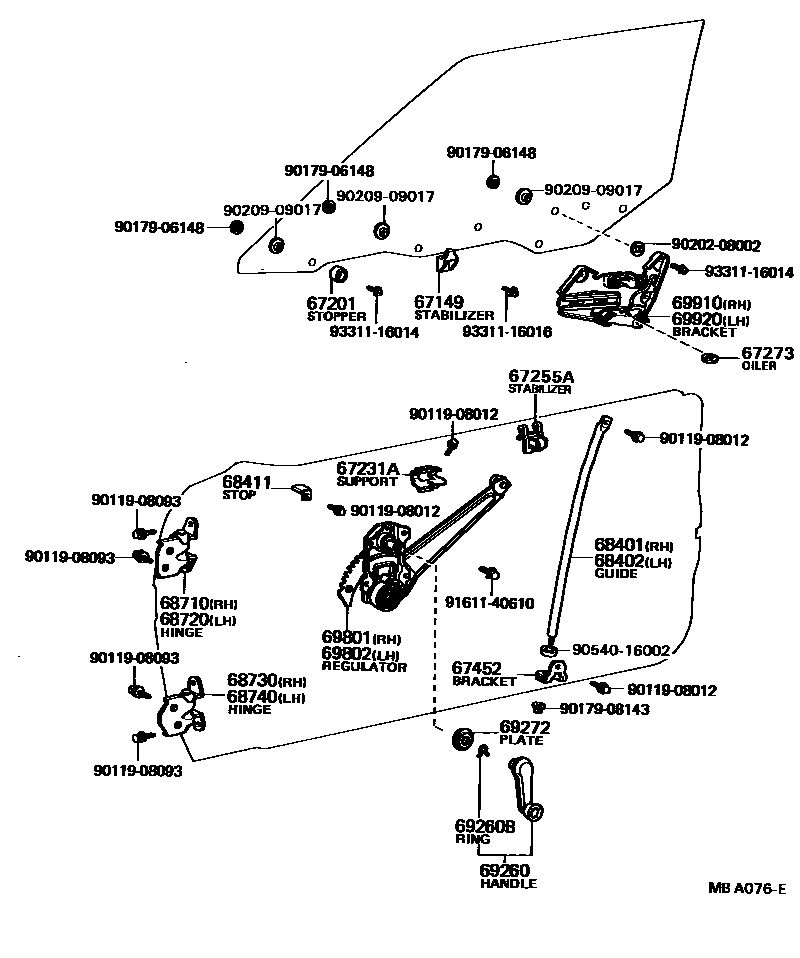

Toyota COROLLA 前门车窗升降器和合页 — Figure 6704
Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67149 | Front door glass stabilizer | 68149-14010 |
| 67201 | Door glass stop assembly (for front door) | 68147-12020 |
| 67231A | Front door trim panel bracket | 67231-14010 · 67231-22020 · 67231-95500 |
| 67255A | Front door glass outer stabilizer | 67255-12010 · 67255-14010 |
| 67273 | Front door window stay oiler | 67271-95800 · 67485-12020 |
| 67452 | Front door guide rail lower bracket | 67452-12080 |
| 68171 | Front door glass groove seal strip | 68171-22020 |
| 68401 | Right front door window glass guide channel sub-assembly | 67401-12120 |
| 68401F | Right front door window glass front guide groove sub-assembly | 67401-12130 |
| 68402 | Left front door window glass guide channel sub-assembly | 67401-12120 |
| 68402F | Left front door window glass front guide groove sub-assembly | 67402-12120 |
| 68411 | Front door window glass upper stopper | 62593-14040 |
| 68710 | Right front door upper hinge assembly | 68710-12070 · 68750-14010 |
| 68720 | Left front door upper hinge assembly | 68720-12070 · 68760-14010 |
| 68730 | Right front door lower hinge assembly | 68730-14020 · 68730-20070 |
| 68740 | Left front door lower hinge assembly | 68740-14020 · 68740-20070 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01002 · 90520-01274 |
| 69272 | Front door window lift inner handle plate | 69268-16010 · 69272-30010 · 69285-22010 |
| 69801 | Right front door window lifter sub-assembly | 69810-12140 · 69810-12150 · 69810-12151 · 69810-12152 |
| 69802 | Left front door window lifter sub-assembly | 69820-12140 · 69820-12150 · 69820-12151 · 69820-12152 |
| 69901 | Right front door glass groove sub-assembly | 69901-10050 · 69901-12050 · 69901-12080 · 69901-12140 · 69901-87002 |
| 69902 | Left front door glass groove sub-assembly | 69901-10050 · 69901-12050 · 69901-12080 · 69901-12140 · 69901-87002 |
| 69910 | Right front door glass bracket assembly | 69910-12010 · 69910-12011 |
| 69910F | Right front door glass front bracket sub-assembly | 69901-12100 · 69901-12101 |
| 69910G | Front door glass channel filler | 69971-12030 |
| 69920 | Left front door glass bracket assembly | 69920-12010 · 69920-12011 |
| 69920F | Left front door glass front bracket sub-assembly | 69902-12070 · 69902-12071 |
