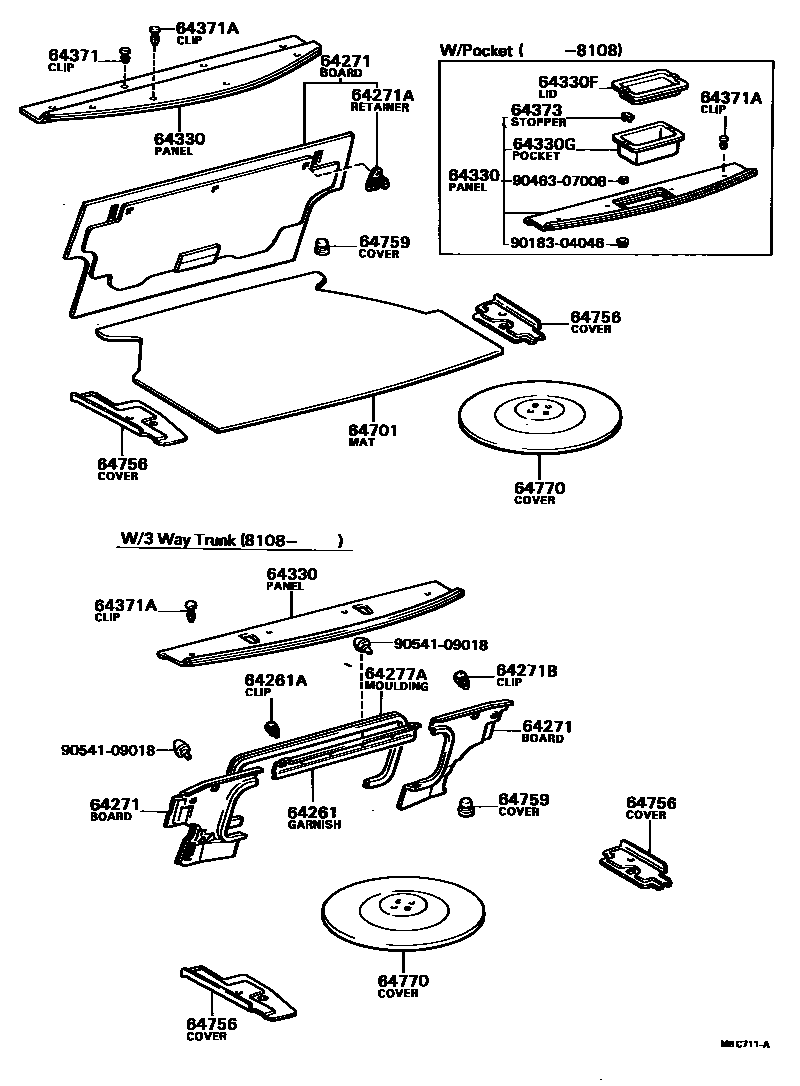

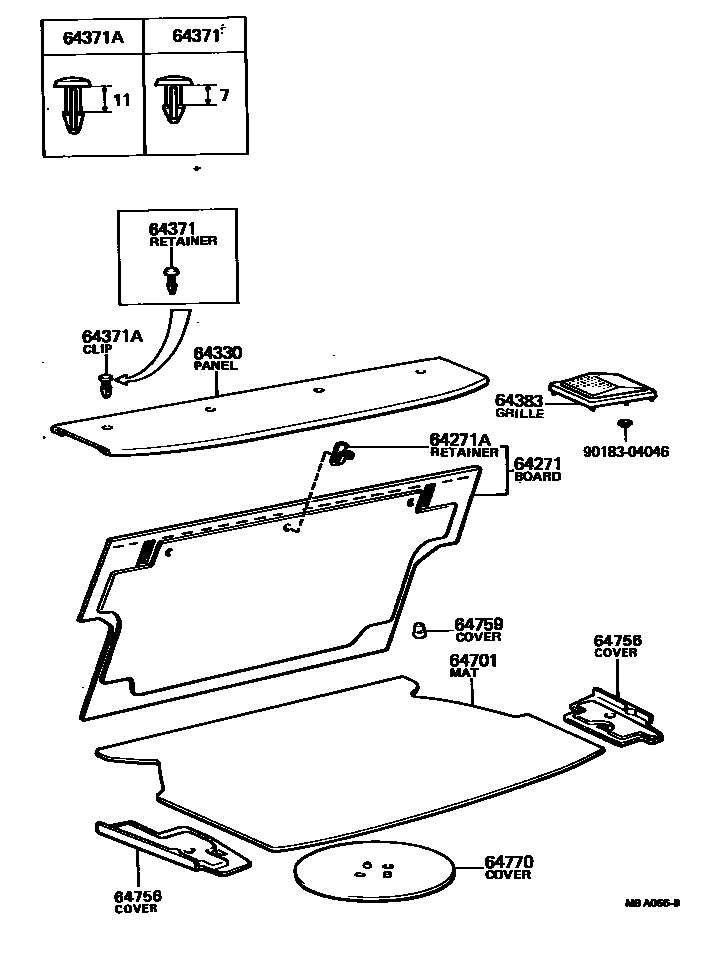

Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403
Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64271 | No. 1 compartment partition | 64270-12010 · 64270-12020 |
| 64271A | Car partition fixings | 62598-14020 |
| 64330G | Glove box decorative bag sub-assembly | 64309-12010 |
| 64373 | Glove box decorative panel stopper | 64373-12030 |
| 64383 | rear speaker grille | 64033-12010 |
| 64701 | Luggage pad assembly | 64701-12030 |
| 64756 | Trunk door side decorative cover | 58773-12010 · 58773-12020 · 58774-12010 · 58774-12020 |
| 64770 | Spare tire cover assembly | 64770-20030 |
