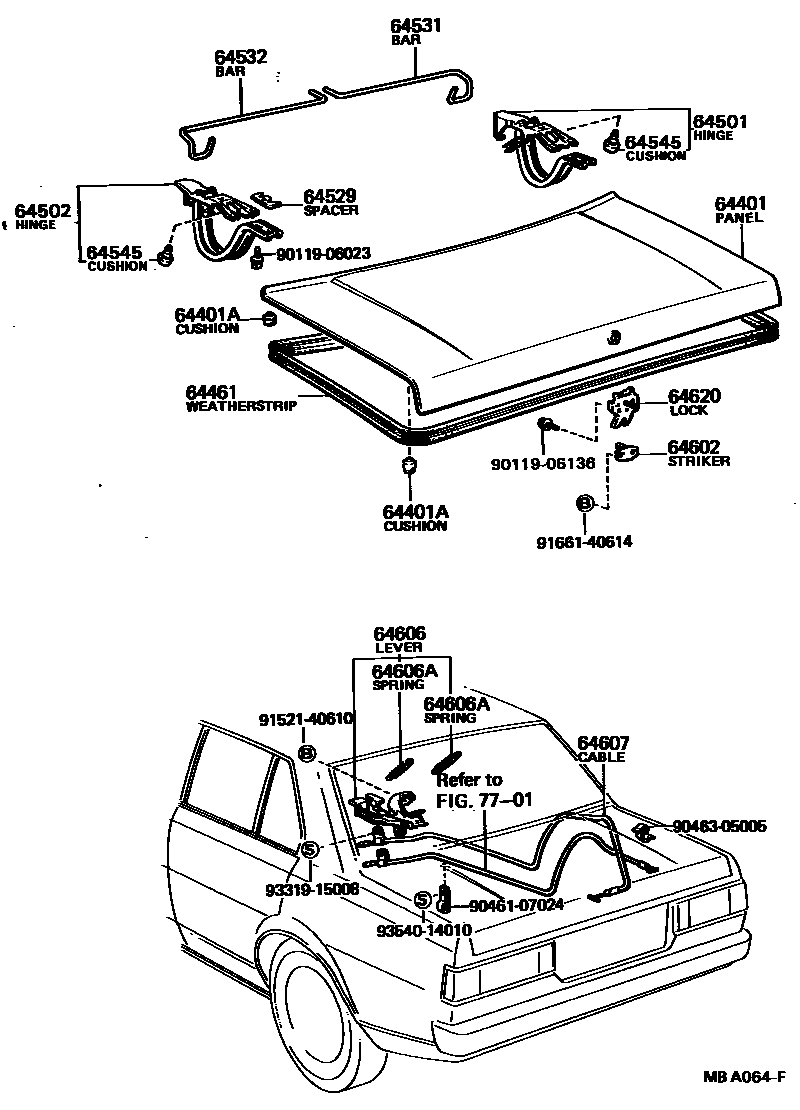

Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105
Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64401 | Trunk door panel sub-assembly | 64401-12906 · 64401-12907 · 64401-12912 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-07003 · 90541-09007 · 90541-09114 · 90541-09130 |
| 64461 | Trunk door seal | 64461-12100 · 64461-12190 |
| 64501 | Trunk door right hinge sub-assembly | 64510-12140 · 64510-12160 |
| 64502 | Trunk door left hinge sub-assembly | 64520-12140 · 64520-12150 |
| 64529 | Trunk door hinge spacer | 64529-20010 · 64529-22010 |
| 64531 | Trunk door right hinge torsion bar | 64531-12110 · 64531-12120 |
| 64532 | Trunk door left hinge torsion bar | 64532-12090 · 64532-12110 |
| 64545 | Trunk door hinge cushion | 90541-07007 · 90541-09013 · 90541-09014 |
| 64602 | Trunk door lock buckle sub-assembly | 64620-22030 |
| 64606 | Trunk door lock opening lever sub-assembly | 64606-12030 |
| 64606A | Tension spring (for trunk door lock opening lever) | 90506-09004 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-12060 |
| 64620 | Trunk door lock assembly | 64610-12020 |
