Toyota COROLLA 前围板消声板和地板消声垫 — Figure 5805

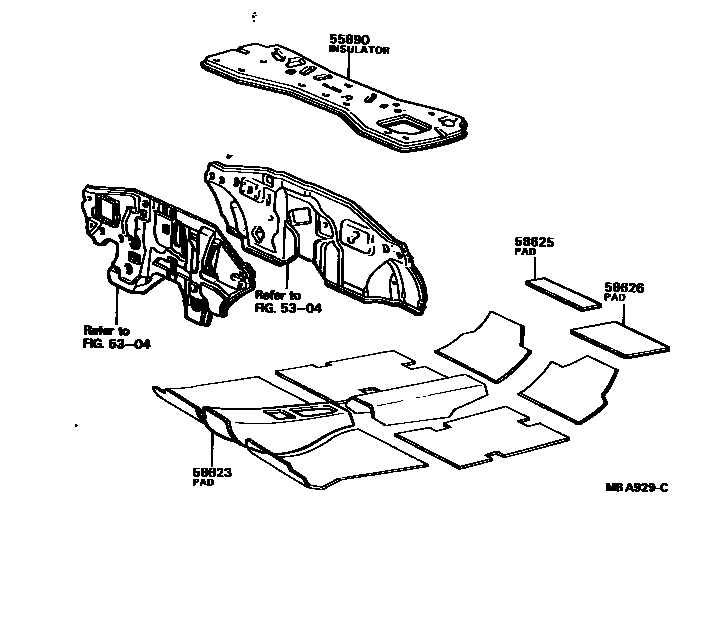

Toyota COROLLA EPC diagram 5805, 前围板消声板和地板消声垫, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55890 | Front wall upper cover heat insulation pad assembly | 55780-12010 · 55780-12011 · 55780-12020 · 55780-12021 |
| 58623 | Front floor center muffler mat | 58623-12070 |
| 58625 | Rear floor center muffler mat | 58626-13010 |
| 58626 | Rear floor sound absorbing mat | 58627-12010 |
