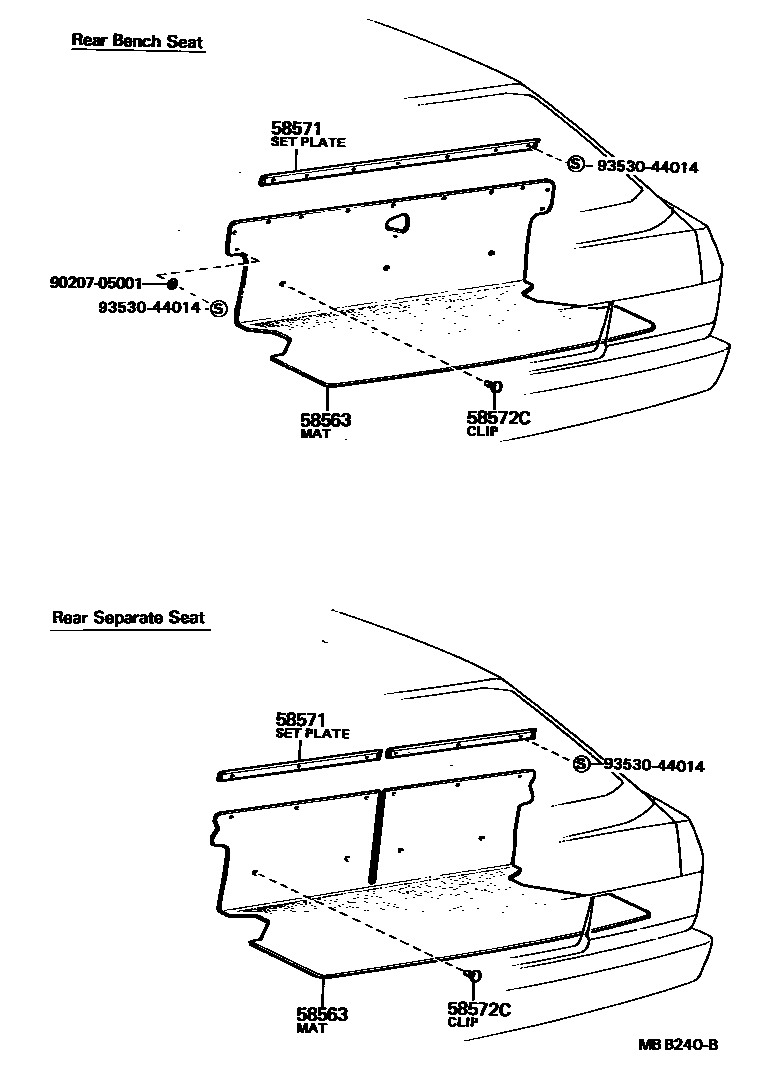

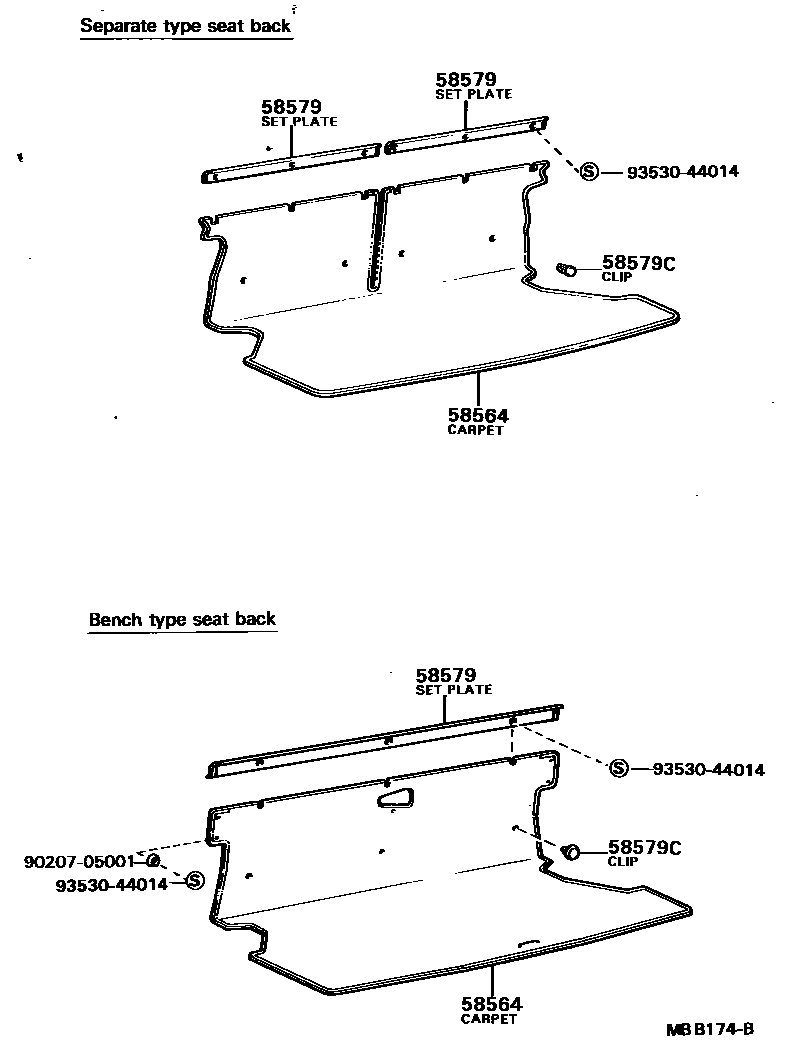

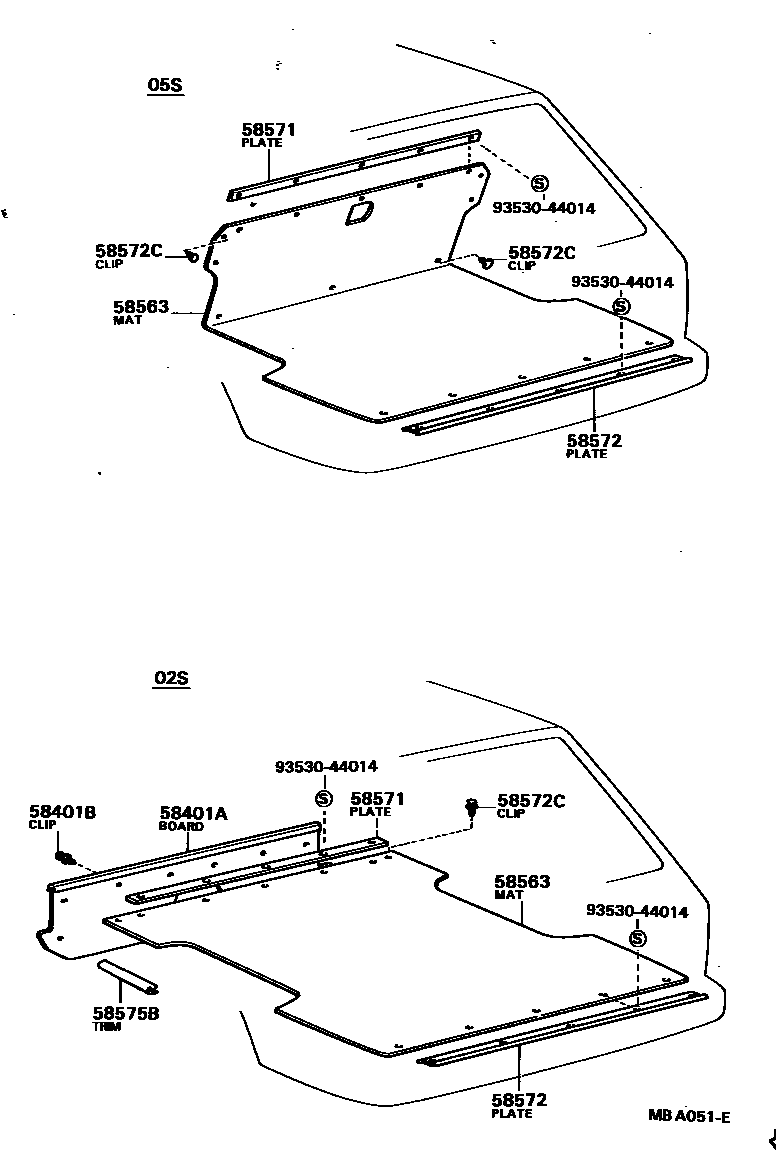

Toyota COROLLA 地板垫和地毯 — Figure 5804
Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 6 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58401A | No. 1 base plate sub-assembly | 58401-13030 |
| 58571 | Rear floor mat front fixing plate | 71882-13010 |
| 58572 | Rear floor mat rear fixing plate | 58573-13030 |
| 58575B | Rear floor decorative panel | 58575-13020 |
| 58579 | No. 1 rear carpet fixing plate | 71882-13010 |
| 58579A | No. 2 rear carpet fixing plate | 58573-13030 |
