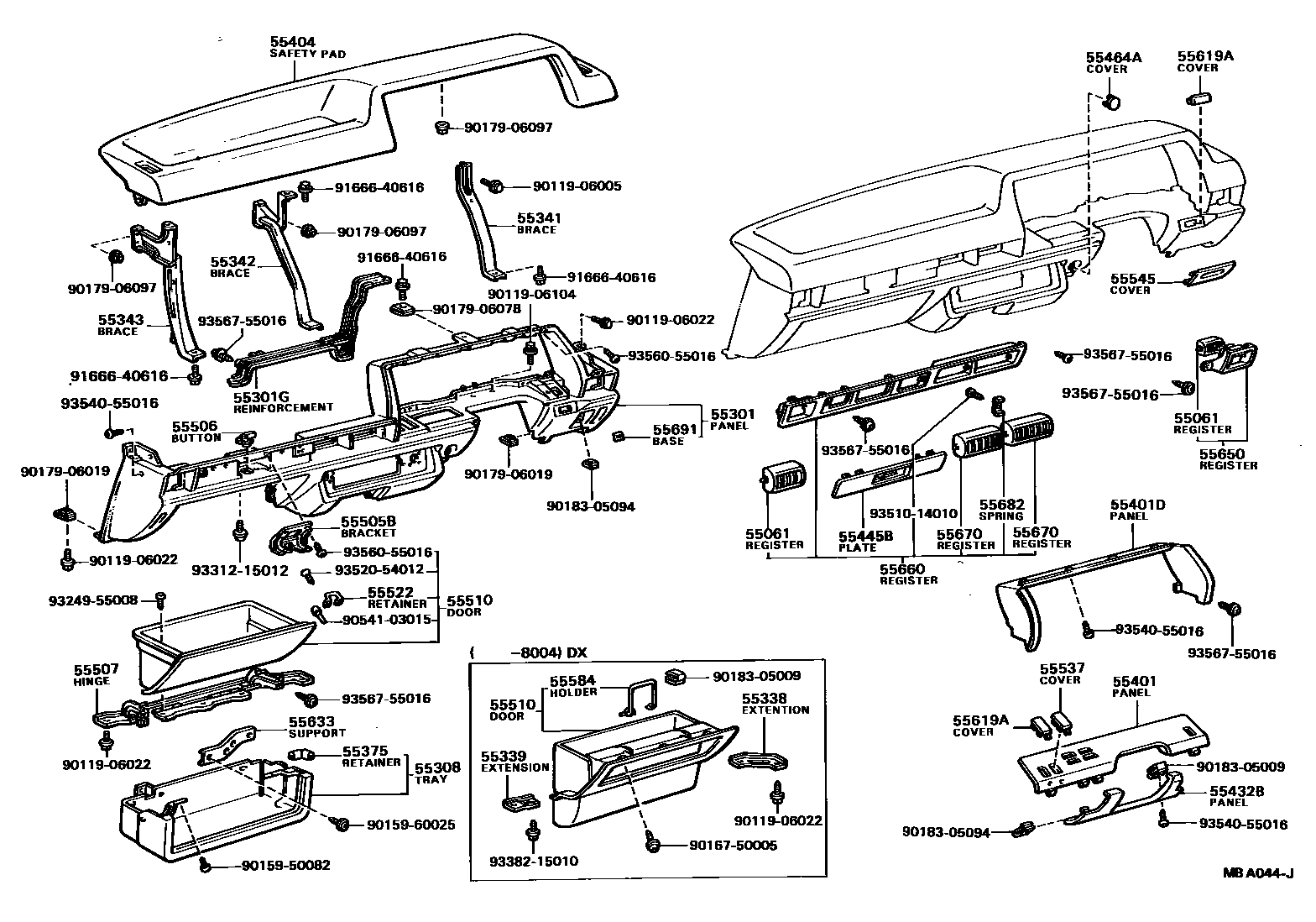

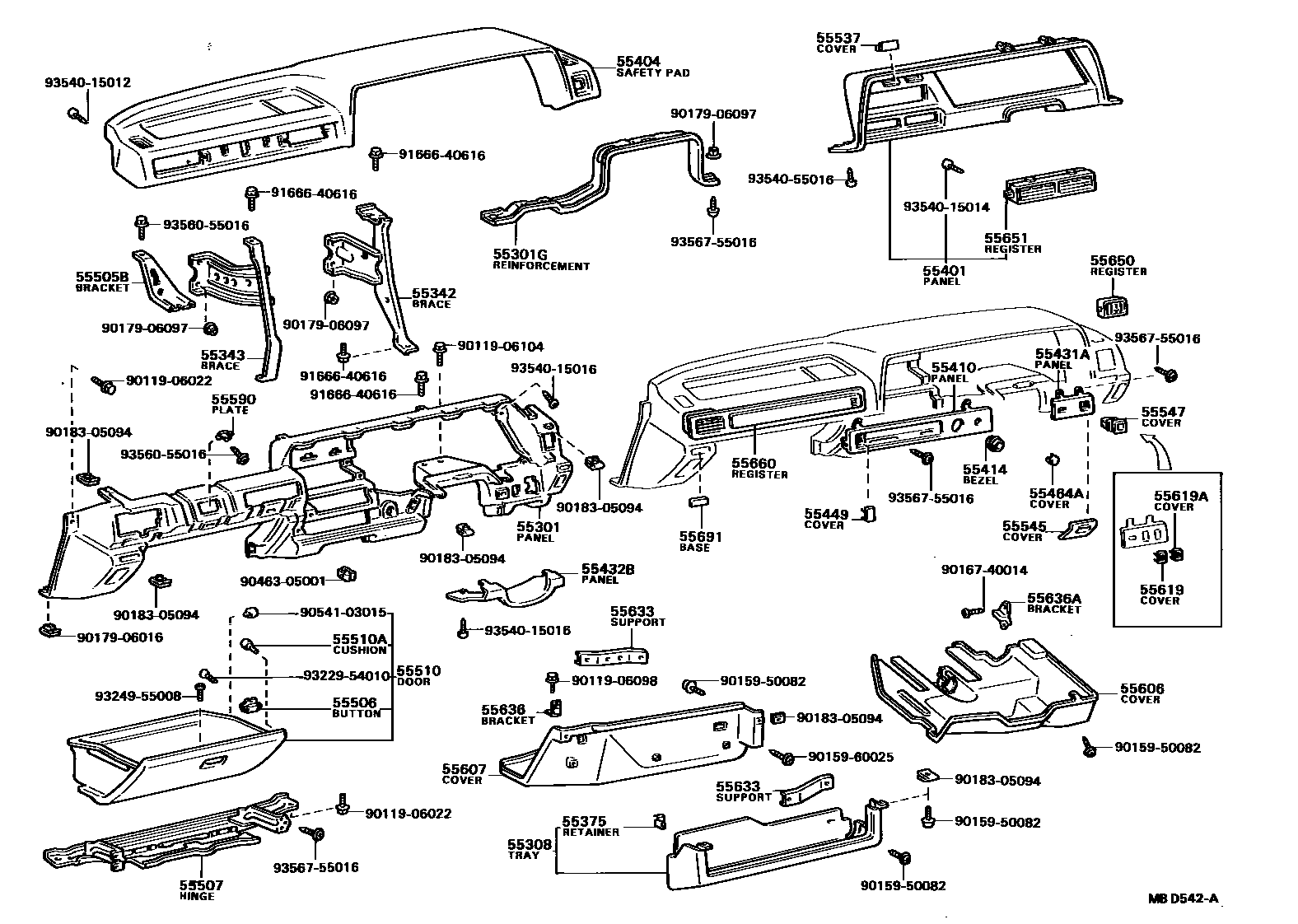

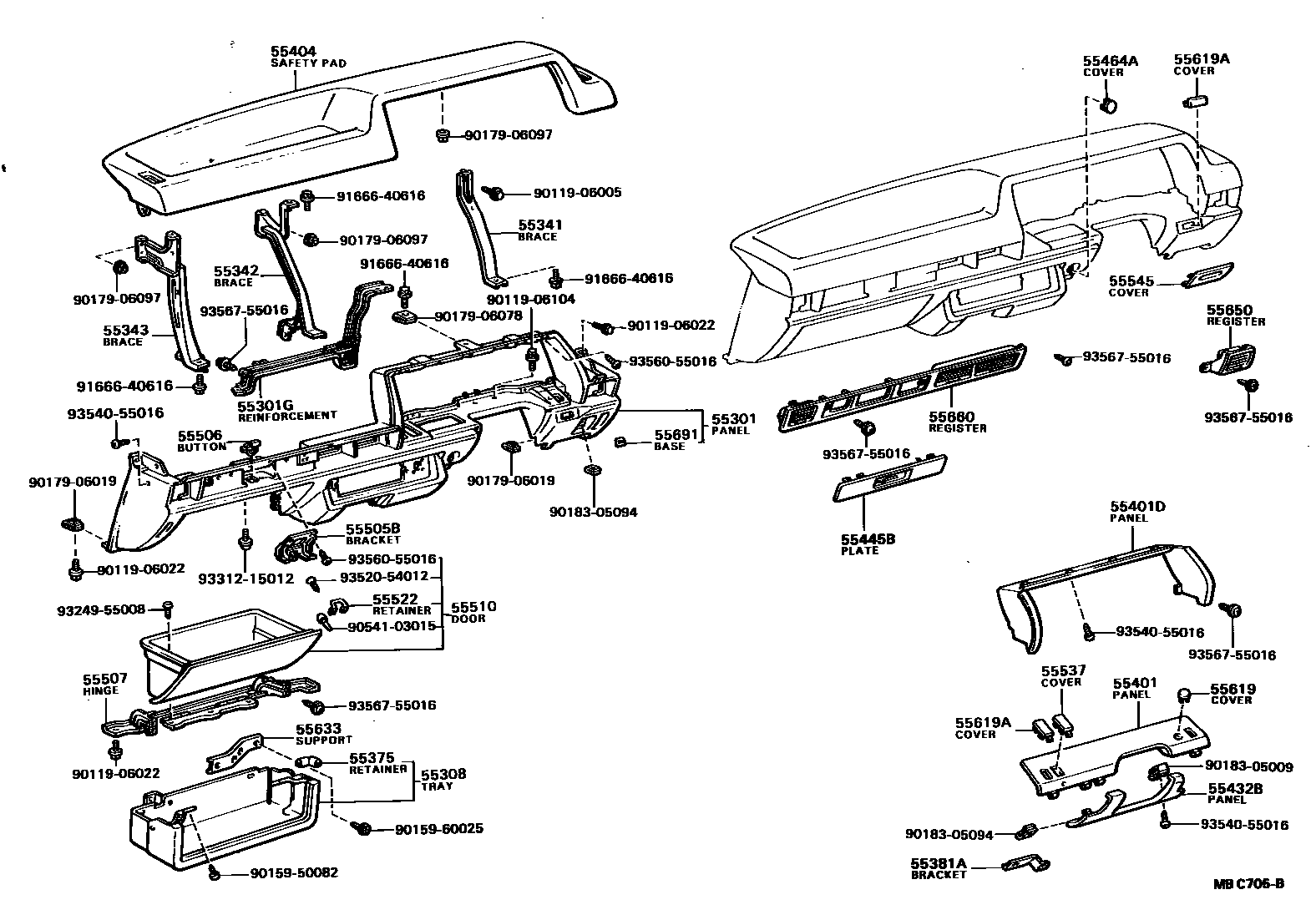

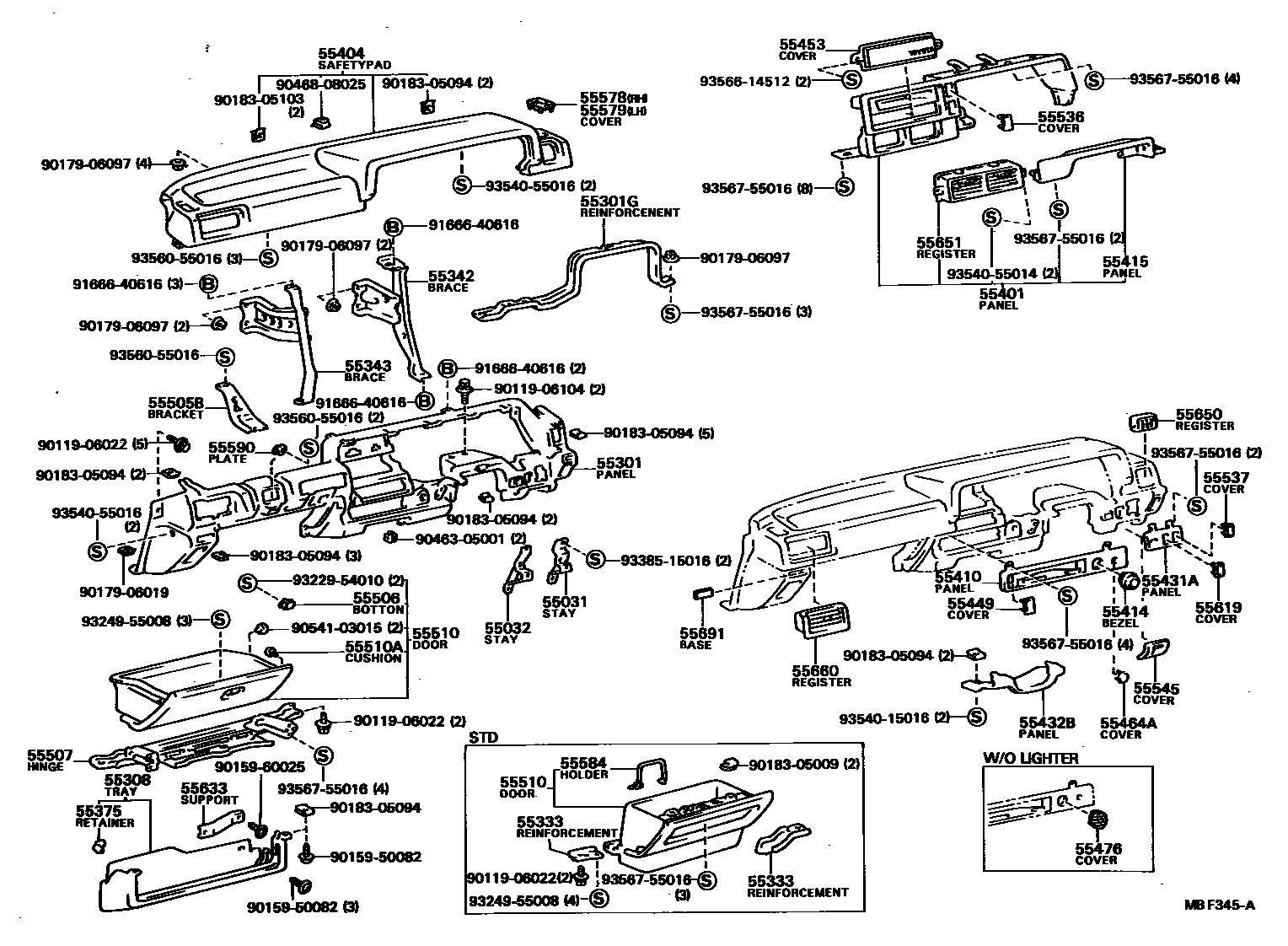

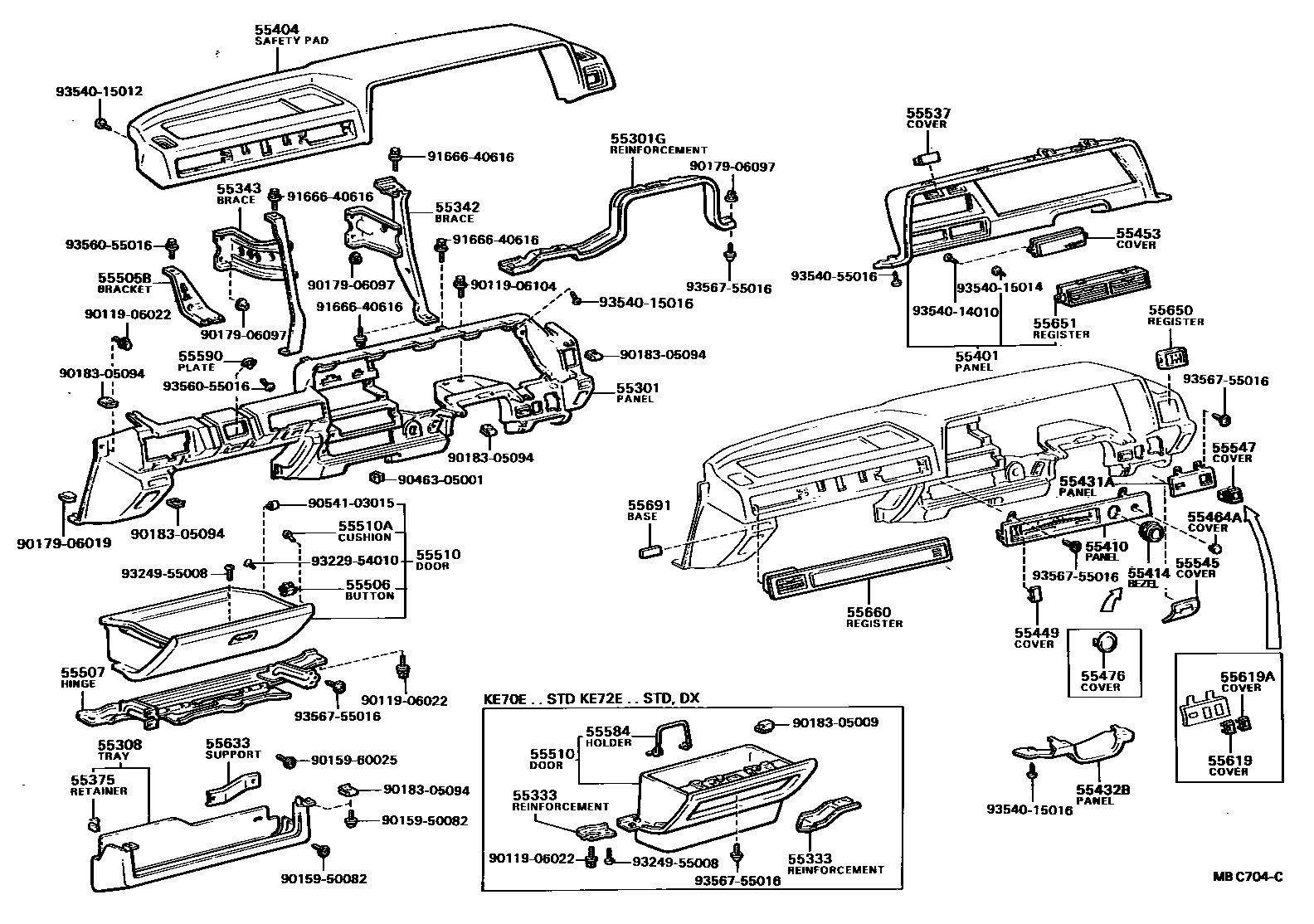

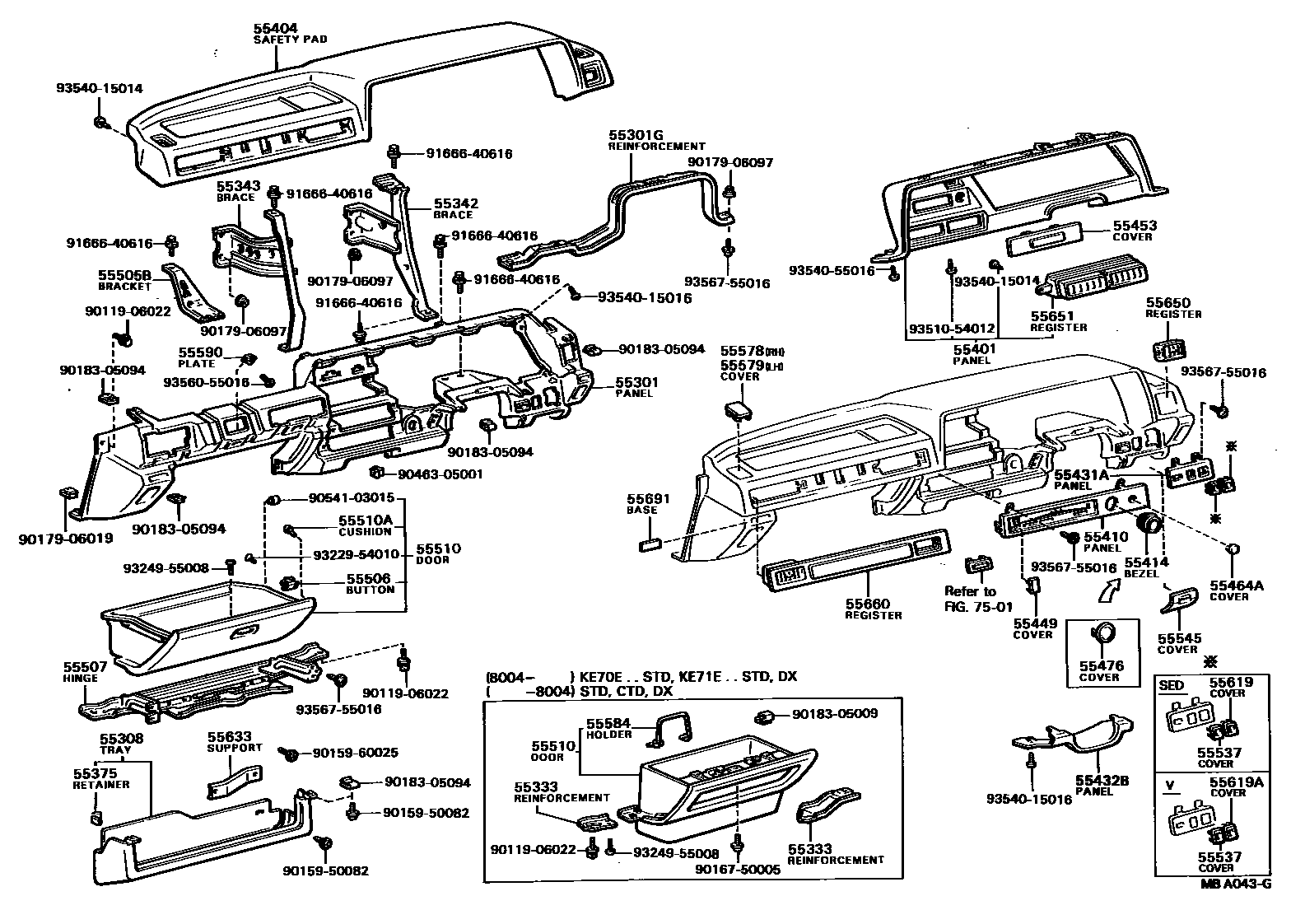

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 6 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55031 | Instrument panel reinforcement No. 1 | 55031-12010 |
| 55032 | Instrument panel reinforcement No. 2 | 55032-12010 |
| 55061 | No. 1 air register sub-assembly on the instrument panel | 55061-12050 · 55061-12060 |
| 55301G | Instrument panel reinforcement sub-assembly | 55305-12050 · 55305-12051 · 55305-12060 · 55305-12090 |
| 55333 | Instrument panel No. 3 reinforcement | 55333-12060 · 55334-12020 |
| 55338 | Instrument panel reinforcement extension No. 1 | 55338-12110 |
| 55339 | Instrument panel reinforcement extension No. 2 | 55339-12070 |
| 55341 | Instrument panel bracket No. 1 | 55341-12110 |
| 55342 | Instrument panel bracket No. 2 | 55307-12030 · 55307-12040 · 55307-12041 |
| 55343 | Dashboard No. 3 Bracket | 55308-12100 · 55308-12110 · 55308-12111 |
| 55375 | Instrument panel bottom bracket upper fixing piece | 55375-12010 |
| 55381A | Decorative panel mounting bracket | 55381-12030 |
| 55401 | Instrument cluster decorative panel sub-assembly | 55410-12630 · 55410-12631 · 55410-12640 · 55410-12641 · 55410-12642 · 55410-12650 · 55410-12651 · 55410-12660 · 55410-12661 · 55410-12731 · 55410-12830 · 55410-12840 · 55410-12870 · 55410-12880 · 55410-1A080 |
| 55401D | Decorative panel on instrument cluster | 55421-12110 |
| 55410 | Instrument cluster No. 2 decorative panel assembly | 55413-12250 · 55413-12260 · 55413-12270 · 55413-12271 · 55413-12290 · 55413-12291 · 55413-12300 · 55413-12350 · 55413-12370 · 55413-12380 · 55413-12390 · 55413-12410 |
| 55414 | Cigarette lighter hole frame | 55477-12050 |
| 55431A | Dashboard decorative panel | 55431-12030 · 55431-12040 · 55431-12041 · 55431-12050 · 55431-12070 · 55431-12071 · 55431-12100 · 55431-12110 · 55431-12111 · 55431-12160 · 55431-12161 · 55431-12210 · 55431-12220 · 55431-12230 · 55431-12240 · 55431-12260 · 55431-12270 · 55431-12340 · 55431-12390 · 55431-12400 · 55431-12410 |
| 55445B | Dashboard decorative panel | 55445-12040 · 55445-12050 |
| 55449 | Cooler switch hole cover | 55538-12030 · 55538-12040 · 55538-12060 |
| 55453 | Radio tuner opening cover | 55522-12060 · 55522-12100 |
| 55476 | Cigarette lighter hole cover | 55548-12010 |
| 55505B | Glovebox lid lock mounting bracket | 55378-12060 · 55378-12070 |
| 55506 | Glove box lid lock button sub-assembly | 55560-12040 |
| 55507 | Glove box cover hinge sub-assembly | 55505-12030 · 55505-12040 |
| 55510A | Cushion (for glovebox lid) | 55557-16010 |
| 55522 | Glovebox plug-in fasteners | 55561-12030 |
| 55537 | Rear window defogger switch hole cover | 55539-12020 |
| 55547 | Remote control rearview mirror hole cover | 55547-12010 |
| 55584 | map holder | 55584-12020 |
| 55590 | Glove box cover lock plate assembly | 55590-12010 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-12020 |
| 55619 | switch hole cover | 55539-12030 |
| 55619A | No. 2 switch hole cover | 55539-12020 |
| 55633 | Dashboard bottom bracket No. 2 bracket | 55632-12020 · 55632-12050 |
| 55636 | Instrument panel bottom cover bracket No. 1 | 55636-12010 |
| 55636A | Instrument panel bottom cover bracket No. 2 | 55637-12010 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-12050 · 55650-12080 · 55650-12081 |
| 55651 | Dashboard air register No. 1 | 55670-12020 · 55670-12060 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-12090 · 55660-12120 · 55660-12121 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-12050 · 55670-14020 |
| 55682 | Dashboard air register bracket spring | 58914-20010 |
| 55691 | Dashboard nameplate base | 55512-12080 · 55691-12040 |
